HumsiENK 12V LiFePO4 Lithium Battery 300Ah (314Ah) User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your HumsiENK 12V LiFePO4 Lithium Battery. This high-capacity battery is designed for various applications including RVs, marine vessels, home energy storage, and off-grid systems, offering stable power output and a long cycle life. Please read this manual thoroughly before installation and operation.

2. Safety Guidelines

Lithium Iron Phosphate (LiFePO4) batteries are known for their safety and stability. However, proper handling and installation are crucial to prevent damage and ensure user safety.

• Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
• Ensure all connections are secure and correctly polarized (positive to positive, negative to negative) to avoid short circuits.
• Do not disassemble, puncture, or modify the battery.
• Avoid exposing the battery to extreme physical shock or fire.
• Store the battery in a cool, dry place away from direct sunlight and flammable materials.
• Use only compatible LiFePO4 chargers.

3. Product Features

The HumsiENK 12V LiFePO4 battery offers advanced features for reliable power delivery:

• High Energy Capacity: Provides 4019 Wh of energy when fully charged, with a maximum power output of 1280W.
• Bluetooth 5.0 Connectivity: Real-time monitoring of voltage, temperature, and charge status via the HumsiENK Smart App (iOS/Android).
• Extended Lifespan: Features Grade A+ cells, offering a lifespan of up to 10 years and over 15,000 deep cycles.
• Advanced Battery Management System (BMS): Integrated 200A BMS protects against overcharging, overdischarging, overcurrent, and short circuits. Includes low-temperature cutoff.
• Compact and Lightweight Design: Measuring 15.1 × 9.8 × 7.6 inches and weighing 59.5 pounds, it offers high energy density in a space-saving form factor.
• Scalable Energy Storage: Supports 4S4P configuration, allowing for systems up to 51.2V 1256Ah, totaling 64.3 kWh.

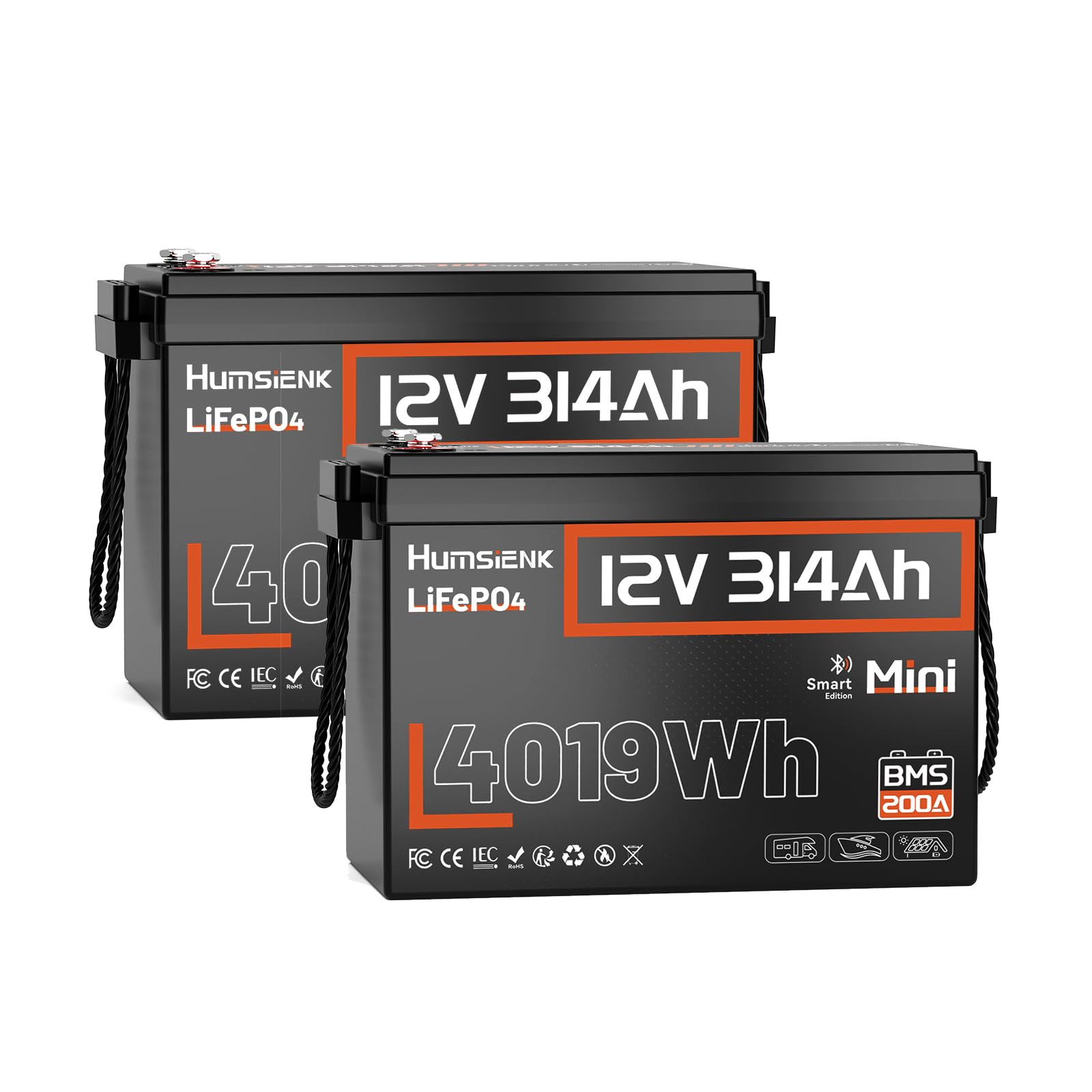

Image: Overview of HumsiENK 12V 314Ah LiFePO4 Battery features.

Image: Front view of the HumsiENK 12V 314Ah LiFePO4 Battery.

4. Setup and Installation

Before installation, ensure the battery is fully charged or at a sufficient state of charge. The battery is equipped with M8 terminals for secure connections.

4.1 Physical Dimensions and Weight

• Dimensions: 15.1 × 9.8 × 7.6 inches (38.4 × 24.9 × 19.3 cm)
• Weight: 59.5 lbs (27 kg)

Image: HumsiENK battery dimensions and weight.

4.2 Connecting Multiple Batteries (4S4P Configuration)

The HumsiENK battery supports configurations up to 4 batteries in series (4S) and 4 batteries in parallel (4P), allowing for a maximum system of 51.2V 1256Ah (64.3 kWh). When connecting batteries in series or parallel, ensure all batteries are of the same model, capacity, and state of charge before connection. Consult a qualified electrician for complex installations.

Image: Example of a 4S4P battery configuration for large-scale energy storage.

5. Operating Instructions

5.1 Bluetooth Monitoring

Download the HumsiENK Smart App (available on iOS and Android) to monitor your battery's performance in real-time. The app displays critical information such as voltage, temperature, and charge/discharge status.

1. Download and install the HumsiENK Smart App.
2. Enable Bluetooth on your mobile device.
3. Open the app and connect to your HumsiENK battery.
4. Monitor battery parameters and adjust settings as needed.

Image: Real-time battery monitoring via the HumsiENK Smart App.

5.2 Operating Temperature

The battery is designed to operate smoothly in temperatures ranging from -4°F (-20°C) to 158°F (70°C). The integrated BMS includes a low-temperature cutoff feature, automatically shutting down below -4°F (-20°C) to prevent irreversible damage and ensure longevity in extreme climates.

5.3 Charging

The battery supports various charging methods:

• Dedicated LiFePO4 Charger
• Solar Panel with MPPT Charge Controller
• Generator

Ensure your charging source is compatible with 12V LiFePO4 batteries and adheres to the recommended charging parameters to maximize battery life.

Image: HumsiENK battery connected to a charger.

6. Maintenance and Longevity

The HumsiENK LiFePO4 battery is designed for minimal maintenance and long-term performance.

6.1 Battery Management System (BMS)

The integrated 200A BMS actively monitors and protects the battery cells from:

• Overcharging
• Over-discharging
• Overcurrent
• Short circuits
• High/Low temperature (with cutoff)

Image: BMS protection features.

6.2 Cycle Life

With over 15,000 deep cycles, this battery is built for durability and long-term use, significantly outlasting traditional lead-acid batteries.

7. Troubleshooting

If you encounter issues with your HumsiENK battery, consider the following:

• No Power Output: Check all cable connections for tightness and correct polarity. Verify the battery's state of charge via the Bluetooth app. The BMS may have activated a protection mode (e.g., low voltage, overcurrent).
• Not Charging: Ensure the charger is compatible with LiFePO4 batteries and is functioning correctly. Check the battery temperature via the app; charging may be inhibited if the temperature is too low (below 32°F/0°C) or too high.
• Bluetooth Connectivity Issues: Ensure your device's Bluetooth is enabled and within range. Restart the app or your device if necessary.
• Reduced Performance: Over time, all batteries experience some capacity degradation. Ensure the battery is operating within its specified temperature range and not consistently subjected to extreme discharge depths.

For persistent issues, refer to the warranty and support section for assistance.

8. Specifications

9. Warranty and Support

HumsiENK provides a five-year warranty for all batteries. For any questions or technical assistance, please contact our customer support team. We offer 24-hour friendly and professional customer support.

Contact Information: service@humsienk.com
