Kuntech KT9122 Automotive Smoke Leak Detector Instruction Manual

1. Introduction and Overview

The Kuntech KT9122 Automotive Smoke Leak Detector is a versatile diagnostic tool designed to identify leaks in various vehicle systems. It features a built-in air pump and offers both air and smoke modes for precise leak detection.

Key Features:

• Multifunction: Capable of testing pipe systems, car sealing, fuel tank systems, exhaust systems, and intake systems. Suitable for all cars, motorcycles, light trucks, and boats.
• Air Mode & Smoke Mode: Produces fog within 4 seconds for accurate leak identification.
• Safety Operation: Uses baby oil or mineral oil to generate harmless smoke. Maximum fume filling should not exceed 30ml per use.
• Intelligent Protection: Features overheating protection that automatically powers off the unit at extreme temperatures, ensuring operator and equipment safety.
• Lightweight and Portable: Weighs only 2.8kg, making it easy to store and transport.

2. Product Contents

The Kuntech KT9122 package includes the following components:

• Smoke Machine Unit (KT-9122)
• Discharge Pipe
• Special Power Cable (with alligator clips for 12V DC battery connection)
• Multifunctional Side Leakage Plug
• Universal Adapter
• Adapter Replacement Airbag
• Universal Adapter Clamp
• Special Liquid Bottle (250ml capacity for test oil)
• Hook for hanging the unit

3. Specifications

Detailed specifications for the Kuntech KT9122 Automotive Smoke Leak Detector:

4. Safety Information

Adhere to the following safety guidelines when operating the Kuntech KT9122:

• Use only baby oil or mineral oil as the test fluid. These are designed to produce harmless smoke.
• Do not exceed 30ml of fume oil when filling the unit to prevent overfilling and potential damage.
• The device is equipped with overheating protection. It will automatically power off if the internal temperature becomes too high, safeguarding both the operator and the equipment.
• Ensure proper ventilation when operating the smoke leak detector in enclosed spaces.
• Always connect the power cables correctly (red to positive, black to negative) to avoid electrical damage.

5. Setup

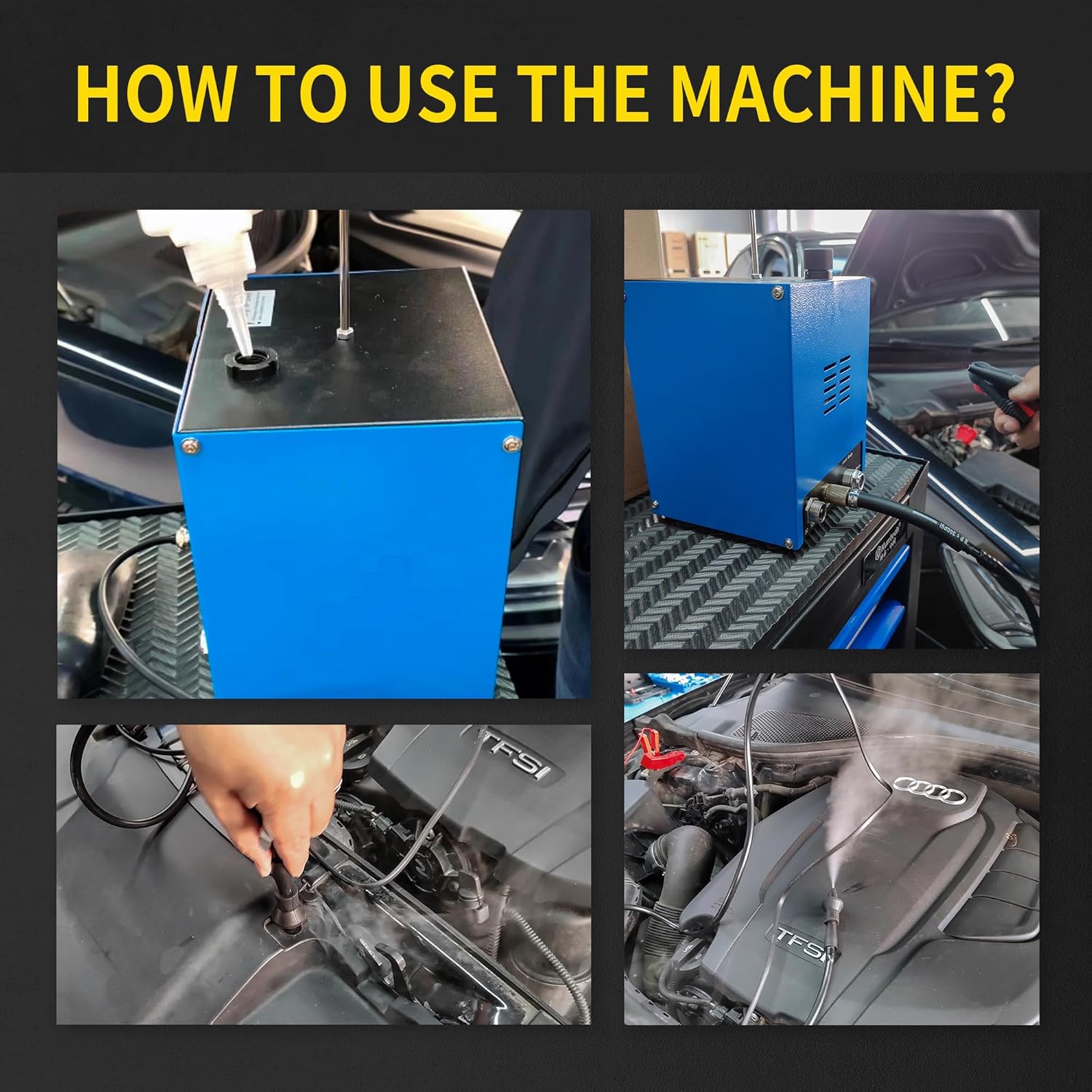

Follow these steps to set up your Kuntech KT9122 Automotive Smoke Leak Detector:

1. Install the Hook: Screw the provided hook into the designated hole on the top of the smoke machine unit. This allows you to hang the unit securely during operation.
2. Connect Power Cables: Attach the special power cable to the 'DC 12V' port on the unit. Connect the red alligator clip to the positive (+) terminal of your vehicle's 12V battery and the black alligator clip to the negative (-) terminal. Ensure your vehicle is turned on for power.
3. Connect Smoke Hose: Connect the smoke outlet hose to the 'Smoke Outlet' port on the unit.
4. Fill with Test Oil: Unscrew the oil cap on the top of the unit. Using the special liquid bottle, carefully pour 10-20ml of baby oil or mineral oil into the fill port. Do not exceed 30ml. Replace the cap securely.

6. Operating Instructions

Once the unit is set up, proceed with leak detection:

1. Power On: Flip the main switch on the unit to the 'Smoke' position. The 'Smoke lamp' indicator will illuminate.
2. Smoke Generation: The unit will begin producing smoke within approximately 4 seconds.
3. Connect to Vehicle System: Select the appropriate adapter (e.g., universal adapter, multifunctional side leakage plug) for the system you intend to test (e.g., intake manifold, vacuum lines, EVAP system). Securely connect the adapter to the vehicle's system.
4. Introduce Smoke: Insert the smoke hose into the adapter, allowing smoke to fill the system.
5. Observe for Leaks: Carefully inspect the entire system for any visible smoke escaping. Smoke indicates a leak point.
6. Air Mode (Optional): For systems where smoke might be too dense or for initial pressure checks, switch to 'Air' mode to introduce air without smoke.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your smoke leak detector:

1. Drain Remaining Oil: After each use, ensure to drain any remaining test oil from the unit. The 'Oil Drain' port is located on the side of the unit for easy access. This prevents potential damage from inverting the product.
2. Cleaning: Wipe down the unit and accessories with a clean, dry cloth after use. Avoid using harsh chemicals that may damage the device.
3. Storage: Store the smoke leak detector in a cool, dry place, away from direct sunlight and extreme temperatures.

8. Troubleshooting

If you encounter issues with your Kuntech KT9122, consider the following:

• No Smoke Output:
  • Check if the power cables are securely connected to the vehicle's 12V battery and the unit.
  • Ensure the unit is switched to 'Smoke' mode.
  • Verify that there is sufficient test oil in the reservoir.
  • Check for any blockages in the smoke hose or adapters.
• Weak Smoke Output:
  • Ensure the test oil level is adequate.
  • Check all connections for tightness to prevent air leaks within the testing setup.
  • Allow the unit a few extra seconds to heat up and generate full smoke.
• Unit Powers Off Unexpectedly:
  • This may indicate the overheating protection has activated. Allow the unit to cool down before resuming operation.
  • Ensure the unit is operating in a well-ventilated area.

9. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the official Kuntech website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
