Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your LZBEITEM Large Outdoor Dog Kennel. Please read all instructions carefully before assembly and use to ensure proper setup and safe operation.
Safety Information
- Always supervise pets, especially during initial use.
- Ensure all connections are secure and tightened before placing a pet inside.
- Place the kennel on a level, stable surface.
- Regularly inspect the kennel for any damage or loose parts. Repair or replace as needed.
- Keep children away from the assembly area.
- Do not modify the kennel structure, as this may compromise its integrity and safety.
Package Contents
Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer support.
- Galvanized Steel Frame Tubes
- Chain Link Fence Panels
- UV-Resistant Canopy Cover
- Connectors and Clamps
- Lockable Door Assembly
- Ground Nails/Stakes
- Assembly Hardware (bolts, nuts, washers)
Assembly Instructions
Follow these steps carefully to assemble your outdoor dog kennel. Two people are recommended for easier assembly.
Step 1: Unpack and Identify Components
Carefully remove all parts from the packaging. Lay them out and compare them against the package contents list to ensure everything is present.
Image: Close-up view of a galvanized metal pipe, illustrating the sturdy material used for the kennel frame.
Image: A connector piece, used to join the galvanized steel frame tubes.
Step 2: Assemble the Base Frame
Connect the horizontal and vertical galvanized steel tubes using the provided connectors and hardware to form the base perimeter of the kennel. Ensure all connections are finger-tight initially.
Step 3: Attach Chain Link Fence Panels
Attach the chain link fence panels to the assembled frame using the clamps and hardware. Work your way around the perimeter, ensuring the panels are taut. This is crucial for stability and to prevent gaps.
Image: A detailed view highlighting the galvanized wire mesh, the sturdy construction of the frame, and the solid connection points.
Step 4: Install the Door
Integrate the lockable door assembly into the designated opening in the frame. Secure it firmly with the provided hinges and locking mechanism. Test the door to ensure it opens and closes smoothly and locks securely.
Step 5: Install the Roof Frame and Canopy Cover
Assemble the roof frame structure. Once the roof frame is secure, drape the UV-resistant canopy cover over it. Secure the cover to the frame using the attached bungee cords or ties, ensuring it is taut to prevent water pooling.

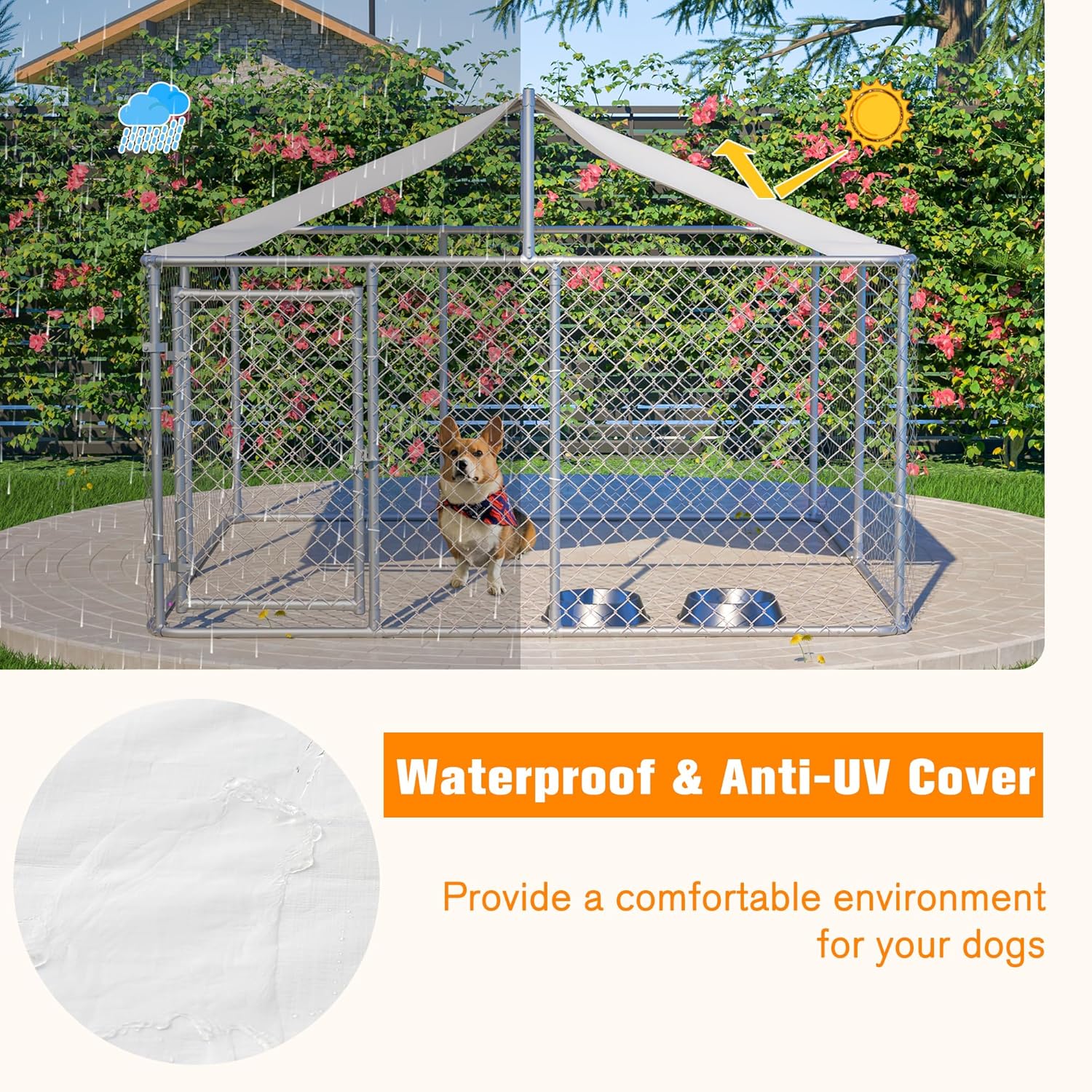

Image: The kennel with a dog inside, demonstrating the effectiveness of the waterproof and anti-UV canopy cover against rain and sun.
Step 6: Final Tightening and Securing
Once all components are in place, go back and tighten all bolts and connections securely. Use the ground nails/stakes to anchor the kennel firmly to the ground, especially in windy conditions.
Image: Ground nails designed to anchor the kennel securely to the earth.

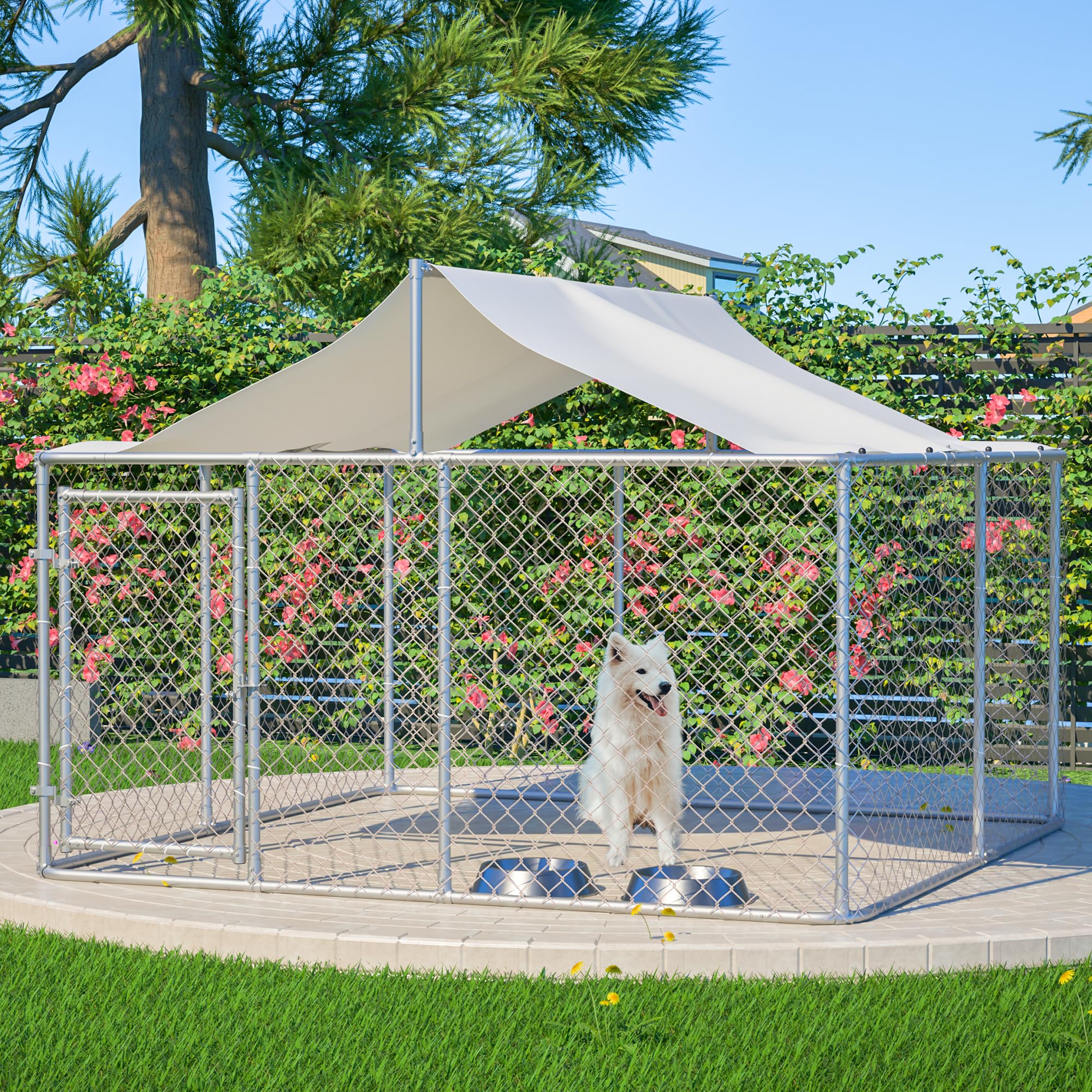

Image: A complete view of the assembled LZBEITEM Large Outdoor Dog Kennel, featuring the chain link fence and protective canopy.
Operation
The LZBEITEM Large Outdoor Dog Kennel is designed for secure and comfortable outdoor housing for your pet.
- Lockable Door: Always ensure the door is securely latched and locked when your pet is inside to prevent escape and protect them from external elements.
- Canopy Cover: The UV-resistant and waterproof canopy provides shade from the sun and protection from rain. Ensure it remains taut to prevent water accumulation.
- Spacious Area: The generous dimensions provide ample space for your dog to move, play, and rest comfortably.
Maintenance
Regular maintenance will extend the life of your dog kennel and ensure a safe environment for your pet.
- Cleaning: Clean the kennel regularly. The galvanized steel frame can be wiped down with a damp cloth and mild detergent. The canopy cover can be hosed off and air-dried.
- Inspection: Periodically check all connections, bolts, and the chain link fence for any signs of wear, rust, or damage. Tighten any loose bolts.
- Canopy Care: Ensure the canopy remains free of debris (leaves, snow) to prevent damage or collapse.
Troubleshooting
- Gaps in Fencing: If you notice gaps between fence panels or between panels and the frame, ensure the fencing panels were stretched tightly during setup. Re-adjust and secure clamps as needed.
- Wobbly Structure: Verify that all frame connections are fully tightened and that the kennel is anchored to the ground using the provided ground nails. Ensure it is placed on a level surface.
- Water Pooling on Canopy: Ensure the canopy cover is installed tautly and correctly over the roof frame to allow for proper water runoff.
Specifications
| Model Number | XADP151722 |
| Brand | LZBEITEM |
| Dimensions (L x W x H) | 118" x 118" x 71" (approximately 10 ft x 10 ft x 5.9 ft) |
| Material | Galvanized Steel (frame), Oxford Fabric (canopy) |
| Color | Silver |
| Special Features | UV-Resistant Canopy, Waterproof Roof, Lockable Door, Heavy-Duty Construction |
| Target Audience | Dogs (All Breed Sizes) |
Image: A diagram illustrating the key dimensions of the kennel, including width, depth, and height.
Warranty
Specific warranty details may vary. Please retain your proof of purchase. For any warranty-related inquiries, contact LZBEITEM customer support directly.
Customer Support
For assistance with assembly, missing parts, or any other product-related questions, please contact LZBEITEM customer support through the retailer where the product was purchased or visit the official LZBEITEM store page.
