Reiteag Meacode AI Translation Earbuds User Manual

Introduction

Thank you for choosing the Reiteag Meacode AI Translation Earbuds. These earbuds are designed to facilitate seamless communication across language barriers with real-time translation capabilities. Featuring advanced AI technology, noise reduction, and an ergonomic design, they offer a comfortable and efficient translation experience for various situations.

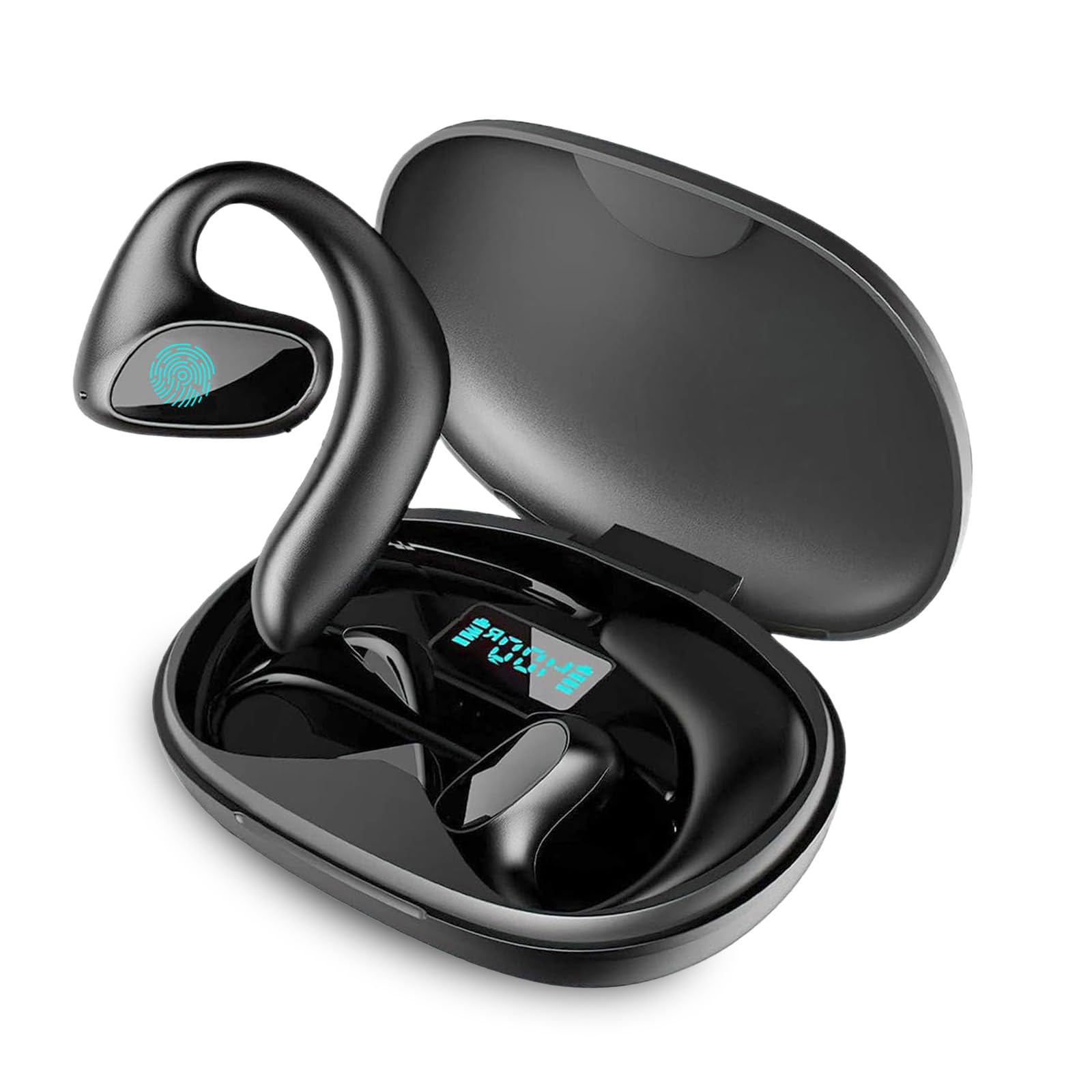

Image: The Reiteag Meacode AI Translation Earbuds resting in their open charging case, showing the digital display for battery levels.

Setup

1. Package Contents

• Reiteag Meacode AI Translation Earbuds (Left and Right)
• Charging Case
• USB Charging Cable
• User Manual

2. Initial Charging

Before first use, fully charge the earbuds and their charging case. Connect the charging case to a power source using the provided USB cable. The indicator lights on the case will show the charging status. A full charge provides approximately 8 to 10 hours of use with the charging case.

Image: Battery life diagram illustrating the earbud's 80mAh battery, the charging case's 400mAh battery, and an estimated total usage time of 8 to 10 hours.

3. Bluetooth Pairing

1. Ensure both earbuds are charged and placed in the charging case.
2. Open the charging case. The earbuds will automatically enter pairing mode.
3. On your device (smartphone, tablet, computer), enable Bluetooth.
4. Search for "Meacode Earbuds" or a similar name in the list of available Bluetooth devices.
5. Select the earbuds to connect. A voice prompt will confirm successful pairing.

4. App Installation

For full functionality, including real-time translation in 156 languages, download and install the dedicated "Meacode Translator" application on your smartphone or tablet. The app is available on major app stores. Follow the in-app instructions to connect your earbuds.

Operating Instructions

1. Wearing the Earbuds

The earbuds feature an ergonomic design for comfortable wear over extended periods. Gently place each earbud into your ear, ensuring a secure and comfortable fit. The design is intended to conform to the natural contours of the ear.

Image: A user wearing the Reiteag Meacode AI Translation Earbuds during a conversation, demonstrating the ergonomic fit.

2. Touch Controls

The earbuds are equipped with versatile touch controls for managing audio playback and calls:

• Play/Pause Music: Single tap on either earbud.
• Answer/End Call: Single tap on either earbud.
• Reject Call: Press and hold on either earbud.
• Next Track: Double tap on the right earbud.
• Previous Track: Double tap on the left earbud.
• Activate Voice Assistant: Triple tap on either earbud.

The active noise cancellation feature ensures clear conversations by reducing ambient noise.

Image: A user wearing the Reiteag Meacode AI Translation Earbuds in a professional environment, highlighting their use in communication.

3. Translation Modes

The Meacode Translator offers three distinct translation modes, selectable via the companion app, to suit different communication scenarios:

• Touch Mode: Ideal for one-on-one conversations. Tap an earbud to speak, and the translation will be played through the other earbud or your phone's speaker.
• Speaker Mode: Suitable for group discussions. Your speech is translated and played through your phone's speaker, while the other person's speech is translated and played through your earbuds.
• Hands-Free Mode: For continuous, natural conversation. Both parties can speak freely, and the earbuds will provide real-time, continuous translation.

4. Real-time Translation

With the Meacode Translator app, the earbuds support real-time, two-way translation in 156 languages. Ensure your earbuds are connected to your device and the app is running. Select the source and target languages within the app to begin a translated conversation.

Image: Illustration of real-time translation in action, showing a user communicating via the earbuds and phone with translated speech bubbles.

5. Offline Translation

The earbuds also support offline translation for 8 specific languages, allowing communication without an internet connection. Refer to the Meacode Translator app for details on supported offline languages and how to download language packs.

Image: Visual representation of offline translation capability, showing an earbud and icons indicating no internet connection is required for 8 specified languages.

Maintenance

1. Cleaning

Regularly clean your earbuds and charging case with a soft, dry, lint-free cloth. Avoid using abrasive materials, solvents, or aerosol sprays. Do not immerse the earbuds or case in water, despite their waterproof rating, to prevent damage to internal components.

2. Storage

When not in use, store the earbuds in their charging case to protect them from dust and physical damage. Store the device in a cool, dry place away from direct sunlight and extreme temperatures.

3. Water Resistance

The earbuds are rated as waterproof. This means they are designed to withstand splashes, sweat, and light rain. However, they are not intended for swimming or prolonged submersion in water. Ensure the charging ports are dry before charging.

Troubleshooting

Earbuds Not Pairing

• Ensure both earbuds are charged.
• Turn off and on your device's Bluetooth.
• Place earbuds back in the case, close it, wait a few seconds, then open it again to re-enter pairing mode.
• Forget the device from your phone's Bluetooth settings and try pairing again.

No Sound or Low Volume

• Check the volume levels on both your connected device and the earbuds.
• Ensure the earbuds are properly seated in your ears.
• Clean any debris from the earbud speakers.

Translation Issues

• Verify that the earbuds are correctly connected to the Meacode Translator app.
• Check your internet connection for online translation.
• Ensure the correct source and target languages are selected in the app.
• Speak clearly and at a moderate pace.
• For offline translation, confirm that the necessary language packs are downloaded.

Specifications

Warranty Information

According to product information, a manufacturer warranty is not applicable for this product.

Customer Support

For further assistance, technical support, or inquiries not covered in this manual, please refer to the contact information provided with your purchase or visit the official Reiteag website for support resources.
