Aidoly 1500W Oil Filled Radiator Heater Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Aidoly 1500W Oil Filled Radiator Heater. Please read all instructions carefully before use and retain for future reference. This heater is designed to provide supplemental heat for indoor spaces up to 160 sq. ft.

Image 1.1: Front view of the Aidoly Oil Filled Radiator Heater.

2. Important Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, read and understand all instructions before using this heater.

• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
• Do not use outdoors.
• To disconnect heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• This heater has a tip-over safety switch and overheat protection, which will automatically shut off the unit if it tips over or overheats.
• The heater is equipped with a Child Lock feature. Refer to operating instructions for details.

Image 2.1: The heater features overheat and tip-over protection for enhanced safety.

3. Package Contents

Upon opening the package, please ensure all components are present and undamaged:

• Aidoly Oil Filled Radiator Heater Unit
• Caster Wheels (4)
• Wingnuts for Caster Attachment
• Removable Water Tank (for humidifying function)

4. Setup Instructions

Follow these steps to prepare your heater for use:

1. Attach Caster Wheels: Carefully turn the heater upside down. Insert the caster wheels into the designated slots on the base of the heater. Secure them firmly using the provided wingnuts. Ensure all four wheels are securely attached for stability.
2. Position the Heater: Place the heater upright on a firm, level surface. Ensure it is at least 3 feet (0.9 m) away from walls, furniture, and other combustible materials.
3. Fill Water Tank (Optional Humidifying Function): Locate the removable water tank on top of the heater. Carefully remove it, fill with clean water, and re-insert it securely. This function helps prevent dry air during heating.

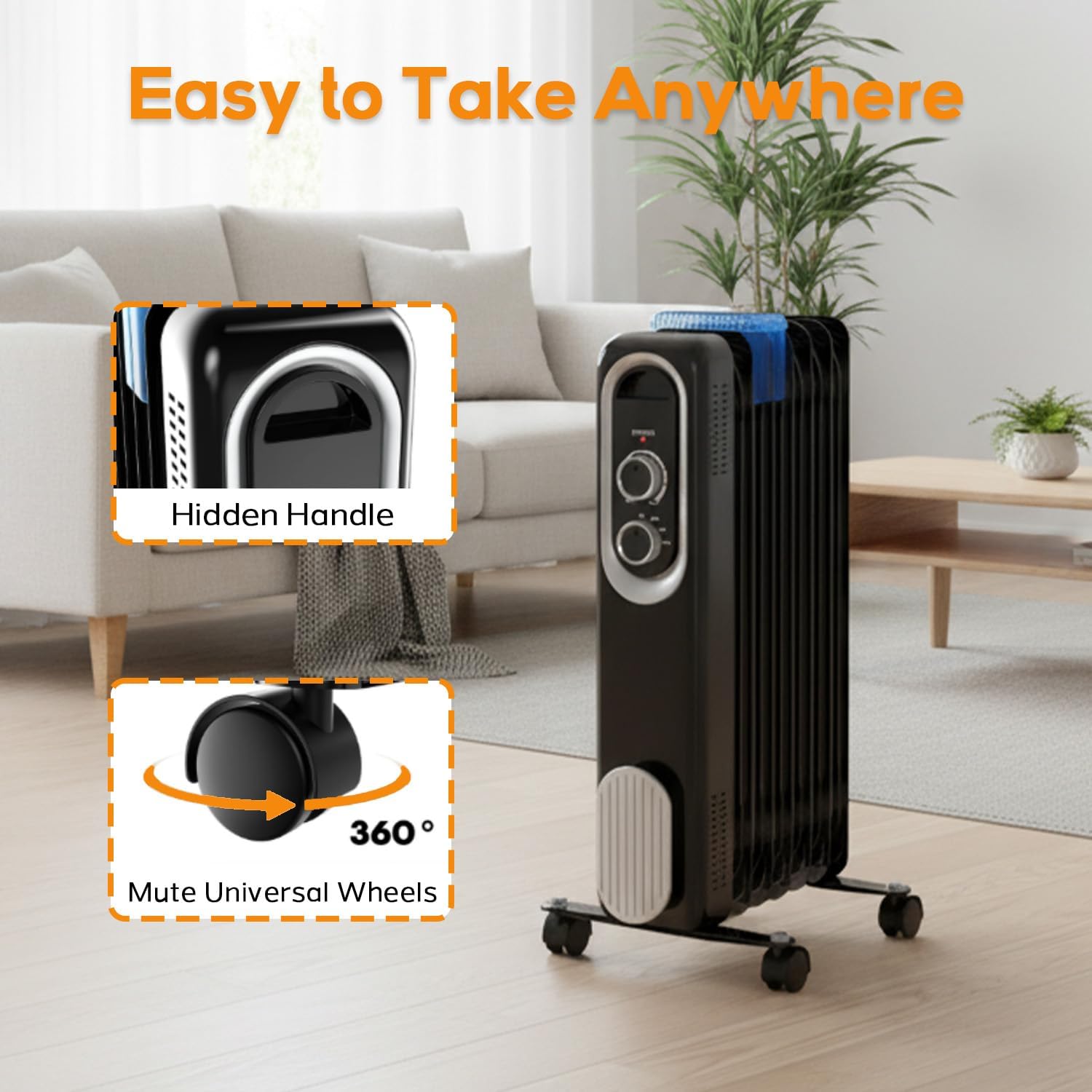

Image 4.1: The heater features a hidden handle and 360-degree universal wheels for easy movement.

5. Operating Instructions

Your Aidoly Oil Filled Radiator Heater features simple controls for power and temperature adjustment.

1. Power Connection: Plug the heater directly into a 120V AC wall outlet. The power indicator light will illuminate.
2. Select Power Mode: Use the Power control knob to select your desired heat output:
   • OFF: Heater is off.
   • LOW (600W): For gentle, continuous heat.
   • MED (900W): For moderate heating.
   • HIGH (1500W): For maximum heat output and faster warming of spaces up to 160 sq. ft.
3. Adjust Thermostat: Use the Thermostat control knob to set the desired room temperature. Turn the knob towards 'MAX' for higher temperatures or 'MIN' for lower temperatures. The heater will cycle on and off to maintain the set temperature.
4. Humidifying Function: If the water tank is filled, the heater will release gentle moisture into the air as it operates, helping to prevent dryness.
5. Child Lock: This model includes a child lock feature. Consult the specific product packaging or additional documentation for activation and deactivation instructions.

Image 5.1: Customize your comfort with adjustable temperature settings and three heat modes.

6. Features Overview

• Quick and Consistent Warmth: The 1500W power output ensures rapid and stable heating for rooms up to 160 sq. ft.
• Energy Efficient Heating: Choose from 3 adjustable heat modes (600W, 900W, 1500W) to optimize comfort and energy consumption.
• Built-in Humidifying Comfort: A removable water tank allows for the release of gentle moisture, counteracting dry air often associated with heating.
• Enhanced Safety Protection: Equipped with a tip-over safety switch, power indicator light, and overheat protection, ensuring automatic shut-off in unsafe conditions.
• Silent Operation: Designed to operate quietly without a fan, making it suitable for bedrooms, nurseries, and offices.
• Easy Portability: Features 4 smooth-rolling casters and a built-in handle for convenient relocation between rooms.

Image 6.1: The removable water tank helps maintain air moisture while heating.

Image 6.2: The radiator design provides uniform, whole-room warming.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your heater.

• Cleaning: Always unplug the heater and allow it to cool completely before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
• Water Tank: If using the humidifying function, regularly clean the water tank to prevent mineral buildup and maintain hygiene. Rinse with clean water and dry thoroughly before refilling.
• Storage: When not in use, store the heater in a cool, dry place. It is recommended to cover the heater to protect it from dust.

8. Troubleshooting

If your heater is not operating as expected, please check the following:

• No Power: Ensure the power cord is securely plugged into a functioning 120V wall outlet. Check if the power indicator light is on.
• Heater Not Emitting Heat: Verify that the Power control knob is set to LOW, MED, or HIGH, not OFF. Ensure the Thermostat control knob is set to a higher temperature than the current room temperature.
• Heater Shuts Off Unexpectedly: This may indicate activation of the overheat protection or tip-over safety switch. Unplug the heater, allow it to cool down, and ensure it is on a stable, level surface away from obstructions. Re-plug and restart.
• Unusual Odor: A slight 'hot' smell may occur during initial use. This is normal and should dissipate quickly. If a strong or persistent odor occurs, discontinue use and contact customer support.

9. Specifications

Image 9.1: Product dimensions for planning placement.

10. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official Aidoly website. For technical support or customer service inquiries, please contact Aidoly directly through their official channels.
