ZHRCLY VMH1113Y AC115V Compressor Accessory User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient use of your ZHRCLY VMH1113Y AC115V Compressor Accessory. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper function and longevity of the product. Keep this manual for future reference.

2. Safety Information

Always observe the following safety precautions to reduce the risk of injury or damage:

• Electrical Safety: Ensure the power source matches the accessory's voltage requirements (AC 115V). Disconnect power before installation or maintenance.
• Proper Installation: Install the accessory according to all local electrical codes and manufacturer guidelines.
• Ventilation: Ensure adequate ventilation around the compressor and accessory to prevent overheating.
• Avoid Moisture: Do not expose the accessory to water or excessive moisture.
• Authorized Personnel: Only qualified personnel should perform installation and complex maintenance.

3. Product Overview

The ZHRCLY VMH1113Y AC115V is a general accessory designed for use with Jia Xipera MOTOR compressors. It is an electrical component intended to support the functionality of compatible compressor systems. This model operates on AC 115V power and features AC & DC adaptability.

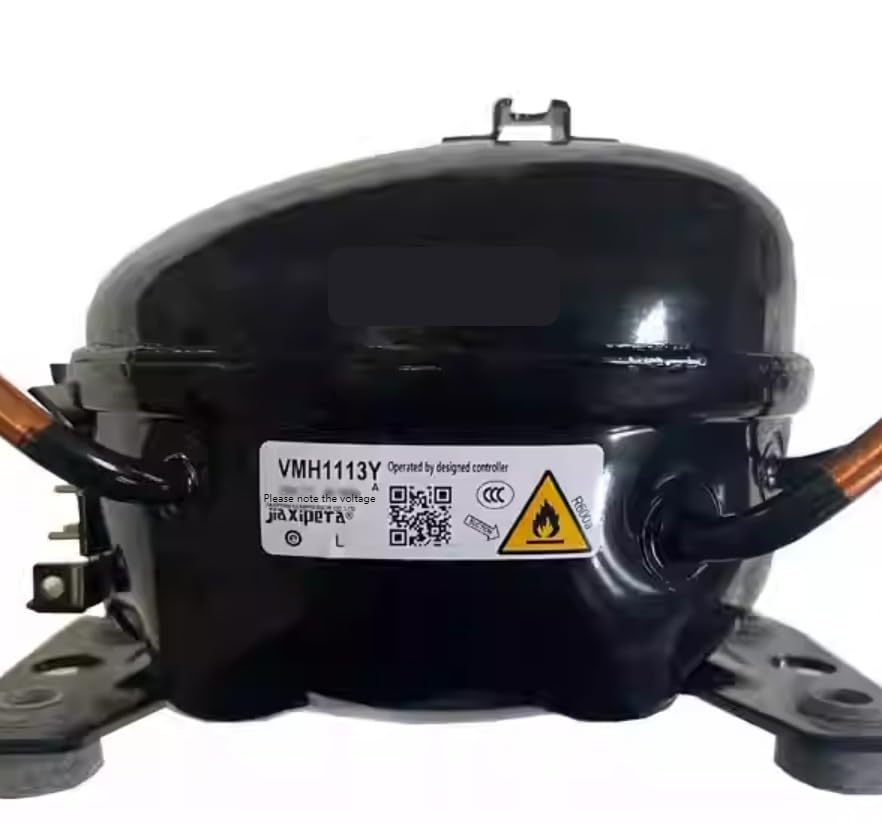

Image showing the ZHRCLY VMH1113Y AC115V compressor accessory.

4. Setup Instructions

Follow these steps for proper installation of the compressor accessory:

1. Unpacking: Carefully remove the accessory from its packaging. Inspect for any visible damage. If damaged, do not proceed with installation and contact support.
2. Power Disconnection: Ensure the main power supply to the compressor system is completely disconnected before beginning installation.
3. Mounting: Securely mount the accessory in the designated location on or near the compressor, ensuring it is stable and free from vibration.
4. Electrical Connection: Connect the accessory to the compressor's electrical system according to the wiring diagram provided with your compressor or by a qualified electrician. Ensure all connections are tight and insulated.
5. Power Restoration: Once all connections are secure and verified, restore power to the compressor system.

5. Operating Instructions

Once installed, the VMH1113Y AC115V accessory operates in conjunction with your main compressor unit. Its function is typically integrated into the compressor's control system. Refer to your primary compressor's user manual for specific operational procedures.

• Initial Power-Up: After installation and power restoration, observe the system for any unusual noises or malfunctions.
• System Integration: The accessory is designed to work seamlessly with compatible Jia Xipera MOTOR compressors. No direct user interaction is typically required for its operation.
• Monitoring: Periodically monitor the overall performance of your compressor system to ensure the accessory is functioning correctly.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your accessory:

• Power Disconnection: Always disconnect power to the compressor system before performing any maintenance.
• Cleaning: Keep the accessory clean and free from dust, dirt, and debris. Use a soft, dry cloth for cleaning. Do not use liquid cleaners directly on electrical components.
• Inspection: Periodically inspect all electrical connections for tightness and signs of wear or corrosion. Check for any physical damage to the accessory casing or wiring.
• Ventilation: Ensure that ventilation openings are not obstructed.

7. Troubleshooting

If you encounter issues, refer to the table below for common problems and solutions:

8. Specifications

Key technical specifications for the ZHRCLY VMH1113Y AC115V Compressor Accessory:

9. Warranty and Support

For product support, technical assistance, or warranty inquiries, please contact the seller directly. This product is typically covered by a standard return policy of 30 days from the date of purchase. Additional protection plans may be available for purchase separately.

Seller: Keyang Mechanical parts factory

Please retain your proof of purchase for any warranty or support claims.
