SWTYMIKI 4-Tier Rolling Utility Cart with Drawers (Model ZWJ231)

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your SWTYMIKI 4-Tier Rolling Utility Cart with Drawers, Model ZWJ231. Designed for versatile storage, this cart features a durable metal frame, a wooden shelf, DIY dividers, and locking wheels, making it suitable for various environments such as home offices, craft studios, or general organization.

Safety Information

• Read all instructions carefully before assembly and use.
• Keep small parts away from children during assembly to prevent choking hazards.
• Ensure all screws and fasteners are securely tightened before use. Periodically check for tightness.
• Do not overload the cart. Refer to specifications for weight limits per shelf/drawer.
• Use the locking wheels to secure the cart in place when not in motion to prevent accidental movement.
• Avoid placing hot items directly on the wooden shelf without protection.
• Do not stand or climb on the cart.

Package Contents

Please verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

Image: Exploded view of all cart components with labels.

• Side Frames (A, B)
• Crossbars (C, D)
• Small Dividers (E)
• Medium Dividers (F)
• Large Dividers (G)
• Top Mesh Shelf (H)
• Wheels (I)
• Top Mesh Basket (J)
• Drawer Sides (K, L, M, N)
• Wooden Shelf (Q)
• Screws and Allen Wrench

Assembly Instructions

Follow these steps to assemble your SWTYMIKI Rolling Utility Cart. An assembly video is also provided for visual guidance.

Assembly Video Guide

Video: Official SWTYMIKI assembly guide for the Rolling Utility Cart.

Step-by-Step Assembly

1. Attach Wheels to Side Frames:

   Begin by attaching the wheels (I) to the bottom of the side frames (A and B). Ensure they are securely fastened. If using fixed feet instead of wheels, attach those now.



   Image: Attaching the wheels to the bottom frame sections.

2. Connect Side Frames with Crossbars:

   Connect the two side frames (A and B) using the crossbars (C and D). Use the provided screws and Allen wrench to tighten them firmly. Ensure the frames are oriented correctly as shown in the diagram.



   Image: Assembling the main frame by connecting side pieces.

3. Install Wooden Shelf:

   Carefully slide the wooden shelf (Q) into the designated slots on the frame. Ensure it sits flush and is stable.



   Image: Placing the wooden shelf into the cart's middle section.

4. Attach Top Mesh Shelf and Basket:

   Place the top mesh shelf (H) onto the upper frame. Then, attach the top mesh basket (J) to the top shelf, securing it with the provided screws.



   Image: Securing the upper mesh shelf and basket.

5. Insert Dividers into Top Basket:

   Insert the small (E), medium (F), and large (G) dividers into the top mesh basket (J) as desired to create customized compartments for your items.



   Image: Customizing the top basket with adjustable dividers.

6. Assemble Drawers:

   Assemble the two mesh drawers using the drawer sides (K, L, M, N) and the provided screws. Ensure all sides are firmly connected to form a sturdy basket.



   Image: Assembling the mesh drawer components.

7. Insert Drawers:

   Slide the assembled drawers into the lower sections of the cart frame. They should slide in smoothly.



   Image: Inserting the completed mesh drawers into the cart.

Operating Instructions

Mobility and Stability

Your SWTYMIKI Rolling Utility Cart is equipped with 360° swivel wheels for easy movement. Two of these wheels feature locking mechanisms. To move the cart, unlock the wheels. To secure the cart in a stationary position, engage the locks on the two lockable wheels.

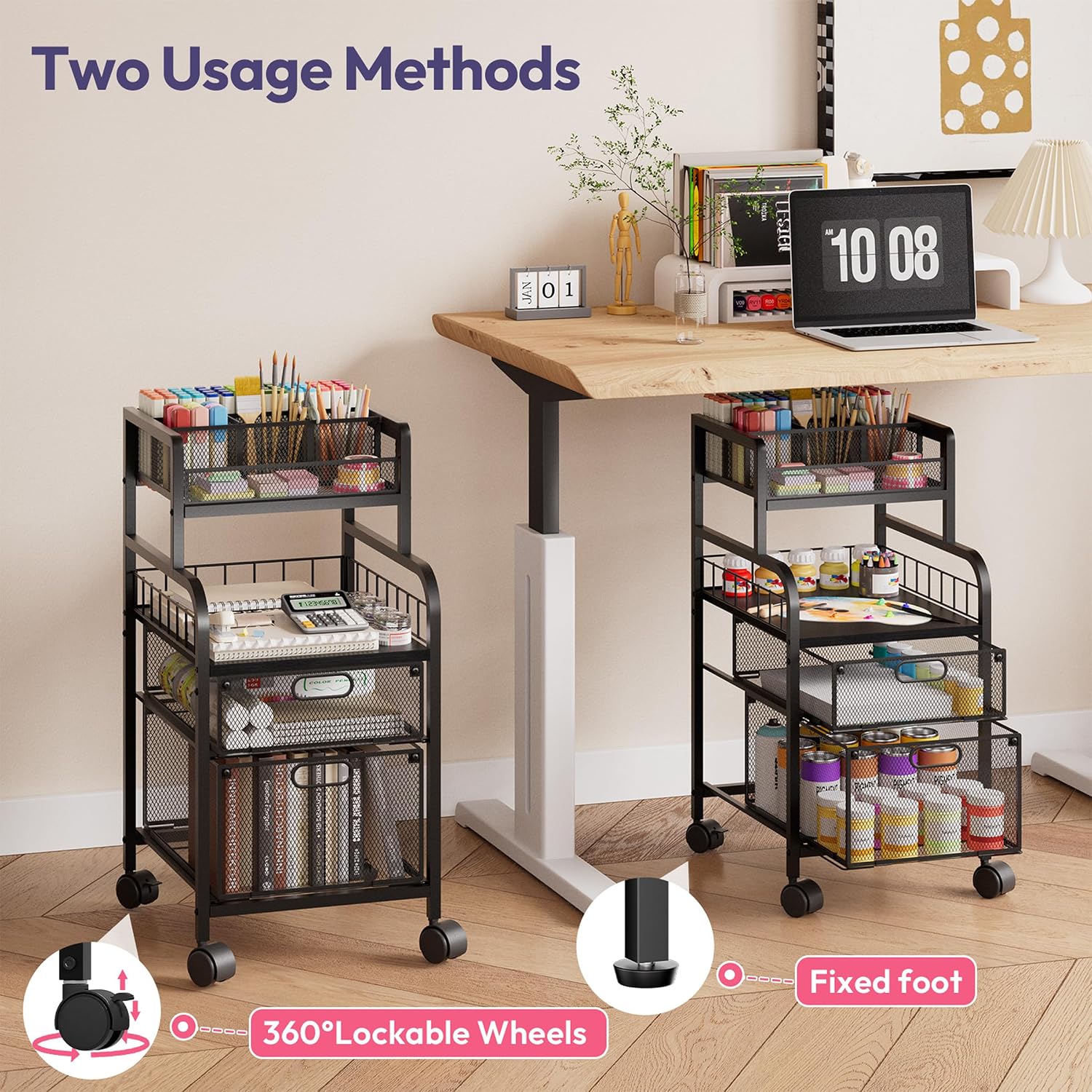

Image: The cart demonstrating both 360° lockable wheels and optional fixed feet for stability.

Customizable Storage

The top mesh basket includes removable and adjustable dividers (E, F, G). These can be arranged to create compartments of various sizes, allowing for organized storage of small items like pens, brushes, or office supplies. The mesh design of the drawers and top basket allows for easy visibility of contents.

Image: Demonstrating the adjustable DIY dividers in the top basket.

The two pull-out mesh drawers provide ample space for larger items such as books, craft supplies, or documents. The wooden shelf offers a flat surface for items that require stable placement or for temporary workspace.

Maintenance

• Cleaning: Wipe down the metal frame and mesh components with a soft, damp cloth. For the wooden shelf, use a dry or slightly damp cloth and avoid harsh chemicals.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Tighten any loose fasteners to maintain stability.
• Wheel Care: Keep the wheels free of debris to ensure smooth rolling. If wheels become stiff, a small amount of silicone spray lubricant can be applied to the axles.

Troubleshooting

• Cart is wobbly: Ensure all screws are fully tightened. Check that the cart is on a flat, even surface. If using fixed feet, adjust them to level the cart.
• Drawers are sticking: Verify that the drawers are inserted correctly and are not overloaded. Check for any obstructions in the drawer slides.
• Wheels not rolling smoothly: Check for hair or debris caught in the wheels. Clean as necessary. Ensure wheel locks are disengaged.

Specifications

Image: Detailed dimensions of the cart.

Warranty and Support

For any questions, concerns, or issues regarding your SWTYMIKI Rolling Utility Cart, please contact our customer service team. We are committed to providing satisfactory service and will address your inquiries within 24 hours.

Please refer to your purchase documentation for specific warranty details. Keep your proof of purchase for warranty claims.

• Customer Service: [Insert Customer Service Contact Information Here, e.g., email, phone number, website]
