MDMV 20Bar Espresso Coffee Machine User Manual

1. Introduction

This manual provides instructions for the safe and efficient operation, maintenance, and troubleshooting of your MDMV 20Bar Espresso Coffee Machine, Model 926001. Please read this manual thoroughly before first use and retain it for future reference.

The MDMV 20Bar Espresso Coffee Machine is designed to brew espresso using an Italian ULKA high-pressure pump, compatible with both ground coffee and E.S.E. coffee pods. It features a built-in pressure gauge, a 1.6L detachable water tank, and an 850W thermoblock heating system for consistent performance.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Scalding may occur if the water tank lid is removed during the brewing cycle.
• This appliance is equipped with overheating and overpressure protection.

3. Product Components

The MDMV 20Bar Espresso Coffee Machine includes the following components:

• Espresso Coffee Machine Unit
• Double Filter Basket (for two cups of ground coffee)
• Coffee Pod Filter Basket (for E.S.E. pods)
• Coffee Spoon with Tamper
• Power Cord
• User Manual (this document)

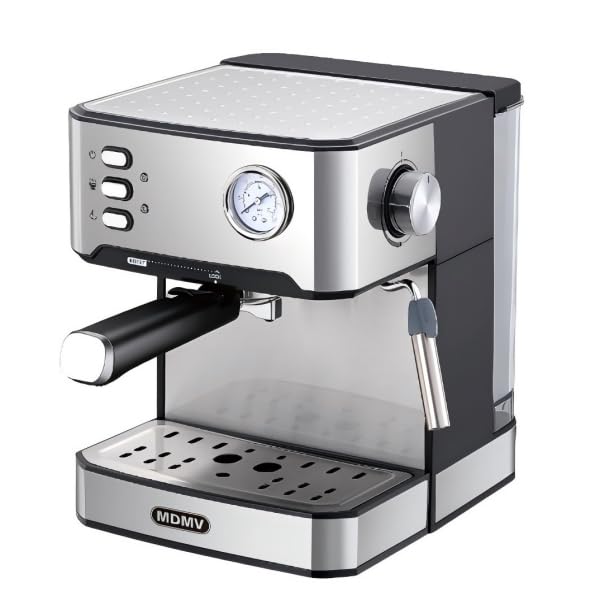

Image 1: MDMV 20Bar Espresso Coffee Machine main unit, showing the overall design with portafilter, steam wand, and control panel.

4. Initial Setup

1. Unpacking: Carefully remove all packaging materials. Place the machine on a stable, flat, heat-resistant surface near a power outlet.
2. Cleaning: Before first use, wash the water tank, portafilter, and filter baskets with warm water and mild detergent. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp cloth.
3. Filling the Water Tank: Remove the 1.6L transparent water tank from the back of the machine. Fill it with fresh, cold water up to the MAX level indicator. Replace the tank securely.
4. Initial Rinse Cycle:
   • Ensure the water tank is filled.
   • Plug the power cord into a grounded electrical outlet.
   • Place a large cup or container under the coffee outlet and the steam wand.
   • Turn on the machine. The indicator lights will illuminate.
   • Once the machine is heated (indicator light stops flashing), press the coffee brewing button to run hot water through the coffee outlet for about 30 seconds.
   • Turn the steam knob to release steam through the steam wand for about 30 seconds.
   • Repeat this process 2-3 times to clean the internal system and remove any manufacturing residues.

Image 2: Rear view of the espresso machine, highlighting the detachable 1.6L transparent water tank.

5. Operating Instructions

5.1 Brewing Espresso (Ground Coffee)

1. Ensure the machine is plugged in and the water tank is filled. Turn on the machine and wait for it to heat up (indicator light solid).
2. Insert the double filter basket into the portafilter.
3. Add finely ground espresso coffee to the filter basket. Use the included coffee spoon to measure (approximately 7-10g per shot).
4. Use the tamper end of the coffee spoon to gently press the ground coffee evenly. Do not over-tamp.
5. Attach the portafilter to the group head by aligning it and twisting firmly to the right until secure.
6. Place one or two espresso cups under the portafilter spouts.
7. Press the coffee brewing button. The machine will start extracting espresso. Monitor the built-in pressure gauge for optimal extraction (typically in the middle of the green zone).
8. Once the desired amount of espresso is brewed (usually 25-30ml per shot), press the coffee brewing button again to stop the flow.
9. Carefully remove the portafilter (it will be hot) and discard the used coffee grounds. Clean the portafilter and filter basket immediately.

5.2 Brewing Espresso (E.S.E. Pods)

1. Follow step 1 from "Brewing Espresso (Ground Coffee)".
2. Insert the coffee pod filter basket into the portafilter.
3. Place one E.S.E. (Easy Serving Espresso) pod into the filter basket. Ensure it lies flat.
4. Attach the portafilter to the group head and secure it.
5. Place one espresso cup under the portafilter spout.
6. Press the coffee brewing button to start extraction.
7. Press the button again to stop the flow when desired volume is reached.
8. Remove the portafilter and discard the used pod. Clean the portafilter and filter basket.

Image 3: Close-up of the espresso machine's front panel, detailing the portafilter attachment point and the built-in pressure gauge.

5.3 Frothing Milk

1. Ensure the machine is on and heated.
2. Fill a stainless steel frothing pitcher with cold milk (dairy or non-dairy) to just below the spout.
3. Turn the steam knob to the steam position. Wait for the steam indicator light to illuminate, indicating the machine has reached frothing temperature.
4. Purge the steam wand: Briefly open the steam knob to release any condensed water, then close it.
5. Insert the steam wand tip just below the surface of the milk in the pitcher.
6. Open the steam knob fully. Lower the pitcher slightly to introduce air for frothing, then raise it to heat the milk. Move the pitcher in a circular motion.
7. Once the milk reaches the desired temperature and texture (approximately 60-70°C or 140-160°F), close the steam knob.
8. Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying.

Image 4: Side view of the espresso machine, showing the steam wand extended, ready for milk frothing.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your espresso machine.

6.1 Daily Cleaning

• Portafilter and Filter Baskets: After each use, remove the portafilter, discard grounds/pod, and rinse the portafilter and filter basket under running water. Use a brush to remove any coffee residue.
• Steam Wand: Immediately after frothing milk, wipe the steam wand with a damp cloth. Purge steam briefly to clear any milk from the nozzle. If clogged, use a small pin to clear the hole.
• Drip Tray: Empty and rinse the drip tray daily or when the indicator floats up.
• Water Tank: Empty any remaining water from the tank and rinse it daily. Refill with fresh water before each use.
• Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or scourers.

6.2 Descaling

Depending on water hardness and frequency of use, descaling should be performed every 2-3 months. Use a commercial descaling solution specifically designed for espresso machines, following the manufacturer's instructions. Never use vinegar, as it can damage internal components.

1. Prepare the descaling solution according to the product instructions and pour it into the water tank.
2. Place a large container under the coffee outlet and steam wand.
3. Run the descaling solution through the coffee outlet until half the tank is empty.
4. Run the remaining solution through the steam wand.
5. Rinse the water tank thoroughly and fill it with fresh water.
6. Perform at least two full rinse cycles with fresh water through both the coffee outlet and steam wand to remove any descaling solution residue.

Image 5: Exploded view or disassembled parts of the espresso machine, illustrating components like the portafilter, filter baskets, and water tank for cleaning purposes.

7. Troubleshooting Guide

8. Technical Specifications

9. Warranty Information

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation provided at the time of purchase or contact customer support.

The warranty does not cover damage caused by misuse, neglect, unauthorized repairs, or failure to follow the instructions in this manual.

10. Customer Support

If you encounter any issues not covered in the troubleshooting guide or require further assistance, please contact our customer support team. Have your product model number (926001) and proof of purchase ready when contacting support.

For support inquiries, please refer to the contact information provided by your retailer or on the product packaging.
