1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Garvee Shower Base (Model: LsN6muzCsWyQzb_iv5grHA4e, Size: 32''x48''). Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of the product.
Image 1.1: The Garvee Shower Base 32x48 inch, featuring a non-slip texture and a central drain, shown installed in a bathroom environment.
2. Safety Information
Observe all local plumbing and building codes during installation. Professional installation is recommended. Always wear appropriate personal protective equipment (PPE) such as gloves and eye protection during handling and installation. Ensure the installation area is clean, dry, and level before proceeding. Do not apply excessive force to the shower base during installation or use.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact Garvee customer support.
- Garvee Shower Base (32''x48'')
- Stainless Steel Drain Strainer
- Standard White PVC Drain
- Sealant (for edges)
- Adjustable Feet
- Leak-proof Gaskets
4. Setup and Installation
Follow these steps for proper installation of your Garvee Shower Base. It is recommended to have a qualified plumber perform the installation.
- Prepare the Subfloor: Ensure the subfloor is clean, level, and structurally sound. Any unevenness must be corrected before placing the shower base.
- Position the Base: Carefully place the shower base in the desired location. The low 3.5-inch profile is suitable for tub-to-shower conversions.
- Adjust Leveling Feet: Use the included adjustable feet to ensure the shower base is perfectly level in all directions.
- Connect the Drain: The pre-attached drain is designed to connect to most standard US pipes. Securely connect the PVC drain to your plumbing system using the provided leak-proof gaskets. Ensure all connections are watertight.
- Secure the Base: Utilize the pre-marked grooves for securing the base to the subfloor or wall studs as per local building codes. This step helps prevent movement and ensures stability.
- Seal Edges: Apply the provided sealant along all edges where the shower base meets the wall or surrounding surfaces. Allow the sealant to cure for at least 24 hours before using the shower.
Image 4.1: Underside of the shower base illustrating the solid surface square structural support and sturdy bottom design for enhanced durability.
Image 4.2: Diagram detailing the bottom structural design, highlighting solid surface squares for support and the standard PVC drain location.
5. Operation
The Garvee Shower Base is designed for safe and efficient water drainage.
- Non-Slip Surface: The shower base features a grid texture surface designed to increase friction and reduce the risk of slipping, even when wet.
- Anti-Clogging Drain: The included 304 stainless steel strainer effectively traps hair and debris, preventing clogs while maintaining optimal water flow.
Image 5.1: Detailed view of the non-slip grid texture, engineered to enhance safety by increasing surface friction.
Image 5.2: Illustration of the anti-clogging stainless steel drain strainer, designed to prevent blockages and ensure efficient water drainage.
6. Maintenance and Care
Regular cleaning and proper care will help maintain the appearance and functionality of your Garvee Shower Base.
- Cleaning: Clean the shower base regularly with mild soap and water. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the glossy finish.
- Drain Maintenance: Periodically remove the stainless steel drain strainer and clean any accumulated hair or debris to ensure optimal drainage.
- Stain Resistance: The glossy finish is designed to resist stains and yellowing. Promptly clean any spills to prevent potential discoloration.
Image 6.1: Features of the shower base, including easy cleaning, anti-scratch properties, and a low threshold design for accessibility.
7. Troubleshooting
This section addresses common issues you might encounter with your shower base.
- Slow Drainage: If water drains slowly, remove the stainless steel strainer and clear any hair or debris. Ensure the main drain connection is not obstructed.
- Water Leaks: Check all drain connections and sealant around the edges of the base. Reapply sealant if necessary. If leaks persist, consult a professional plumber.
- Unstable Base: Verify that the adjustable feet are properly set and the base is securely fastened to the subfloor or wall studs.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Garvee |
| Model Number | LsN6muzCsWyQzb_iv5grHA4e |
| Size | 32''x48'' (31.5 x 47.24 x 1.97 inches) |
| Color | White |
| Item Weight | 48.5 pounds |
| Included Components | Shower base, Stainless Steel Drain Strainer, PVC Drain, Sealant, Adjustable Feet, Leak-proof Gaskets |
| Drain Type | Center Drain with Anti-Clogging Strainer |
| Material | Heavy-duty resin (base), 304 Stainless Steel (strainer) |
| Load Capacity | Supports up to 2,500 pounds |

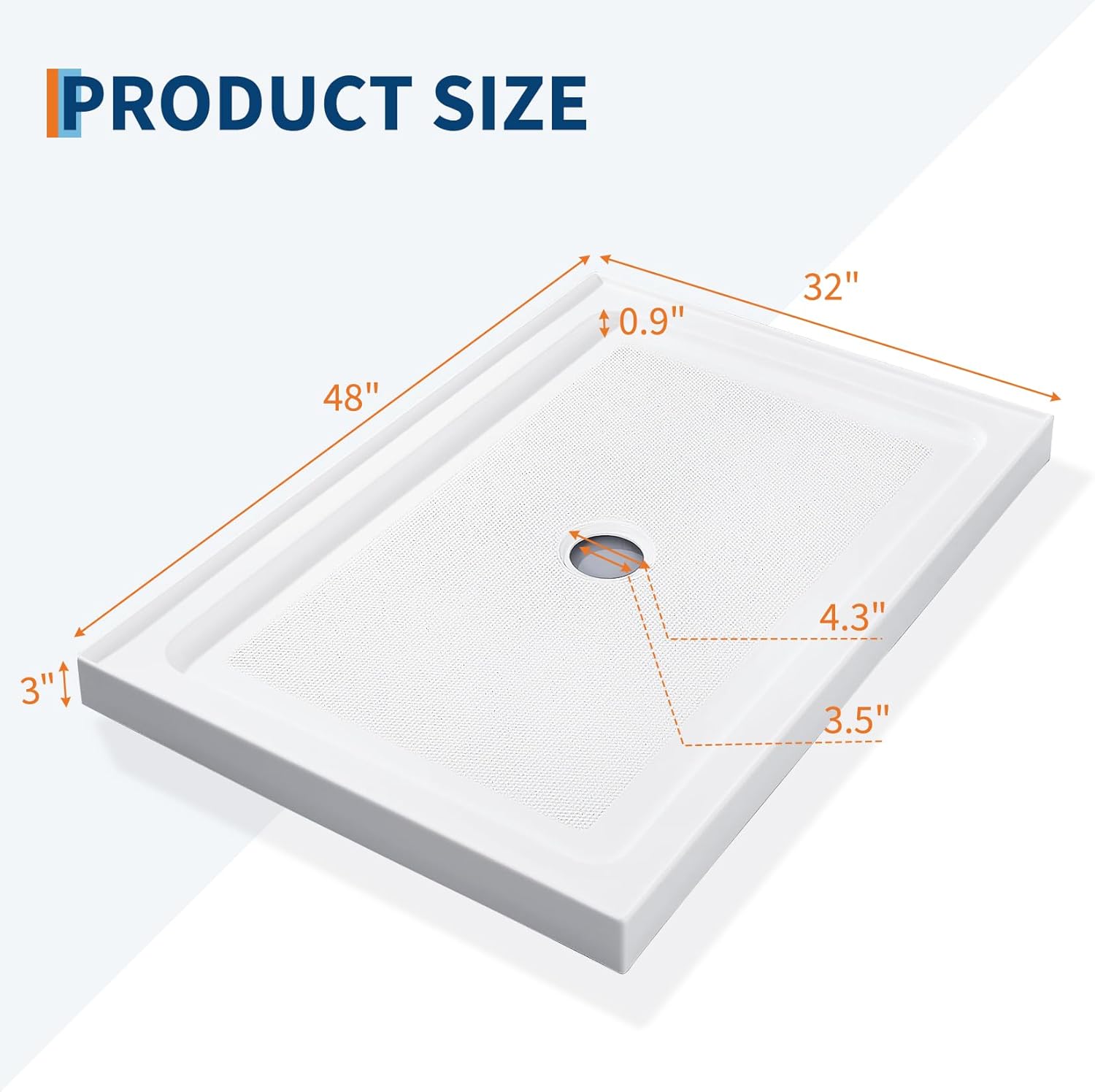

Image 8.1: Dimensional diagram of the Garvee Shower Base, indicating length, width, and height measurements.
Image 8.2: Visual comparison of available shower base sizes, including the 32x48 inch model.
9. Warranty and Support
Garvee stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Garvee website. For technical support, replacement parts, or any inquiries, please contact Garvee customer service:
- Website: Garvee Official Store
- Email: [Insert Customer Service Email Here]
- Phone: [Insert Customer Service Phone Number Here]
