Introduction
This manual provides essential instructions for the installation, operation, and maintenance of your new Generic ProForm Performance 350i Treadmill Walking Belt, model PETL59916.1. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure safe and correct usage. Proper installation and regular maintenance will extend the life of your treadmill belt and ensure optimal performance.
Safety Warning:
- Always unplug the treadmill from the power outlet before performing any installation, maintenance, or cleaning.
- Wear appropriate safety gear, such as gloves, to protect your hands during installation.
- If you are unsure about any step, consult a qualified technician.
Product Overview
The PETL59916.1 Treadmill Walking Belt is a replacement part designed for the ProForm Performance 350i treadmill (models PETL599161 / PETL59916.1). It is constructed from durable synthetic rubber and comes pre-lubricated for initial use.
What's in the Box
- 1 x PETL59916.1 Treadmill Running Belt

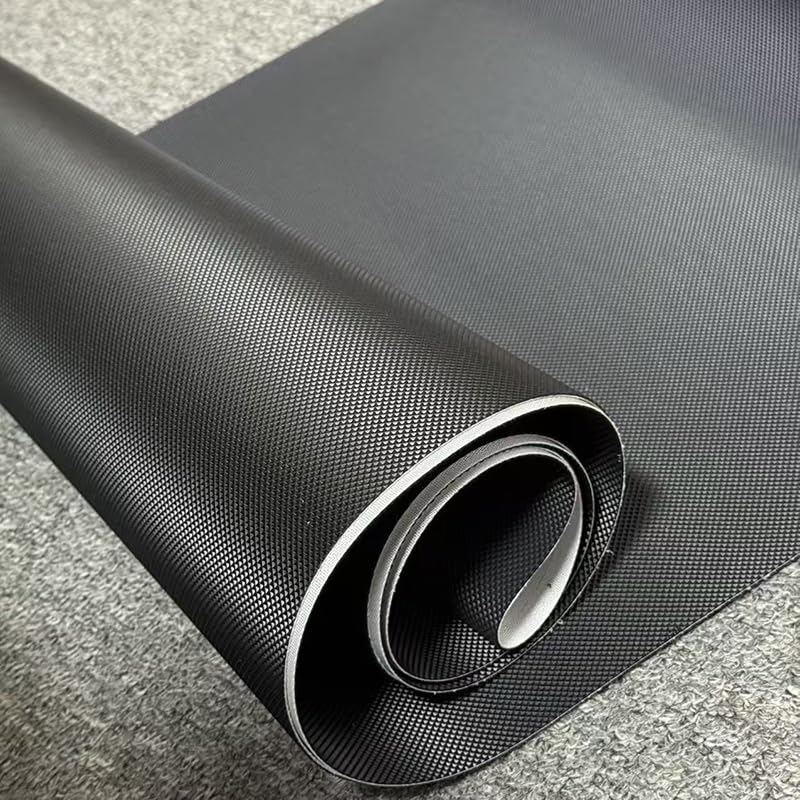

Image: A new treadmill walking belt, rolled up, showcasing its black surface and white underside.
Setup: Treadmill Belt Installation
Installing a new treadmill belt requires careful attention. Follow these steps precisely.
Tools Required
- Phillips head screwdriver
- Allen wrench set (typically 6mm or 8mm for roller bolts)
- Clean cloth
- Vacuum cleaner (optional, for deck cleaning)
Installation Steps
- Disconnect Power: Unplug the treadmill from the wall outlet. This is crucial for safety.
- Remove Motor Cover: Use a Phillips head screwdriver to remove the screws securing the motor cover at the front of the treadmill. Carefully lift and set aside the cover.
- Loosen Rear Roller Bolts: Locate the two adjustment bolts at the rear of the treadmill, usually on either side of the deck. Using an Allen wrench, turn both bolts counter-clockwise equally to loosen the rear roller. Continue loosening until the old belt is slack enough to be removed.
- Remove Old Belt: Carefully slide the old belt off the front and rear rollers. It may be necessary to lift the deck slightly to maneuver the belt off.
- Clean Treadmill Deck: With the old belt removed, thoroughly clean the treadmill deck. Use a clean cloth to wipe away any dust, debris, or old lubricant residue. A vacuum cleaner can be used for larger debris. Ensure the deck is completely dry before proceeding.
- Install New Belt: Slide the new PETL59916.1 belt onto the treadmill deck. Ensure the belt is centered on the deck and properly positioned around both the front and rear rollers. The seam of the belt should be on the underside, not visible on the running surface.
- Center and Tension the Belt:
- Initial Tension: Hand-tighten the rear roller adjustment bolts clockwise until the belt is snug but not overly tight.
- Power On and Test: Plug the treadmill back in. Stand on the side rails (do not stand on the belt yet). Start the treadmill at a slow speed (e.g., 1-2 mph).
- Centering: Observe the belt's tracking. If it drifts to one side, turn the adjustment bolt on the side it's drifting towards clockwise by a quarter turn. If it drifts to the opposite side, turn the adjustment bolt on the opposite side clockwise by a quarter turn. Repeat small adjustments until the belt tracks centrally.
- Final Tension: Once centered, increase the treadmill speed to a moderate pace (e.g., 3-4 mph). Walk on the belt. If the belt slips or hesitates, turn both rear roller adjustment bolts clockwise by a quarter turn simultaneously. Repeat until the belt no longer slips under your weight. The belt should be tight enough not to slip, but not so tight that it strains the motor or rollers. A good test is to be able to lift the edge of the belt about 2-3 inches from the deck in the middle.
- Replace Motor Cover: Once the belt is properly centered and tensioned, replace the motor cover and secure it with the screws.
- Final Check: Run the treadmill for a few minutes at various speeds to ensure smooth operation and proper belt tracking.

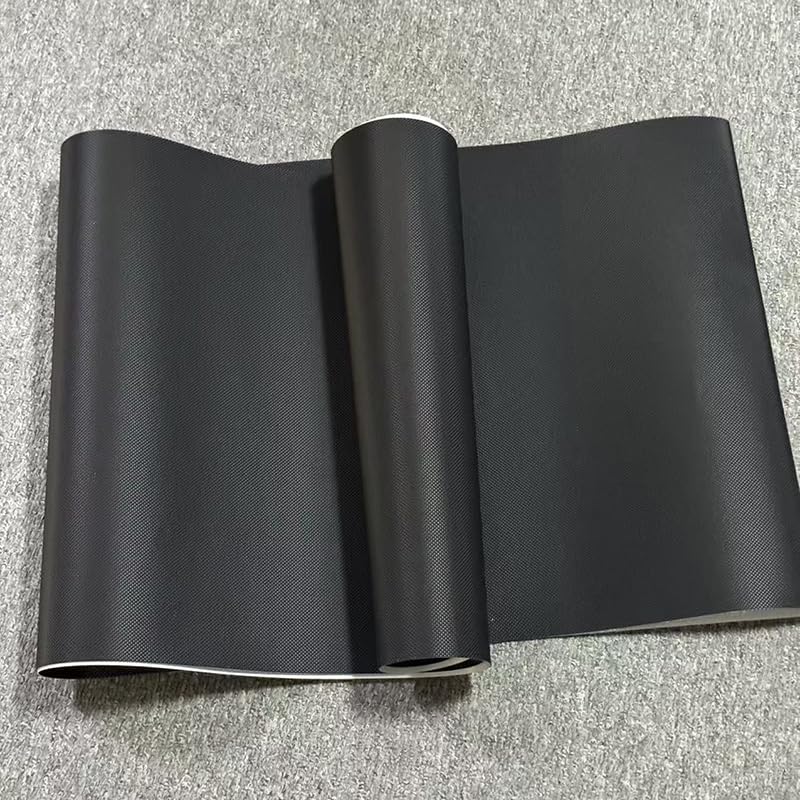

Image: The new treadmill belt unrolled, displaying its full length and width on a carpeted surface.

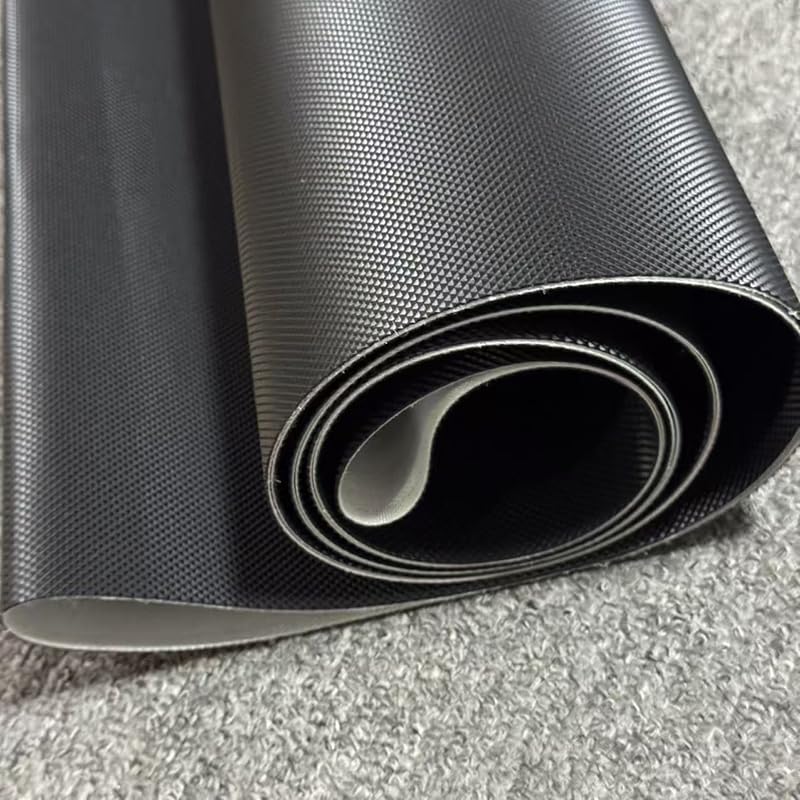

Image: A close-up view of the treadmill belt's running surface, showing its textured pattern for grip.
Operating Considerations
After installing your new treadmill belt, observe its performance during initial use.
- Initial Run-in: Operate the treadmill for approximately 15-30 minutes at a moderate speed without a user to allow the belt to settle.
- Monitor Tracking: Periodically check the belt's alignment during the first few uses. Minor adjustments may be needed as the belt breaks in.
- Listen for Unusual Noises: Any new squeaking, grinding, or rubbing sounds could indicate improper tension or alignment.
Maintenance
Regular maintenance is essential for the longevity and safe operation of your treadmill belt.
Cleaning
- Weekly: Wipe down the running surface of the belt with a damp cloth to remove dust and sweat.
- Monthly: With the treadmill unplugged, carefully lift the edges of the belt and vacuum any dust or debris that has accumulated underneath.
Lubrication
This PETL59916.1 treadmill belt comes pre-lubricated. However, treadmill decks require periodic lubrication to reduce friction and wear. Consult your treadmill's original user manual for specific lubrication recommendations (type of lubricant and frequency). Generally, lubrication is needed every 3-6 months or after a certain number of hours of use, depending on usage intensity.
Belt Tension and Alignment
- Check Periodically: Every few weeks, check the belt tension and alignment. If the belt feels loose, slips during use, or tracks off-center, refer to the 'Setup: Treadmill Belt Installation' section for adjustment instructions.
- Avoid Over-tightening: An over-tightened belt can cause excessive wear on the motor, rollers, and belt itself.
Troubleshooting
Here are solutions to common issues you might encounter with your treadmill belt.
| Problem | Possible Cause | Solution |
|---|---|---|
| Belt slips during use | Belt tension is too loose. | Adjust belt tension by turning both rear roller bolts clockwise in quarter-turn increments until slipping stops. |
| Belt tracks to one side | Belt is misaligned. | Adjust belt alignment by turning the rear roller bolt on the side the belt is drifting towards clockwise in small increments. |
| Excessive noise (squeaking, rubbing) | Lack of lubrication, debris under belt, or improper tension. | Unplug treadmill, clean under the belt. Check treadmill manual for lubrication schedule. Adjust belt tension if too tight or loose. |
| Belt feels rough or sticky | Accumulated dirt or old lubricant. | Unplug treadmill, clean the belt surface and deck thoroughly. Re-lubricate the deck if necessary according to your treadmill's manual. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Generic |
| Model Number | PETL59916.1 |
| Compatible Devices | ProForm Performance 350i Treadmill (PETL599161 / PETL59916.1) |
| Material | Synthetic Rubber |
| Belt Style | Ribbed |
| Color | Black |
| Pre-lubricated | Yes |
| Included Components | 1pcs PETL59916.1 - Treadmill Running Belt |
| Item Dimensions (L x W) | 11"L x 0.7"W (Note: These dimensions appear to be for packaging or a component, not the full running belt.) |
| Item Weight | 30 Grams (Note: This weight appears to be for packaging or a component, not the full running belt.) |

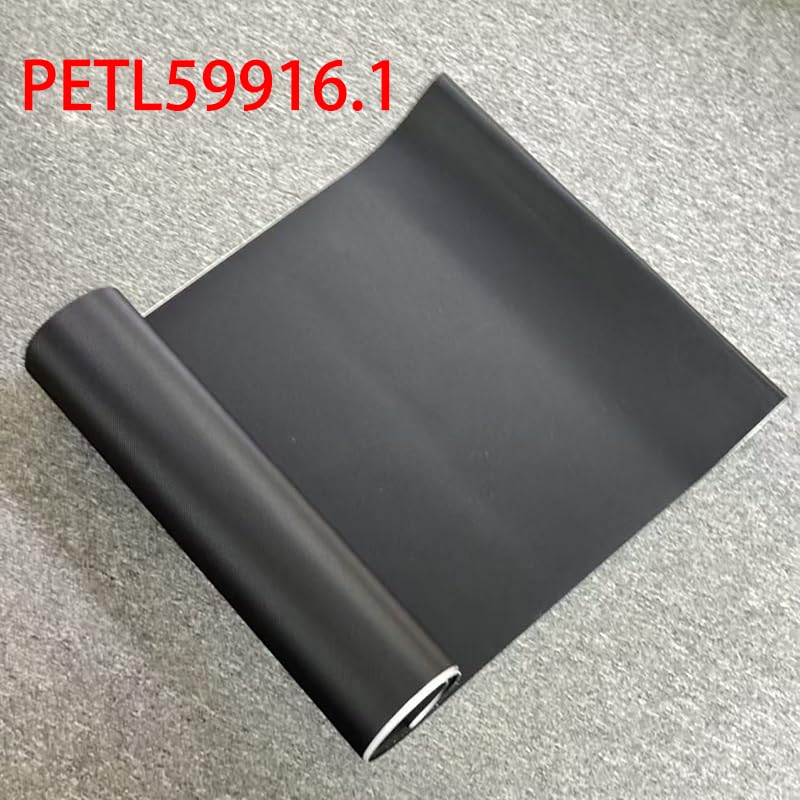

Image: The treadmill belt unrolled, with the model number PETL59916.1 clearly indicated on the surface.
Warranty Information
Specific warranty details for this Generic replacement treadmill belt are not provided in the product information. Please refer to the seller or retailer from whom you purchased this product for any applicable warranty terms and conditions.
Support
For technical assistance or inquiries regarding this product, please contact the seller or retailer directly. Ensure you have your purchase details and the product model number (PETL59916.1) available when seeking support.
