1. Product Overview
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your PUGSDRLY bed frame. This bed frame is designed for a 140 x 200 cm mattress (not included) and features four integrated storage drawers. It is constructed with a skin-friendly chenille upholstery, ecological eucalyptus wood, and a sturdy iron frame, ensuring both comfort and durability.
Image 1.1: Fully assembled PUGSDRLY bed frame with integrated storage drawers.
2. Safety Information
- Read all instructions carefully before beginning assembly and use.
- Keep all small parts and packaging materials away from children.
- Ensure all bolts, screws, and connections are securely tightened before use. Periodically check and re-tighten as necessary.
- Do not exceed the maximum weight capacity of 300 kg.
- Assemble the bed frame on a flat, stable, and clean surface to prevent damage or injury.
- Do not stand or jump on the bed frame.
3. Package Contents
The PUGSDRLY bed frame is shipped in two separate packages. It is normal for these packages to arrive at different times. Please allow 3-5 business days for all packages to be delivered. Verify that all components listed below are present before starting assembly.
Image 3.1: Exploded view showing all bed frame components and hardware.
Components List:
- Headboard
- Footboard
- Side Rails (Left and Right)
- Center Support Beam
- Bed Slats (Multiple pieces)
- Support Legs for Frame and Slats
- 4 Storage Drawers (unassembled)
- Hardware Pack (screws, bolts, Allen key, etc.)
- Assembly Manual
4. Setup and Assembly Instructions
Assembly of this bed frame is required. Please follow the detailed instructions provided in the separate assembly manual included in your package. Ensure you have sufficient space and a second person to assist with lifting and positioning larger components.
General Assembly Steps:
- Unpack and Identify Parts: Lay out all components and hardware. Compare them with the parts list in the assembly manual.
- Assemble the Headboard and Footboard: Attach any necessary support legs or decorative elements as per the manual.
- Connect Side Rails: Attach the side rails to the headboard and footboard using the provided hardware. Do not fully tighten bolts until the frame is complete.
- Install Center Support and Slats: Place the center support beam and then evenly space and secure the bed slats across the frame. Ensure all slats are firmly attached.
- Assemble Storage Drawers: Follow the specific instructions for assembling the four storage drawers. Attach wheels or glides as indicated.
- Insert Drawers: Once the bed frame is assembled, slide the completed drawers into their designated positions under the bed.
- Final Tightening: Once the entire frame is assembled, go back and securely tighten all bolts and screws.

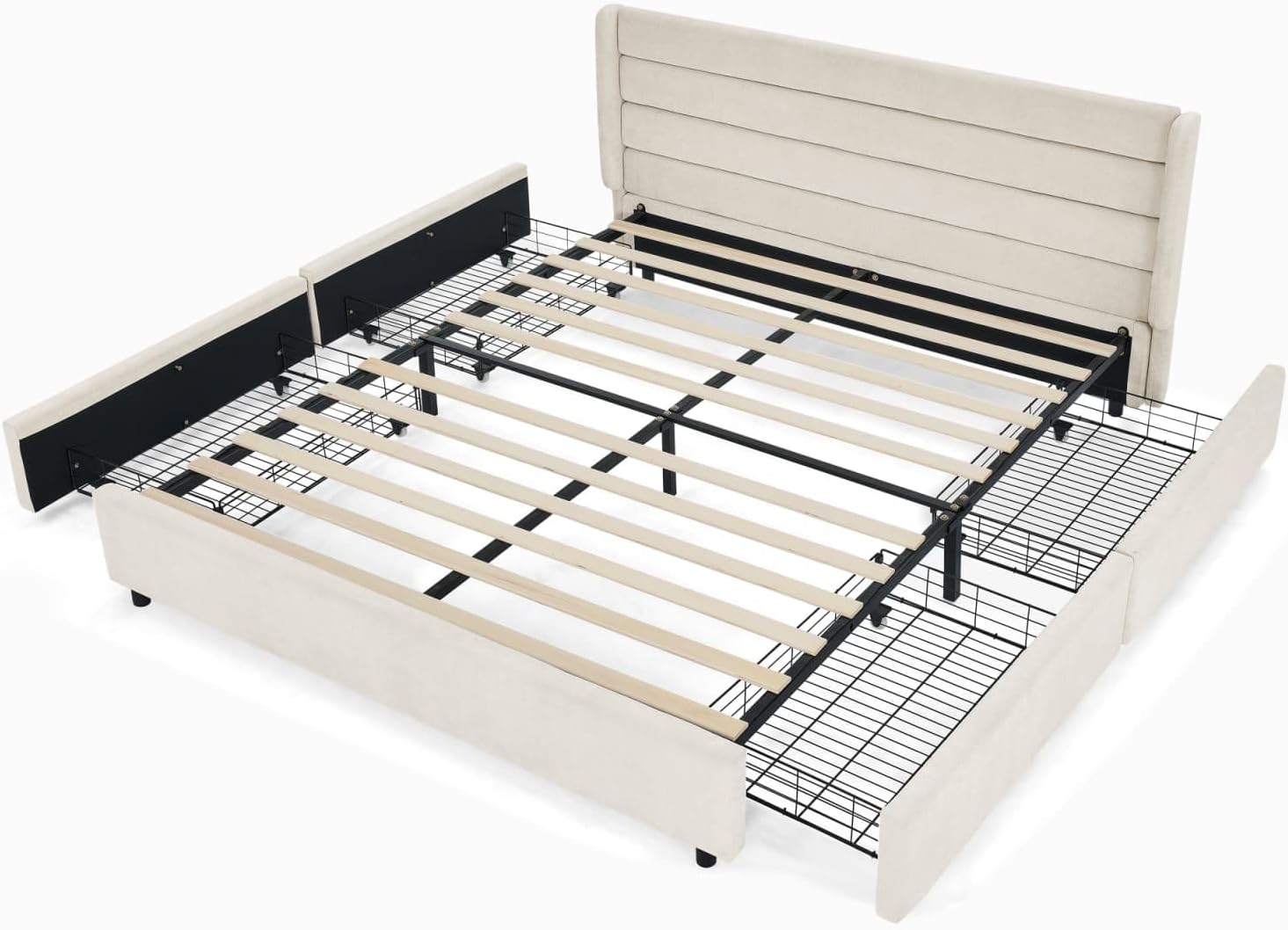

Image 4.1: Detail of the bed frame's slat and support structure during assembly.
5. Operating Instructions (Storage Drawers)
The PUGSDRLY bed frame is equipped with four large, integrated storage drawers for convenient organization.
Using the Drawers:
- Opening: Gently pull the handle of the desired drawer outwards to open.
- Closing: Push the drawer back into its compartment until it is fully recessed under the bed.
- Capacity: Do not overload the drawers. Distribute weight evenly to ensure smooth operation and prevent damage.
Image 5.1: The bed frame with its four storage drawers partially open, demonstrating their functionality.
6. Maintenance
Proper maintenance will extend the life and appearance of your bed frame.
- Cleaning Upholstery: For general cleaning, gently vacuum the chenille fabric periodically to remove dust and debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner specifically designed for chenille, testing on an inconspicuous area first. Avoid harsh chemicals or abrasive cleaners.
- Frame Inspection: Regularly (e.g., every 3-6 months) inspect all bolts, screws, and connections. Re-tighten any loose hardware to maintain stability and prevent squeaking.
- Drawer Maintenance: Keep the drawer runners free from dust and obstructions to ensure smooth operation.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading of the fabric.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame feels unstable or wobbly. | Loose hardware. Uneven floor. | Check and tighten all bolts and screws. Ensure the bed is on a flat, level surface. |
| Drawers do not slide smoothly. | Obstruction in runners. Overloaded drawer. Misaligned drawer. | Clear any debris from the drawer runners. Reduce the weight in the drawer. Re-check drawer assembly and alignment. |
| Squeaking noises. | Loose connections. Friction between parts. | Tighten all hardware. Apply a small amount of lubricant (e.g., silicone spray) to contact points if necessary, avoiding fabric. |
| Missing parts or damaged components. | Shipping error or manufacturing defect. | Contact customer support or the retailer with your purchase details and the specific part number (if applicable). |
8. Specifications
Image 8.1: Detailed dimensions of the PUGSDRLY bed frame.
| Feature | Detail |
|---|---|
| Brand | PUGSDRLY |
| Model Number | B99065 |
| Overall Dimensions (L x W x H) | 214 x 162 x 90 cm |
| Recommended Mattress Size | 140 x 200 cm (Mattress not included) |
| Material | Skin-friendly Chenille, Ecological Eucalyptus Wood, Sturdy Iron Frame |
| Load Capacity | 300 kg |
| Storage | 4 Integrated Drawers |
| Color | Beige |
| Product Weight | 49 kg |
| Assembly Required | Yes |
9. Warranty and Support
For warranty information, details on returns, or to obtain replacement parts, please refer to your purchase documentation or contact the retailer directly. The manufacturer, PUGSDRLY, is committed to providing quality products and support.
