Masterpart Microwave Turntable Roller Ring Instruction Manual

1. Introduction

This manual provides instructions for the Masterpart DE92-90189S microwave turntable roller ring. This component is essential for the proper rotation of your microwave's glass turntable tray, ensuring even heating of food.

The roller ring is designed to fit specific Samsung microwave models. Please verify compatibility before installation.

2. Product Overview

The roller ring consists of a circular frame with three or more small wheels (rollers) that support the microwave's glass turntable tray. It allows the tray to rotate smoothly during operation.

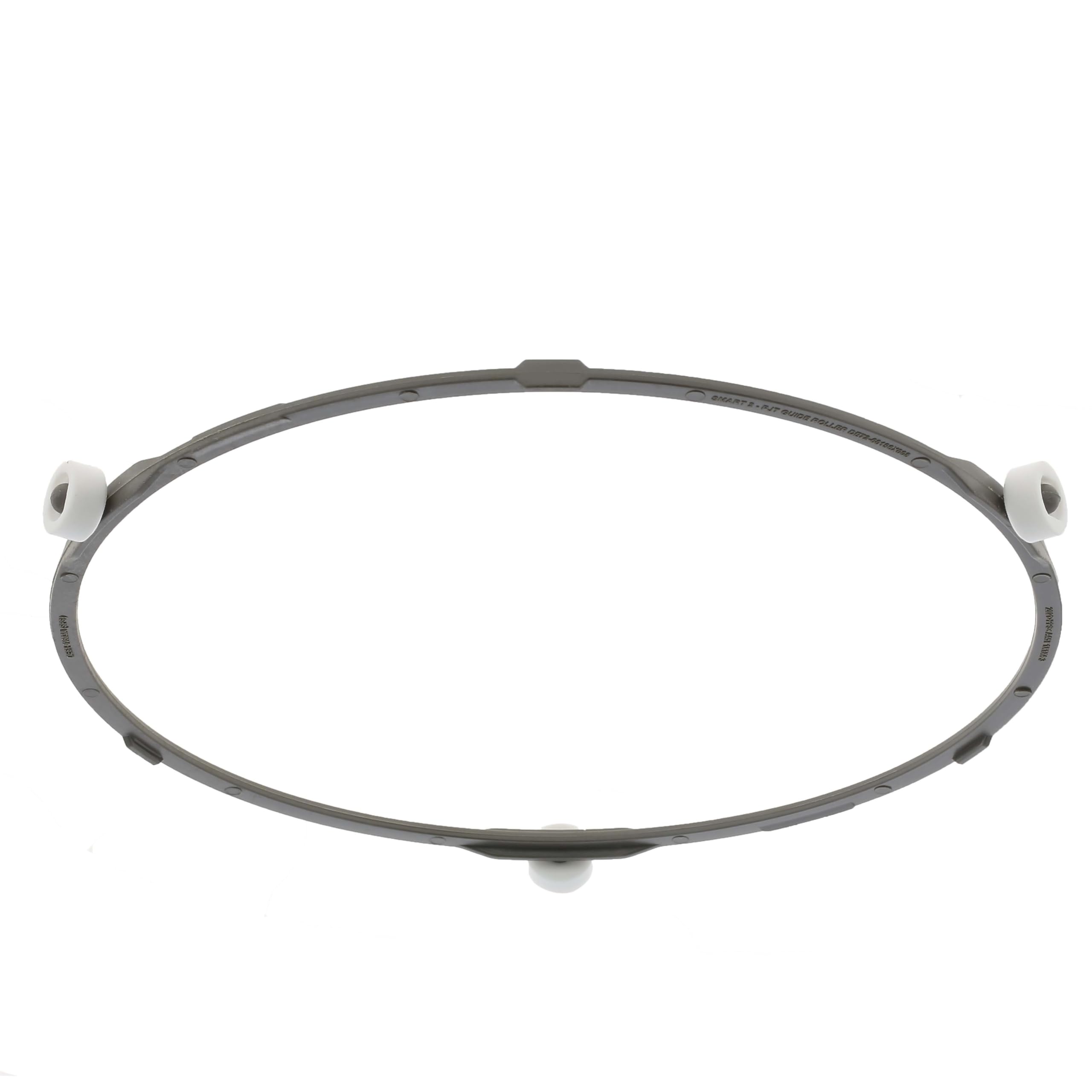

Image: A view of the Masterpart microwave turntable roller ring, showing its circular design and the three white rollers. This component is crucial for the smooth rotation of the microwave's glass tray.

3. Compatible Models

This roller ring is compatible with a wide range of Samsung microwave models. Please check your microwave's model number against the list below to ensure proper fit. The manufacturer part number for this roller ring is DE92-90189S.

Some compatible models include:

• MC11H6033CT/AA
• MC28M6055CK/EN
• MC32F604TCT/ZA
• MC35J8055CK/EF
• MC11J7033CT/AC
• MC11K7035CG/AA
• MC12DB8700CKAA
• MC12J8035CT/AA
• MC1360WA
• MC28A5013AK/TL
• MC28H5013AK/BW
• MC28M6035CK

For a comprehensive list of all compatible models, please refer to the product's original packaging or the detailed product listing where this item was purchased.

4. Setup and Installation

1. Step 1: Safety First - Before attempting any installation, ensure your microwave oven is unplugged from the power outlet to prevent electrical hazards.

2. Step 2: Remove Old Components - If replacing an existing roller ring, carefully lift out the glass turntable tray and then remove the old roller ring from the microwave cavity.

3. Step 3: Clean the Cavity - Wipe down the bottom of the microwave cavity where the roller ring sits to remove any food debris or spills. This ensures smooth operation.

4. Step 4: Place the New Roller Ring - Position the new Masterpart DE92-90189S roller ring centrally on the turntable support in the microwave cavity. Ensure it sits flat and stable.

5. Step 5: Reinstall Turntable Tray - Carefully place the glass turntable tray onto the roller ring, ensuring the center hub of the tray aligns with the coupler in the microwave cavity. The tray should rest securely on the rollers.

6. Step 6: Test Operation - Plug the microwave back into the power outlet. Place a microwave-safe cup of water on the turntable tray and run the microwave for 30 seconds to verify that the tray rotates smoothly and without obstruction.

Image: A top-down view of the microwave turntable roller ring, highlighting its circular shape and the placement of the rollers. This view helps in understanding how the glass tray rests on the component.

5. Operating Instructions

The roller ring operates passively, supporting the glass turntable tray as it rotates. No direct user interaction is required with the roller ring itself during microwave operation.

Always ensure the glass turntable tray is correctly seated on the roller ring before operating the microwave. Misalignment can lead to uneven heating, noise, or damage to the components.

6. Maintenance

To ensure optimal performance and longevity of your roller ring and microwave, regular cleaning is recommended.

• Cleaning Frequency: Clean the roller ring and glass turntable tray regularly, especially after spills or heavy use.

• Cleaning Procedure: Remove the glass turntable tray and the roller ring from the microwave. Wash both components with warm, soapy water. Rinse thoroughly and dry completely before placing them back into the microwave.

• Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, or harsh chemical detergents, as these can damage the plastic material of the roller ring.

• Inspection: Periodically inspect the rollers for any signs of wear, cracks, or damage. If the rollers are damaged, the ring may need replacement to prevent issues with turntable rotation.

Image: A close-up view of the roller ring, showing the detail of the rollers. This image is useful for identifying potential wear or damage during maintenance checks.

7. Troubleshooting

Turntable Not Rotating:

Ensure the roller ring is correctly seated and the glass tray is properly aligned with the coupler. Check for any obstructions beneath the tray or around the roller ring. Verify that the microwave's motor is functioning (consult your microwave's main manual).

Unusual Noise During Rotation:

Clean the roller ring and the microwave cavity thoroughly, as food debris can cause friction and noise. Inspect the rollers for damage or wear. Ensure the glass tray is not chipped or cracked.

Uneven Heating:

This often indicates that the turntable is not rotating correctly. Follow the steps for "Turntable Not Rotating" and ensure the roller ring and tray are clean and properly installed.

8. Specifications

9. Warranty and Support

This Masterpart product is designed for durability and performance. For specific warranty information, please refer to the documentation provided with your purchase or contact Masterpart customer support directly.

For further assistance or inquiries regarding this roller ring, please visit the official Masterpart website or contact their customer service department.
