Giantex Twin Daybed with Trundle Instruction Manual

1. Important Safety Information

Please read and understand all instructions before beginning assembly and use. Keep this manual for future reference.

• Adult Assembly Required: This product requires adult assembly. Ensure all parts are present and undamaged before starting.
• Keep Children Away: Keep children and pets away from the assembly area to prevent injury or choking hazards from small parts.
• Secure Connections: Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten connections.
• Weight Capacity: Do not exceed the maximum weight capacities: Daybed: 440 lbs, Trundle: 330 lbs.
• Mattress Thickness: Use twin-size mattresses with a recommended thickness of 3"-5" for both the daybed and trundle.
• Level Surface: Assemble and use the daybed on a flat, level surface.

2. Product Overview

The Giantex Twin Daybed with Trundle is a versatile furniture piece designed for dual use as a comfortable sofa and an extra sleeping space. It features a sturdy metal frame with a curved backrest and armrests, and includes a space-saving pull-out trundle bed.

Key Features:

• Dual-use Design: Functions as a sofa for seating and a daybed for sleeping.
• Space-saving Trundle: A pull-out trundle provides an additional twin sleeping area, ideal for guests.
• Sturdy Metal Construction: Supported by 13 + 13 heavy-duty metal slats for durability and stability.
• Elegant Design: Features a rounded arch detailing on three sides for aesthetic appeal.
• No Box Spring Needed: Metal slats provide direct mattress support.
• Lockable Casters: Trundle includes 4 lockable casters for easy movement and secure positioning.

Figure 2.1: Giantex Twin Daybed with Trundle (Gold)

Figure 2.2: Daybed versatility: functions as a cozy sofa or an extra sleeping space.

3. Package Contents

Before assembly, ensure all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Daybed Frame Components (Backrest, Armrests, Side Rails, Front Rail)
• Trundle Frame Components (Trundle Frame, Support Leg)
• Metal Slats (for Daybed and Trundle)
• Hardware Pack (Bolts, Screws, Washers, Allen Wrench)
• 4 Lockable Casters
• Hook and Loop Fastener
• User Guide (This document)

4. Specifications

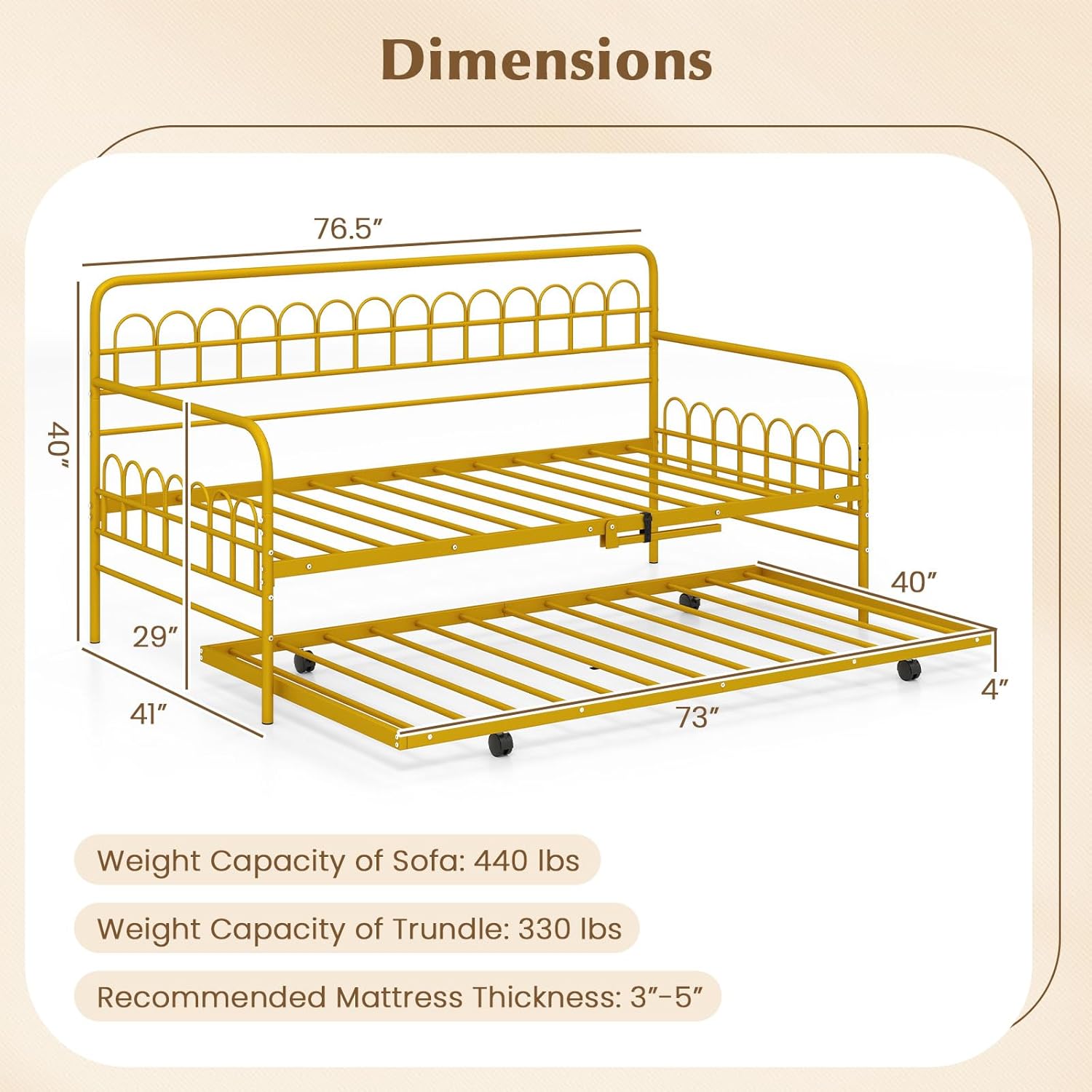

Figure 4.1: Product Dimensions and Weight Capacities

5. Setup and Assembly

Follow these steps carefully to assemble your Giantex Twin Daybed with Trundle. It is recommended to have two adults for assembly.

Preparation:

• Clear a spacious area for assembly.
• Lay out all components on a soft, clean surface to prevent scratches.
• Identify all parts and hardware using the provided parts list (if applicable, or refer to diagrams).
• Do not fully tighten bolts until all components are loosely assembled.

Assembly Steps:

1. Assemble the Main Daybed Frame: Attach the backrest and armrests to the side rails and front rail using the provided bolts and an Allen wrench. Ensure all connections are aligned before tightening.
2. Install Daybed Slats: Place the metal slats onto the daybed frame. Secure them according to the instructions, ensuring even spacing and firm attachment.
3. Assemble the Trundle Frame: Connect the trundle frame components. Attach the four lockable casters to the bottom of the trundle frame.
4. Install Trundle Slats: Place the metal slats onto the trundle frame, securing them in position.
5. Attach Trundle Support Leg: Secure the additional support leg to the trundle frame. Use the hook and loop fastener to fix the leg in place when folded, allowing for easy push-in and pull-out of the trundle.
6. Final Tightening: Once all components are in place and aligned, fully tighten all bolts and screws on both the daybed and trundle frames.

Figure 5.1: Fully assembled daybed and trundle.

Figure 5.2: Detail of heavy-duty metal slats and non-slip foot pads for stability.

Figure 5.3: Trundle design with additional support leg and hook and loop fastener for easy operation.

Figure 5.4: Trundle with lockable casters for secure positioning and smooth pull-out.

6. Operating Instructions

Using the Daybed:

The main frame serves as a comfortable seating area during the day. Place a twin-size mattress (3"-5" thick) on the slats. Add cushions and throws to enhance its function as a sofa.

Using the Trundle:

1. Unlock Casters: Ensure the four casters on the trundle are in the unlocked position.
2. Pull Out: Gently pull the trundle out from under the daybed. The foldable middle leg will extend as it is pulled out.
3. Position: Once fully extended, position the trundle as desired.
4. Lock Casters: Push down the locking mechanism on each caster to secure the trundle in place, preventing unwanted movement.
5. Push In: To store, unlock the casters, gently push the trundle back under the daybed. The middle support leg will fold and be secured by the hook and loop fastener. Lock the casters once stored.

7. Maintenance and Care

Proper care will extend the life and appearance of your daybed.

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Regular Checks: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability and safety.
• Avoid Overloading: Do not exceed the specified weight capacities for the daybed or trundle.
• Protect Finish: Avoid dragging sharp objects across the frame to prevent scratches.

8. Troubleshooting

Common Issues and Solutions:

• Squeaking Noises:
  Solution: Check all bolts and screws and tighten them securely. Ensure the slats are properly seated in their supports.
• Trundle Difficult to Pull Out/Push In:
  Solution: Ensure the casters are unlocked. Check for any obstructions under the daybed. Verify the middle support leg is folding correctly and not catching.
• Instability/Wobbling:
  Solution: Confirm that the daybed is on a level surface. Re-check all assembly connections and tighten any loose bolts.

9. Warranty and Support

Giantex is committed to providing quality products. While specific warranty details are not included in this manual, please retain your proof of purchase for any potential claims.

For assistance with missing parts, damaged components, or assembly questions, please contact Giantex customer support. Refer to your purchase documentation or the Giantex website for contact information.

This product is eligible for 30-day easy returns through the retailer.
