1. Introduction
Thank you for choosing the Kikihouse Full Over Full Bunk Bed with Trundle and Storage Stairs. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image 1.1: Overall view of the Kikihouse Full Over Full Bunk Bed with Trundle and Storage Stairs, featuring a white and wood finish, a pull-out trundle, and integrated storage stairs.
2. Safety Information
Your safety is paramount. Failure to follow these safety guidelines may result in serious injury or property damage.
- Weight Limits: The top bunk is designed to support a maximum of 350 lbs. The bottom bunk supports a maximum of 300 lbs. The trundle bed supports a maximum of 200 lbs. Do not exceed these weight limits.
- Guardrails: The top bunk is equipped with full-length guardrails for safety. Ensure they are always securely in place.
- Mattress Size: For optimal safety and to ensure guardrail effectiveness, use mattresses with a height of 3-5 inches.
- Stairs: Always use the stairs carefully, especially with young children. Ensure all steps are securely fastened during assembly.
- Assembly: This product requires assembly. Follow all assembly instructions precisely. Do not use power tools for assembly unless specifically instructed, as this may overtighten fasteners and damage the wood.
- Regular Checks: Periodically check all bolts and fasteners to ensure they remain tight. Retighten as necessary.
- Ventilation: Ensure adequate ventilation around the bed.
- No Jumping: Do not allow jumping on the bed.

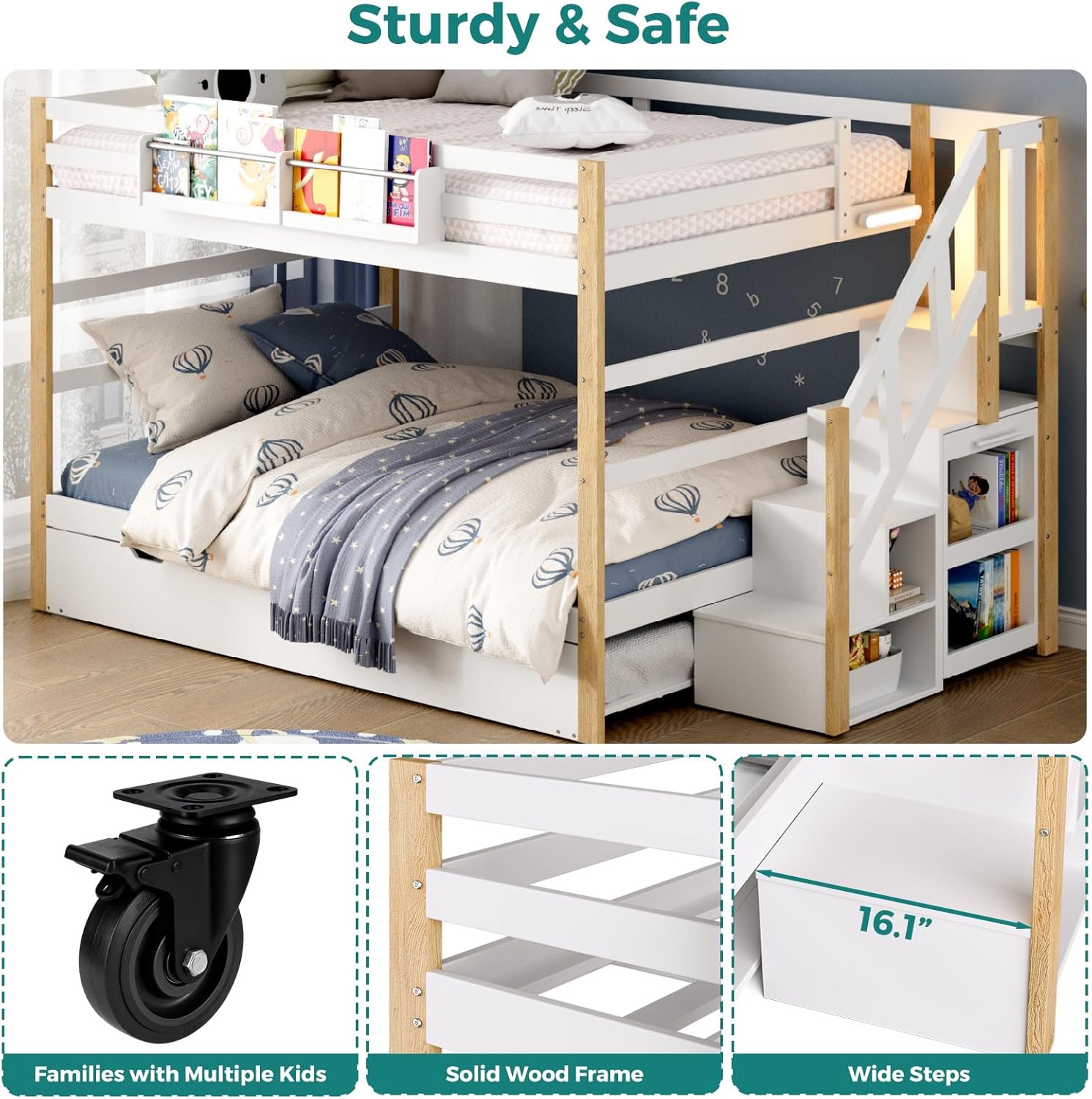

Image 2.1: Illustration of the bunk bed's sturdy construction, including solid wood frame, wide steps, and caster wheels for the trundle, highlighting safety and durability.
Image 2.2: Close-up view of the 360-degree enclosed safety rail on the top bunk, demonstrating the secure design for safe sleeping. The image also indicates a recommended mattress height of 10.6 inches below the top of the rail.
3. Package Contents
Before assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.
The bunk bed is typically shipped in multiple boxes. Please ensure you have received all packages before starting assembly.
- Bed frame components (headboards, footboards, side rails)
- Slat support system
- Trundle bed frame and wheels
- Staircase components with storage drawers/shelves
- Foldable desk components
- Magnetic LED lamp with USB cable (non-rechargeable)
- Hardware pack (screws, bolts, nuts, Allen wrench)
- Assembly instructions (digital access)
4. Setup and Assembly
Assembly instructions are provided digitally to ensure you have the most current and detailed guidance. Please refer to the video guide and step-by-step visuals for a smooth assembly process.
4.1 Digital Assembly Instructions
This product does not include a paper manual. Access the comprehensive digital assembly instructions and video guide by scanning the QR code provided on the packaging or visiting the manufacturer's website. The video guide offers visual assistance for each step.
4.2 Recommended Tools
- Phillips head screwdriver
- Rubber mallet (optional, for gentle tapping)
- Measuring tape
- Two people for assembly are highly recommended.
4.3 Assembly Tips
- Clear a spacious area for assembly.
- Lay out all components and hardware before starting.
- Do not fully tighten all bolts until the entire structure is assembled and aligned.
- Follow the numerical sequence of steps in the digital guide.
Video 4.1: Official product video demonstrating the features and assembly process of the Kikihouse Bunk Bed with Trundle and Storage Stairs Foldable Desk. This video provides a visual guide to key functionalities.
5. Operating Instructions
5.1 Using the Trundle Bed
The trundle bed is designed for easy access and storage. To use, gently pull the trundle frame out from under the bottom bunk. It is equipped with smooth-rolling wheels for effortless movement. To store, push the trundle back under the bottom bunk until it is fully concealed.
5.2 Utilizing the Storage Stairs
The staircase features integrated storage compartments within each step. These can be used to store books, toys, or other small items, helping to keep the room tidy. Open the compartments by lifting the step covers or pulling out the drawers, depending on the design of your specific model.
Image 5.1: Detailed view of the storage stairs, showing how each step functions as a storage compartment for books, toys, or other essentials.
5.3 Operating the Foldable Desk
The integrated foldable desk provides a convenient workspace. To deploy the desk, pull it out from its stored position. The desk surface will extend, creating a stable area for study or hobbies. To store, fold the desk back into its compact position against the bed frame.

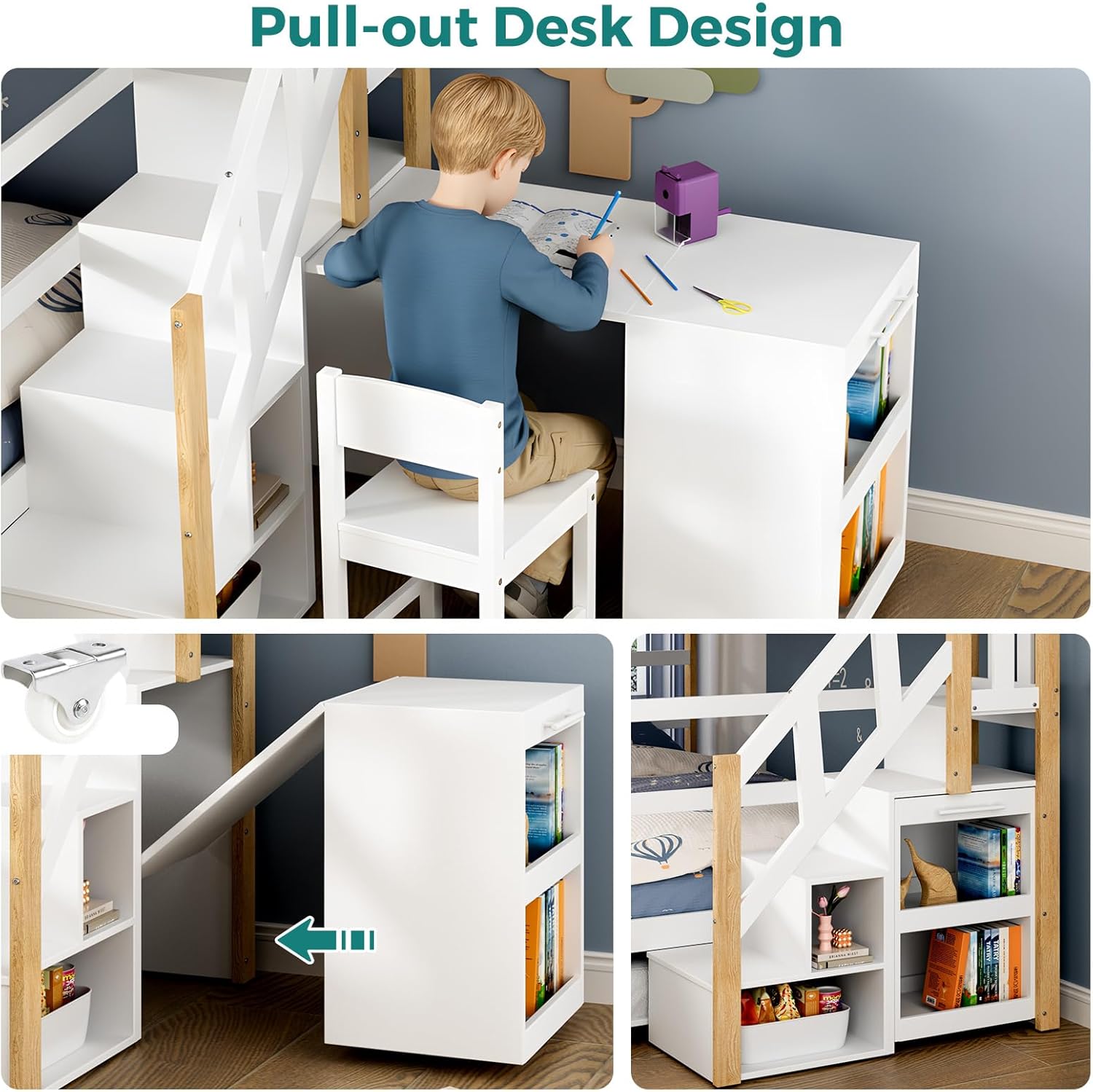

Image 5.2: A child using the pull-out foldable desk, demonstrating its functionality as a compact workstation for various activities.
5.4 Using the Magnetic LED Lamp
The bunk bed includes a plug-in magnetic LED lamp. This lamp offers 3 color modes and stepless dimming for adjustable lighting. Attach the lamp to any magnetic surface on the bed frame. Connect it to a power source using the provided USB cable. Adjust brightness and color mode as desired for reading or ambient lighting.
6. Maintenance
Proper maintenance will extend the life and appearance of your bunk bed.
- Cleaning: Wipe down the bed frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
- Hardware: Periodically inspect all bolts, screws, and fasteners. Tighten any loose hardware to ensure the bed remains stable and safe.
- Wood Care: Protect the wood from extreme temperature changes and direct sunlight, which can cause warping or fading.
- LED Lamp: Keep the LED lamp clean and dry. Do not attempt to disassemble or repair the lamp yourself.
7. Troubleshooting
If you encounter any issues with your bunk bed, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable. | Loose hardware. | Check and tighten all bolts and screws. Ensure all connections are secure. |
| Trundle bed does not slide smoothly. | Wheels are obstructed or damaged. | Clear any debris from the wheels. Inspect wheels for damage; contact support if damaged. |
| Foldable desk is difficult to extend or retract. | Mechanism is stiff or obstructed. | Ensure no objects are blocking the desk's path. Apply a small amount of silicone lubricant to moving parts if necessary. |
| LED lamp is not turning on. | Not properly plugged in or power source issue. | Check USB connection and ensure the power source is active. Try a different USB port or adapter. |
If the problem persists after attempting these solutions, please contact Kikihouse customer support.
8. Specifications
- Brand: Kikihouse
- Model: Bunk Bed with Trundle (B0FWRC4WM5)
- Color: White+wood
- Size: Full Over Full with Trundle
- Product Dimensions (Overall): 95.4"L x 56.1"W x 62.2"H
- Material: Solid Pine Wood
- Finish Type: Painted
- Item Weight: Approximately 222 Pounds
- Weight Capacity (Top Bunk): 350 lbs
- Weight Capacity (Bottom Bunk): 300 lbs
- Weight Capacity (Trundle): 200 lbs
- Special Features: Foldable Desk, Storage Stairs, Trundle Bed, Magnetic LED Lamp (3 color modes, stepless dimming)
- Included Components: Bookcase, Guardrails, Staircase
- Assembly Required: Yes (Digital instructions and video guide provided)
Image 8.1: Detailed diagram illustrating the dimensions of the Full Over Full Bunk Bed with Trundle and Storage Stairs, including length, width, height, and individual component measurements.
9. Warranty Information
For specific warranty details regarding your Kikihouse Full Over Full Bunk Bed, please refer to the product listing on the retailer's website or contact Kikihouse customer support directly. Warranty coverage typically includes manufacturing defects and may vary by region and purchase date.
10. Support
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Kikihouse customer support through the retailer's platform or the official Kikihouse website. Please have your model number (B0FWRC4WM5) and purchase date ready when contacting support.
