KUKIRIN G2 Master Electric Scooter User Manual
Model: G2 Master
1. Introduction
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your KUKIRIN G2 Master Electric Scooter. Please read this manual thoroughly before your first ride to ensure proper use and to maximize the lifespan of your scooter.
The KUKIRIN G2 Master is an electric scooter designed for adults and teens, featuring an 800W motor, a maximum speed of 28 mph, and a range of up to 34 miles. It is equipped with 10-inch off-road tires and a multi-damping system for various terrains.
Image 1.1: KUKIRIN G2 Master Electric Scooter. This image displays the overall design of the scooter, highlighting its robust frame and off-road tires.
2. Safety Guidelines
Your safety is paramount. Adhere to the following guidelines to prevent accidents and injuries:
- Always wear a helmet and other safety protective equipment (e.g., knee pads, elbow pads) when riding.
- Operate the scooter in accordance with local laws and regulations.
- Avoid riding on slippery surfaces, loose sand, gravel, or ice. The scooter is designed for flat, hardened roads.
- When encountering speed bumps, potholes, or other uneven surfaces, reduce speed (5-10 km/h) and bend your knees to absorb shock.
- Do not ride at high speeds in complex road conditions.
- Ensure the front and rear lights are on when riding at night or in low-light conditions. Wear reflective clothing for increased visibility.
- The scooter features an efficient braking system. Familiarize yourself with its operation before riding at speed.
- The maximum load capacity is 264 lbs (120 kg). Do not exceed this limit.
Image 2.1: Important Safety Precautions. This image outlines critical safety advice for operating the electric scooter, including wearing protective gear and adapting to road conditions.
3. Package Contents
Upon opening the package, verify that all items are present and undamaged:
- KUKIRIN G2 Master Electric Scooter (1 PC)
- Charger (1 PC)
- User Manual (1 PC)
- Tool Kit and Screws (1 Set)
- Storage Bag (1 PC)
4. Assembly and Setup
The KUKIRIN G2 Master Electric Scooter comes largely pre-assembled. Follow these steps for final setup:
- Unfolding the Scooter: Carefully lift the handlebar stem until it locks into place. Ensure the folding mechanism is securely latched.
- Handlebar Attachment: If the handlebars are detached, align them with the stem and secure them using the provided screws and tools. Ensure all connections are tight.
- Initial Charge: Before first use, fully charge the scooter's battery. Refer to the "Charging" section for detailed instructions.
- Tire Pressure Check: Verify that the 10-inch pneumatic tires are inflated to the recommended pressure (40-45 psi).
Image 4.1: Folded Electric Scooter. This image demonstrates the scooter's foldable design, showing it stored in a car trunk, highlighting its portability.
5. Operation
5.1 Controls and Display
The scooter features a high-definition smart touchscreen display that provides real-time information such as speed, battery level, and riding mode.
- Power Button: Press and hold to turn the scooter on/off.
- Accelerator: Located on the right handlebar, controls speed.
- Brake Levers: Located on both handlebars, activate the front and rear disc brakes.
- Light Controls: Activate the headlight, taillight, and turn signals.
- Horn: For alerting others.
Image 5.1: Scooter Lighting System. This top-down view illustrates the scooter's comprehensive 7-light system, including the headlight, turn signals, taillight, and brake light, enhancing visibility and safety.
5.2 Riding Modes
The KUKIRIN G2 Master offers 3 speed modes to suit different riding conditions and preferences. Consult the display for current mode selection.
Image 5.2: Scooter in Operation. A rider is shown operating the KUKIRIN G2 Master, emphasizing the 800W motor and its capability for uphill climbs, speed, and multiple riding modes.
5.3 Braking System
The scooter is equipped with front and rear disc brakes for reliable stopping power. Always apply brakes smoothly to avoid sudden stops, especially at higher speeds.
Image 5.3: Rear Wheel and Braking System. This close-up view highlights the rear wheel, motor, and disc brake mechanism, illustrating the scooter's efficient stopping capability.
6. Charging
To charge your KUKIRIN G2 Master Electric Scooter:
- Ensure the scooter is turned off.
- Locate the charging port, typically covered by a rubber flap.
- Connect the charger to the scooter's charging port, then plug the charger into a standard wall outlet.
- The charging indicator on the charger will change (e.g., from red to green) when charging is complete.
- Charging time is approximately 8-9 hours for a full charge.
- Disconnect the charger once charging is complete and secure the charging port cover.
Image 6.1: Battery and Range Information. This image details the 48V 15AH high-capacity lithium battery, indicating a max range of 34 miles, 8-9 hours charging time, and a 264 lbs max load.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your scooter:
- Cleaning: Wipe the scooter with a damp cloth. Do not use high-pressure water jets or immerse the scooter in water.
- Tire Care: Regularly check tire pressure (recommended 40-45 psi) and inspect for wear or damage. The 10-inch off-road vacuum tires are designed for durability.
- Brake Inspection: Periodically check the brake levers and disc brakes for proper function and wear. Adjust or replace components as needed.
- Fasteners: Ensure all screws and bolts are tight before each ride.
- Storage: Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery to about 50-70% and recharge every 30-60 days.
Image 7.1: Multi-Damping System. This image illustrates the scooter's front wheel spring damping and rear wheel suspension damping, designed to cushion bumps on complex terrain.

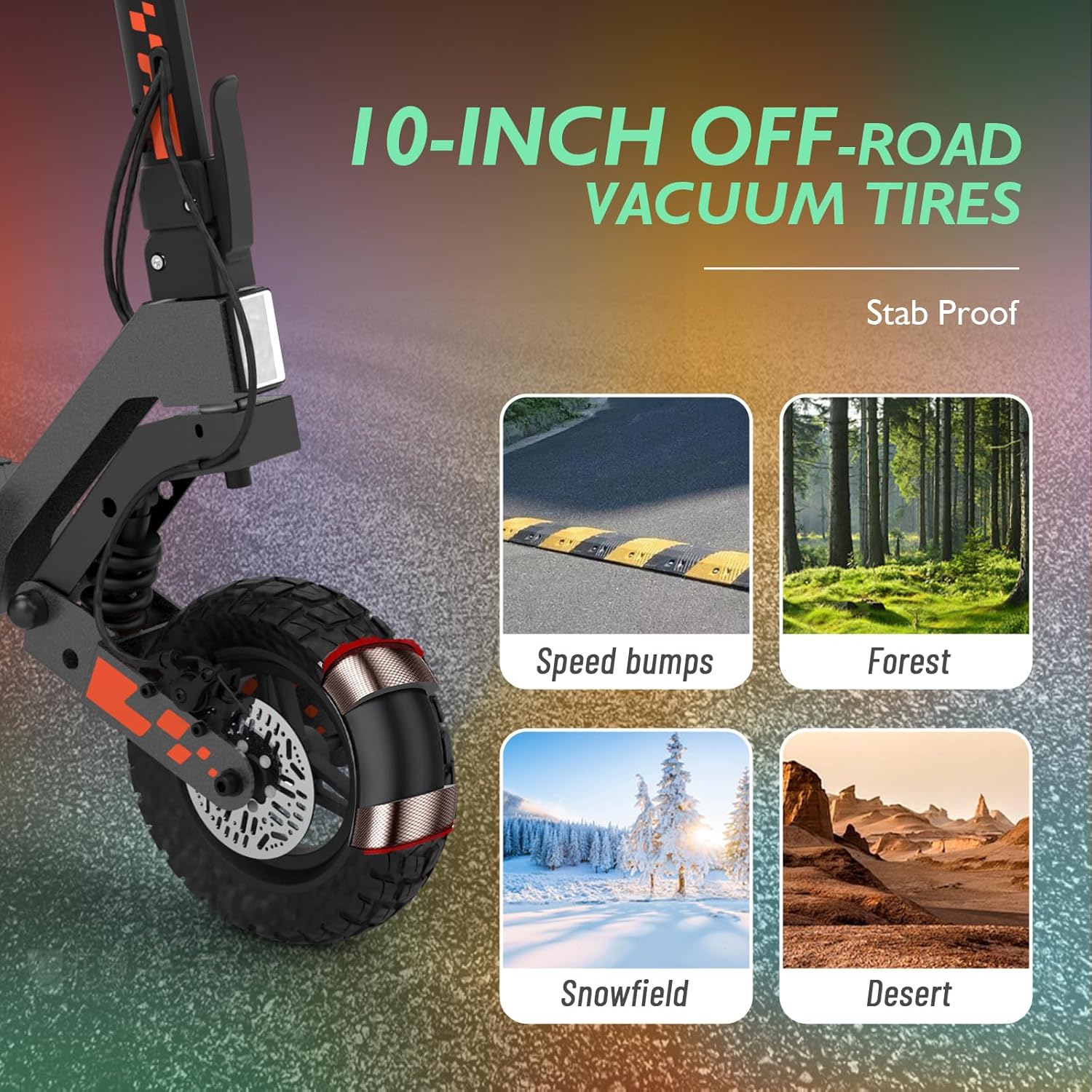

Image 7.2: Off-Road Tires. This image showcases the 10-inch off-road vacuum tires, highlighting their stab-proof design and suitability for various terrains like speed bumps, forests, snowfields, and deserts.
8. Troubleshooting
This section addresses common issues you might encounter with your KUKIRIN G2 Master Electric Scooter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Low battery; loose connections. | Charge the battery fully. Check all visible cable connections. |
| Reduced speed or range. | Low battery; incorrect riding mode; tire pressure too low; heavy load. | Ensure battery is fully charged. Select a higher speed mode. Inflate tires to recommended pressure. Reduce load. |
| Brakes feel weak. | Brake pads worn; cable tension incorrect. | Inspect brake pads for wear and replace if necessary. Adjust brake cable tension. Consult customer service if unsure. |
| Difficulty unlocking full speed (P settings). | Specific P-setting configuration required. | Refer to the detailed P-settings guide (if available separately) or contact customer service for instructions on adjusting performance parameters. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Kugookirin |
| Model Name | G2 max |
| Motor Power | 800W |
| Max Speed | 28 mph |
| Max Range | 34 Miles |
| Battery | 48V 15AH Lithium Battery |
| Charging Time | 8-9 Hours |
| Tires | 10-inch Off-Road Pneumatic Vacuum Tires |
| Brake Style | Front and Rear Disc Brakes |
| Suspension Type | Multi-Damping System (Front wheel spring damping, Rear wheel suspension damping) |
| Max Load Capacity | 264 Pounds (120 kg) |
| Frame Material | Aluminum |
| Special Feature | Foldable |
| Number of Wheels | 2 |
| Age Range (Description) | Adult |
| Product Weight | 58.4 lbs (26.5 kg) |
| Expanded Dimensions | 50" x 26" x 50" (Length x Width x Height) |
| Folded Dimensions | 50" x 26" x 21.2" (Length x Width x Height) |
Image 9.1: Product Parameters. This image provides visual details of the scooter's expanded and folded dimensions, along with its product weight and maximum load capacity.
Image 9.2: Pedal Dimensions. This image illustrates the dimensions of the scooter's extra-long pedal (460mm x 185mm), designed for a comfortable riding experience.
10. Warranty and Support
KUKIRIN G2 Master Electric Scooter has passed UL safety tests.
- Warranty: The product comes with a limited warranty. Specific parts of the scooter may have 6 or 12 months warranty. The general warranty description is 180 days. Please refer to your purchase documentation for exact terms.
- Customer Service: For any questions, technical assistance, or warranty claims, please contact our customer service. 24-hour after-sales technical service is available.
