1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your NewtiPower 48V 100Ah LiFePO4 Lithium Battery. Please read this manual thoroughly before using the product and retain it for future reference.
Product Overview
The NewtiPower 48V 100Ah LiFePO4 battery is a high-performance lithium iron phosphate battery designed for various applications including RVs, camping, solar power storage, and off-grid systems. It features a robust Battery Management System (BMS) and offers a long cycle life.
Figure 1.1: NewtiPower 48V 100Ah LiFePO4 Battery. This image displays three stacked NewtiPower 48V 100Ah LiFePO4 batteries, each featuring a smart battery LCD and M8 terminals. An inset shows a smartphone screen displaying the battery monitoring application with real-time data.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage to the battery and connected equipment.
- DO NOT reverse polarity. Ensure correct positive (+) and negative (-) connections.
- DO NOT short circuit the battery terminals.
- DO NOT expose the battery to fire or extreme heat (above 149°F/65°C).
- DO NOT immerse the battery in water.
- Use only compatible chargers designed for LiFePO4 batteries.
- Keep the battery away from children and pets.
- In case of fire, use a Class D fire extinguisher. Water can exacerbate lithium battery fires.
- Ensure adequate ventilation during charging and discharging.
Figure 2.1: Battery Management System (BMS) Protection. This diagram illustrates the various protection features provided by the integrated 120A BMS, including overcharge, short circuit, overcurrent, overdischarge, and high-temperature cut-off protection. It also highlights customer support services.
3. Product Components and Specifications
Package Contents
- NewtiPower 48V 100Ah LiFePO4 Battery
- User Manual
Technical Specifications
Figure 3.1: Battery Dimensions. This image provides a detailed view of the NewtiPower 48V 100Ah LiFePO4 battery, highlighting its physical dimensions in inches, including depth, width, and height. Key specifications like terminal type (M8), weight (89lb), and energy capacity (5120Wh) are also displayed.
| Specification | Value |
|---|---|
| Brand | NewtiPower |
| Model | 48V 100Ah |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 48V |
| Nominal Capacity | 100Ah |
| Energy | 5120Wh |
| BMS | Built-in 100A BMS (Upgraded to 200A in some models) |
| Max Continuous Discharge Current | 200A |
| Peak Current | 500A |
| Cycle Life | 10,000+ cycles (at 100% DOD) |
| Depth of Discharge (DOD) | 100% |
| Dimensions (L x W x H) | 19.3" x 6.1" x 15.1" |
| Weight | 85 lbs (approx. 89 lbs as per image) |
| Terminal Type | M8 |
| Operating Temperature | Refer to BMS specifications for exact range |
4. Setup and Installation
Unpacking and Initial Inspection
- Carefully remove the battery from its packaging.
- Inspect the battery for any visible damage. If damage is found, contact customer support immediately.
- Verify that all package contents are present.
Connection Instructions
The NewtiPower 48V 100Ah LiFePO4 battery supports both series and parallel connections for increased voltage or capacity. However, it is recommended that the total system voltage does not exceed 80V.
- Parallel Connection: Connect batteries in parallel to increase total capacity while maintaining the same voltage. Ensure all batteries are at a similar state of charge before connecting in parallel.
- Series Connection: Connect batteries in series to increase total voltage while maintaining the same capacity. Ensure all batteries are of the same model and capacity when connecting in series.
Important: Always connect positive terminals to positive terminals and negative terminals to negative terminals for parallel connections. For series connections, connect the positive terminal of one battery to the negative terminal of the next.

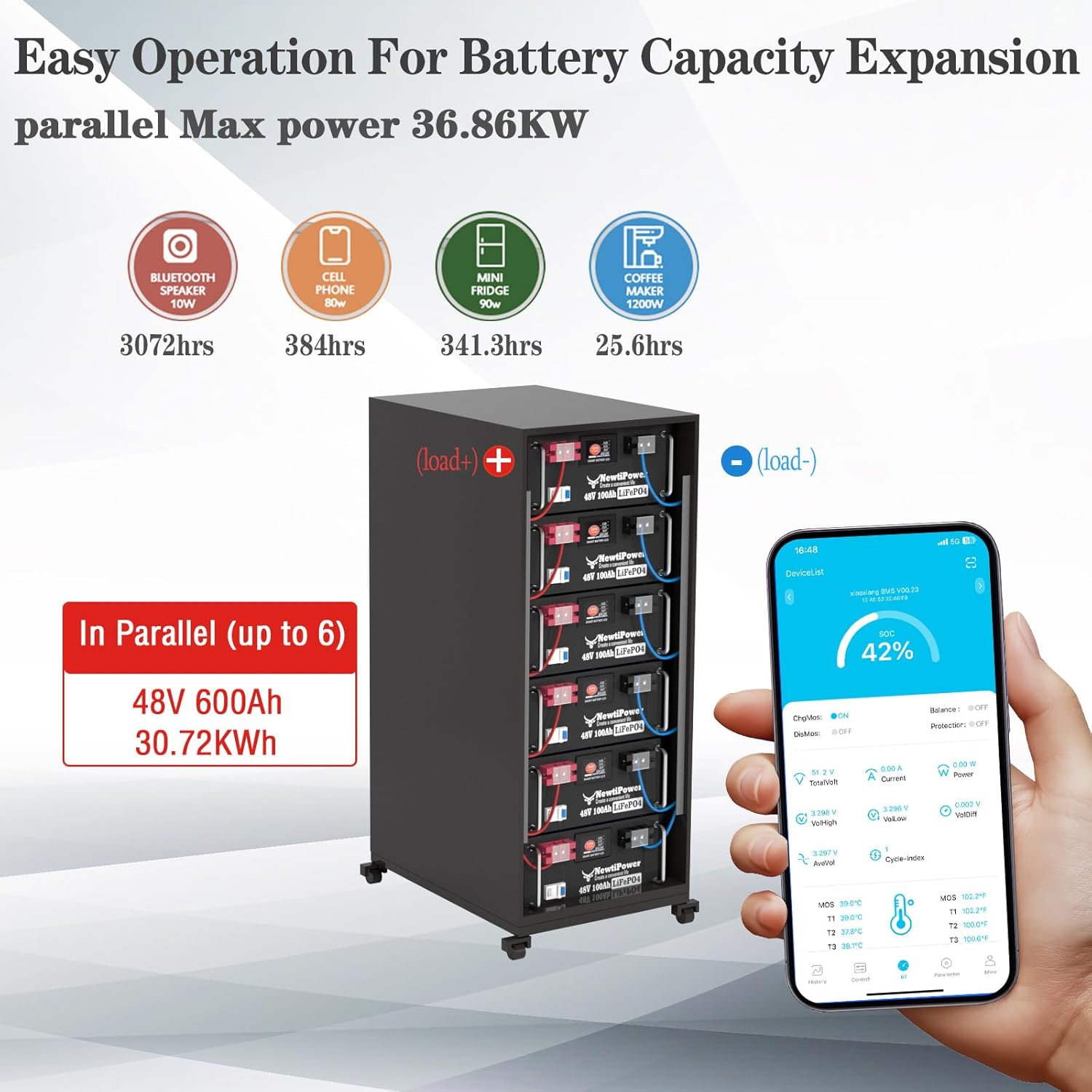

Figure 4.1: Parallel Connection for Capacity Expansion. This image illustrates how multiple NewtiPower 48V 100Ah batteries can be connected in parallel to expand total capacity, showing a configuration of up to six batteries achieving 48V 600Ah (30.72KWh). It also provides examples of appliance runtimes.
Charging Methods
Your NewtiPower LiFePO4 battery can be charged using various methods:
- Dedicated LiFePO4 Charger: Use a charger specifically designed for LiFePO4 batteries with the correct voltage and current ratings.
- Solar Panel + Charge Controller: Connect to a solar panel system with an appropriate MPPT or PWM charge controller configured for LiFePO4 batteries.
- Generator + DC-DC Charger: Utilize a generator in conjunction with a compatible DC-DC charger.
Figure 4.2: Multiple Charging Methods. This graphic displays three common methods for charging the NewtiPower battery: using a dedicated charger, a solar panel with a charge controller, or a generator with a DC-DC charger, all integrated into a home solar system context.
5. Operating Instructions
Powering On/Off
The battery features a built-in smart battery LCD with a power switch. Press the power button on the LCD to turn the battery on or off. Ensure all connections are secure before powering on.
Monitoring Battery Information
The NewtiPower battery can be monitored via its integrated Smart Battery LCD display and a dedicated smartphone application (via Bluetooth/WiFi).
- Smart Battery LCD: The LCD provides real-time display of battery voltage, current, temperature, and state of charge (SOC). It also allows you to monitor individual cell voltages and turn the battery on/off.
- Smartphone App: Download the official NewtiPower app to control and monitor your battery remotely. The app provides detailed parameters, protection settings, current settings, temperature settings, and historical data.
Figure 5.1: Control and Monitor via App. This image shows a hand holding a smartphone displaying the NewtiPower battery monitoring application, which provides real-time data and control options for the battery, set against an outdoor RV camping backdrop.
Figure 5.2: Quickly Obtain Battery Information. This graphic displays three pages of the Smart Battery LCD, showing real-time display of battery voltage, current, temperature, and state of charge (Page 1), battery switch for on/off and charge/discharge (Page 2), and individual cell voltage monitoring (Page 3).
Usage Scenarios
The NewtiPower 48V 100Ah LiFePO4 battery is suitable for a wide range of applications:
- Solar Home Systems
- RV/Outdoor Camping
- Golf Carts
- Caravans
- Boats (e.g., trolling motors)
- UPS Power Supplies
- Off-grid Applications
Figure 5.3: Powerful Companion for Diverse Applications. This image collage showcases various usage scenarios for the NewtiPower battery, including solar home systems, trolling motors, RV trips, and camping, highlighting its versatility.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your NewtiPower LiFePO4 battery.
- Regular Inspection: Periodically check battery terminals for corrosion or loose connections. Clean terminals with a wire brush if necessary.
- Charge Level: Avoid prolonged storage at a completely discharged state. For long-term storage, charge the battery to approximately 50% state of charge.
- Temperature: Store and operate the battery within its recommended temperature range. Extreme temperatures can affect performance and lifespan.
- Cleaning: Keep the battery clean and free of dust and debris. Use a dry cloth for cleaning.
7. Troubleshooting
If you encounter issues with your NewtiPower battery, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Loose connections, faulty charger, BMS protection activated, charger incompatibility | Check all cable connections. Verify charger functionality and compatibility. Check BMS status via LCD/app. Ensure charger settings are correct for LiFePO4. |
| Battery not discharging/no power output | BMS protection activated (over-discharge, overcurrent), battery turned off, loose connections | Check BMS status via LCD/app. Ensure battery is powered on. Verify all load connections. Reduce load if overcurrent protection is active. |
| Unusual heat from battery | Overload, internal fault, poor ventilation | Immediately disconnect load and charger. Allow battery to cool. Check for proper ventilation. If problem persists, contact support. |
| Inaccurate SOC reading | Battery not fully calibrated, prolonged partial cycling | Perform a full charge and discharge cycle to recalibrate the BMS. |
If the problem persists after attempting these solutions, please contact NewtiPower customer support.
8. Warranty and Support
Warranty Information
NewtiPower LiFePO4 batteries are designed for a long service life, offering 10,000+ rechargeable cycles and an expected lifetime of 10 years under normal operating conditions. Specific warranty terms and conditions are provided at the time of purchase or can be obtained by contacting customer service.
Customer Support
For technical assistance, troubleshooting, or warranty claims, please contact NewtiPower customer service. Our team is dedicated to providing prompt and helpful support.
- Email: Refer to the contact information provided on the battery label or product packaging.
- Website: Visit the official NewtiPower website for FAQs and support resources.
