Godrej Smart Lock Catus Touch Plus Digital Door Lock Instruction Manual

1. Product Overview

The Godrej Smart Lock Catus Touch Plus is an advanced digital locking solution designed for wooden doors, offering enhanced security and convenience. This lock integrates multiple access methods to provide flexible entry options for your home or office.

Key Features:

• 4-in-1 Access: Fingerprint, RFID card, PIN code, and mechanical key.
• 360° Fingerprint Recognition: Recognizes up to 99 registered fingerprints from any angle for quick access.
• 3-Bolt Locking Mechanism: Provides enhanced security with triple robust bolts.
• Customizable PIN Codes: Register up to 99 unique PINs, ranging from 4 to 9 digits.
• RFID Card Access: Supports up to 99 RFID cards for seamless, contactless entry.
• Mechanical Key Override: Emergency backup solution for access during electronic system failures or low battery.
• Privacy Function: Prevents outside access when activated from the inside.
• Emergency Micro USB: Allows temporary power supply via a power bank if batteries are fully discharged.
• Low Battery Indication: Provides advance notice when batteries are running low.
• Multi-level Volume Control: Adjust volume with mute function for silent operation.

Image 1: Multiple Access Options - This image illustrates the four primary methods of accessing the Godrej Smart Lock: fingerprint, PIN code, RFID card, and mechanical key.

2. Specifications

Door Compatibility:

• Suitable for wooden doors and frames only.
• Door Thickness: Minimum 35 mm to Maximum 65 mm.
• Backset: 60 mm (6 cm).
• Not suitable for double doors, metal & glass doors, or sliding doors.

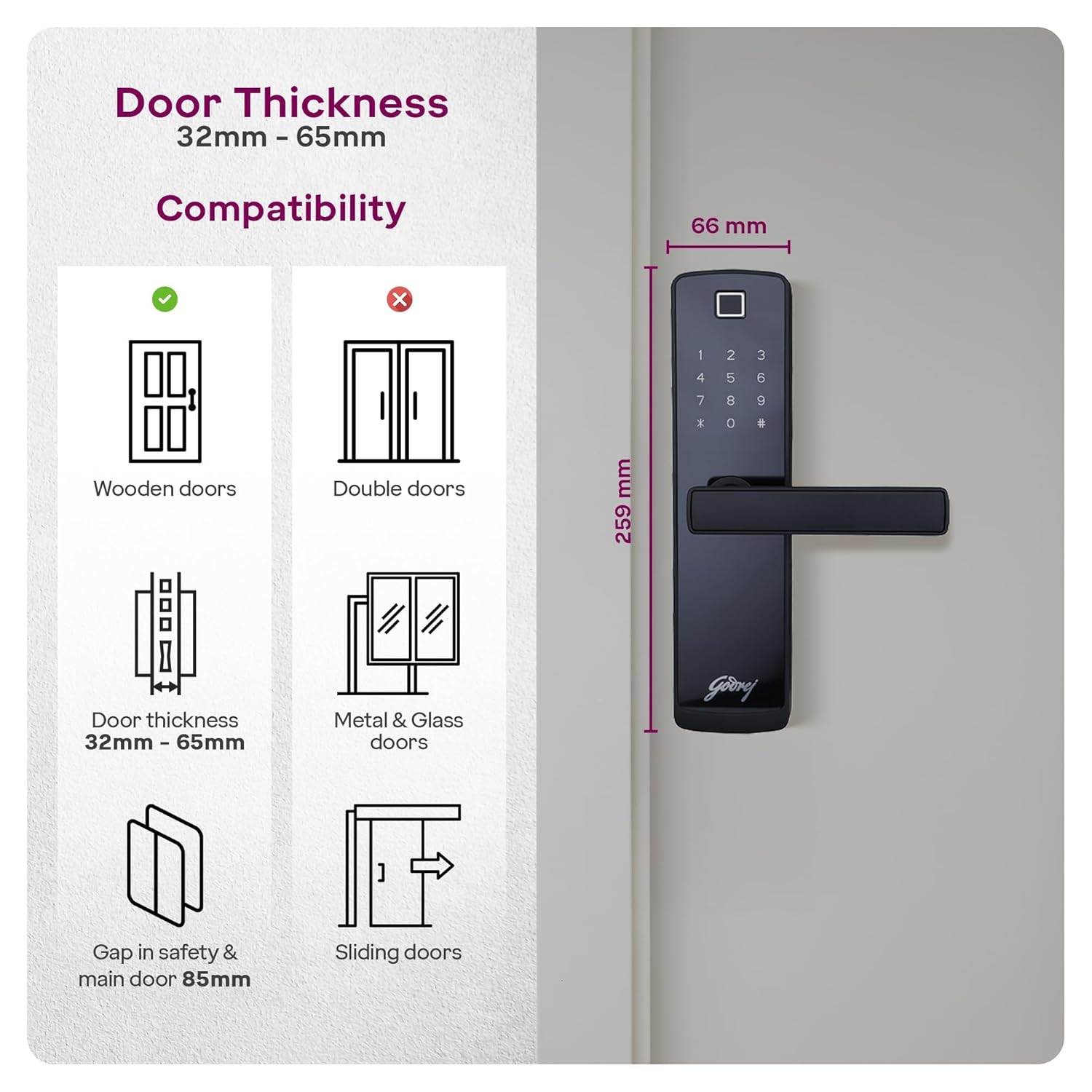

Image 2: Door Compatibility Guide - This image details the specific door types and dimensions required for proper installation of the Catus Touch Plus lock.

3. Installation Guide

Professional installation is recommended for optimal performance and security. Free professional installation is available in over 350+ cities within 72 hours of product delivery. Please note that batteries are not included and must be purchased separately.

General Installation Steps (Refer to the video for detailed instructions):

1. Prepare the Door: Ensure your door meets the compatibility requirements (wooden door, 35-65mm thickness).
2. Handle Configuration: Configure the door handle on both the outside and inside bodies according to left-hand or right-hand setup using the provided Allen key.
3. Marking and Drilling: Use the installation marker to accurately mark points on the door. Drill the necessary holes for the lock body, handle, and wiring.
4. Install Mortise Lock Body: Insert the mortise lock body into the prepared cavity on the door edge and secure it with screws. Ensure the latch is rotated correctly for your door's opening direction.
5. Install Outside Body: Carefully feed the wiring through the door and attach the outside body, ensuring the shank and split pin are correctly aligned.
6. Install Inside Body: Connect the wiring, then attach the inside body to the door, aligning it with the outside body. Secure with anti-theft screws.
7. Insert Batteries: Install 4 AA batteries into the battery compartment of the inside body.
8. Install Striker Plate and Box: Mark and install the striker box and striker plate on the door frame, ensuring proper alignment with the mortise lock.
9. Test Functionality: After installation, thoroughly test all access methods (fingerprint, PIN, RFID, mechanical key) and the privacy function to ensure correct operation.

Image 3: Lock Views and Door Thickness - This image provides inside and outside views of the lock, highlighting the critical door thickness measurements (Min 35mm, Max 65mm) required for installation.

4. Operating Instructions

The Catus Touch Plus offers multiple ways to unlock your door. Follow these instructions for each access method:

4.1. Fingerprint Access

1. Registration: Refer to the user manual for detailed steps on registering new fingerprints. Up to 99 fingerprints can be stored.
2. Unlocking: Place your registered finger on the fingerprint sensor. The lock will unlock if the fingerprint is recognized.

4.2. PIN Code Access

1. Registration: Follow the instructions in the full manual to set up new PIN codes (4-9 digits). Up to 99 unique PINs can be registered.
2. Unlocking: Enter your registered PIN code on the keypad, then press the '#' key. The lock will unlock.
3. Adjustable Spy Code: To prevent others from guessing your PIN, you can enter random digits before or after your actual PIN.

4.3. RFID Card Access

1. Registration: Refer to the user manual for steps to register RFID cards. Up to 99 RFID cards can be registered.
2. Unlocking: Present a registered RFID card to the card reader area on the lock. The lock will unlock.

4.4. Mechanical Key Access

1. Usage: In case of electronic failure or depleted batteries, insert the mechanical key into the keyhole and turn to unlock the door.

4.5. Privacy Function

• To activate, locate the privacy button on the inside body of the lock and engage it. Once activated, the lock cannot be opened from the outside by any electronic method, ensuring your privacy. It can only be opened from the outside using the mechanical key.

Image 4: Secure and Convenient Access - This image highlights the various secure and convenient methods for unlocking the Catus Touch Plus, including fingerprint, PIN, RFID, and mechanical key.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Godrej Smart Lock.

• Cleaning: Wipe the lock surface with a soft, dry cloth. Avoid abrasive cleaners or solvents that may damage the finish or electronic components.
• Battery Replacement: Replace all four AA batteries when the low battery indicator appears. Always use high-quality alkaline batteries.
• Keypad Care: Keep the keypad clean and free from dirt or debris to ensure accurate PIN entry.
• Fingerprint Sensor: Ensure the fingerprint sensor is clean and dry for reliable recognition.
• Mechanical Key: Store the mechanical key in a safe, accessible location outside the premises for emergency use.

6. Troubleshooting

If you encounter any issues with your Godrej Smart Lock, refer to the following common troubleshooting tips:

• Lock Not Responding: Check if the batteries are correctly installed and have sufficient charge. Replace batteries if necessary. Use the emergency micro USB port with a power bank for temporary power.
• Fingerprint Not Recognized: Ensure your finger is clean and dry. Try re-registering your fingerprint if the issue persists.
• PIN Code Not Working: Double-check the entered PIN code. Ensure the privacy function is not activated if attempting to unlock from outside.
• RFID Card Not Working: Ensure the RFID card is properly registered. Try presenting the card again.
• Lock Mechanism Jammed: Do not force the handle. Use the mechanical key to unlock and inspect for any obstructions.
• Privacy Function Issue: If the lock cannot be opened from the outside even with valid credentials, check if the privacy button is engaged.

For persistent issues or complex problems, please contact Godrej customer support.

Image 5: Enhanced Security Features - This image highlights additional security and convenience features such as multi-level volume control, an emergency micro USB port for power, and a low battery indicator.

7. Warranty and Support

Godrej Locking Solutions and Systems offers a 3-year product warranty on the Catus Touch Plus smart lock. Free professional installation is provided within 72 hours in over 350+ cities. For any service requests, including installation, repair, emergency opening, or key duplication, please use the contact information below.

Contact Information:

• Toll-Free Number: 1800 209 4543
• Phone: +91 80 6743 6743, +91 93216 65511
• Email: locksmkt@godrej.com, glafsescalation@godrej.com
• Website: www.godrejenterprises.com/support/locks-and-security

Image 6: Installation and Support Information - This image provides details on the free installation service availability across India and lists various contact methods for customer support.
