Polibi Freestanding Buffet with Hutch, 4 Drawers, Glass Doors, Pull-Out Trays, 47.2x15.7x75inch

Polibi Freestanding Buffet with Hutch Instruction Manual

Model: Freestanding Buffet with Hutch, 4 Drawers, Glass Doors, Pull-Out Trays, 47.2x15.7x75inch

1. Product Overview

The Polibi Freestanding Buffet with Hutch is a versatile storage solution designed for dining rooms, living rooms, or kitchens. It features a classic Shaker-style design and is constructed from premium P2 grade MDF. This unit offers extensive storage options including multiple doors, drawers, shelves, and pull-out trays to help organize various household items.

Polibi Freestanding Buffet with Hutch in blue

Image 1: The Polibi Freestanding Buffet with Hutch, showcasing its overall design and storage compartments.

Key Features:

Elegant Shaker Style Design of the Polibi Buffet

Image 2: Close-up view highlighting the elegant Shaker style design and premium MDF material.

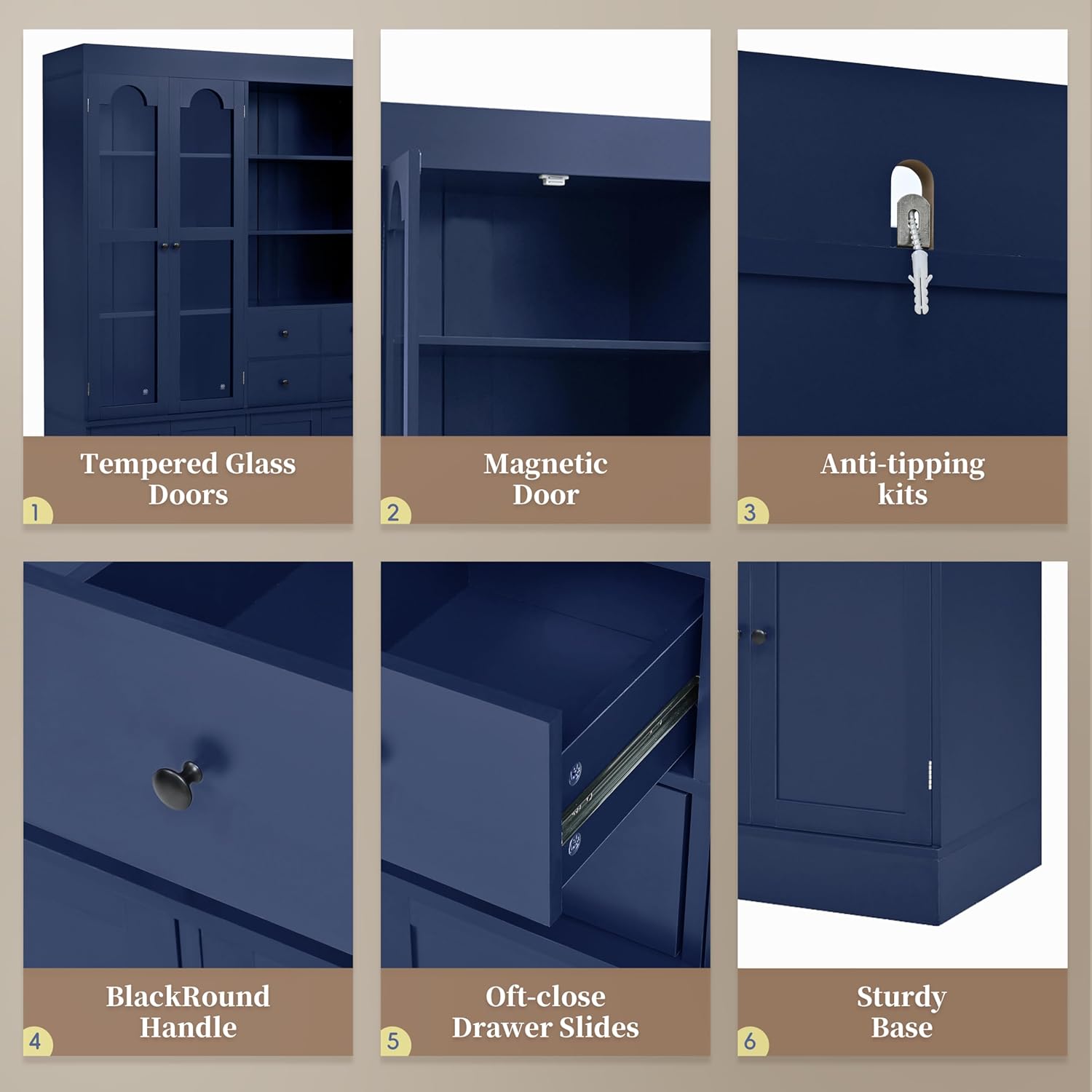

Detailed features of the Polibi Buffet including tempered glass doors, magnetic door catches, anti-tipping kits, black round handles, soft-close drawer slides, and a sturdy base.

Image 3: Detailed view of key features such as tempered glass doors, magnetic door catches, anti-tipping kits, handles, drawer slides, and the sturdy base.

2. Safety Information

Close-up of the anti-tipping kit installation on the Polibi Buffet

Image 4: Illustration of the anti-tipping kit installation for enhanced stability and safety.

3. Package Contents

Before beginning assembly, ensure all parts and hardware are present and accounted for. Refer to the included parts list in your physical manual for exact quantities and identification. The assembly video below provides a visual overview of the components.

Video 1: Assembly instructions for the Polibi Freestanding Buffet with Hutch. This video demonstrates the step-by-step process of putting the cabinet together, including identifying parts and fastening components.

4. Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to have a second person assist with the assembly process.

Step 1: Prepare Base Frame Components

Attach the specified screws (A) to the base panels as shown in the diagram. Ensure they are firmly in place.

Assembly Step 1: Attaching screws to base panels

Image 5: Visual guide for Step 1, showing the initial attachment of screws to the base frame components.

Step 2: Assemble Base Frame

Connect the prepared base panels using dowels (B) and cam locks (C). Tighten the cam locks to secure the frame.

Assembly Step 2: Connecting base frame panels

Image 6: Visual guide for Step 2, demonstrating the connection of base frame panels.

Step 3: Attach Bottom Panel to Base Frame

Align the bottom panel with the assembled base frame, ensuring all dowels and cam locks are correctly positioned. Secure the panel by tightening the cam locks.

Assembly Step 3: Attaching bottom panel to base frame

Image 7: Visual guide for Step 3, showing the attachment of the bottom panel to the base frame.

Step 4: Install Drawer Supports

Attach the drawer support blocks (G) to the designated panels using dowels (B) and screws (A). These supports will hold the drawer slides.

Assembly Step 4: Installing drawer support blocks

Image 8: Visual guide for Step 4, illustrating the installation of drawer support blocks.

Step 5: Attach Drawer Slides to Supports

Separate the drawer slides (K) and attach the outer part to the previously installed support blocks using screws (E). Ensure the slides are oriented correctly.

Assembly Step 5: Attaching drawer slides to support blocks

Image 9: Visual guide for Step 5, showing how to attach the drawer slides to the support blocks.

Step 6: Assemble Lower Cabinet Sections

Connect the side panels and back panels to form the lower cabinet sections. Use dowels (B) and cam locks (C) for secure assembly. Insert back panel strips (11) into grooves.

Assembly Step 6: Assembling lower cabinet sections

Image 10: Visual guide for Step 6, demonstrating the assembly of the lower cabinet sections.

Step 7: Prepare Top Panel for Lower Cabinet

Attach magnetic catches (13) and screws (A) to the top panel of the lower cabinet. These will secure the doors later.

Assembly Step 7: Attaching magnetic catches to the top panel

Image 11: Visual guide for Step 7, showing the preparation of the top panel with magnetic catches.

Step 8: Prepare Side Panels for Upper Hutch

Attach screws (A) to the side panels of the upper hutch. These panels will form the outer structure of the hutch.

Assembly Step 8: Attaching screws to upper hutch side panels

Image 12: Visual guide for Step 8, showing the preparation of the upper hutch side panels.

Step 9: Prepare Top Panel for Upper Hutch

Attach magnetic catches (35) and screws (A) to the top panel of the upper hutch. This panel will be the very top of the entire unit.

Assembly Step 9: Attaching magnetic catches to the top panel of the upper hutch

Image 13: Visual guide for Step 9, showing the preparation of the top panel for the upper hutch.

Step 10: Assemble Upper Hutch Base Frame

Connect the base panels (31, 32) for the upper hutch using dowels (B) and cam locks (C). This forms the bottom structure of the hutch.

Assembly Step 10: Assembling the base frame for the upper hutch

Image 14: Visual guide for Step 10, demonstrating the assembly of the upper hutch's base frame.

Step 11: Attach Side Panels to Upper Hutch Base

Attach the side panels (31, 32) to the assembled upper hutch base using dowels (B) and cam locks (C). Ensure a snug fit.

Assembly Step 11: Attaching side panels to the upper hutch base

Image 15: Visual guide for Step 11, showing the attachment of side panels to the upper hutch base.

Step 12: Install Drawer Slides for Upper Hutch

Attach the drawer slides (D1) to the designated panels (20, 21) of the upper hutch using screws (A) and (E). These slides are for the smaller drawers in the hutch section.

Assembly Step 12: Installing drawer slides for the upper hutch

Image 16: Visual guide for Step 12, demonstrating the installation of drawer slides for the upper hutch.

Step 13: Assemble Small Drawer Sides

Attach the remaining drawer slides (D1) to the small side panels (22) using screws (A) and (E). These will form the sides of the small drawers.

Assembly Step 13: Assembling small drawer sides with slides

Image 17: Visual guide for Step 13, showing the assembly of small drawer sides with slides.

Step 14: Assemble Small Drawer Fronts

Connect the small drawer front panels (25) to the side panels using dowels (B) and cam locks (C). Secure with screws (A).

Assembly Step 14: Assembling small drawer fronts

Image 18: Visual guide for Step 14, demonstrating the assembly of small drawer fronts.

Step 15: Assemble Upper Hutch Internal Shelves

Connect the internal shelves (23, 24) to the side panels of the upper hutch using dowels (B) and cam locks (C). Secure with screws (F).

Assembly Step 15: Assembling upper hutch internal shelves

Image 19: Visual guide for Step 15, showing the assembly of internal shelves for the upper hutch.

Step 16: Assemble Upper Hutch Back Panels

Attach the back panels (26, 46) to the upper hutch structure using dowels (B) and cam locks (C). Secure with screws (F).

Assembly Step 16: Assembling upper hutch back panels

Image 20: Visual guide for Step 16, demonstrating the assembly of back panels for the upper hutch.

Step 17: Attach Top Panel to Upper Hutch

Secure the top panel (from Step 9) to the assembled upper hutch structure using dowels (B) and cam locks (C).

Assembly Step 17: Attaching the top panel to the upper hutch

Image 21: Visual guide for Step 17, showing the attachment of the top panel to the upper hutch.

Step 18: Attach Back Panels to Lower Cabinet

Attach the back panels (27, 28) to the lower cabinet structure using dowels (B) and cam locks (C). Ensure they fit into the grooves.

Assembly Step 18: Attaching back panels to the lower cabinet

Image 22: Visual guide for Step 18, demonstrating the attachment of back panels to the lower cabinet.

Step 19: Attach Top Panel to Lower Cabinet

Secure the top panel (from Step 7) to the assembled lower cabinet structure using dowels (B) and cam locks (C).

Assembly Step 19: Attaching the top panel to the lower cabinet

Image 23: Visual guide for Step 19, showing the attachment of the top panel to the lower cabinet.

Step 20: Install Shelf Pins

Insert shelf pins (P) into the pre-drilled holes inside the cabinet sections at your desired height. These will support the adjustable shelves.

Assembly Step 20: Installing shelf pins

Image 24: Visual guide for Step 20, demonstrating the installation of shelf pins.

Step 21: Assemble Pull-Out Trays (Part 1)

Attach screws (A) and dowels (F) to the side panels (16, 17) of the pull-out trays. Connect these to the front and back panels (18) using cam locks (C).

Assembly Step 21: Assembling the first part of the pull-out trays

Image 25: Visual guide for Step 21, showing the initial assembly of the pull-out trays.

Step 22: Assemble Pull-Out Trays (Part 2)

Insert the metal rods (19) into the pre-drilled holes in the side panels of the pull-out trays. Secure with screws (R).

Assembly Step 22: Completing the assembly of the pull-out trays

Image 26: Visual guide for Step 22, showing the completion of the pull-out tray assembly.

Step 23: Attach Hinges and Knobs to Lower Doors

Attach hinges (J) to the lower cabinet doors (14, 15) using screws (A) and (M). Install the door knobs (I) as shown.

Assembly Step 23: Attaching hinges and knobs to lower doors

Image 27: Visual guide for Step 23, demonstrating the attachment of hinges and knobs to the lower doors.

Step 24: Attach Hinges and Knobs to Upper Glass Doors

Attach hinges (J) to the upper glass doors (47, 48) using screws (M). Install the door knobs (I) as shown.

Assembly Step 24: Attaching hinges and knobs to upper glass doors

Image 28: Visual guide for Step 24, showing the attachment of hinges and knobs to the upper glass doors.

Step 25: Install Adjustable Shelves

Place the adjustable shelves (9) onto the installed shelf pins (P) inside the cabinet sections. Adjust height as needed.

Assembly Step 25: Installing adjustable shelves

Image 29: Visual guide for Step 25, demonstrating the installation of adjustable shelves.

Step 26: Assemble Drawer Boxes (Part 1)

Attach screws (A) to the side panels (41, 42) of the drawer boxes. Connect these to the front and back panels (43, 44) using dowels (H) and cam locks (C). Attach the inner part of the drawer slides (E) to the side panels.

Assembly Step 26: Assembling the first part of the drawer boxes

Image 30: Visual guide for Step 26, showing the initial assembly of the drawer boxes.

Step 27-29: Assemble Drawer Boxes (Part 2)

Continue assembling the drawer boxes by attaching the bottom panel (36, 37, 38, 40) and securing all sides with screws (A), dowels (H), and cam locks (C). Attach the drawer knobs (I) to the front panels.

Assembly Step 27-29: Completing the assembly of the drawer boxes

Image 31: Visual guide for Steps 27-29, demonstrating the completion of the drawer box assembly.

Step 30: Insert Drawers and Pull-Out Trays

Carefully slide the assembled drawers and pull-out trays into their respective slots in the cabinet. Ensure they glide smoothly.

Assembly Step 30: Inserting drawers and pull-out trays

Image 32: Visual guide for Step 30, showing the insertion of drawers and pull-out trays.

Step 31: Attach Lower Doors to Cabinet

Attach the lower doors (from Step 23) to the cabinet by securing the hinges to the cabinet frame using screws (J).

Assembly Step 31: Attaching lower doors to the cabinet

Image 33: Visual guide for Step 31, demonstrating the attachment of lower doors.

Step 32: Install Door Shelves

Attach the door shelves to the inside of the lower cabinet doors using screws (F) and cam locks (C). These provide additional storage.

Assembly Step 32: Installing door shelves

Image 34: Visual guide for Step 32, showing the installation of door shelves.

Step 33: Attach Upper Glass Doors to Hutch

Attach the upper glass doors (from Step 24) to the hutch by securing the hinges to the hutch frame using screws (J). Install the door knobs (I).

Assembly Step 33: Attaching upper glass doors to the hutch

Image 35: Visual guide for Step 33, demonstrating the attachment of upper glass doors.

Step 34: Install Anti-Tipping Kit

Secure the anti-tipping brackets (N) to the top rear of the cabinet and to the wall using appropriate wall anchors and screws. This is a crucial safety step.

Assembly Step 34: Installing the anti-tipping kit

Image 36: Visual guide for Step 34, showing the installation of the anti-tipping kit.

5. Operating Instructions

Using Doors and Drawers:

Adjusting Shelves:

Maximized storage capacity of the Polibi Buffet with various compartments

Image 37: The cabinet interior demonstrating maximized storage capacity with doors, shelves, drawers, and pull-out trays.

6. Care and Maintenance

7. Troubleshooting

Common Issues and Solutions:

ProblemPossible CauseSolution
Cabinet feels wobbly or unstable.Loose fasteners; uneven floor; anti-tipping kit not installed.Tighten all screws and cam locks. Ensure the cabinet is on a level surface. Install the anti-tipping kit as per instructions.
Drawers do not slide smoothly.Drawer slides misaligned or damaged; debris in slides.Check alignment of drawer slides and ensure they are securely attached. Clean any debris from the tracks.
Doors do not close properly.Hinges misaligned; magnetic catch not engaging.Adjust hinges to ensure proper alignment. Check if magnetic catches are securely installed and functioning.
Missing parts during assembly.Packaging error.Contact Polibi customer support with your purchase details and the specific missing parts.

8. Specifications

FeatureDetail
BrandPolibi
ColorBlue
Product Dimensions47.2"D x 15.7"W x 75"H
Special Features4 Drawers, Door Shelves, Glass Doors, Pull-Out Trays
Mounting TypeFreestanding
Room TypeDining Room, Living Room
Door StyleHinge-door
Item Weight191.4 Pounds
Assembly RequiredYes
MaterialP2 Grade MDF
Detailed dimensions of the Polibi Freestanding Buffet with Hutch

Image 38: Technical drawing showing the detailed dimensions of the buffet with hutch.

9. Warranty and Support

For warranty information, product support, or to order replacement parts, please contact Polibi customer service. Refer to your purchase documentation for specific warranty terms and contact details.
