Introduction
Welcome to your new Pioneer Woman 6-Quart 7-in-1 Multi-Cooker. This versatile appliance combines rustic charm with modern convenience, offering multiple cooking functions to simplify your meal preparation.
Key Features
- 7-in-1 Multi-Cooker: Functions as a pressure cooker, slow cooker, rice cooker, steamer, sauté pan, yogurt maker, and warmer.
- Large 6-Quart Capacity: Ideal for family meals, serving up to 6 people.
- 12 Smart Preset Recipes: One-touch cooking for various dishes.
- Fast & Efficient Cooking: Pressure cook meals up to 70% faster.
- Stylish Farmhouse Design: Linen speckle finish with wood grain accents.
- Easy Touch Control Display: Intuitive blinking display.
- Safety First: 10+ advanced safety features.
- Durable Construction: Made of PP, aluminum alloy, and cold-rolled steel.
- Compact & Convenient Size: 13.22"W x 12.48"D x 12.83"H.
Important Safety Instructions
- Always read all instructions before use.
- Do not touch hot surfaces. Use handles or knobs.
- Close supervision is necessary when the appliance is used by or near children.
- Do not immerse the appliance in water or other liquid.
- Ensure the lid is properly sealed before operating under pressure.
- Never force the lid open.
- Do not fill the inner pot above the MAX fill line.
- Always check the anti-block shield and float valve for blockages before use.
- Use caution when releasing pressure. Keep hands and face clear of the steam release valve.
- Unplug from outlet when not in use and before cleaning.
Product Overview
Familiarize yourself with the parts of your multi-cooker.

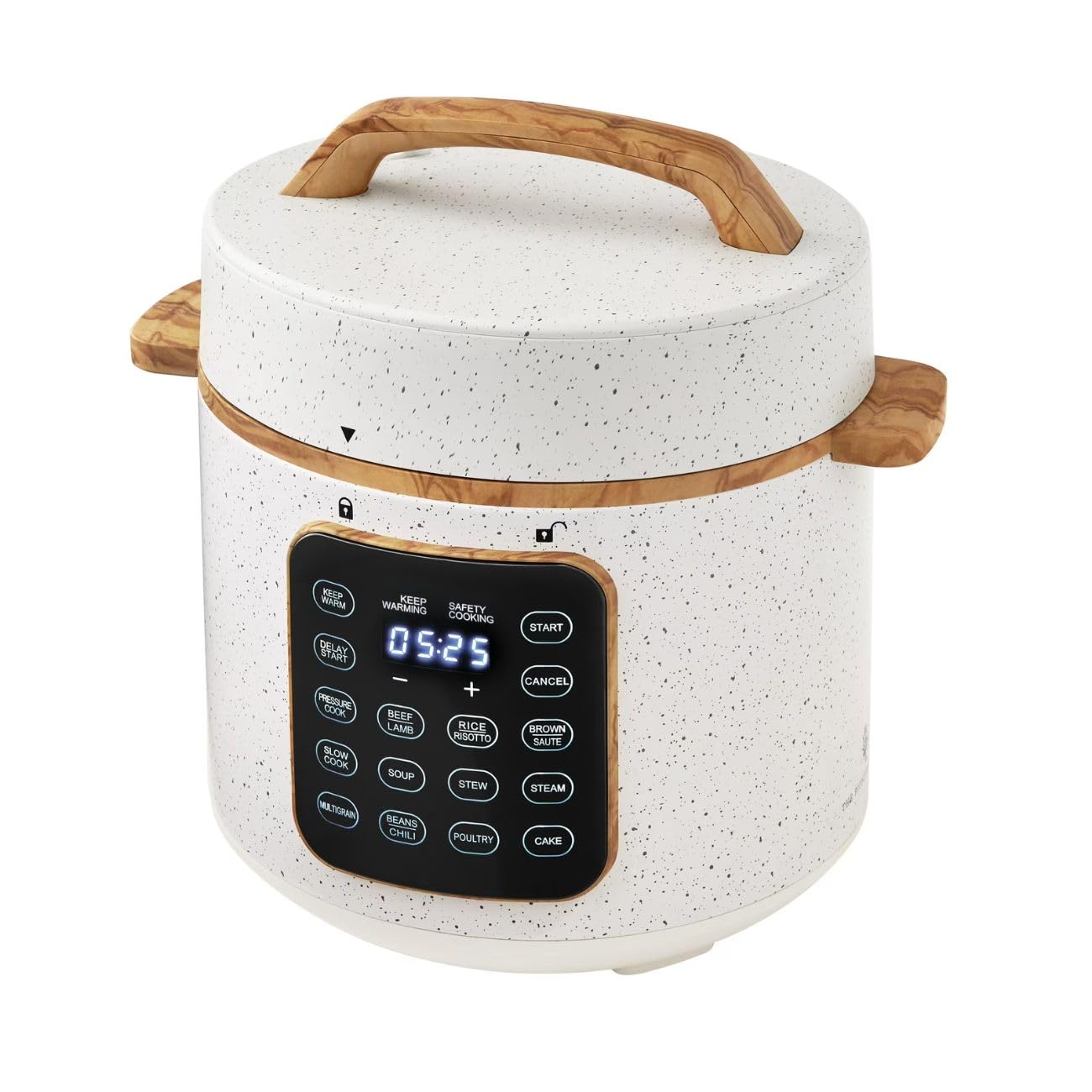

Main Unit
This image shows the complete multi-cooker unit, featuring its speckled white exterior, wood-grain handles, and a central touch control panel with a digital display.

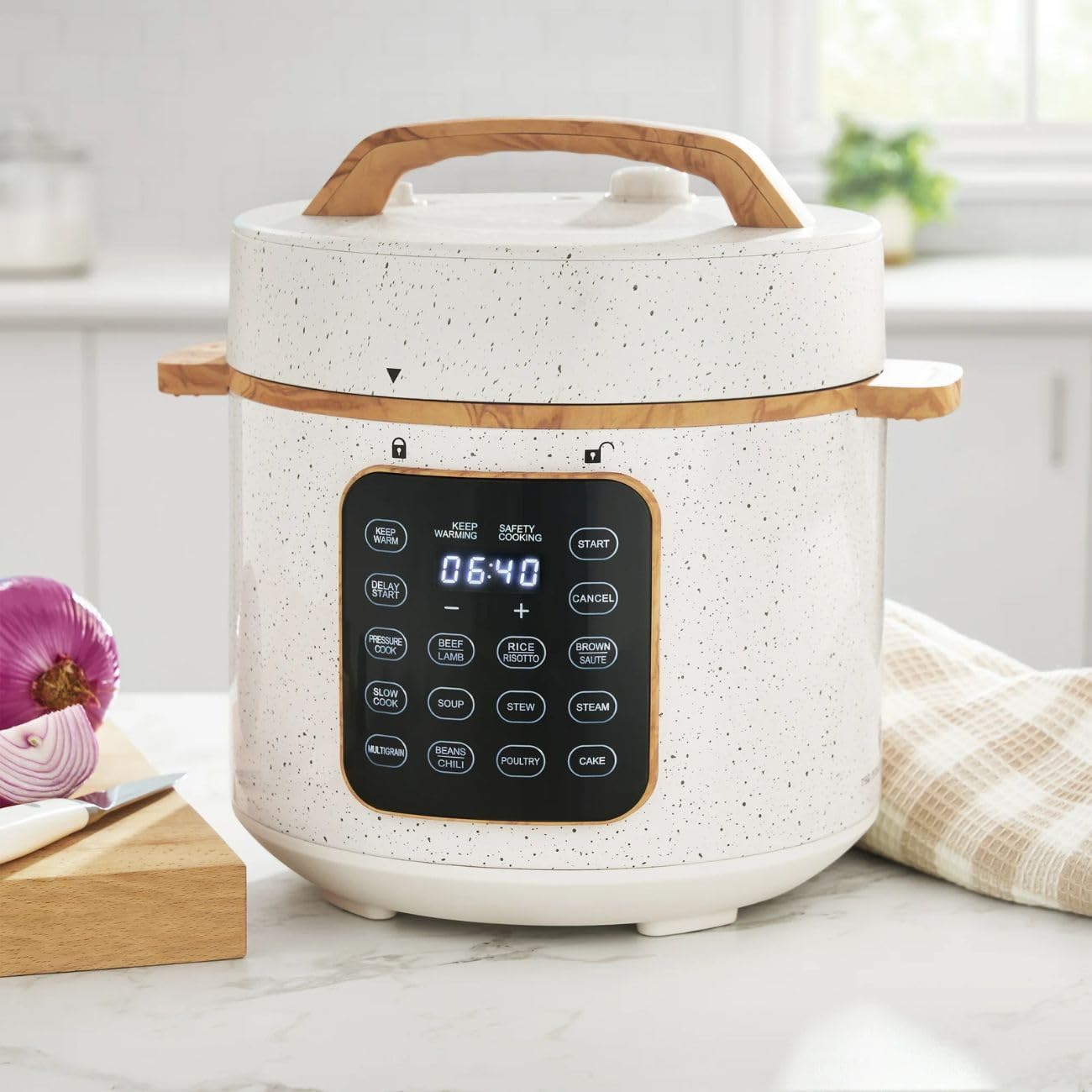

Control Panel
The touch control panel features a digital timer and buttons for functions like KEEP WARM, DELAY START, PRESSURE COOK, SLOW COOK, SOUP, STEW, RICE/RISOTTO, STEAM, SAUTE, MULTIGRAIN, BEANS/CHILI, POULTRY, CAKE, START, and CANCEL.
Lid and Vent
This image highlights the lid's vent and the switch to toggle between 'Vent' and 'Seal' positions, crucial for pressure cooking.
Included Accessories
The multi-cooker comes with a measuring cup, a meal spoon, and a steaming rack to assist with various cooking methods.
Inner Pot Construction
The inner pot is constructed with a ceramic coating and aluminum raw material, offering a 6-quart capacity.

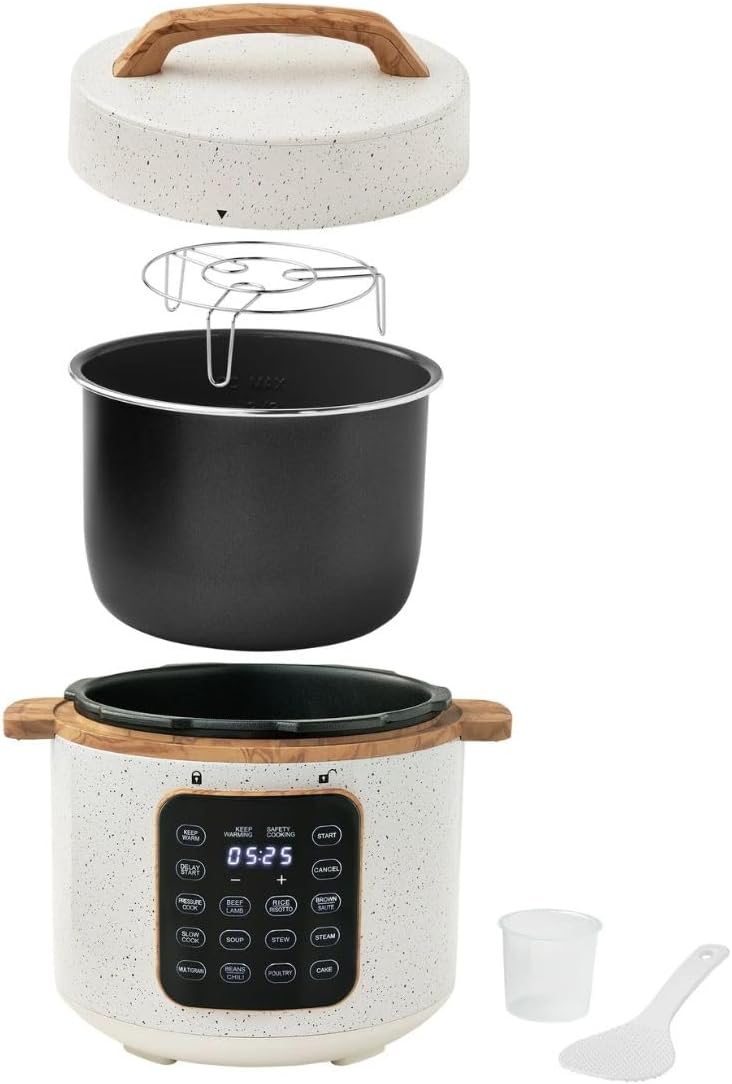

Assembly View
This image provides an exploded view, illustrating how the lid, steaming rack, inner pot, and main unit fit together, along with the measuring cup and meal spoon.
Initial Setup
- Unpack: Remove all packaging materials, stickers, and accessories.
- Clean: Wash the inner pot, lid, and accessories with warm soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth.
- Assemble: Place the inner pot into the main unit. Ensure the sealing ring is properly installed in the lid.
- Placement: Place the multi-cooker on a stable, level, heat-resistant surface away from heat sources and flammable materials.
- Power: Plug the power cord into the multi-cooker and then into a grounded electrical outlet.
Operating Instructions
Your multi-cooker offers 7 functions and 12 preset programs for diverse cooking needs.
Basic Operation
- Add Ingredients: Place your ingredients into the inner pot. Do not exceed the MAX fill line.
- Close Lid: Align the lid with the base and turn clockwise until it locks. Ensure the steam release valve is in the 'Seal' position for pressure cooking.
- Select Program: Choose your desired cooking program from the control panel (e.g., PRESSURE COOK, SLOW COOK, RICE).
- Adjust Settings: Use the '+' and '-' buttons to adjust cooking time or temperature if needed.
- Start Cooking: Press the 'START' button. The display will show 'On' and then begin counting down once pressure is reached (for pressure cooking).
- Keep Warm: After cooking, the appliance will automatically switch to 'KEEP WARM' mode.
- Release Pressure: For pressure cooking, carefully turn the steam release valve to 'Vent' to release pressure, or allow natural pressure release as per recipe.
- Open Lid: Once pressure is fully released, turn the lid counter-clockwise and lift it away from you.
7-in-1 Functions
- Pressure Cook: For fast cooking of meats, stews, and more.
- Slow Cook: For tender, flavorful dishes cooked over a longer period.
- Sauté: To brown ingredients before pressure cooking or for stir-frying.
- Steam: For healthy cooking of vegetables, fish, and dumplings using the included steaming rack.
- Rice Cooker: Optimized settings for various types of rice.
- Yogurt Maker: For homemade yogurt.
- Warmer: To keep food at serving temperature.
12 Preset Recipes
Utilize the one-touch preset buttons for convenience: Beans, Rice, Poultry, Beef, Eggs, Cake, Soup, Stew, Multigrain, Brown/Sauté, Steam, Keep Warm.
Maintenance and Cleaning
- Unplug: Always unplug the multi-cooker and allow it to cool completely before cleaning.
- Inner Pot: The non-stick inner pot is dishwasher safe. For best results, hand wash with warm soapy water and a non-abrasive sponge.
- Lid: Hand wash the lid with warm soapy water. Remove the sealing ring and anti-block shield for thorough cleaning. Ensure all parts are dry before reassembly.
- Exterior: Wipe the exterior of the main unit with a damp cloth. Never immerse the main unit in water.
- Accessories: Wash the measuring cup, meal spoon, and steaming rack with warm soapy water.
- Storage: Store the clean and dry multi-cooker in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pressure not building | Lid not sealed properly / Steam release valve in 'Vent' position | Ensure lid is locked and steam release valve is set to 'Seal'. Check sealing ring for damage. |
| Food undercooked | Insufficient cooking time / Not enough liquid | Increase cooking time. Ensure minimum liquid requirements are met for pressure cooking. |
| Food burned | Too little liquid / Incorrect temperature setting | Add more liquid. Adjust temperature or cooking time. |
| Steam leaking from lid | Sealing ring damaged or improperly installed | Check sealing ring for proper placement and damage. Replace if necessary. |
For further assistance, please contact customer support.
Product Specifications
- Brand: Generic
- Model Number: PW 8443445014-04
- Capacity: 6 Quarts
- Material: Aluminum (Inner Pot), PP, Cold-rolled Steel (Exterior)
- Color: Fancy Flourish (Linen Speckle)
- Product Dimensions: 12.48"D x 13.22"W x 12.83"H
- Wattage: 1000 watts
- Voltage: 120 Volts
- Control Method: Touch
- Operation Mode: Automatic
- Dishwasher Safe: Yes (Inner Pot)
Warranty and Customer Support
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions. For technical support, troubleshooting, or warranty claims, please contact the retailer or manufacturer's customer service.
