IDMarket CARMEN Extendable Round Dining Table (Model 100195) Instruction Manual

1. Introduction

Thank you for choosing the IDMarket CARMEN Extendable Round Dining Table. This manual provides essential information for the safe assembly, operation, and maintenance of your new dining table. Please read these instructions carefully before beginning assembly and retain them for future reference.

The CARMEN dining table is designed to be both functional and stylish, featuring a unique slatted wood leg design and an extendable tabletop that can accommodate 4 to 10 people. Its versatile design allows it to transition from a compact round table to a spacious oval table.

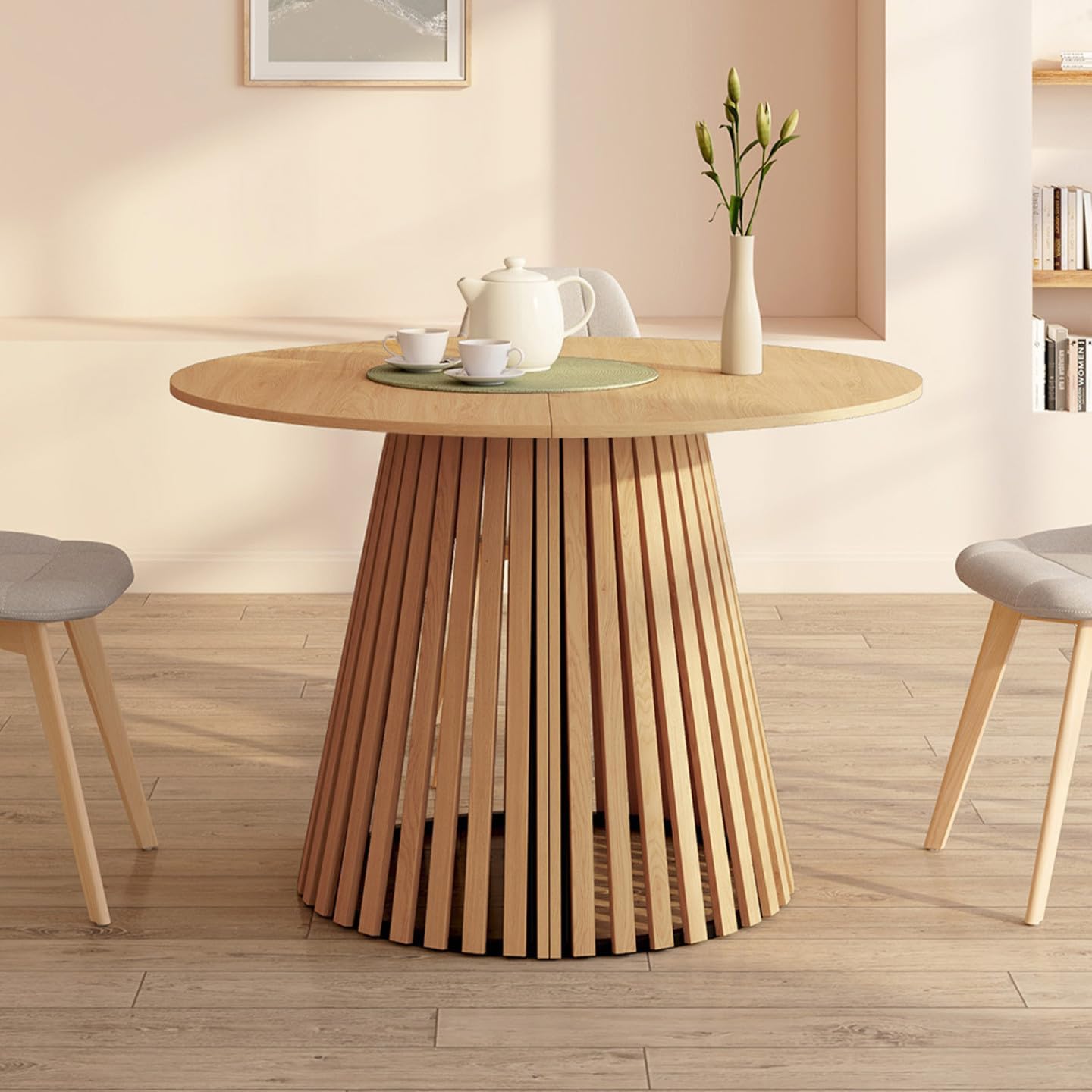

Figure 1.1: The CARMEN dining table in its round, non-extended configuration.

2. Safety Information

Warning: Do not exceed the maximum recommended weight of 100 kg (220 lbs) on the tabletop. Exceeding this limit may cause damage to the table or lead to injury.

Carefully follow all assembly instructions to ensure the stability and structural integrity of the table. Improper assembly can result in instability and potential hazards.

• Keep all small parts and packaging materials away from children during assembly to prevent choking hazards.
• Assemble the table on a soft, clean surface to prevent scratches or damage to the components.
• Ensure all screws and fasteners are tightened securely before using the table. Periodically check and re-tighten as necessary.
• Do not stand or sit on the table.
• Avoid placing hot items directly on the tabletop without protective mats.

3. Package Contents

Before beginning assembly, verify that all components and hardware are present and undamaged. Refer to the included assembly guide for a detailed list of parts. The package typically includes:

• Tabletop sections (main round sections and extension leaves)
• Table legs/base components
• Hardware pack (screws, bolts, washers, etc.)
• Assembly Guide (Guide de montage)

4. Setup (Assembly Instructions)

Assembly is required for this product. It is recommended to have two people for assembly to ensure ease and safety. Please follow the step-by-step instructions provided in the included 'Guide de montage'.

Recommended Tools:

• Screwdriver (Phillips head)
• Allen Key (usually included in the hardware pack)

General Assembly Steps:

1. Unpack all components and lay them out on a protected surface.
2. Assemble the central leg structure according to the diagrams in the assembly guide. Ensure all slats are correctly oriented and secured.
3. Attach the metal base to the assembled leg structure.
4. Carefully attach the main round tabletop sections to the leg structure.
5. Ensure all connections are tight and stable.

5. Operating (Extending and Retracting the Table)

The CARMEN dining table features an extendable mechanism to adjust its length from 110 cm (round) to 200 cm (oval), accommodating more guests.

To Extend the Table:

1. Clear the tabletop of all items.
2. Locate the locking mechanisms (if any) underneath the table and release them.
3. Gently pull the two main halves of the tabletop apart. The extension slides will glide smoothly.
4. Insert the extension leaves (Vassoio in due parti) into the gap created. Ensure they are properly aligned and seated.
5. Push the main tabletop halves back together until they meet the extension leaves and the table is fully closed.
6. Engage any locking mechanisms to secure the extended tabletop.

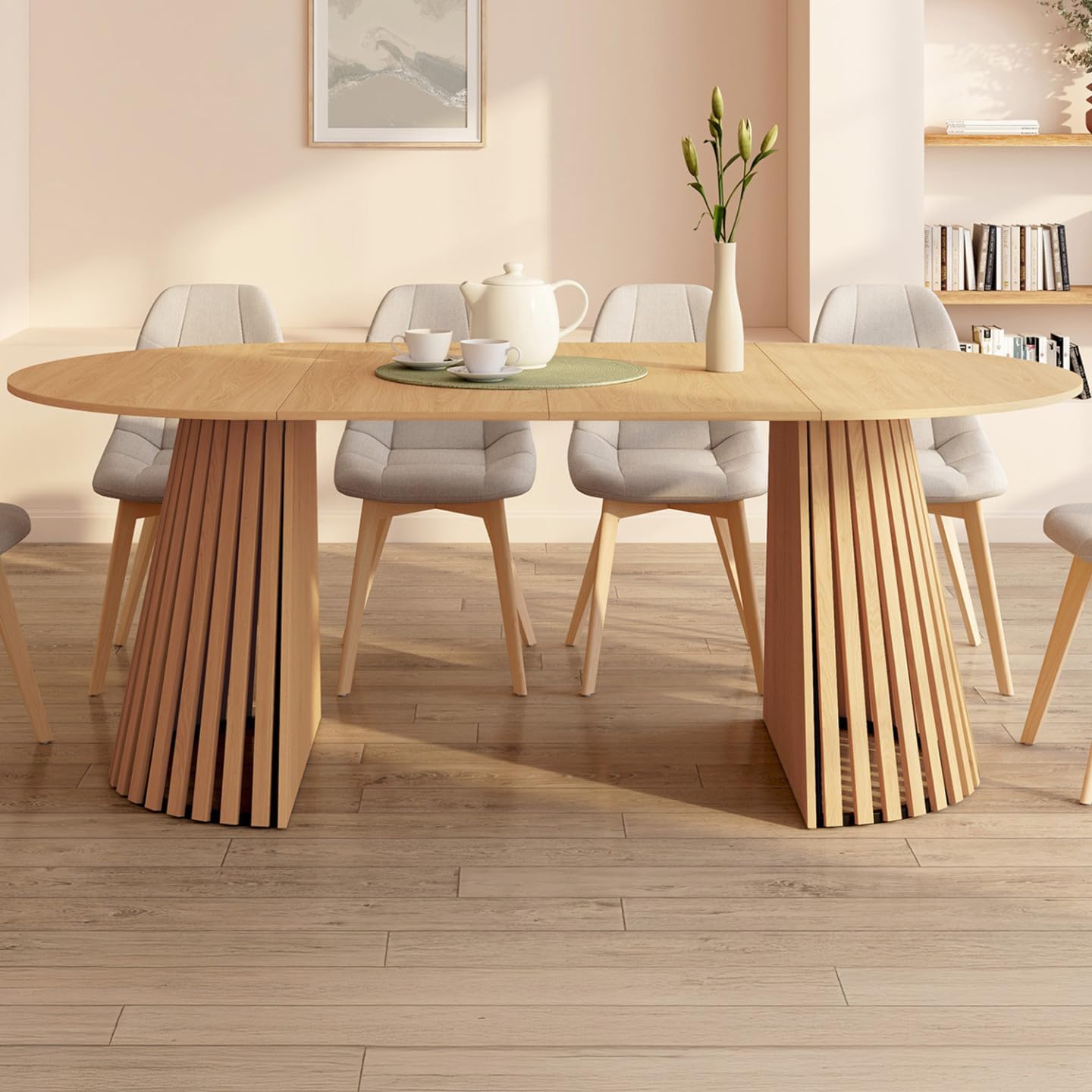

Figure 5.1: The CARMEN dining table in its extended, oval configuration.

To Retract the Table:

1. Clear the tabletop of all items.
2. Release any locking mechanisms.
3. Gently pull the two main halves of the tabletop apart slightly.
4. Remove the extension leaves. Store them safely to prevent damage.
5. Push the main tabletop halves back together until they meet, forming the round table.
6. Engage any locking mechanisms to secure the round tabletop.

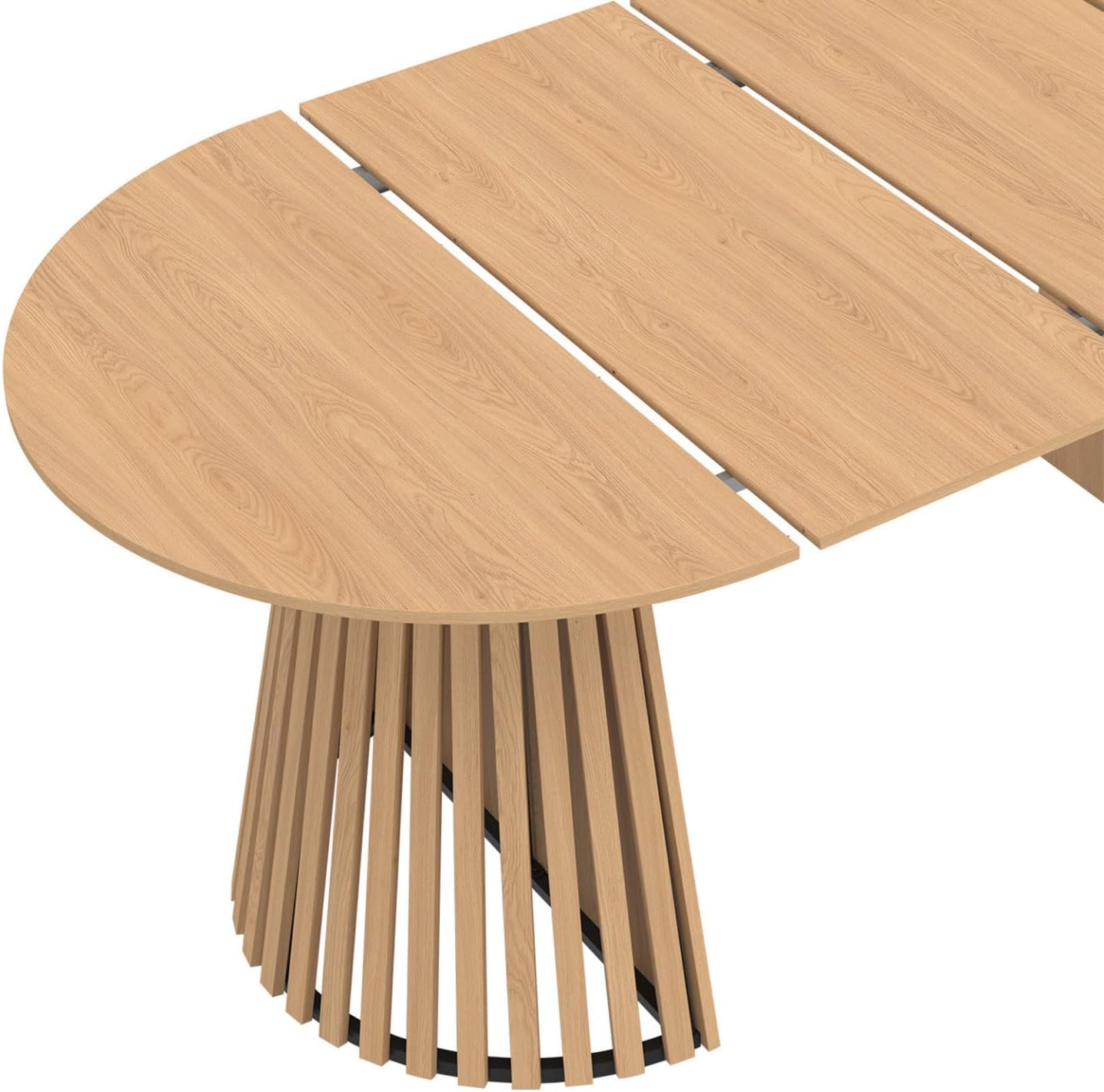

Figure 5.2: Detail of the table extension mechanism.

6. Maintenance

Proper care and maintenance will prolong the life and appearance of your IDMarket CARMEN dining table.

• Cleaning: Wipe the tabletop and legs with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or excessive moisture, which can damage the melamine coating and wood finish.
• Spills: Clean spills immediately to prevent staining, especially on the wood-effect surfaces.
• Heat Protection: Always use placemats or coasters under hot dishes and beverages to protect the tabletop from heat damage.
• Sunlight: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration of the wood finish.
• Stability Check: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten as needed to maintain table stability.

7. Troubleshooting

If you encounter issues with your CARMEN dining table, refer to the following common solutions:

• Table is wobbly: Ensure all assembly screws and bolts are fully tightened. Check that the table is placed on a level surface. Adjust leg levelers if present.
• Difficulty extending/retracting: Ensure the tabletop locking mechanisms are fully disengaged. Check for any obstructions in the extension slides. Clean the slides if necessary. Do not force the mechanism.
• Scratches or minor damage: For minor scratches on the melamine surface, touch-up pens or furniture markers matching the wood color may be used. Consult a professional for significant damage.
• Missing parts: If any parts were missing upon delivery, contact customer support immediately with your purchase details.

8. Specifications

Figure 8.1: Dimensional diagram of the CARMEN dining table.

9. Warranty and Support

This product is returnable within 30 days of receipt. For any questions, concerns, or assistance with assembly or product issues, please contact IDMarket's specialized customer support.

Please have your model number (100195) and purchase information ready when contacting support.
