BedsPick 47-Inch Round Dining Table Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, use, and maintenance of your BedsPick 47-inch Round Dining Table. Please read all instructions carefully before assembly and use to ensure safe and proper operation.

Important Safety Information

• Always follow assembly instructions carefully to ensure stability.
• Do not exceed the weight limit of 250 lbs (116 kg) for the center of the table.
• Keep away from sharp edges and corners to prevent injury. The table features a rounded design for enhanced safety.
• Ensure the table is placed on a flat, stable surface to prevent tipping.

Package Contents

Please verify all parts are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support.

• Tabletop Panels (4 pieces)
• Pedestal Base Panels (4 pieces)
• Metal Support Frame (1 piece, round)
• Metal Crossbars for Base (2 pieces)
• Adjustable Foot Pads (4 pieces)
• Assembly Hardware (screws, wooden dowels, Allen wrench)

Assembly Instructions

For visual guidance, please refer to the assembly video below. Note that the video may show a brown version of the table, but the assembly process is identical.

1. Step 1: Assemble Tabletop Panels

   Connect the four tabletop panels (Part 1) using the provided wooden dowels (Part C). Ensure they fit snugly to form a complete circle.



   Image: Four quarter-circle tabletop panels arranged to form a full circle, illustrating the initial assembly of the tabletop.
2. Step 2: Connect Tabletop Halves

   Once the four panels are connected, ensure the two halves of the tabletop are securely joined. The wooden dowels help align the pieces.



   Image: A close-up view of two tabletop sections connected, showing the alignment and the use of wooden dowels for a secure fit.

3. Step 3: Assemble Pedestal Base Sides

   Attach the two metal crossbars (Parts 4 and 5) to the four pedestal base panels (Part 2). Use screws (Part B) to secure them. Tighten screws to approximately 75% initially, then fully tighten after all components are in place.



   Image: The four pedestal base panels, each with a metal crossbar attached, highlighting the unique diamond-shaped cutouts.

4. Step 4: Form the Pedestal Base

   Connect the two assembled pedestal base sections to form the cross-shaped base. Use screws (Part B) to secure the connections. Tighten screws to approximately 75% initially.



   Image: An exploded diagram illustrating how the tabletop, metal support frame, and pedestal base components fit together for stability.
5. Step 5: Attach Round Metal Support Frame

   Carefully place the round metal support frame (Part 3) onto the top of the assembled pedestal base. Secure it with screws (Part B). Tighten all screws from Steps 4 and 5 to 100% at this point.



   Image: The pedestal base with the circular metal support frame being positioned and secured, showing the connection points.

6. Step 6: Attach Tabletop to Base

   With assistance, carefully invert the assembled tabletop and align it with the metal support frame on the pedestal base. Secure the tabletop to the frame using screws (Part B). Tighten all screws to 100%.

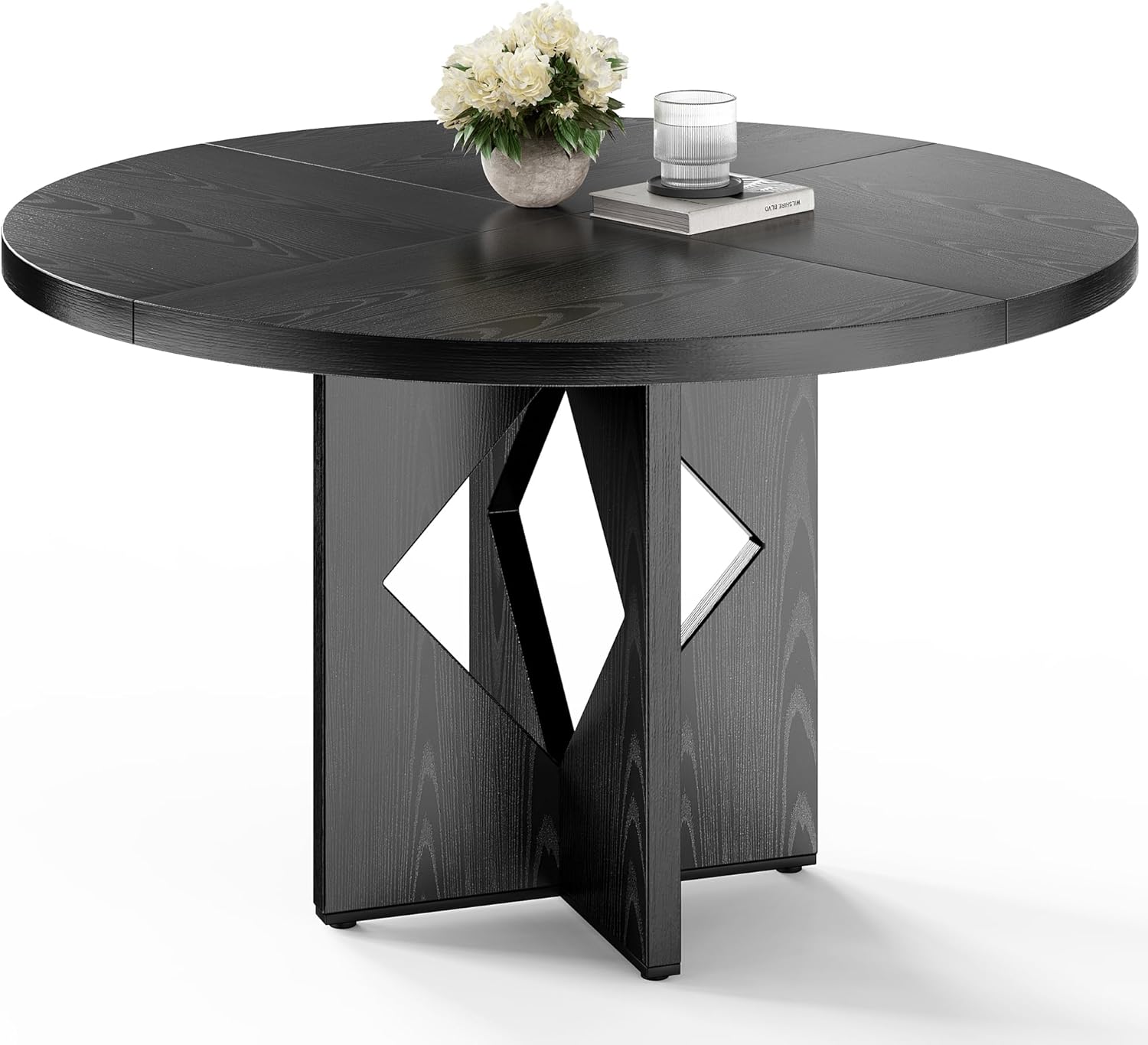

   Image: A complete view of the BedsPick 47-inch Round Dining Table, highlighting its overall structure and black finish.

7. Step 7: Install Adjustable Foot Pads

   Screw the four adjustable foot pads (Part D) into the designated holes at the bottom of the pedestal base. Adjust them as needed to ensure the table is level and stable.



   Image: A detailed view of the adjustable foot pads, demonstrating how they are screwed into the base for leveling and floor protection.
8. Step 8: Final Check

   Once assembly is complete, gently shake the table to ensure all connections are secure and the table is stable. Adjust foot pads if any wobbling occurs.

Usage Guidelines

• This table is designed to comfortably accommodate 4 to 6 people.
• The maximum static load capacity for the center of the table is 250 lbs (116 kg). Do not exceed this weight.
• The rounded design helps minimize accidental bumps and injuries, making it suitable for households with children.
• This versatile table is ideal for kitchens, dining rooms, restaurants, and apartments.

Care and Maintenance

• For general cleaning, wipe the table surface with a damp cloth.
• Immediately follow with a dry cloth to remove any moisture and prevent water marks.
• Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• Do not place hot items directly on the tabletop. Always use coasters or placemats to protect the surface.
• Periodically check and tighten all screws to maintain stability.

Product Specifications

Troubleshooting Common Issues

• Wobbling Table: Ensure all screws are fully tightened. Check that the adjustable foot pads are evenly adjusted on all legs to compensate for uneven floors.
• Difficulty during Assembly: Refer to the assembly video and double-check the part numbers against the instructions. Do not overtighten screws until all components are loosely fitted.
• Scratches or Damage: For minor scratches, wood repair markers or furniture polish may help. For significant damage, contact customer support.

Warranty and Customer Support

This BedsPick product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact BedsPick customer service.

If you encounter any issues or have questions regarding your BedsPick Round Dining Table, please contact BedsPick customer support through their official channels.
