kepptory 64-inch Kitchen Pantry Cabinet Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your kepptory 64-inch Kitchen Pantry Cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Ensure all parts are present and undamaged before proceeding.

The fully assembled kepptory 64-inch Kitchen Pantry Cabinet, showcasing its design and storage capacity.

Safety Information

• Assemble the cabinet carefully using appropriate tools and safety gear.
• Ensure the cabinet is securely installed and not overloaded to prevent tipping or other potential hazards.
• Keep small parts away from children during assembly to prevent choking hazards.
• Do not stand on the cabinet or use it as a ladder.
• Always lift with assistance when moving heavy sections of the cabinet.

Parts List

Before assembly, verify that all components and hardware are present. Refer to the assembly video for a visual guide to all numbered and lettered parts.

External and internal dimensions of the cabinet. Please refer to the assembly video for a complete visual parts list.

Major Components:

• Side Panels (various sizes)
• Top and Bottom Panels
• Adjustable Shelves
• Cabinet Doors (solid and transparent)
• Back Panels

Hardware (Quantities may vary, refer to video for exact counts):

• Cam Locks and Pins
• Wooden Dowels
• Screws (various types)
• Hinges
• Door Handles
• Magnetic Catches
• Shelf Pins
• Anti-tipping hardware

Assembly Instructions

For a comprehensive visual guide, please watch the official installation video below. The following steps provide a summary of the assembly process.

1. Prepare Components: Lay out all panels and hardware. Identify each part using the labels (A, B, C, etc.) and hardware (a, b, c, etc.) as shown in the video.
2. Assemble Base Frame: Connect the base frame pieces (G, H) using cam locks (a) and wooden dowels (b). Secure the bottom panel (F) to this frame.
3. Construct Middle Section: Attach side panels (U, V) to the middle shelf (S) using cam locks (a) and dowels (b). Secure the top panel (T) of this section.
4. Assemble Top Section: Connect the top section side panels (K, L) to the middle shelf (J) using cam locks (a) and dowels (b). Secure the top panel (I) of this section.
5. Install Magnetic Catches: Attach magnetic catches (g) to the designated panels (T, A) for the doors.
6. Assemble Doors: Attach hinges (h) and handles (f) to the lower doors (P, Q) and upper transparent doors (X, Y).
7. Connect Sections: Carefully stack and secure the assembled sections (base, middle, top) together using the provided hardware (c, n).
8. Attach Doors: Mount the assembled doors to the cabinet frame using hinges (k, d). Ensure proper alignment for smooth opening and closing.
9. Install Shelf Pins: Insert shelf pins (e) into the desired holes within the cabinet compartments.
10. Place Shelves: Position the adjustable shelves (M, E) onto the installed shelf pins.
11. Install Door Rods: Attach the small rods (O) to the inside of the side doors for additional storage.
12. Final Checks: Ensure all screws are tightened, and the cabinet is stable. Install the anti-tipping hardware (i, j) to secure the cabinet to a wall, if desired, for added safety.

Operating Instructions

Adjustable Shelves:

The kepptory pantry cabinet features adjustable shelves to accommodate items of various heights. To adjust a shelf:

• Empty the shelf of all contents.
• Remove the shelf by lifting it off its support pins.
• Relocate the metal shelf pins (e) to the desired height holes on the cabinet sides. Ensure all four pins are at the same level.
• Carefully place the shelf back onto the pins, ensuring it is level and secure.

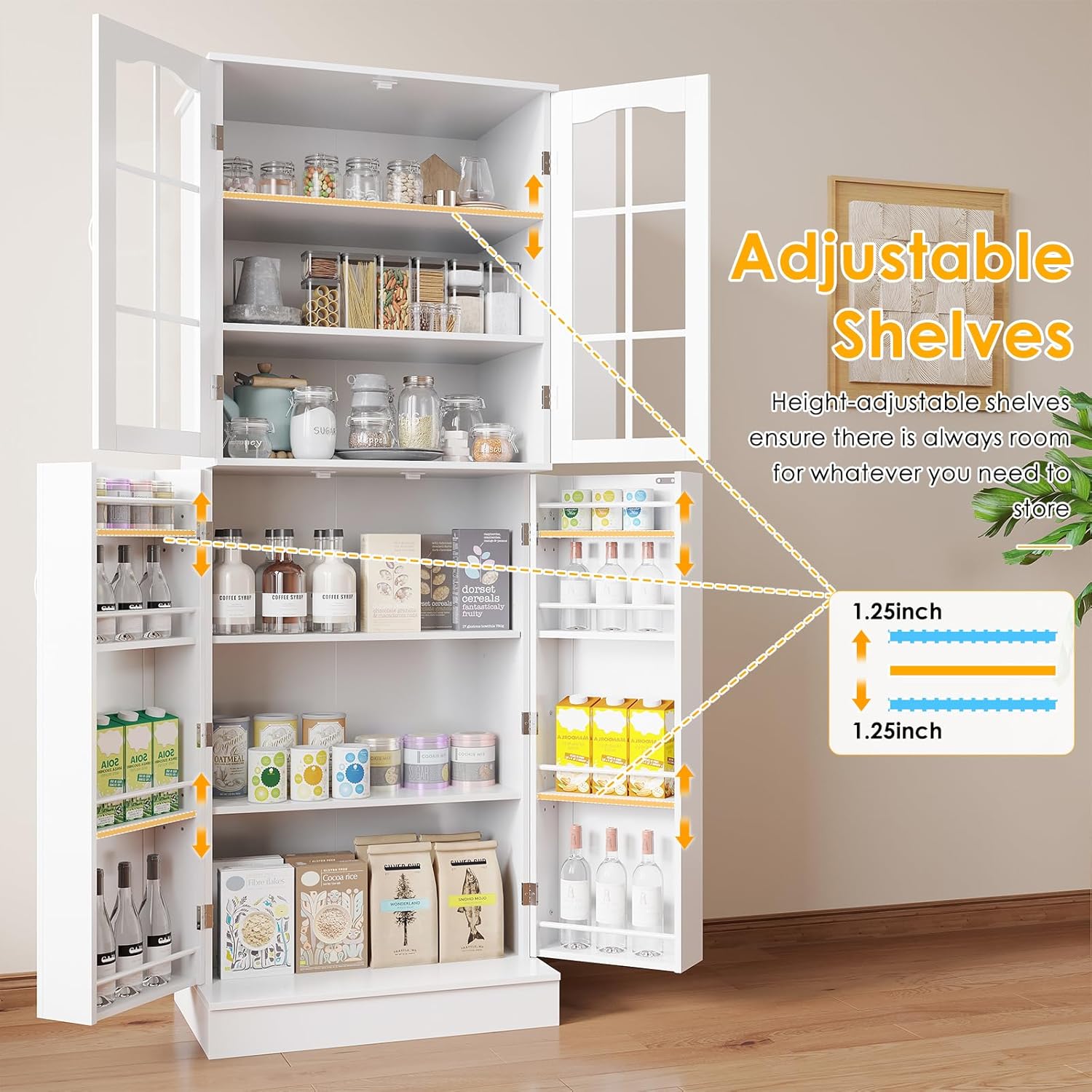

The adjustable shelves allow for flexible storage configurations, with height adjustments in 1.25-inch increments.

Door Operation:

The cabinet features both transparent upper doors and solid lower doors. Open and close doors gently using the handles to prevent wear and tear on hinges and magnetic catches. The side doors also include rods for organizing smaller items.

The cabinet offers multi-level storage with doors open, revealing organized compartments for various items.

Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Spills: Clean up spills immediately to prevent moisture damage to the engineered wood.
• Hardware: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
• Avoid Overloading: Do not exceed the weight capacity of the shelves to prevent warping or damage.

Troubleshooting

Cabinet is Wobbly:

• Ensure all cam locks and screws are fully tightened.
• Verify that the cabinet is placed on a level surface. Adjust floor glides if available, or place shims under the base if needed.
• Confirm that the back panels are correctly installed and secured.

Doors Do Not Align Properly:

• Check that the hinges are securely attached to both the door and the cabinet frame.
• Most hinges allow for minor adjustments. Refer to the hinge manufacturer's instructions or consult the assembly video for guidance on adjusting door alignment.

Missing or Damaged Parts:

• Review the parts list and assembly video to confirm any missing components.
• Contact customer support immediately for assistance with replacement parts.

Specifications

Warranty and Support

Your kepptory pantry cabinet is designed for quality and durability. If you encounter any defects or have problems during installation, please contact our customer support team. We are committed to responding to your inquiries within 24 hours.

For additional protection, 2-Year and 3-Year Protection Plans are available for purchase separately. Please refer to the product listing for details on these plans.

Contact Information: Please refer to your purchase documentation or the seller's page for the most current customer support contact details.
