1. Introduction
Thank you for purchasing the Nordivale 80-inch Fireplace TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
1.1 Safety Precautions
- Always follow assembly instructions precisely.
- Do not exceed the maximum weight capacities for the tabletop (132 lbs) and shelves (33 lbs).
- Ensure the TV stand is placed on a flat, level, and stable surface.
- Keep children and pets away from the electric fireplace when it is operating.
- Do not block the air vents of the electric fireplace.
- Unplug the fireplace unit before cleaning or performing any maintenance.
- This product is for indoor use only.
2. Package Contents
Your Nordivale 80-inch Fireplace TV Stand is shipped in two separate packages, which may arrive on different days. Please verify that all components are present before beginning assembly. Refer to the included parts list in your physical manual for detailed identification.
Illustration showing the delivery process, indicating that the fireplace and mantel components are shipped in two separate packages, which may arrive on different days.
3. Assembly Instructions
Assembly typically requires two adults. Please follow the step-by-step instructions provided in the separate assembly guide included with your product. Ensure you have all necessary tools, usually a screwdriver and hammer, before starting.
3.1 General Assembly Steps (Summary)
- Unpack all components and verify against the parts list.
- Identify and separate hardware.
- Assemble the main frame of the TV stand according to the diagrams.
- Attach the side cabinets and shelves.
- Install the electric fireplace insert into the designated opening.
- Connect the RGB LED light strips as per the wiring instructions.
- Place the TV stand in its desired location, ensuring it is level and stable.
Front view of the Nordivale 80-inch Fireplace TV Stand with the electric fireplace and RGB lighting active, showcasing its modern design.
4. Operating Instructions
4.1 Electric Fireplace Operation
The electric fireplace can be controlled via the control panel on the unit, the included remote control, or a compatible mobile application (if WiFi model).
Infographic detailing the electric fireplace functions including timer (0-8H), heat settings (700W/1500W), temperature control (62°F-82°F), flame adjustment, and safety certifications (CSA&ETL). Also shows front heated vents, tempered glass screen, and crystal stones.
- Power On/Off: Press the power button to turn the fireplace on or off.
- Flame Brightness: Adjust between 5 levels of flame brightness (L1-L5) using the flame control button.
- Flame Colors: Select from 12 different flame colors to match your ambiance.
- Heat Settings: Choose between 700W (low) and 1500W (high) heat output.
- Temperature Control: Set the desired room temperature between 62°F and 82°F. The unit will automatically adjust heat output to maintain this temperature.
- Timer Function: Set an auto shut-off timer from 0 to 8 hours.
- Safety Features: The fireplace includes overheat protection and an auto shut-off timer for safety. It is CSA&ETL certified.
Visual guide to the electric fireplace's 5 flame brightness levels, 12 LED colors, and 12 flame colors, along with remote and app control icons.
4.2 RGB LED Light Strip Operation
The integrated RGB LED light strips offer multiple lighting modes and 12 backlight colors, controllable via remote or a mobile application.
Diagram showing 12 color options for LED light strips and control methods, including remote and app control.
- Color Selection: Choose from 12 preset colors for the backlight.
- Lighting Modes: Explore various dynamic lighting modes.
- Sound/Music Sync: The light strips can synchronize with voice or music, offering over 60,000 color-changing modes via the app.
- Control: Use the dedicated remote control or download the compatible mobile application for advanced control options.
5. Maintenance
5.1 Cleaning
- Exterior Surfaces: Wipe the high-gloss surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that may damage the finish.
- Fireplace Glass: Clean the tempered glass screen with a glass cleaner and a soft cloth. Do not spray cleaner directly onto the unit.
- Dusting: Regularly dust all surfaces, including the acrylic columns and shelves, with a dry, soft cloth.
5.2 General Care
- Avoid placing hot items directly on the tabletop without protective coasters.
- Do not expose the unit to excessive moisture or direct sunlight for prolonged periods.
- Periodically check all fasteners and tighten if necessary to ensure stability.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace does not turn on. | No power, power cord loose, unit overheated. | Check power outlet and cord connection. Allow unit to cool down if overheat protection was activated. |
| No heat output. | Heat function not activated, temperature setting too low. | Ensure heat function is turned on. Increase the desired temperature setting. |
| LED lights not working. | Power connection loose, remote battery low, app not connected. | Check LED strip connections. Replace remote batteries. Ensure app is correctly paired via WiFi. |
| Stand feels unstable. | Loose fasteners, uneven surface. | Tighten all assembly fasteners. Ensure the stand is on a level surface. |
7. Specifications

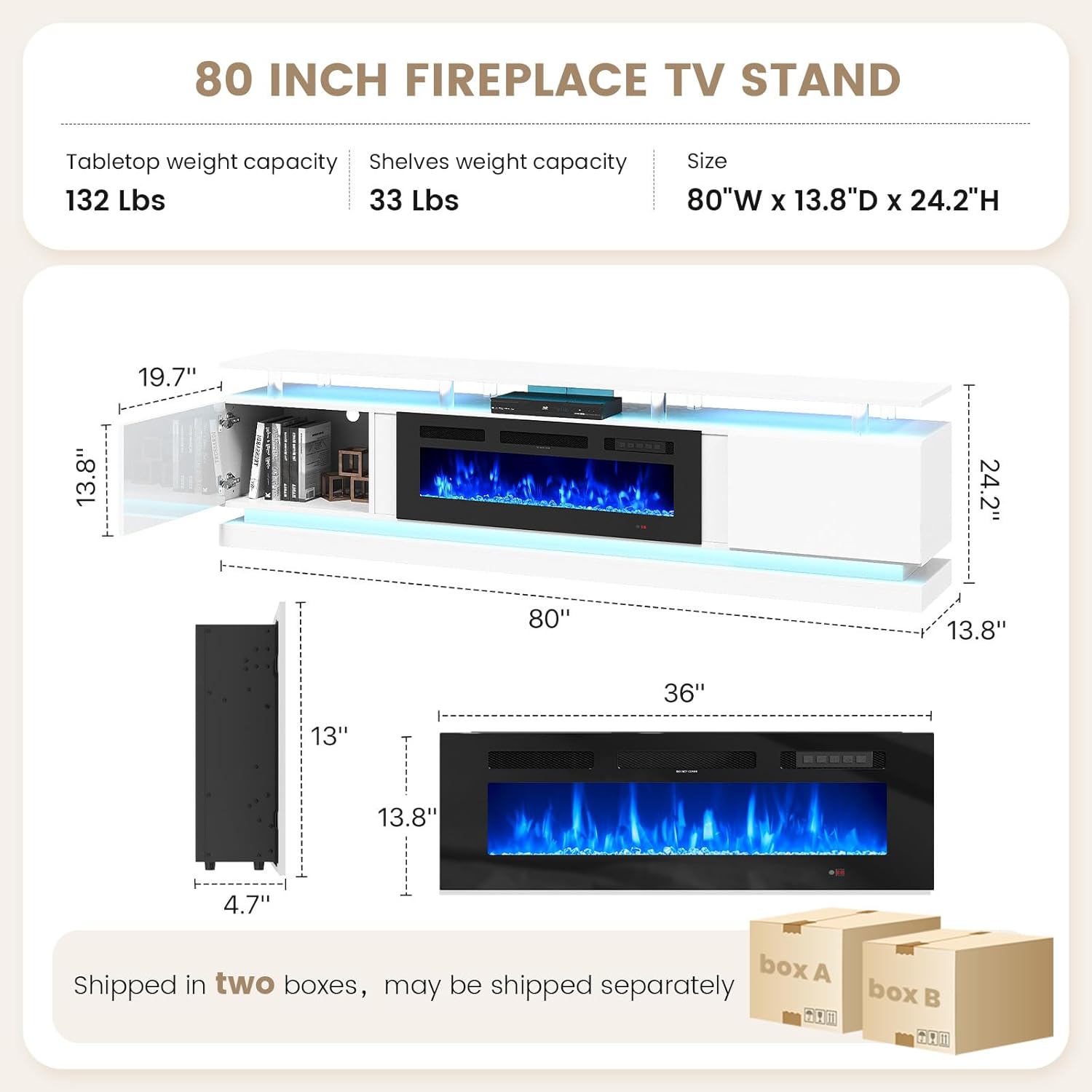

Technical drawing of the 80-inch Fireplace TV Stand with detailed dimensions and weight capacities for the tabletop and shelves. Shows the stand's overall width, depth, and height, as well as the fireplace insert dimensions.
- Brand: Nordivale
- Model Number: H21426-80WHBKW
- Overall Dimensions (L x W x H): 80 x 13.8 x 24.2 inches
- Electric Fireplace Dimensions: 36 inches (width)
- Item Weight: Approximately 76 pounds
- Material: Engineered Wood, Wood, Acrylic
- Color: White & Black (with WiFi functionality)
- TV Size Compatibility: Up to 90 inches
- Tabletop Weight Capacity: 132 lbs
- Shelves Weight Capacity: 33 lbs
- Fireplace Heat Output: 700W / 1500W
- Temperature Range: 62°F - 82°F
- Timer: 0-8 hours
- Certifications: CSA & ETL
- Noise Level: Approximately 40dB (low-noise operation)
8. Warranty Information
Please refer to your purchase documentation or contact the retailer for specific warranty details regarding your Nordivale Fireplace TV Stand. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.
9. Customer Support
For assistance with assembly, missing parts, or operational questions not covered in this manual, please contact your retailer or the Nordivale customer service department. Contact information can usually be found on your purchase receipt or the product packaging.
