Vabches Lateral File Cabinet with Sliding Barn Door

1. Introduction

Thank you for choosing the Vabches Lateral File Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

• Always assemble the product on a soft, clean surface to prevent scratches.
• Ensure all parts are present and undamaged before assembly. Contact customer support if any parts are missing or defective.
• Do not overtighten screws, as this may damage the material.
• Keep small parts away from children during assembly.
• For stability, place the cabinet on a level surface.
• Do not exceed the maximum weight capacity of the top surface (110 lbs / 50 kg).

2. Product Components

Before assembly, verify that all components listed below are included in your package. Refer to the included hardware pack for specific fasteners.

• Top Panel
• Side Panels (Left & Right)
• Bottom Panel
• Back Panel
• Drawer Panels (for 3 drawers)
• Sliding Barn Door Panel
• Adjustable Shelf
• Drawer Slides and Hardware
• Barn Door Track and Rollers
• Door Handle and Drawer Pulls
• Locking Mechanism and Keys
• Anti-tip Kit (recommended for safety)

Image: Diagram showing the overall product dimensions (15.7"D x 31.50"W x 29.92"H) and individual drawer dimensions, along with a 110lb (50kg) weight capacity icon.

3. Assembly Instructions

Follow the step-by-step instructions provided in the included assembly guide. A typical assembly process involves:

1. Prepare the Workspace: Clear a spacious area and lay out all components and hardware.
2. Assemble the Main Frame: Attach the side panels to the bottom and top panels using the provided fasteners.
3. Install Drawer Slides: Secure the drawer slides to the interior side panels of the cabinet. Ensure they are level and correctly oriented.
4. Assemble Drawers: Construct each of the three drawers, attaching the front, back, and side panels, then the bottom panel. Install the corresponding drawer slides onto the assembled drawers.
5. Install Sliding Barn Door Track: Attach the barn door track to the top front edge of the cabinet.
6. Attach Barn Door Hardware: Install the rollers and handle onto the sliding barn door panel.
7. Mount Barn Door: Carefully hang the barn door onto the installed track.
8. Insert Adjustable Shelf: Place the adjustable shelf into the desired position using the shelf pins.
9. Install Locking Mechanism: Attach the lock to the designated file drawer and ensure it functions correctly with the provided keys.
10. Attach Back Panel: Secure the back panel to the rear of the cabinet.
11. Install Anti-Tip Kit: For safety, secure the cabinet to a wall using the anti-tip kit.

Image: Detail view of the smooth sliding mechanism for the barn door, indicating easy movement.

4. Operating Instructions

Using the Drawers

• The three drawers operate on full-extension slides, allowing complete access to their contents.
• The bottom drawer is designed for hanging files (Letter/A4 size). Insert hanging file folders onto the rails within the drawer.
• To lock the file drawer, ensure it is fully closed, then insert the key into the lock and turn it to the locked position. Remove the key to secure your documents.

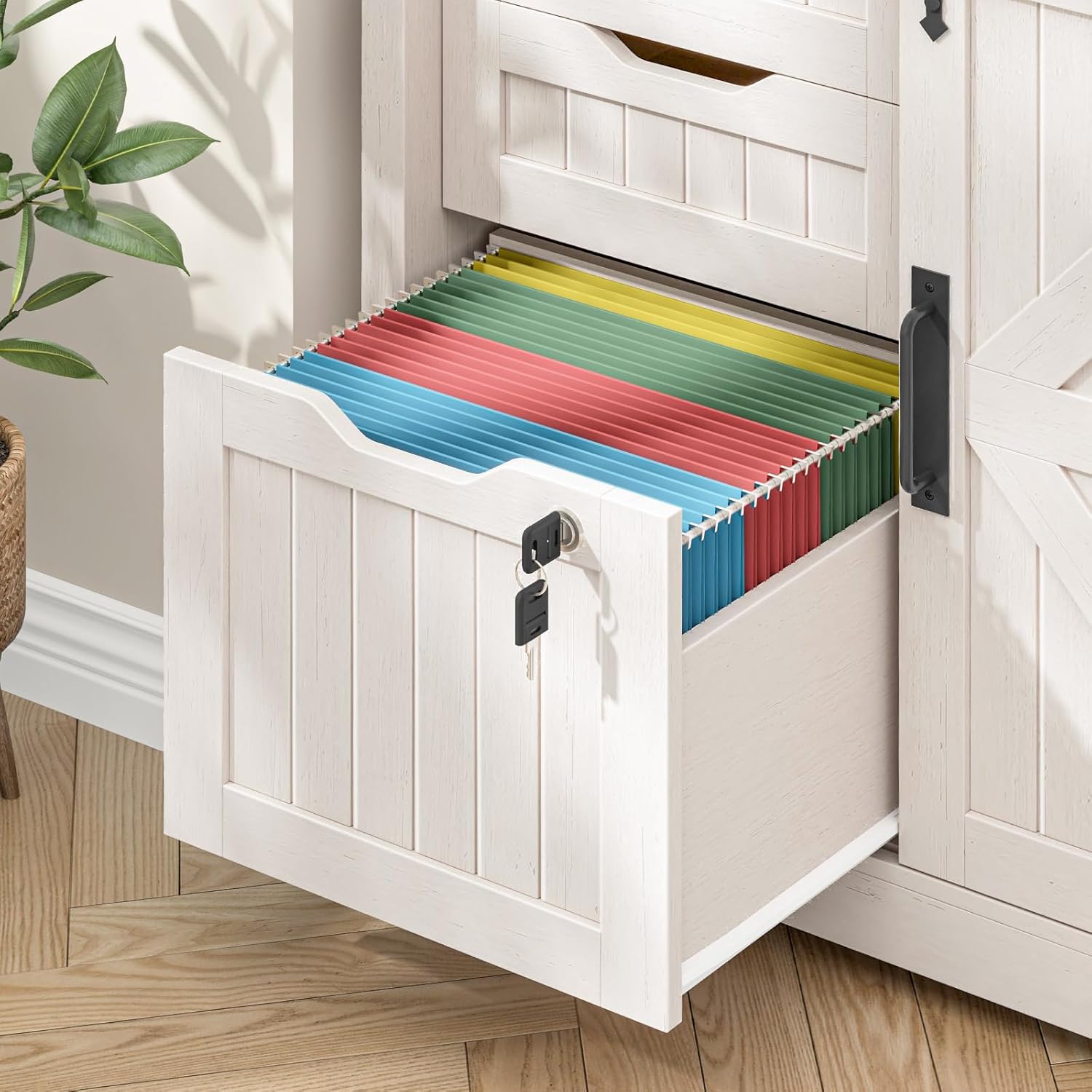

Image: The bottom drawer pulled out, showing colorful hanging files and the integrated lock with keys.

Operating the Sliding Barn Door

• Grasp the black metal handle on the barn door.
• Gently slide the door along its top track to reveal or conceal the interior storage compartment.
• The door moves smoothly and can be positioned to cover either the drawers or the adjustable shelf section.

Image: Close-up of the sturdy black metal handle on the sliding barn door, highlighting its design.

Adjusting the Shelf

• The interior shelf behind the barn door is adjustable.
• To adjust, remove all items from the shelf.
• Carefully lift the shelf and remove the four shelf pins from their current holes.
• Reinsert the shelf pins into the desired set of holes at the new height.
• Place the shelf back onto the pins, ensuring it is stable.

Image: The Vabches cabinet with the barn door slid to the left, revealing two adjustable shelves on the right side, filled with books and storage boxes.

5. Maintenance

Cleaning

• Wipe surfaces with a soft, damp cloth.
• Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the finish.
• Promptly clean up spills to prevent staining.

Care Tips

• Periodically check all fasteners to ensure they remain tight. Retighten if necessary.
• Avoid exposing the cabinet to direct sunlight or extreme temperature changes, which can cause warping or fading.
• Do not place hot items directly on the surface; use coasters or protective pads.

6. Troubleshooting

• Drawers are stiff or not sliding smoothly: Check that the drawer slides are properly aligned and free of obstructions. Ensure all screws on the slides are tightened. A small amount of silicone lubricant can be applied to the slides if needed.
• Sliding barn door is difficult to move: Inspect the top track for any debris or obstructions. Ensure the rollers are clean and properly seated on the track. Verify that the track is securely fastened.
• Cabinet wobbles: Ensure the cabinet is placed on a level surface. Check that all assembly fasteners are securely tightened. If necessary, use shims under the legs to stabilize.
• Lock not engaging: Ensure the file drawer is fully closed and pushed in completely before attempting to lock. Check that the locking mechanism is correctly installed and aligned with the drawer.

7. Specifications

8. Warranty and Support

Vabches is committed to providing quality products. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.

For any questions regarding assembly, missing parts, or product issues, please contact our dedicated customer service team. We offer 24-hour support to ensure your satisfaction.

Contact Information:

• Refer to your purchase platform or the Vabches official website for the most current customer support contact details.
• When contacting support, please have your model number (B0FV35NTLN) and purchase date ready.
