SOKANY SK-05014 Digital Stand Mixer User Manual

1. Introduction

Thank you for purchasing the SOKANY SK-05014 Digital Stand Mixer. This appliance is designed to simplify your baking and cooking tasks with its powerful motor, large capacity, and versatile attachments. Please read this manual carefully before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not immerse the motor unit in water or other liquids.
• Unplug from outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce the risk of injury to persons and/or damage to the mixer.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter.
• Do not let cord contact hot surfaces, including the stove.
• Close supervision is necessary when any appliance is used by or near children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

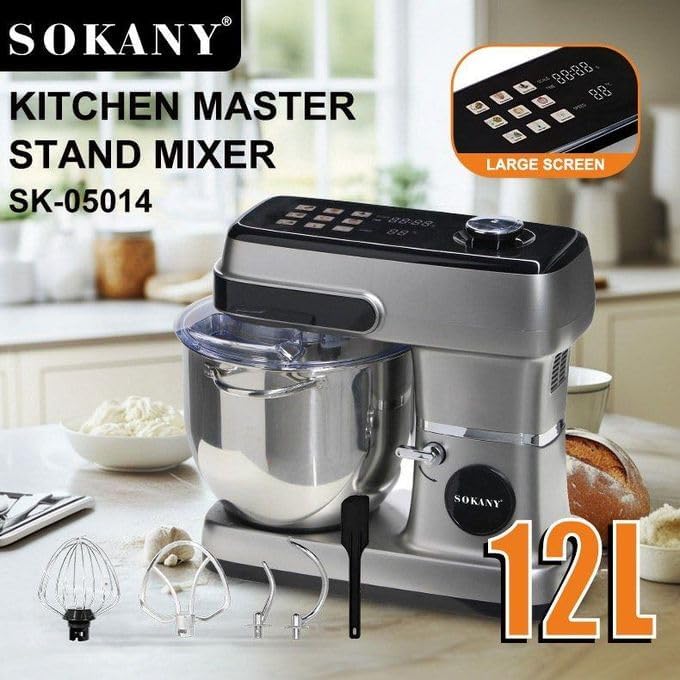

3. Product Components

The SOKANY SK-05014 Stand Mixer includes the following main components:

• Motor Unit: The main body housing the motor, digital control panel, and attachment hub.
• Stainless Steel Bowl: A large 12-liter capacity bowl for mixing ingredients.
• Dough Hook: Used for kneading heavy mixtures like bread dough.
• Beater (Flat Beater): Ideal for medium-heavy mixtures such as cake batter, cookies, and mashed potatoes.
• Whisk (Wire Whisk): Designed for incorporating air into light mixtures like egg whites, cream, and light batters.
• Splash Guard: Prevents ingredients from splashing out of the bowl during operation.

4. Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Cleaning: Before first use, clean the stainless steel bowl, dough hook, beater, whisk, and splash guard with warm soapy water. Rinse thoroughly and dry. Wipe the motor unit with a damp cloth.
3. Placement: Place the mixer on a clean, dry, flat, and stable surface. Ensure there is enough space around the mixer for ventilation and operation. The anti-slip pads at the bottom will help secure the unit.
4. Bowl Installation: Place the stainless steel bowl onto the base of the mixer and turn it clockwise until it locks securely into place.
5. Head-Up Mechanism: Press the one-click head-up release button to lift the motor head.
6. Attachment Installation: Select the desired attachment (dough hook, beater, or whisk). Align the top of the attachment with the shaft in the motor head and push upwards, then turn slightly to lock it into place.
7. Lowering the Head: Push the head-up release button again and gently lower the motor head until it clicks into its locked position.

5. Operating Instructions

5.1 General Operation

1. Ensure the mixer is properly assembled with the bowl and desired attachment.
2. Add your ingredients to the stainless steel bowl.
3. Plug the power cord into a suitable electrical outlet.
4. Use the digital control panel to select the desired speed and set the timer if needed.
5. Start the mixer. Always start at a low speed and gradually increase to avoid splashing.
6. Once mixing is complete, turn off the mixer and unplug it from the power outlet.
7. Press the head-up release button to lift the motor head and remove the attachment and bowl.

5.2 Digital Control Panel

The digital control panel allows for precise speed and time adjustments. Refer to the display for current settings.

• Speed Control: The mixer offers 12 speed settings. Use the '+' and '-' buttons to adjust the speed.
• Timer Function: Set a specific mixing duration using the timer controls. The mixer will automatically stop when the time expires.
• Start/Stop: Use the dedicated buttons to start and stop the mixing process.

5.3 Attachment Usage Guide

6. Cleaning and Maintenance

Proper cleaning and maintenance will ensure the longevity and optimal performance of your stand mixer.

1. Always unplug the mixer from the power outlet before cleaning.
2. Motor Unit: Wipe the exterior of the motor unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the motor unit in water.
3. Stainless Steel Bowl: Wash the bowl with warm soapy water. It is dishwasher safe. Rinse thoroughly and dry immediately to prevent water spots.
4. Attachments (Dough Hook, Beater, Whisk): Wash these attachments with warm soapy water. They are generally dishwasher safe, but hand washing is recommended for prolonged life. Rinse and dry thoroughly.
5. Splash Guard: Wash with warm soapy water, rinse, and dry.
6. Storage: Store the mixer and its attachments in a clean, dry place. Ensure all parts are completely dry before storing.

7. Troubleshooting

If you encounter any issues with your SOKANY SK-05014 Stand Mixer, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

This product is sold without a manufacturer's warranty as per the provided specifications. For any operational issues, troubleshooting assistance, or inquiries, please refer to the troubleshooting section of this manual. If further assistance is required, please contact the retailer or your point of purchase for support options.
