Introduction
The Depusheng T9-2 Wireless In-Ear Monitor System is designed for professional audio monitoring in various settings, including studios, live performances, and band rehearsals. This system features ultra-low latency for real-time sound transmission, high-sensitivity audio capture, and broad compatibility with different instruments and audio equipment.
Key features include:
- Zero Latency Monitoring: Ensures precise, real-time audio feedback with high-fidelity sound.
- High Sensitivity Sound Pickup: Integrated condenser microphone captures instrument audio clearly and realistically.
- Wide Application: Compatible with voice amplifiers, speaker systems, and various wind instruments.
- Extended Battery Life: Built-in rechargeable battery provides hours of operation.
- Easy Operation: Automatic pairing for quick setup.
Image: Overview of the Depusheng T9-2 Wireless In-Ear Monitor System components.
Setup
Package Contents
Before beginning, ensure all components are present:
- Wireless Transmitter
- Receiver with clip
- In-ear headphones
- Charging Cable
- Audio Cable (if included)
- User Manual
Image: Detailed view of the system's packing list.
Initial Charging
Fully charge both the transmitter and receiver before first use. The charging time is approximately 60 minutes. Use the provided charging cable.
Pairing the Transmitter and Receiver
- Turn on both the wireless transmitter and the receiver.
- On the transmitter, locate and press the specific pairing button.
- The devices will automatically connect within a few seconds. A successful connection is typically indicated by a stable light or display on both units.

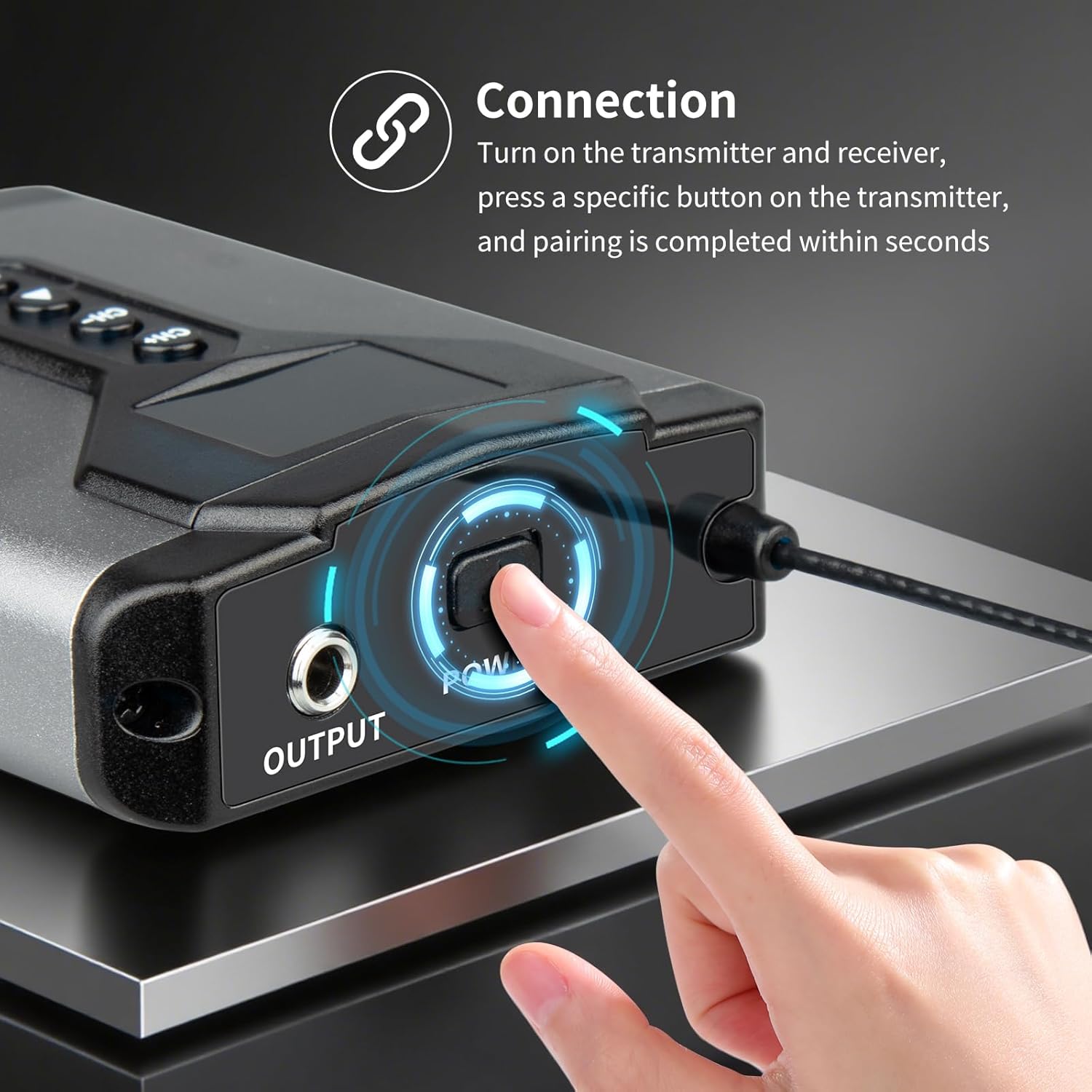

Image: Pressing the pairing button on the transmitter for connection.
Connecting to Audio Source
Connect the transmitter to your audio source (e.g., mixer, instrument amplifier) using an appropriate audio cable. The system supports wired RF connectivity to the source, while monitoring is wireless.
Operating Instructions
Wireless Monitoring
Once paired, the system provides stable wireless transmission over a distance of more than 50 meters (approximately 165-260 feet). The ultra-low latency technology ensures that the audio you hear through the in-ear monitors is synchronized with the live sound, crucial for performers and audio engineers.
Image: Stable transmission range and technical specifications.
Sound Quality and Clarity
The system features a built-in highly sensitive condenser microphone for capturing instrument soundtracks, ensuring clear and realistic audio. The design aims to provide pure sound performance and noise isolation from loud environments.
Image: User wearing the system, highlighting clear sound performance.
Applications
The Depusheng T9-2 is versatile and suitable for a wide range of professional audio applications:
- Live Performances: Ideal for musicians, vocalists, and DJs on stage.
- Recording Studios: Provides accurate monitoring for recording sessions.
- Band Rehearsals: Facilitates clear communication and monitoring among band members.
- Personal Practice: Enhances individual practice sessions for various instruments.
Image: Various use occasions for the wireless in-ear monitor system.
Universal Compatibility
The system is compatible with a variety of audio equipment, including voice amplifiers, speaker systems, and music production equipment. It supports multiple individual or group instruments, making it a flexible solution for diverse setups.
Image: Universal compatibility with different instruments and audio mixers.
Maintenance
Battery Care
The system features a built-in Lithium-ion rechargeable battery. A full charge provides an average battery life of 6 hours, with some users experiencing up to 8 hours. To maximize battery lifespan:
- Avoid fully discharging the battery frequently.
- Charge the device regularly, even if not in constant use.
- Store the device in a cool, dry place when not in use for extended periods.
Image: Battery life and capacity information.
Cleaning
To maintain optimal performance and hygiene:
- Wipe the transmitter and receiver with a soft, dry cloth.
- For the in-ear monitors, gently clean ear tips with a slightly damp cloth and allow them to dry completely before use.
- Avoid using harsh chemicals or abrasive materials.
Troubleshooting
No Sound or Intermittent Audio
- Check Power: Ensure both the transmitter and receiver are powered on and fully charged.
- Verify Pairing: Confirm that the transmitter and receiver are successfully paired. Re-pair if necessary.
- Audio Source Connection: Ensure the transmitter is correctly connected to the audio source and the source is outputting sound.
- Distance and Obstacles: Reduce the distance between the transmitter and receiver, and minimize physical obstructions.
- Volume Levels: Check volume settings on both the receiver and your audio source.
Poor Sound Quality (e.g., lack of bass/mids, inaccurate tone)
- Source EQ: Adjust the equalizer (EQ) settings on your audio source or mixer. The system's sound profile may benefit from specific EQ adjustments to achieve desired tonal balance.
- In-Ear Monitor Fit: Ensure the in-ear monitors are properly seated in your ears to provide optimal sound isolation and bass response. Try different ear tip sizes if available.
- Interference: Move away from other wireless devices or strong electromagnetic fields that might cause interference.
Short Battery Life
- Full Charge: Ensure the devices are charged for the recommended 60 minutes.
- Battery Age: Over time, rechargeable batteries may degrade. If battery life significantly decreases, consider contacting support for potential battery replacement options.
Specifications
| Feature | Detail |
|---|---|
| Model Name | US-T9-Model |
| Brand | Depusheng |
| Connectivity Technology | Wired (to source), RF Wireless (monitoring) |
| Wireless Communication Technology | RF |
| Noise Control | Active Noise Cancellation |
| Specific Uses | Professional (Studio, Audio Monitoring) |
| Compatible Devices | Music production equipment |
| Charging Time | 60 Minutes |
| Average Battery Life | 6 Hours (up to 8 hours reported) |
| Battery Composition | Lithium-ion |
| Rechargeable Battery | Yes |
| Impedance | 1200 Ohms |
| Ear Placement | In-ear |
| Headphone Form Factor | In-ear |
| Product Weight | 499 g (1.1 lbs) |
| Product Dimensions | 5.08 x 2.54 x 17.78 cm (2 x 1 x 7 inches) |
| Special Features | Rechargeable battery, Echo cancellation, Fast charging, Multipoint pairing, Lightweight |
Warranty Information
Specific warranty details are not provided in the product information. Please refer to the retailer or manufacturer's official website for warranty terms and conditions.
Customer Support
For further assistance, technical support, or inquiries regarding your Depusheng T9-2 Wireless In-Ear Monitor System, please contact Depusheng customer service through their official channels. Contact information can typically be found on the manufacturer's website or included in the product packaging.
