1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your LeisureMod Benmar High Back Leather Office Chair. Designed for comfort and style, this chair features adjustable height, swivel base, and an ergonomic design suitable for various workspaces. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your chair.

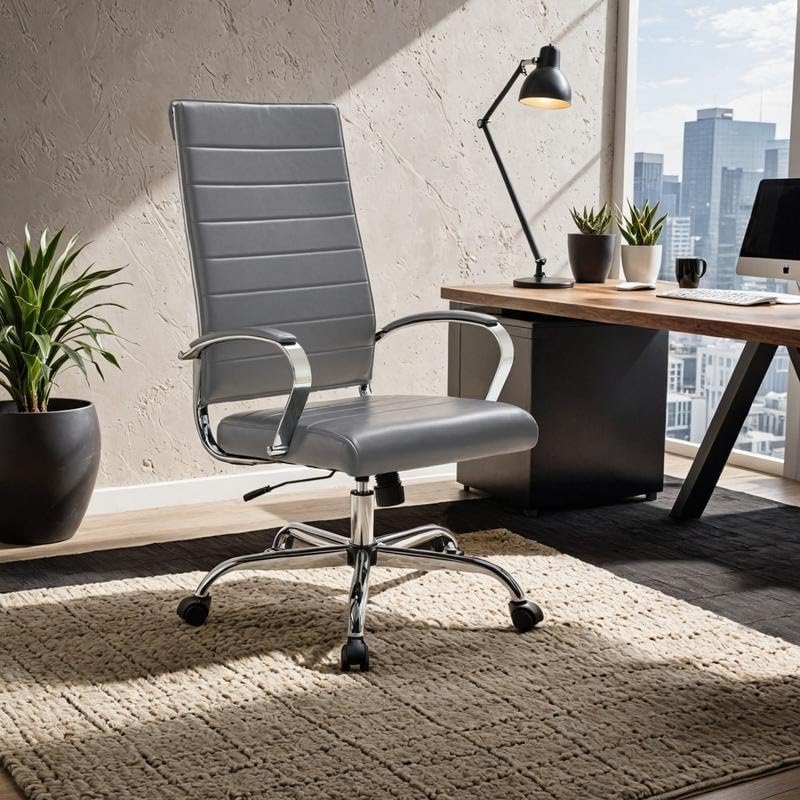

Image 1: LeisureMod Benmar High Back Leather Office Chair in a modern office setting.
2. Product Features
- Adjustable Height & Tilt: Features a pneumatic gas lift for easy seat height adjustment and a tilt tension knob with a lock lever for customized recline.
- Premium Leather Upholstery: The chair is upholstered with smooth leather, designed to resist spills and stains, ensuring durability and ease of cleaning.
- Sturdy Steel Frame: Constructed with a robust steel frame and sleek chrome accents, supporting a maximum weight capacity of 250 lbs.
- Padded Chrome Armrests: Equipped with chrome armrests that include cushioned padding for enhanced forearm and elbow support, reducing strain during extended use.
- 360-Degree Swivel & Smooth Casters: Allows for versatile movement and easy navigation around your workspace.
Image 2: Key adjustable features of the Benmar Office Chair, including tilt, seat height, and smooth-rolling casters.
3. Specifications
| Brand | LeisureMod |
| Model Name | Benmar |
| Model Number | BOT19GRL-PLT |
| Color | Grey |
| Material | Leather, Stainless Steel |
| Product Dimensions (D x W x H) | 24.5"D x 22.5"W x 46"H |
| Item Weight | 32 Pounds |
| Maximum Weight Recommendation | 250 Pounds |
| Seat Height | Adjustable, up to 22 Inches |
| Seat Depth | 19.5 inches |
| Assembly Required | Yes |

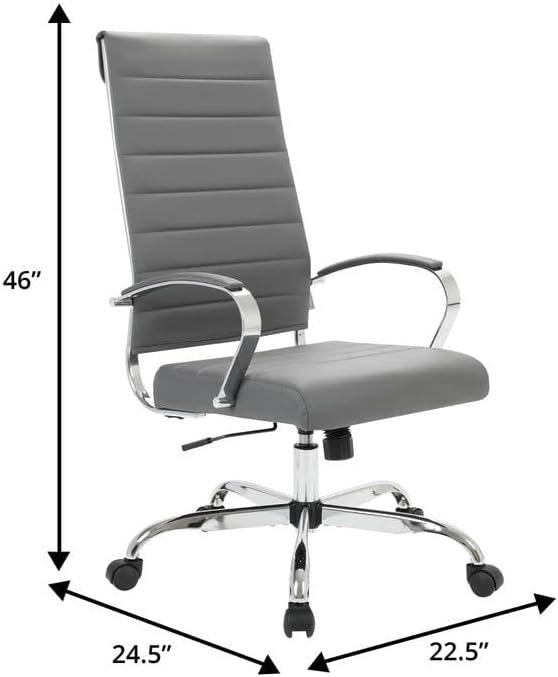

Image 3: Detailed dimensions of the Benmar Office Chair.
4. Package Contents
Upon opening the package, please ensure all components are present and undamaged. The package should contain:
- Chair Backrest
- Chair Seat
- Armrests (2)
- Gas Lift Cylinder
- Star Base
- Casters (5)
- Mounting Hardware (screws, washers, Allen wrench)
- Instruction Manual
5. Assembly Instructions
Assembly is required. Please follow these steps carefully. It is recommended to assemble the chair on a soft, clean surface to prevent scratches.
- Attach Casters to Base: Insert each of the five casters into the holes at the end of each leg of the star base. Push firmly until they click into place.
- Insert Gas Lift: Place the gas lift cylinder into the center hole of the star base.
- Attach Armrests to Seat: Align the armrests with the pre-drilled holes on the underside of the chair seat. Secure them using the provided screws and washers. Do not overtighten initially.
- Attach Backrest to Seat: Connect the backrest to the seat assembly, aligning the mounting points. Secure with screws and washers.
- Attach Seat Assembly to Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring it is centered and stable.
- Final Tightening: Once all components are loosely assembled, go back and securely tighten all screws.
Video 1: Official product video demonstrating the features and assembly of the Benmar High-Back Adjustable Swivel Leather Office Chair. This video provides a visual guide to the chair's functionality and construction.
6. Operating Instructions
Your Benmar Office Chair offers several adjustments to customize your seating experience:
- Seat Height Adjustment: To raise the seat, lift the lever located under the right side of the seat while taking your weight off the chair. To lower the seat, lift the lever while seated. Release the lever at your desired height.
- Tilt Function: The chair features a tilt mechanism allowing the backrest and seat to recline together. Pull the lever (usually on the left side) outwards to unlock the tilt. Lean back to recline. Push the lever inwards to lock the chair in an upright position.
- Tilt Tension Adjustment: The round knob located under the front of the seat controls the tension of the tilt mechanism. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).
- 360-Degree Swivel: The chair's seat can rotate freely 360 degrees for easy movement and access to your workspace.
7. Maintenance
Proper care will extend the life and appearance of your office chair:
- Cleaning: Wipe the leather upholstery and stainless steel frame with a dry or damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Inspection: Periodically check all screws and bolts to ensure they are tight. Retighten if necessary to maintain stability and safety.
- General Care: Keep the chair away from direct heat sources and sharp objects to prevent damage to the upholstery and frame.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height. | Gas lift cylinder is not engaged or is faulty. | Ensure the height adjustment lever is fully engaged. If the problem persists, the gas lift may need replacement. |
| Chair is wobbly or unstable. | Loose screws or improper assembly. | Check and tighten all assembly screws. Ensure casters are fully inserted into the base. |
| Chair squeaks during movement. | Loose connections or lack of lubrication. | Tighten all screws. Apply a small amount of silicone-based lubricant to moving parts if necessary. |
| Difficulty reclining or locking tilt. | Tilt tension is too high or tilt lock is engaged. | Adjust the tilt tension knob counter-clockwise to loosen. Ensure the tilt lock lever is pulled outwards to unlock. |
9. Warranty & Support
Your LeisureMod Benmar Office Chair is backed by a 30-day easy return policy. For any questions, concerns, or support needs regarding your product, please contact the seller, concord seating, directly. They are available to assist with product inquiries, parts replacement, or warranty claims.
For customer support, please refer to your purchase documentation or the seller's contact information on the platform where the product was purchased.
