WELYAS 10x10 FT Metal Outdoor Storage Shed with Floor Base Instruction Manual

Welcome to Your WELYAS Storage Shed

Thank you for choosing the WELYAS 10x10 FT Metal Outdoor Storage Shed. This manual provides detailed instructions for the safe and efficient assembly, operation, and maintenance of your new storage solution. This shed is designed to provide ample space for large household items, garden tools, and equipment, featuring a durable galvanized steel construction, a floor base for stability, clear roof panels for natural light, and air vents for ventilation.

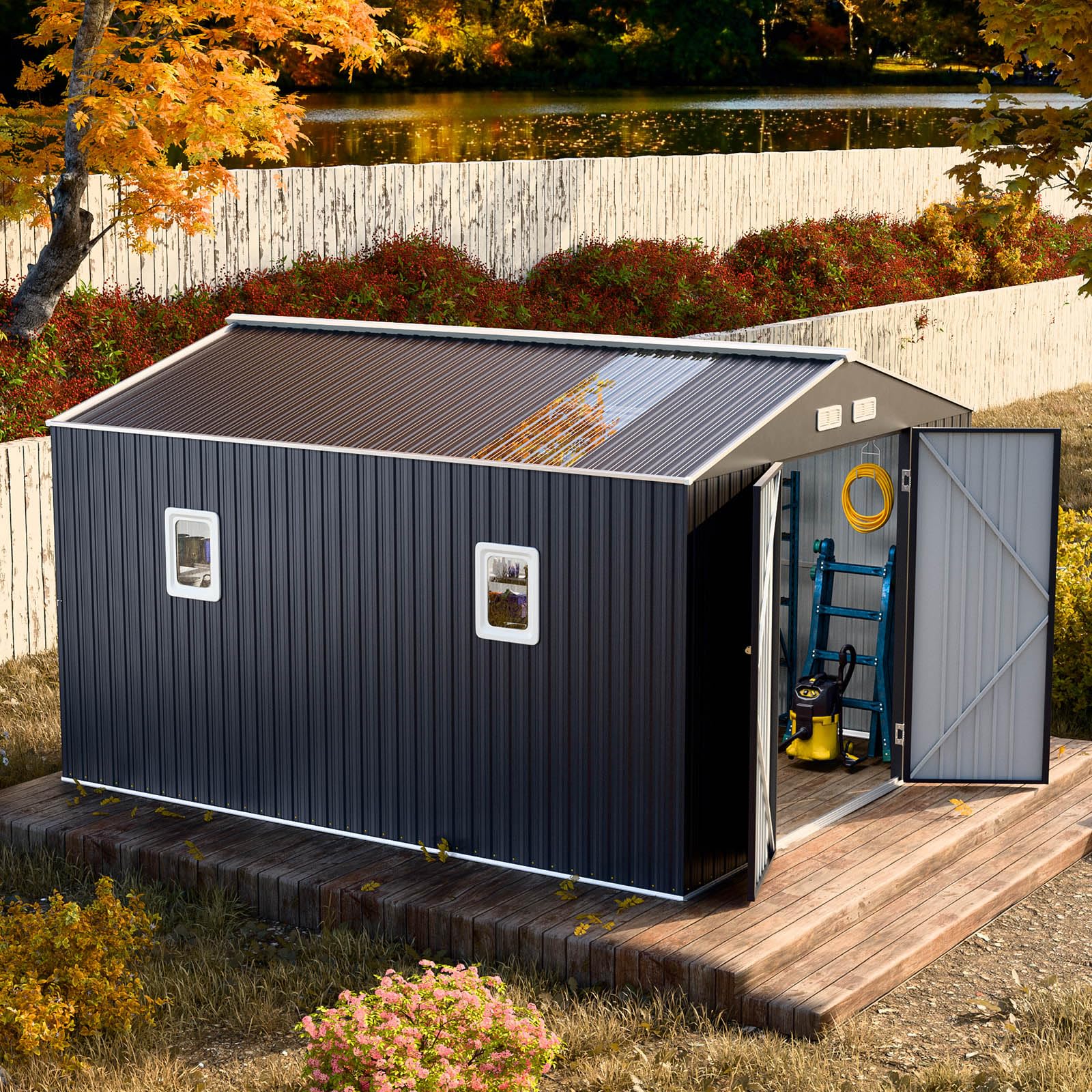

Image: The WELYAS 10x10 FT Metal Outdoor Storage Shed with Floor Base, showcasing its dark grey exterior and spacious design.

Important Safety Instructions

Please read and understand all safety warnings and instructions before beginning assembly or using the shed. Failure to follow these instructions may result in injury or damage to the product.

Ensure the shed is anchored to the ground using the provided anchors for stability.
Be cautious while handling and assembling the shed, following the clear and labeled instructions provided.
Wear appropriate personal protective equipment, including gloves and eye protection, during assembly.
Assemble the shed on a level and hard surface to ensure structural integrity.
Do not attempt to assemble the shed in high winds or adverse weather conditions.
Keep children and pets away from the assembly area.

Component Identification

Before assembly, carefully identify all components using the provided parts lists. Each box contains a specific parts list. Keep them organized to ensure a smooth assembly process.

Image: A 'PARTS LIST 1/3' document, detailing components by number, part description, and quantity for the first box of the shed.

Image: A 'PARTS LIST 3/3' document, detailing components by number, part description, and quantity for the third box of the shed.

Assembly Guide

Follow these steps carefully for proper assembly. It is recommended to have at least 2-3 people for assembly.

Step 1: Prepare the Base

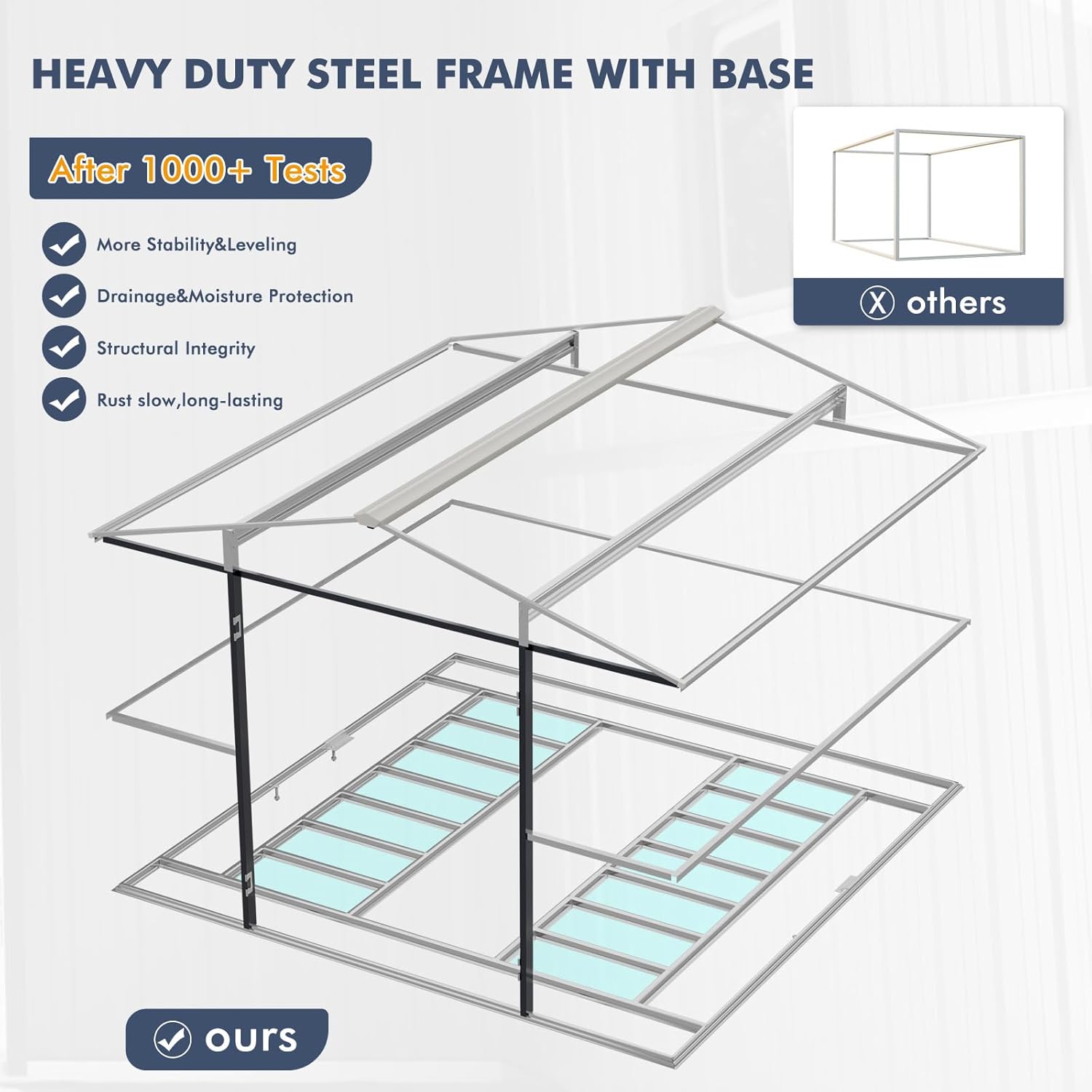

Ensure a level and hard surface for the shed. The shed comes with a floor frame base for stability and to keep the interior dry. Assemble the base frame first.

Video: This video demonstrates the initial steps of assembling the shed's floor base, including laying out the metal frame components and securing them. It highlights the importance of a level foundation for the WELYAS 10x10 FT Metal Outdoor Storage Shed.

Base frame assembly for WELYAS Storage Shed

Image: The metal base frame being assembled on a prepared gravel bed, with wooden supports underneath. This illustrates the initial setup of the shed's foundation.

Step 2: Wall Panel Installation

Attach the wall panels to the base frame. Ensure panels are correctly oriented and secured with the specified screws and washers. Do not fully tighten all screws until the entire structure is aligned.

Video: This video tutorial shows the process of attaching the metal wall panels to the shed's base frame. It emphasizes the use of screws and washers for secure fastening and proper alignment, applicable to the 10x10 FT Metal Outdoor Storage Shed.

Wall panels being installed on WELYAS Storage Shed

Image: A person installing the corrugated metal wall panels onto the shed's frame, using a power drill to secure screws. The panels are dark grey, and the shed structure is taking shape.

Step 3: Roof Assembly

Install the roof panels, including the unique clear roof skyview windows. These transparent panels allow natural light into the shed. Secure all roof components firmly.

Clear roof panels for WELYAS Storage Shed

Image: Highlighting the clear roof panels of the shed, designed to allow natural light inside. The panels are being installed on the roof structure.

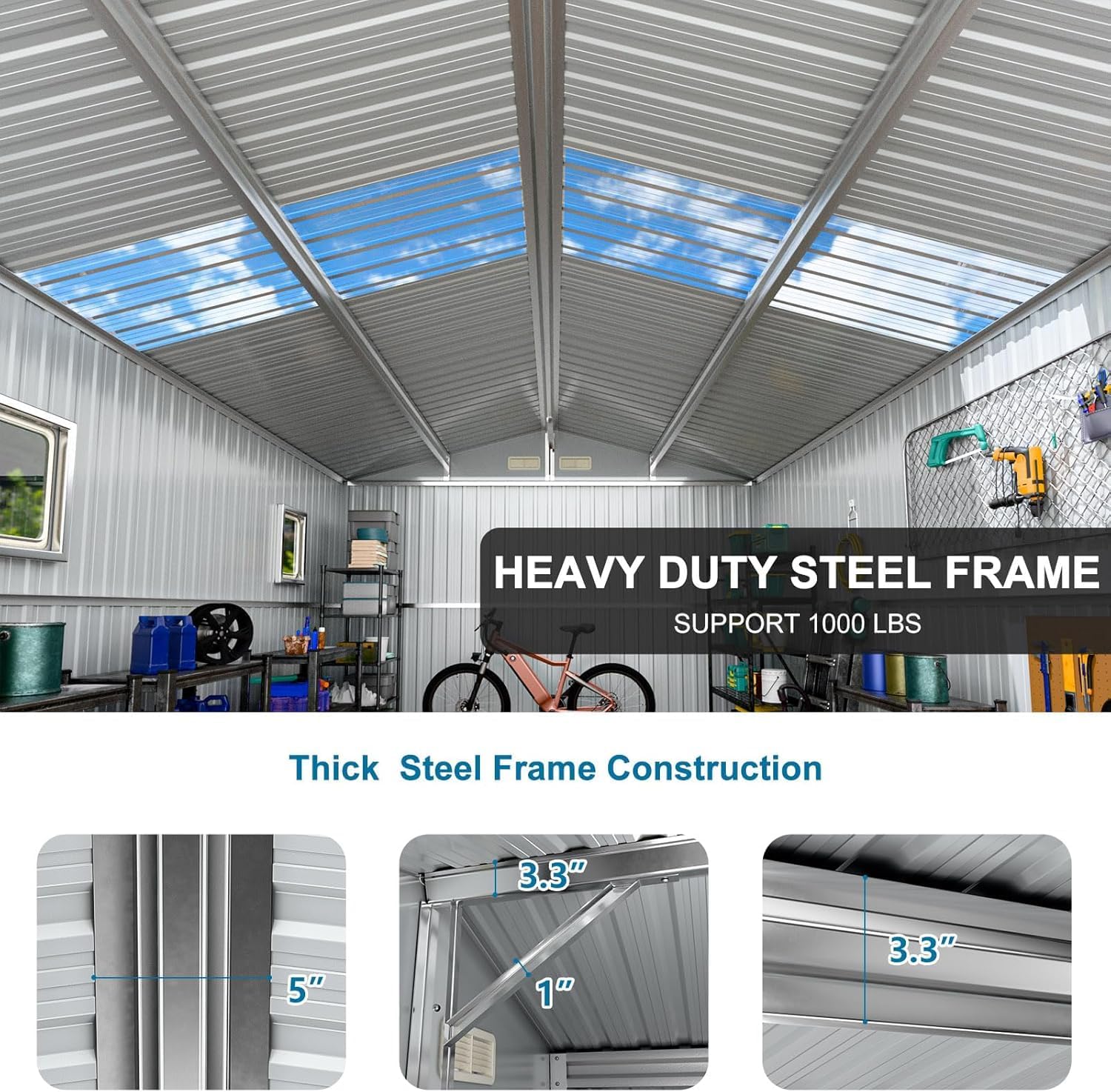

Interior view of WELYAS Storage Shed with clear roof

Image: Interior view of the shed showing natural light streaming through the clear roof panels, illuminating the storage space. Shelving and various items are visible inside.

Step 4: Door Installation

Assemble and install the double sliding doors. Ensure they slide smoothly and the lockable latch mechanism is correctly fitted for security.

Lockable door mechanism on WELYAS Storage Shed

Image: Close-up of the shed's lockable door mechanism, showing the sturdy latch and the provision for a padlock, ensuring enhanced security for stored items.

Usage Guidelines

The double sliding doors provide easy access for large items. Ensure the doors are fully open when moving large equipment to prevent damage.
Utilize the internal space efficiently with shelving or storage solutions as needed. The 10x10 FT size offers ample room for various items.
The clear roof panels provide natural light during the day, reducing the need for artificial lighting.
The four air vents ensure proper air circulation, helping to prevent moisture buildup and maintain a dry interior.

Care and Maintenance

Regularly inspect the shed for any loose screws or damaged panels. Tighten or replace as necessary.
Clean the exterior and interior periodically with mild soap and water. Avoid abrasive cleaners that could damage the galvanized steel finish.
Keep the air vents clear of debris to ensure continuous air circulation.
In snowy conditions, ensure the roof is cleared of excessive snow to prevent structural stress. The roof is designed to withstand up to 6 inches of snow.

Common Issues and Solutions

Problem	Possible Cause	Solution
Difficulty aligning panels	Screws tightened too early	Loosen all screws slightly, adjust panels for alignment, then gradually tighten.
Water leakage	Improper sealing or damaged panel	Check all screw points for proper washers and tightness. Inspect panels for damage and seal any gaps with appropriate sealant.
Doors not sliding smoothly	Debris in track or misaligned doors	Clean the door tracks thoroughly. Adjust door hinges or rollers for proper alignment.

Product Specifications

Brand: WELYAS
Color: Gray
Material: Galvanized Steel Metal
Style: Modern
Base Material: Metal
Top Material Type: Metal
Water Resistance Level: Waterproof
Frame Material: Galvanized Steel
Door Style: Sliding Doors
Assembly Required: Yes
Item Weight: 281 pounds
Package Dimensions: 73 x 20 x 20 inches

Warranty and Customer Support

Your WELYAS 10x10 FT Metal Outdoor Storage Shed is backed by a 12-month warranty. For any questions, missing parts, or support needs, please contact WELYAS customer service.

Contact information: Refer to the contact details provided in your purchase documentation or visit the official WELYAS website.
