1. Introduction
Thank you for choosing the LEMBERI 80-inch Floating Fireplace TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Key Features:
- Unique Floating 2-in-1 Design: Combines an 80-inch floating TV cabinet with a 36-inch mirrored electric fireplace.
- Durable Construction: Made from engineered wood with a waterproof paint finish for easy cleaning and longevity.
- Integrated Electric Fireplace: Features 12 flame colors, 5 brightness options, adjustable temperature (62°F to 82°F), and two heat settings (750W/1200W) for rooms up to 400 sq ft. Flame and heat functions operate independently.
- Efficient Wire Management: Two cable holes on the top and bottom help organize cables.
- Ample Storage: Includes open shelves for media devices and display items, plus cabinets with doors for concealed storage. Adjustable and removable shelves offer flexible organization.
- LED Lighting: Features 20 color LED lights to enhance ambiance.
2. Important Safety Information
Please observe the following safety precautions to prevent injury or damage to the product:
- Always follow assembly instructions precisely.
- Ensure all hardware is securely tightened before use. Periodically check and re-tighten as necessary.
- Do not overload the shelves or cabinet. Refer to the specifications for weight limits.
- This unit is designed for wall mounting. It must be securely attached to a solid wood wall, concrete wall, or brick wall. Do not mount on hollow walls or gypsum board walls without proper anchors and reinforcement.
- Keep children and pets away from the electric fireplace when it is operating, as surfaces may become hot.
- Ensure the power cord for the fireplace is not pinched or routed under the unit where it could be damaged.
- Do not block the air vents of the electric fireplace.
- Unplug the electric fireplace from the power outlet before cleaning or performing any maintenance.
3. Package Contents
Your LEMBERI Floating Fireplace TV Stand is shipped in two separate packages. These packages may arrive on different days. Please ensure you have received both boxes before beginning assembly.
- Box 1: TV Stand Components
- Box 2: Electric Fireplace Unit
This image illustrates the overall dimensions of the TV stand and indicates that the product is shipped in two separate parcels, Box 1 for the TV stand and Box 2 for the electric fireplace.
4. Setup and Installation
4.1 Tools Required
- Phillips Head Screwdriver
- Hammer
- Drill (for wall mounting)
- Level
- Measuring Tape
- Pencil
4.2 Assembly Instructions
Refer to the detailed assembly manual included in Box 1 for step-by-step instructions on assembling the TV stand components. Pay close attention to the diagrams and ensure all parts are correctly oriented and secured.
Wall Mounting: This unit is designed to be wall-mounted. It requires drilling into the wall for secure installation. Ensure the wall type is suitable (wood wall, concrete wall, or brick wall). Do not attempt to mount on hollow walls or gypsum board walls without professional reinforcement. The height of the cabinet on the wall can be adjusted during installation to suit your preference.
This image highlights the cable management features, UV highlight gloss finish, and durable particle board construction of the TV stand.
4.3 Electric Fireplace Installation
Once the TV stand frame is assembled, carefully insert the electric fireplace unit into its designated opening. Ensure it fits snugly and is secured according to the fireplace's specific instructions. It is often easier to install the fireplace unit before mounting the entire cabinet to the wall.
4.4 Organizing Storage
The TV stand features adjustable and removable shelves within the cabinets. Customize their positions to accommodate your media devices, books, or decorative items.
This image demonstrates the spacious storage compartments and the flexibility of adjustable and removable shelves within the TV stand.
5. Operating Instructions
5.1 Electric Fireplace Operation
The electric fireplace can be controlled via the control panel on the unit or the included remote control.
- Power On/Off: Press the power button to turn the unit on or off.
- Flame Colors: Cycle through 12 different flame colors. You can select a static color or allow them to cycle automatically.
- Flame Brightness: Adjust the flame brightness with 5 available options.
- Heat Settings: Choose between 750W or 1200W heat output. The heat function can be used independently of the flame effect.
- Temperature Control: Set the desired room temperature between 62°F and 82°F. The unit will automatically adjust heat output to maintain this temperature.
- Timer: Set an operating timer from 0 to 8 hours.
This image details the operational features of the electric fireplace, such as timer, heating capacity, brightness levels, temperature control, and the range of flame colors.
5.2 LED Lighting Operation
The integrated LED lights can be controlled using the provided remote control.
- Color Selection: Choose from 20 different LED colors to match your room's ambiance.
- Brightness Adjustment: Adjust the brightness of the LED lights.
- Modes: Select various lighting modes (e.g., fade, jump, flash).
This image displays the TV stand with its 20-color LED lights illuminated in blue, alongside the remote control used to manage the lighting effects.
6. Maintenance and Care
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
- Dusting: Regularly dust the unit to prevent buildup.
- Fireplace Care: Ensure the electric fireplace vents are clear of obstructions. Do not attempt to service the internal components of the fireplace; contact qualified personnel if issues arise.
- Hardware Check: Periodically check all assembly hardware and re-tighten if necessary to maintain stability.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace not turning on. | No power, power cord loose, unit switched off. | Check power outlet, ensure cord is securely plugged in, press power button on unit or remote. |
| No heat from fireplace. | Heat function not activated, thermostat setting too low, air vents blocked. | Activate heat function, increase thermostat setting, clear any obstructions from vents. |
| LED lights not working. | Remote battery dead, LED strip disconnected, unit switched off. | Replace remote battery, check LED strip connections, ensure main unit is powered on. |
| Unit feels unstable after assembly. | Hardware not fully tightened, improper wall mounting. | Re-check all screws and bolts, ensure wall mounting brackets are securely fastened to a suitable wall type. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Model | B0FT7BSTD2 |
| Brand | LEMBERI |
| Size | 80 inches (Length) |
| Color | Black |
| Material | Engineered Wood |
| Fireplace Size | 36 inches |
| Heat Output | 750W / 1200W |
| Heating Area | Up to 400 sq ft |
| Flame Colors | 12 options |
| Flame Brightness | 5 options |
| LED Lights | 20 colors |
| Mounting Type | Wall Mounted |
| Maximum TV Size | Up to 80 inches |

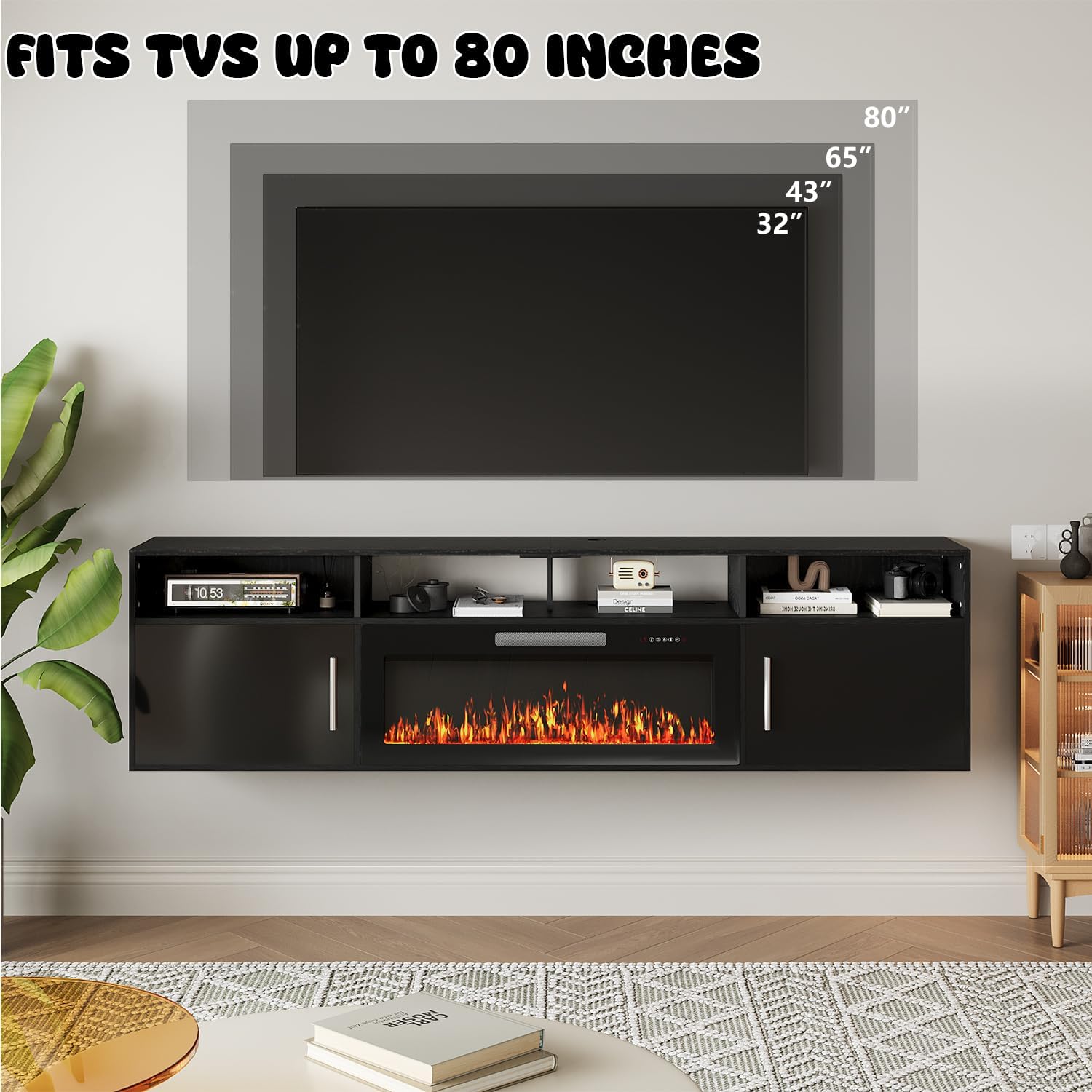

This image illustrates the TV stand's capacity to accommodate televisions up to 80 inches in size.
9. Warranty and Customer Support
For any questions, concerns, or assistance with your LEMBERI Floating Fireplace TV Stand, please contact LEMBERI customer support. Refer to your purchase documentation for specific warranty details and contact information.
If you encounter any issues with missing parts or damaged components upon delivery, please contact customer service immediately. Remember that the product ships in two separate packages, which may arrive on different days.
