Uiifuidy Portable Espresso Maker WY-007 Instruction Manual

1. Product Overview

The Uiifuidy Portable Espresso Maker WY-007 is a versatile 3-in-1 coffee machine designed for convenience and quality on the go. It features a rapid self-heating system, 20 BAR pressure extraction, and compatibility with ground coffee, NS, and DG capsules. Its robust battery and compact design make it ideal for travel, outdoor activities, or office use.

Key Features:

• Precision Fast Self-Heating: Heats 50ml of room-temperature water to 92°C in approximately 3 minutes for perfect espresso extraction.
• 3-in-1 Versatility: Compatible with coffee grounds, NS (Nespresso OriginalLine) capsules, and DG (Dolce Gusto) capsules.
• Powerful 20 BAR Pressure: Ensures smooth, velvety espresso with a rich crema.
• Long-Lasting & Flexible Charging: Equipped with a 7800mAh battery, supporting USB and car charging. Brews 5-6 hot coffees or over 300 cold extractions per charge.
• Portable Design: Includes a padded carrying case and coffee stand for easy transport and use.
• Health-Conscious Materials: Made with BPA-free materials and designed for easy cleaning.

2. Package Contents

Your Uiifuidy Portable Espresso Maker package includes the following items:

• Portable Coffee Maker (Main Unit)
• USB-C Charging Cable
• Padded Carrying Case
• Foldable Coffee Stand
• Ground Coffee Adapter
• NS Capsule Adapter
• DG Capsule Adapter
• User Manual

Image: The Uiifuidy Portable Espresso Maker WY-007 shown with its various components including the main unit, adapters, and carrying case.

3. Initial Setup

3.1 Charging the Device

1. Before first use, fully charge the espresso maker.
2. Connect the provided USB-C charging cable to the charging port on the device.
3. Connect the other end of the cable to a compatible USB power source (e.g., wall adapter, power bank, car charger).
4. The battery indicator lights on the device will illuminate to show charging progress. All lights will be solid when fully charged.

3.2 Assembling for Use

1. Unscrew the bottom part of the espresso maker.
2. Select the appropriate adapter for your coffee type:
   • For ground coffee: Use the ground coffee basket.
   • For NS capsules: Use the NS capsule adapter.
   • For DG capsules: Use the DG capsule adapter.
3. Insert your chosen coffee (ground or capsule) into the selected adapter.
4. Screw the adapter assembly firmly back onto the main unit.

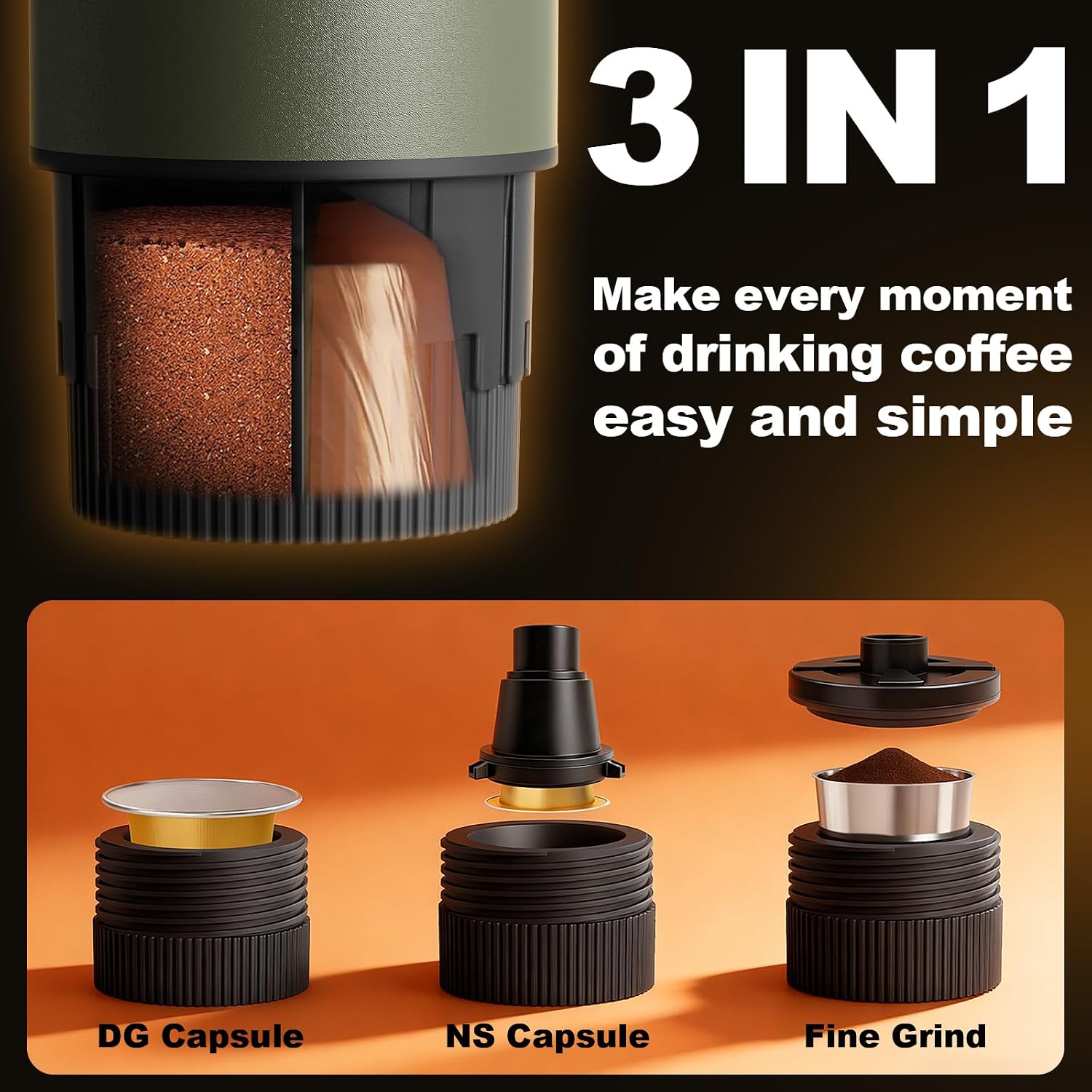

Image: Illustration of the three different coffee preparation methods: DG Capsule, NS Capsule, and Fine Grind, demonstrating the versatility of the espresso maker.

4. Operating Instructions

4.1 Hot Extraction (Self-Heating)

1. Ensure the device is charged and your coffee is loaded into the correct adapter.
2. Unscrew the top lid and fill the water reservoir with up to 50ml of room-temperature water. Do not exceed the MAX fill line.
3. Securely replace the top lid.
4. Place the espresso maker on the foldable coffee stand with a cup underneath, or hold it securely over your cup.
5. Long press the power button for approximately 2-3 seconds to activate the self-heating function. The indicator lights will show heating progress.
6. Once the water reaches 92°C (approx. 3 minutes), the device will automatically begin extraction.
7. Enjoy your freshly brewed hot espresso.

Image: The portable espresso maker highlighting its self-heating capability, showing a temperature of 92°C and a heating time of 180-200 seconds.

4.2 Cold Extraction (No Heating)

1. Ensure the device is charged and your coffee is loaded into the correct adapter.
2. Unscrew the top lid and fill the water reservoir with cold water (or pre-heated water if you prefer a hot brew without self-heating).
3. Securely replace the top lid.
4. Place the espresso maker on the foldable coffee stand with a cup underneath, or hold it securely over your cup.
5. Double-click the power button to initiate direct extraction without heating.
6. Enjoy your cold brew or pre-heated espresso.

Image: A user holding the espresso maker, illustrating both hot brew (long press for 92°C) and cold brew (double click for room temperature extraction) options.

4.3 Video Demonstration

5. Maintenance

Regular cleaning ensures optimal performance and longevity of your espresso maker.

5.1 Cleaning After Each Use

1. Unscrew the bottom part of the device and remove the used coffee grounds or capsule.
2. Rinse all removable parts (adapters, cup, bottom section) under running water.
3. Wipe the main unit with a damp cloth. Do not immerse the main unit in water.
4. Ensure all parts are completely dry before reassembling or storing.

Note: The item is not dishwasher safe.

6. Troubleshooting

• Device not turning on: Ensure the battery is fully charged. Connect to a power source and check if indicator lights show charging.
• Water not heating: Verify that you are performing a long press (2-3 seconds) on the power button for hot extraction. Ensure sufficient water is in the reservoir.
• No or weak espresso extraction:
  • Check if the water reservoir is filled to the appropriate level.
  • Ensure the coffee adapter is correctly assembled and tightly screwed onto the main unit.
  • For ground coffee, ensure the grind size is appropriate for espresso (fine grind) and not too coarse or too fine, which can affect pressure.
  • For capsules, ensure they are properly seated and not damaged.
• Leaking: Ensure all parts are securely tightened. Check that the silicone seals are clean and properly seated.

If issues persist, please refer to the warranty and support section for further assistance.

7. Product Specifications

8. Warranty & Support

8.1 Warranty Information

The Uiifuidy Portable Espresso Maker WY-007 comes with a 1-Year Limited Warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or failure to follow the instructions in this manual.

8.2 Customer Support

For technical assistance, warranty claims, or any questions regarding your product, please contact Uiifuidy customer support through the retailer's platform or visit the official Uiifuidy website for contact details.

Please have your purchase receipt and product model number (WY-007) ready when contacting support.
