1. Introduction
Thank you for choosing the Bosch SPS4EMI17E Serie 4 Smart Freestanding Dishwasher. This appliance is designed to provide efficient and convenient dishwashing with advanced features and smart connectivity. Please read this manual carefully before installation, operation, or maintenance to ensure safe and optimal use of your dishwasher. Keep this manual for future reference.

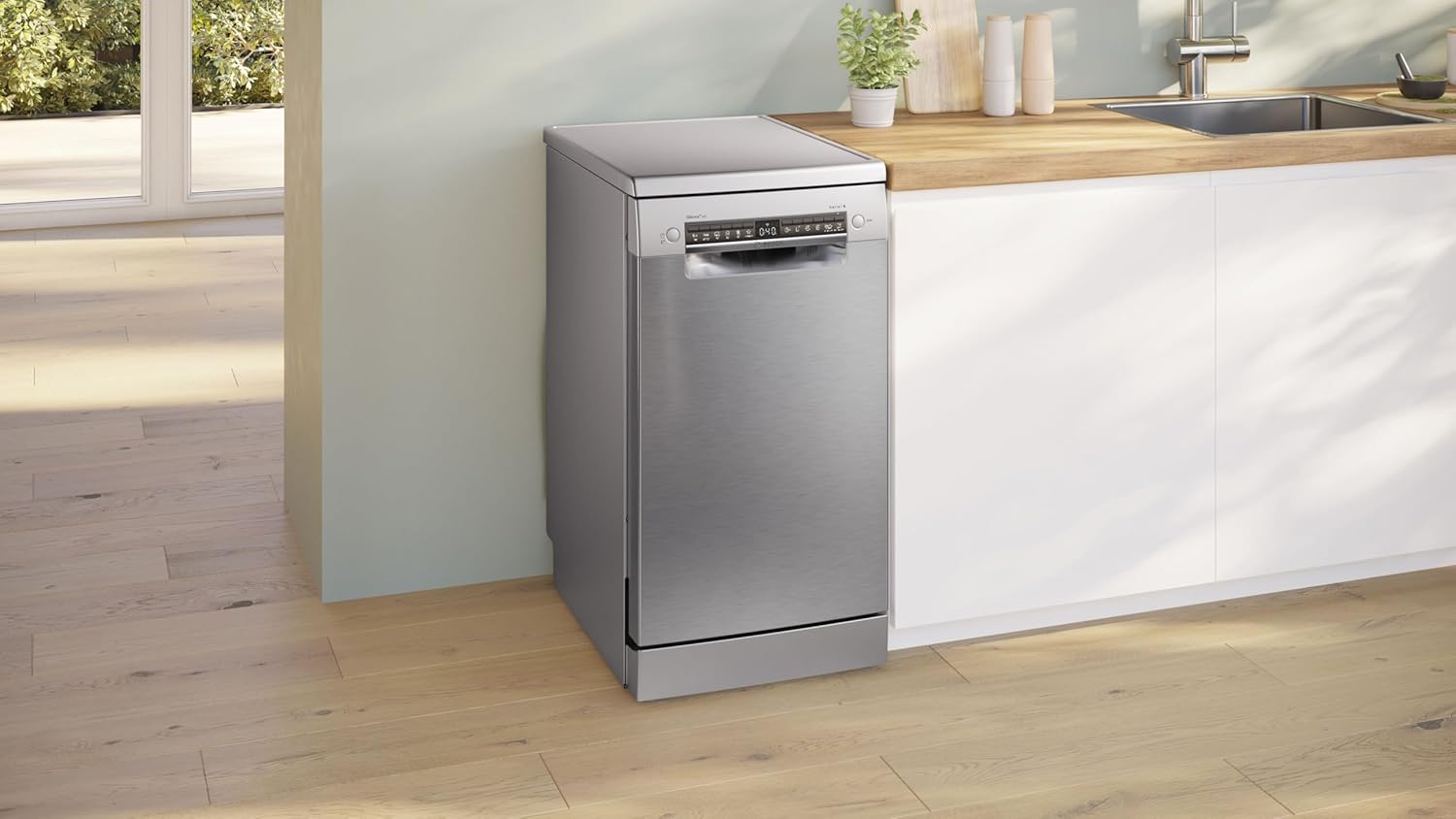

Image 1.1: The Bosch SPS4EMI17E dishwasher in a kitchen setting.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons. This appliance is intended for domestic use only.
- Read all instructions before using the appliance.
- Do not allow children to play with the appliance.
- Ensure the appliance is properly grounded.
- Do not operate the dishwasher if it is damaged. Contact authorized service personnel.
- Use only detergents and rinse aids recommended for automatic dishwashers.
- Sharp items should be loaded with handles up to reduce the risk of cuts.
3. What's in the Box
Upon unpacking, please verify that all components are present:
- Bosch SPS4EMI17E Dishwasher Unit
- Power cable
- User manual (this document)
- Inlet hose
- Drain hose
- Cutlery basket
4. Setup and Installation
This section provides guidance for installing your Bosch SPS4EMI17E dishwasher. For detailed instructions, refer to the separate installation guide included with your appliance.
4.1 Placement
The Bosch SPS4EMI17E is a freestanding dishwasher with compact dimensions (84.5 cm H x 45 cm W x 60 cm D), making it suitable for various kitchen layouts. Ensure adequate space for door opening and hose connections.
Image 4.1: Dimensional drawing of the dishwasher, indicating space requirements for power and water connections.
4.2 Water and Electrical Connections
Connect the inlet hose to a cold water supply and the drain hose to a suitable drain. Ensure all connections are secure to prevent leaks. Connect the power cable to a grounded electrical outlet (230 Volt). It is recommended to have a qualified technician perform the installation.
Image 4.2: Rear view of the dishwasher with connected hoses and power cable.
5. Operating Instructions
Your Bosch SPS4EMI17E dishwasher offers a range of programs and features for optimal cleaning and drying results.
5.1 Control Panel Overview
The control panel allows you to select programs, functions, and monitor the wash cycle.
Image 5.1: Detailed view of the dishwasher's control panel.
5.2 Loading the Dishwasher
The dishwasher features fully customizable baskets with foldable racks and a removable glass support, allowing flexible loading for up to 10 place settings. A dedicated third cutlery basket is located at the top for convenient storage of utensils.
Image 5.2: Dishwasher interior with baskets for loading dishes.
Image 5.3: Upper basket showing optimal loading for glasses and small plates.
Image 5.4: Lower basket demonstrating efficient loading for larger items.
Image 5.5: The dedicated third cutlery basket for organized utensil washing.
5.3 Available Programs and Functions
The dishwasher offers 6 main programs and 4 special functions:
- Intensive: For heavily soiled dishes and pots.
- Favorite: Customizable program.
- Eco: Energy-efficient program for normal soiled dishes (50°C).
- Express 60°C: Quick wash for lightly soiled dishes.
- Auto 45-65°C: Automatically adjusts wash settings based on soil level.
- Silent 50°C: Reduced noise program.
Special functions include options for enhanced drying, speed, or hygiene.
5.4 EfficientDry Feature
At the end of each wash cycle, the dishwasher door automatically opens slightly. This feature, called EfficientDry, enhances the drying process by allowing steam to escape, resulting in perfectly dry dishes and reduced energy consumption.
5.5 Home Connect Smart Features
The Bosch SPS4EMI17E is a smart dishwasher, allowing you to control and monitor it remotely via the intuitive Home Connect app on your smartphone. You can:
- Start or pause wash programs from anywhere.
- Customize existing wash programs.
- Download additional programs to suit specific needs.
- Utilize the Smart Start feature to optimize energy consumption by automatically scheduling wash cycles when renewable energy is most available or electricity tariffs are lowest.
Video 5.6: This video demonstrates the Bosch Smart Start feature, which automatically schedules dishwasher cycles to run when renewable energy is most available or electricity tariffs are lowest, optimizing energy consumption and reducing costs. It shows the Home Connect app interface for setting up this feature.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your dishwasher.
6.1 Cleaning the Filters
Periodically check and clean the dishwasher filters located at the bottom of the wash tub. Remove any food debris to prevent blockages and ensure efficient cleaning.
Image 6.1: The interior base of the dishwasher, highlighting the filter system and lower spray arm.
6.2 Cleaning the Spray Arms
Ensure the spray arms are free from blockages. Remove them if necessary and rinse under running water to clear any debris from the nozzles.
6.3 Exterior Cleaning
Wipe the exterior surfaces with a soft, damp cloth. For stainless steel finishes, use a specialized stainless steel cleaner to maintain its appearance and prevent fingerprints.
7. Troubleshooting
If you encounter any issues with your dishwasher, refer to the following common problems and solutions before contacting service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | No power supply; Door not closed properly; Program not selected. | Check power connection; Ensure door is latched; Select a program and press start. |
| Dishes are not clean | Incorrect loading; Clogged spray arms; Insufficient detergent; Clogged filters. | Reload dishes correctly; Clean spray arm nozzles; Add appropriate detergent; Clean filters. |
| Water remains in the tub | Clogged drain hose; Clogged filters; Drain pump issue. | Check and clear drain hose; Clean filters; Contact service if pump is faulty. |
| Dishwasher is noisy | Dishes rattling; Foreign object in pump; Installation issue. | Rearrange dishes; Check pump area; Ensure dishwasher is level. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Bosch |
| Model Number | SPS4EMI17E |
| Installation Type | Freestanding |
| Capacity | 10 Place Settings |
| Dimensions (H x W x D) | 84.5 cm x 45 cm x 60 cm |
| Color | Stainless Steel |
| Control Type | Push Button |
| Noise Level | 44 dB |
| Motor Type | EcoSilence Drive (Brushless) |
| Voltage | 230 Volt |
| Weight | 43 Kilograms |
| Special Features | Adjustable Baskets, Home Connect, EfficientDry, Third Cutlery Basket |
| GTIN | 04242005542116 |
Image 8.1: EU Energy Label for the Bosch SPS4EMI17E, indicating its energy efficiency and performance metrics. For more details, visit the official EPREL database: EPREL Database.
9. Warranty and Support
Your Bosch SPS4EMI17E dishwasher comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.
9.1 Customer Support
For technical assistance, spare parts, or warranty service, please contact Bosch customer support. You can find contact information on the official Bosch website or in the documentation provided with your appliance.
