Harbr Breeze Notus 52-inch Ceiling Fan with Light

User Manual

Introduction

Thank you for choosing the Harbr Breeze Notus 52-inch Ceiling Fan with Light. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before beginning installation and retain them for future reference.

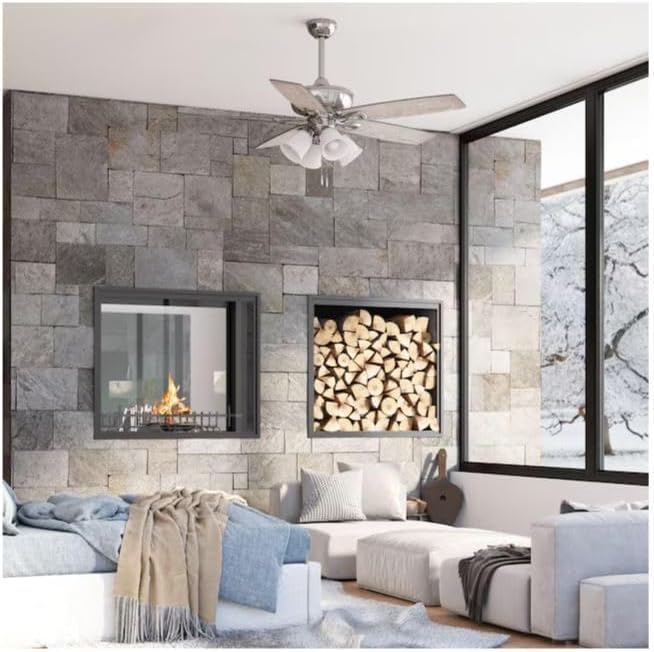

Harbr Breeze Notus 52-inch Ceiling Fan installed in a modern living room with a fireplace and large windows.

Image: The Harbr Breeze Notus 52-inch ceiling fan with brushed nickel finish and light-colored blades, installed in a living space.

Safety Information

Always follow basic safety precautions when installing and operating this appliance to reduce the risk of fire, electric shock, and personal injury.

Read all instructions before installing the fan.
Ensure the power is turned off at the circuit breaker before installation or maintenance.
All wiring must be in accordance with national and local electrical codes. Consult a qualified electrician if you are unsure.
The mounting structure must be capable of supporting the weight of the fan (at least 35 lbs).
Do not operate the fan with damaged blades or housing.
Avoid placing objects in the path of the fan blades.

What's in the Box

Verify that all components are present before beginning installation:

1pc 52-in Brushed Nickel with Driftwood/Sienna Blades Ceiling Fan With Light (5-Blade)
4-Arm light kit with frosted glass shades
E26 A15 LED bulbs (included)
Pull chains for speed and light control
Mounting hardware

Setup and Installation

This ceiling fan is designed for downrod mount and semi-flush mount installation. Professional installation is recommended.

1. Mounting the Bracket

Secure the mounting bracket to the ceiling junction box. Ensure the junction box is securely fastened to the building structure and can support the fan's weight.

2. Wiring Connections

Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full installation guide (not included here). Ensure all connections are secure and properly insulated.

3. Assembling the Fan Body

Attach the downrod to the motor housing and then hang the fan assembly onto the mounting bracket. Ensure all screws are tightened.

4. Attaching the Blades

Attach each of the five fan blades to the blade arms, then secure the blade arms to the motor housing. The blades are reversible, offering a choice between Driftwood and Sienna finishes.

Harbr Breeze Notus ceiling fan with light-colored blades (Driftwood finish).

Image: Fan with Driftwood blade finish.

Harbr Breeze Notus ceiling fan with dark-colored blades (Sienna finish).

Image: Fan with Sienna blade finish.

5. Installing the Light Kit

Connect the light kit wiring to the fan's wiring and secure the light kit to the bottom of the fan motor housing. Install the frosted glass shades and the E26 A15 LED bulbs.

Close-up view of the Harbr Breeze Notus ceiling fan's light kit with frosted glass shades and a bulb installed.

Image: Close-up of the fan's light kit with frosted glass shades.

Operating Instructions

Fan Speed Control

The fan speed is controlled by a pull chain. Pull the chain repeatedly to cycle through the three speed settings (High, Medium, Low) and Off.

Light Control

The light kit is controlled by a separate pull chain. Pull the chain to turn the light On or Off.

Reversible Motor Function

The fan features a reversible motor for year-round comfort. Locate the reverse switch on the motor housing (usually a small slide switch). In warm weather, set the switch to circulate air downwards, creating a cooling effect. In cool weather, set the switch to circulate air upwards, redistributing warm air trapped near the ceiling.

Summer Mode: Downward airflow (counter-clockwise rotation).
Winter Mode: Upward airflow (clockwise rotation).

Always turn off the fan and wait for the blades to stop completely before changing the direction of the motor.

Remote Control Compatibility

This fan is compatible with universal ceiling fan remote controls (not included). A remote receiver installation is required for remote operation. Refer to the remote control's instructions for installation and pairing.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your ceiling fan.

Cleaning: Periodically wipe the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Tightening Fasteners: Check all screws and fasteners annually to ensure they are secure.
Bulb Replacement: When replacing bulbs, ensure the power is off. Use E26 A15 LED bulbs as specified.

Troubleshooting

Before attempting any repairs, ensure the power is disconnected at the circuit breaker.

Problem	Possible Cause	Solution
Fan does not start	No power to the fan; Loose wire connections; Motor switch in off position.	Check circuit breaker and wall switch; Verify all wire connections are secure; Ensure pull chain is not in the "off" position.
Fan wobbles	Loose blade screws; Unbalanced blades; Loose mounting bracket.	Tighten all blade screws; Use a balancing kit (not included) to balance blades; Ensure mounting bracket is securely fastened.
Light does not work	Loose bulb; Faulty bulb; Loose wire connection in light kit.	Tighten bulb; Replace bulb; Check light kit wiring connections.
Noisy operation	Loose screws; Motor housing rubbing; Blades hitting an obstruction.	Check and tighten all screws; Ensure no wires are rubbing against the motor housing; Verify blades are clear of obstructions.

Specifications

Detailed specifications for the Harbr Breeze Notus 52-inch Ceiling Fan:

Diagram showing the dimensions of the Harbr Breeze Notus 52-inch ceiling fan, including 52 inches width, 12.2 inches height, 5 inches canopy width, and 4 inches downrod length.

Image: Dimensions of the Harbr Breeze Notus 52-inch ceiling fan.

Model Number: 1332337
Fan Size: 52 inches
Number of Blades: 5
Blade Finish: Reversible Driftwood/Sienna
Motor Type: Reversible
Control Method: Pull Chain (compatible with universal remote)
Light Kit: 4-Arm with Frosted Glass Shades
Bulb Type: E26 A15 LED (included)
Number of Light Sources: 4
Wattage: 36 watts
Brightness: 800 Lumen
Color Temperature: Warm White
Mounting Type: Downrod mount, Semi Flush Mount
Material: Alloy Steel
Color: Brushed Nickel
Power Source: Electric
Room Type: Indoor/Outdoor

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact the retailer. Keep your proof of purchase for warranty claims.

For further assistance, please contact customer support through the retailer's website or contact information provided at the point of purchase.
