Important Safety Information
Read this entire manual before assembly and use. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.
- Adult Supervision Required: This product is intended for children aged 3 years and up. Constant adult supervision is mandatory during operation.
- Weight Limit: Do not exceed the maximum weight capacity of 140 lbs (63.5 kg).
- Seating: Designed for two children. Ensure both children are properly seated and secured with seat belts.
- Protective Gear: Always wear a helmet and other protective gear (e.g., knee pads, elbow pads) when operating the vehicle.
- Operating Environment: Use only on flat, level surfaces. Avoid slopes, stairs, public roads, swimming pools, or other hazardous areas.
- Battery Safety: Only use the provided charger and battery. Do not modify the electrical system.
- Moving Parts: Keep hands, hair, and clothing away from moving parts.
- Braking: The vehicle stops when the foot pedal is released. Ensure children understand this operation.
Package Contents
Verify that all components are present before beginning assembly:
- Ride On Truck (Main Body)
- Remote Control
- Charger
- Assembly Hardware (screws, washers, etc.)
- Instruction Manual
Assembly and Setup
Follow these steps for initial assembly and preparation:
- Unpacking: Carefully remove all components from the packaging.
- Wheel Installation: Attach the four wear-resistant wheels to the vehicle axles. Ensure they are securely fastened according to the diagrams in the separate assembly guide.
- Steering Wheel: Install the steering wheel, ensuring it clicks into place or is secured with the provided hardware.
- Seat Installation: Secure the 20-inch wide seat into position.
- Battery Connection: Connect the battery terminals. Refer to the battery compartment for specific instructions.
- Initial Charge: Before first use, fully charge the 24V 7AH battery for 8-12 hours. Do not overcharge.
Operating Instructions
The FUNTOK Ride-On Truck offers dual operating modes for varied control.
Self-Driving Mode (Child Operated)
- Age Range: Recommended for children aged 3 to 8 years.
- Operation: The child uses the steering wheel and foot pedal to control the vehicle.
- Speeds: This mode offers 2 speeds, ranging from approximately 2.67 to 5 MPH.
- Soft Start: The vehicle features a slow start function for gradual acceleration, enhancing safety and comfort.
Remote Control Mode (Parent Operated)
- Age Range: Recommended for children aged 1 to 3 years, or for parental assistance with older children.
- Operation: Parents can control the vehicle's direction and speed using the 2.4GHz remote control.
- Speeds: This mode offers 3 speeds, ranging from approximately 2 to 5 MPH.
- Pairing Remote: Refer to the remote control's specific instructions for pairing with the vehicle. Typically involves holding a button on the remote while turning on the vehicle.
Dual Driving Modes: The vehicle can be operated by the child using the steering wheel and pedal, or by a parent using the included 2.4GHz remote control. This image shows both modes of operation, highlighting the age ranges and speed options for each.
Additional Features
- LED Lights: Turn on the vehicle's LED lights using the designated switch on the dashboard.
- Horn/Music: Use the buttons on the steering wheel for horn sounds or pre-installed music.
Battery Information
Proper battery care ensures optimal performance and longevity.
- Battery Type: The vehicle is powered by a 24 Volt 7 AH battery.
- Charging: Use only the provided charger. Plug the charger into the charging port on the vehicle, then into a standard wall outlet.
- Charging Time: An initial charge of 8-12 hours is required. Subsequent charges typically take 8-12 hours. Do not charge for more than 18 hours.
- Playtime: A fully charged battery provides approximately 45-60 minutes of playtime, depending on terrain and usage.
- Storage: If storing the vehicle for an extended period, charge the battery fully every 3 months to maintain its health.

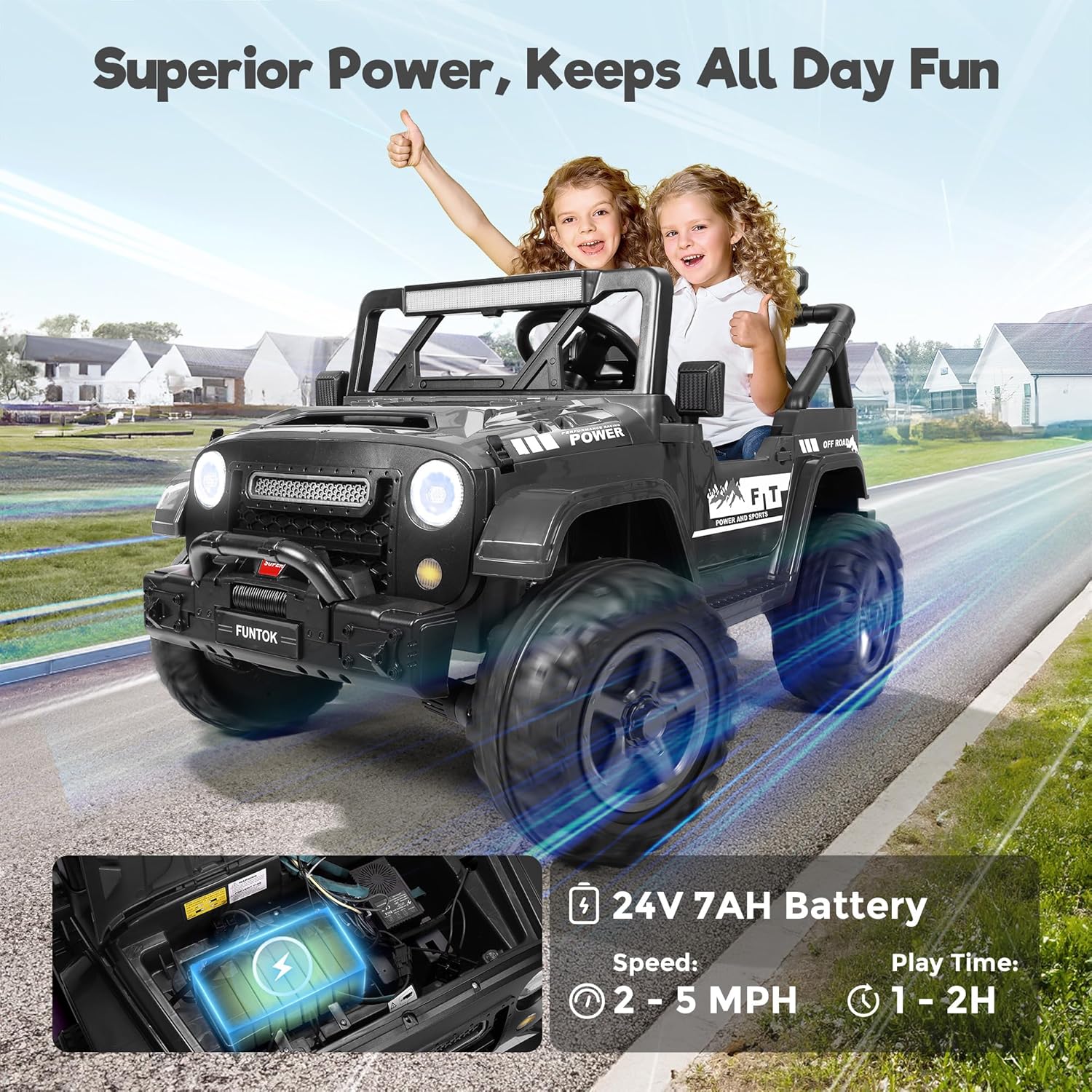

Battery and Performance: This image highlights the 24V 7AH battery, indicating a play time of 1-2 hours and speeds of 2-5 MPH. It shows children enjoying the vehicle, powered by its robust battery system.
Product Features
The FUNTOK Ride-On Truck is designed with several key features for performance and safety.
- Powerful Motors: Equipped with 4 x 200W motors, providing strong performance.
- Drive System: Features switchable 2WD/4WD capability for varied terrain.
- Suspension: Four-wheel spring suspension ensures a smooth ride.
- Spacious Seating: A 20-inch wide seat comfortably accommodates two children.
- Safety Belts: Adjustable seat belts are included for both passengers.
- Double-Locking Doors: For enhanced security during operation.
- Non-Slip Tires: Designed for improved traction and stability.
Powerful Motor System: This image illustrates the vehicle's 4x200W motors and the 2x2/4x4 switchable drive system, indicating stronger power and faster speed capabilities.
Spacious Seating: This image details the roomy interior, featuring a 20-inch wide seat designed for two children, with a maximum load capacity of 132 lbs and suitable for ages 3 to 8 years.
Safety and Control: This image emphasizes safety features like adjustable seat belts and durable wear-resistant wheels. It also visually represents the soft start function, which ensures smooth and safe acceleration.
Maintenance
Regular maintenance helps prolong the life of your ride-on toy.
- Cleaning: Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents. Avoid spraying water directly onto electrical components.
- Battery Care: Always recharge the battery after each use. If storing for extended periods, charge the battery fully every 3 months.
- Inspection: Periodically check all screws, nuts, and fasteners to ensure they are tight. Inspect wheels and tires for wear.
- Storage: Store the vehicle in a dry, cool place away from direct sunlight and moisture.
Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
- Vehicle Does Not Move:
- Check battery connection.
- Ensure battery is charged.
- Verify power switch is ON.
- Check for loose wiring.
- Short Playtime:
- Battery may not be fully charged.
- Battery may be old and require replacement.
- Vehicle is overloaded.
- Remote Control Not Working:
- Replace remote control batteries.
- Re-pair the remote control with the vehicle.
- Loud Grinding Noise:
- Inspect gears for damage or debris.
- Contact customer support if issue persists.
For issues not listed here, please contact FUNTOK customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Number | BDM-0928 |
| Product Dimensions | 42.13 x 22.44 x 25.98 inches |
| Item Weight | 67.2 pounds |
| Battery | 24 Volt 7 AH |
| Motors | 4 x 200W |
| Max Load Capacity | 140 lbs (63.5 kg) |
| Recommended Age | 3 years and up |
| Seat Width | 20 inches |
| Speeds (Self-Drive) | 2.67 - 5 MPH (2 speeds) |
| Speeds (Remote Control) | 2 - 5 MPH (3 speeds) |
Warranty and Support
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, replacement parts, or any questions regarding your FUNTOK Ride-On Toy Truck, please contact FUNTOK customer service through the retailer's platform or the official FUNTOK website.
