1. Introduction
Thank you for choosing the HoninJoy 13QT Dual-Basket Air Fryer. This appliance is designed to provide a healthier alternative to traditional frying, utilizing rapid hot air circulation to cook your favorite foods with significantly less oil. Its innovative vertical dual-basket design saves countertop space while offering ample capacity for family-sized meals. This manual provides essential information for safe operation, maintenance, and optimal performance of your new air fryer.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Contact customer support for assistance.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the appliance is placed on a stable, heat-resistant surface.
- Do not block any ventilation openings.
- Never pour oil directly into the baskets.
3. Product Overview
The HoninJoy 13QT Dual-Basket Air Fryer features an innovative vertical design with two independent cooking zones, allowing you to prepare different foods simultaneously. The unit includes a user-friendly digital touchscreen and viewing windows for easy monitoring.
Components:
- Main Air Fryer Unit: Houses the heating elements, control panel, and basket compartments.
- Upper Basket (4.5QT): Smaller basket for snacks or single servings.
- Lower Basket (8.5QT): Larger basket for family-sized portions, such as a whole chicken.
- Removable Nonstick Grill Plates (2): Insert into each basket for optimal air circulation and easy cleaning.
- Digital Touchscreen Control Panel: For selecting presets, adjusting time and temperature, and managing cooking modes.
- Viewing Windows: Located on both baskets to monitor food without opening.
- Independent Light Key: Activates interior lighting for clear visibility.
Image: The HoninJoy 13QT Dual-Basket Air Fryer in use, showcasing its vertical design and dual cooking capabilities with both baskets open, revealing cooked food.
Image: A detailed diagram illustrating the main components of the HoninJoy 13QT Dual-Basket Air Fryer, including the main body, the 4.5QT upper basket, its frying tray, the 8.5QT lower basket, and its corresponding frying tray.
4. Setup
Unboxing and Initial Cleaning:
- Carefully remove all packaging materials and promotional labels from the air fryer.
- Wipe the exterior of the appliance with a damp cloth.
- Wash the baskets and grill plates with warm, soapy water. Rinse thoroughly and dry completely. These parts are also dishwasher-safe.
- Ensure all parts are dry before plugging in the appliance.
Placement:
- Place the air fryer on a stable, flat, heat-resistant surface.
- Ensure there is adequate space (at least 6 inches) around the appliance for proper air circulation.
- Do not place the air fryer directly against a wall or under cabinets during operation, as hot steam may damage surfaces.
5. Operating Instructions
Control Panel:
The digital touchscreen allows for intuitive control over cooking settings. Each basket can be controlled independently or synchronized.
Image: A detailed view of the air fryer's control panel, highlighting the 10 preset function menus for various foods like fries, vegetables, cake, wings, shrimp, steak, cookies, chicken, pizza, and egg tarts. The digital display shows time and temperature settings.
Cooking Process:
- Prepare Food: Place your food in the desired basket(s) on top of the grill plate. Do not overfill the baskets to ensure even cooking.
- Insert Baskets: Slide the baskets firmly into the air fryer unit.
- Power On: Plug the air fryer into a grounded electrical outlet. Press the power button on the control panel.
- Select Cooking Mode:
- Preset Menu: Choose one of the 10 preset icons for common foods. The air fryer will automatically set the recommended time and temperature.
- Manual Setting: Adjust the time and temperature manually using the dedicated TIME and TEMP buttons for each basket.
- DUAL Mode: If cooking the same food in both baskets, select DUAL mode. This will automatically copy the settings from one basket to the other, doubling your capacity.
- SYNC Mode: If cooking different foods that require different settings but should finish at the same time, select SYNC mode. Set individual times and temperatures for each basket, and the air fryer will automatically adjust the start times so both finish simultaneously.
- Start Cooking: Press the Start/Pause button to begin the cooking cycle.
- Monitor Food: Use the viewing windows and the Independent Light Key to check on your food's progress without opening the baskets.
- Shake/Flip (Optional): For some foods, it may be necessary to shake or flip the contents of the basket halfway through cooking to ensure even crisping. The air fryer will pause when a basket is removed and resume when reinserted.
- Finish Cooking: The air fryer will beep when the cooking cycle is complete. Carefully remove the baskets using the cool-touch handles.
Video: This video demonstrates the HoninJoy Dual-Basket Air Fryer in action, showing various foods being prepared, including shrimp, steak, cupcakes, chicken wings, and a whole chicken. It highlights the ease of use, dual cooking capabilities, and the clear viewing window for monitoring progress.
Image: The air fryer's Dual Zone Sync Technology is illustrated, showing mushrooms and corn in the upper basket and chicken legs with potatoes in the lower basket. The display indicates different temperatures and remaining times for each zone, demonstrating simultaneous cooking of varied items.
Image: This image highlights the "Circulated Heat. Perfect Crisp." feature of the air fryer, showing a steak cooking in the lower basket with arrows indicating hot air circulation. It emphasizes achieving golden, crispy results with less oil.
6. 10 Preset Menus Guide
The HoninJoy Air Fryer comes with 10 pre-programmed settings for popular dishes. These presets automatically adjust time and temperature for optimal results. You can manually adjust these settings if desired.

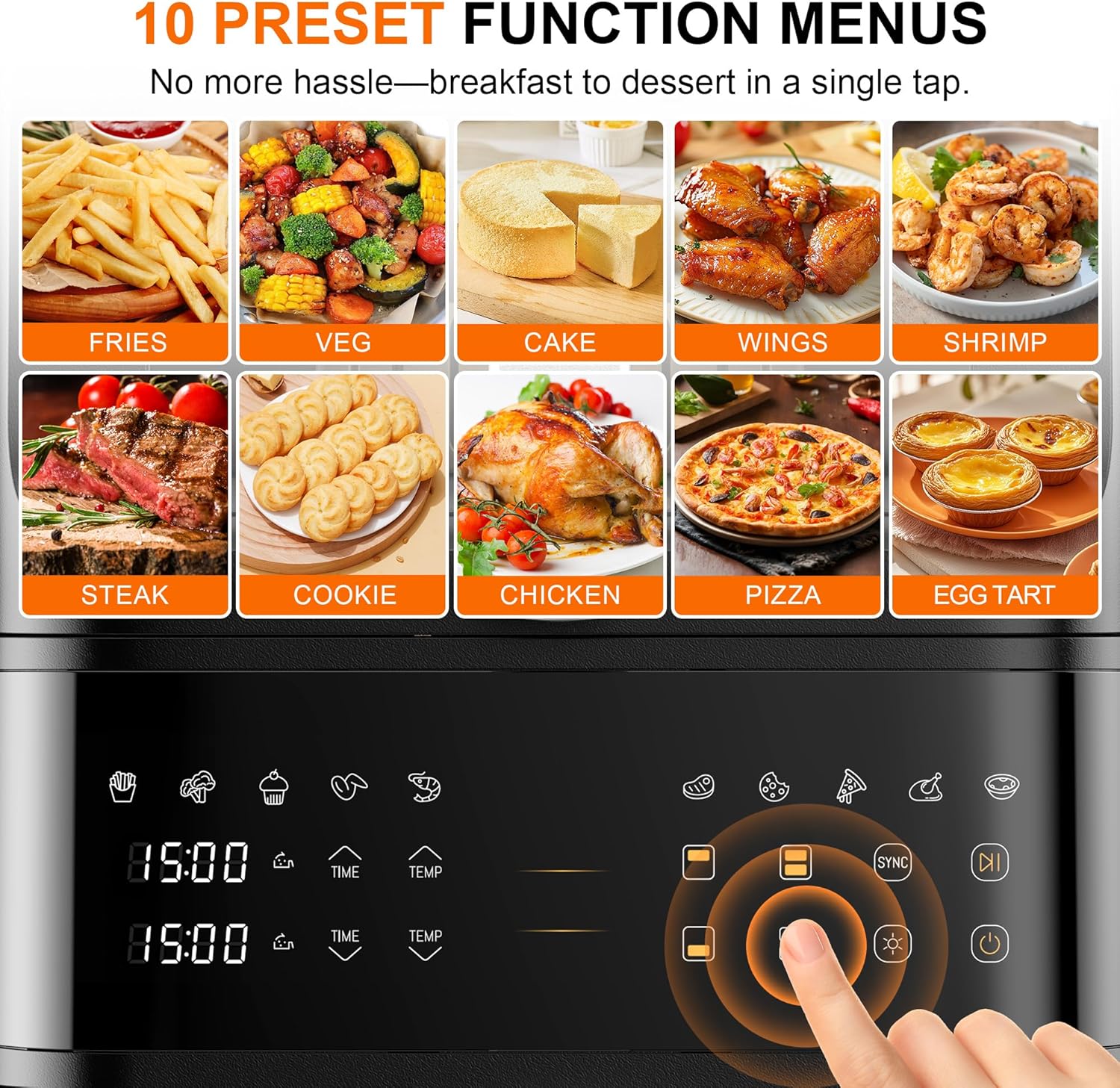

Image: A close-up of the air fryer's control panel, displaying the 10 preset icons for various food types, simplifying the cooking process.
| Preset | Suggested Use | Notes |
|---|---|---|
| Fries | French fries, sweet potato fries | Shake basket halfway through. |
| Veg | Roasted vegetables (broccoli, carrots, bell peppers) | Toss with a small amount of oil for best results. |
| Cake | Cakes, muffins, pastries | Optimized for the lower 8.5QT basket. |
| Wings | Chicken wings, drumettes | Flip halfway through for even crisping. |
| Shrimp | Shrimp, prawns | Cook until pink and opaque. |
| Steak | Beef steaks, pork chops | Adjust time for desired doneness. |
| Cookie | Cookies, small baked goods | Use parchment paper for easy removal. |
| Chicken | Whole chicken, chicken pieces | Optimized for the lower 8.5QT basket. |
| Pizza | Small pizzas, pizza rolls | Ensure pizza fits within the basket. |
| Egg Tart | Egg tarts, mini quiches | Monitor closely to prevent over-browning. |
7. Maintenance & Cleaning
Regular cleaning ensures the longevity and optimal performance of your air fryer. Always unplug the appliance and allow it to cool completely before cleaning.
Cleaning the Baskets and Grill Plates:
- The removable baskets and nonstick grill plates are dishwasher-safe.
- For hand washing, use warm, soapy water and a non-abrasive sponge. The nonstick coating makes cleanup easy.
- Ensure all food residue is removed, especially from the perforations of the grill plates.
- Dry all parts thoroughly before reassembling or storing.
Cleaning the Main Unit:
- Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads.
- Clean the interior of the appliance with a damp cloth. If necessary, use a mild detergent.
- Never immerse the main unit in water or any other liquid.
- Clean the heating element with a soft brush to remove any food debris.
Image: This image demonstrates the easy cleaning process for the HoninJoy air fryer's removable parts, showing the baskets and grill plates being washed in a dishwasher and also being hand-washed, emphasizing their nonstick coating and dishwasher-safe design.
8. Troubleshooting
If you encounter any issues with your HoninJoy Air Fryer, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance not plugged in; power outlet malfunction; basket not fully inserted. | Ensure the power cord is securely plugged into a working outlet. Push the basket(s) firmly until they click into place. |
| Food is not cooked evenly. | Baskets are overcrowded; food not shaken/flipped. | Do not overfill baskets. Shake or flip food halfway through cooking. Ensure grill plates are inserted correctly. |
| White smoke coming from the appliance. | Grease from previous use; fatty food cooking. | Clean the baskets and grill plates thoroughly after each use. For fatty foods, consider using parchment paper or draining excess fat. |
| Food is not crispy. | Not enough cooking time/high enough temperature; baskets overcrowded. | Increase cooking time or temperature. Reduce food quantity in baskets. Ensure food is lightly coated with oil if necessary. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Name | DUAF-MTD-002A |
| Brand | HoninJoy |
| Capacity | Total 13 Quarts (4.5QT Upper, 8.5QT Lower) |
| Product Dimensions (D x W x H) | 10.24"D x 11.81"W x 15.75"H |
| Item Weight | 19.58 Pounds |
| Color | Black |
| Material | Acrylonitrile Butadiene Styrene (ABS), Metal, Stainless Steel |
| Output Wattage | 1800 Watts |
| Voltage | 120 Volts |
| Temperature Range | 100°F - 400°F |
| Control Method | Touch |
| Special Features | Automatic Shut-Off, Dual Zone Features, Programmable, Temperature Control, Timer, Viewing Window, Independent Light |
| Dishwasher Safe Parts | Baskets, Grill Plates |
10. Warranty & Support
HoninJoy products are manufactured to the highest quality standards. For information regarding warranty coverage, product support, or to purchase replacement parts, please visit the official HoninJoy website or contact our customer service team. Keep your purchase receipt as proof of purchase for warranty claims.
Contact Information: Please refer to the contact details provided on the HoninJoy official website or the packaging for the most up-to-date support information.
