1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the DELIXI DZ47SLE C32 Circuit Breaker. This device is designed to provide protection against overload, short circuit, and residual current faults in electrical circuits. It is crucial to read and understand all instructions before attempting any installation or operation.

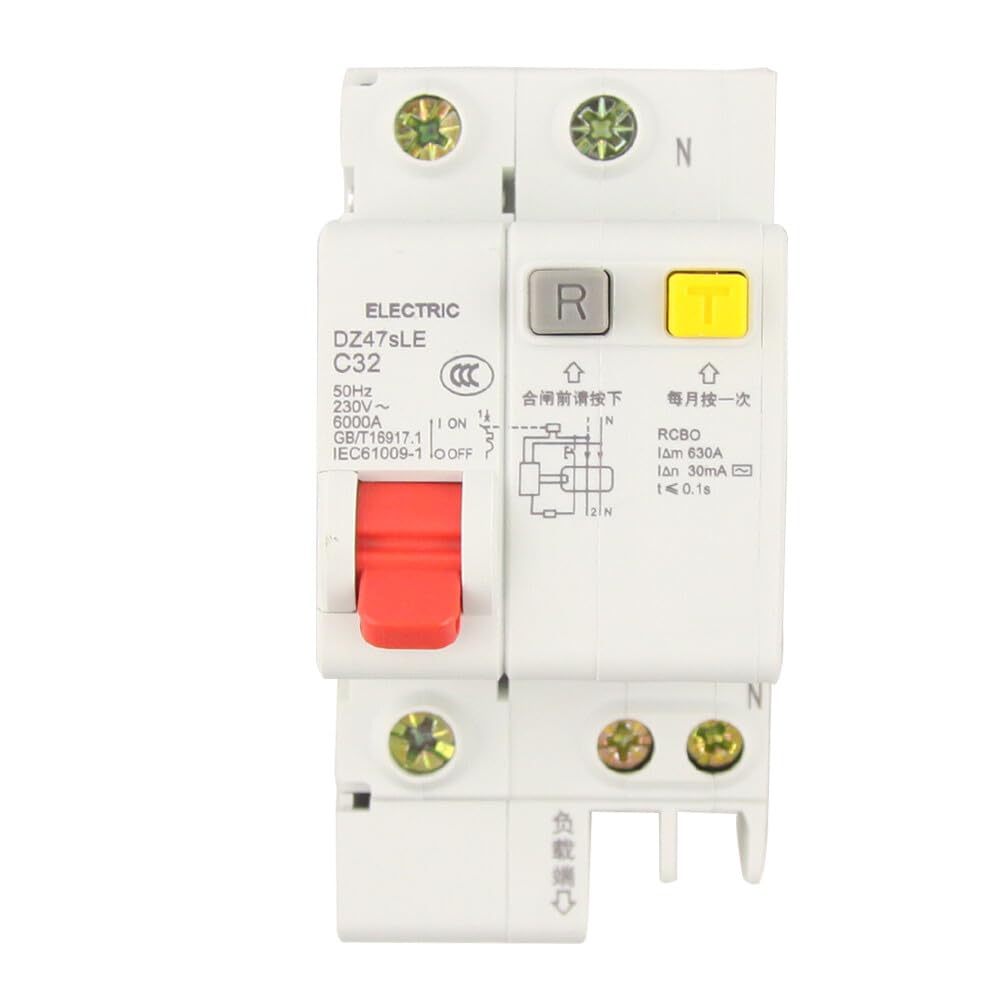

Image 1.1: The DELIXI DZ47SLE C32 Circuit Breaker, a 1P+N 32A device designed for electrical circuit protection.
2. Important Safety Information
WARNING: Electrical work should only be performed by qualified and authorized personnel. Failure to follow these safety instructions can result in serious injury, death, or property damage.
- Always disconnect the main power supply before installing, servicing, or removing the circuit breaker.
- Ensure all wiring complies with local and national electrical codes and regulations.
- Do not operate the circuit breaker if it appears damaged or has been exposed to moisture.
- Use appropriate personal protective equipment (PPE) when working with electricity.
- Verify correct voltage and current ratings before installation.
3. Setup and Installation
3.1. Before Installation
- Inspect the circuit breaker for any physical damage.
- Confirm that the rated current (32A) and pole configuration (1P+N) match your application requirements.
- Ensure the installation environment is dry, well-ventilated, and free from corrosive gases.
3.2. Installation Steps
- Mounting: Mount the circuit breaker onto a standard DIN rail in an appropriate electrical enclosure. Ensure it is securely fastened.
- Wiring - Incoming Power: Connect the live (L) wire of the incoming power supply to the terminal marked 'L' at the top of the circuit breaker. Connect the neutral (N) wire to the terminal marked 'N' at the top. Ensure connections are tight.
- Wiring - Outgoing Load: Connect the live (L) wire of the load circuit to the terminal marked 'L' at the bottom of the circuit breaker. Connect the neutral (N) wire of the load circuit to the terminal marked 'N' at the bottom. Ensure connections are tight.
- Grounding: Ensure proper grounding of the electrical enclosure and associated circuits as per local codes.
- Verification: Double-check all wiring connections for correctness and tightness. Ensure no bare wires are exposed.
Note: Professional installation is highly recommended to ensure safety and compliance.
4. Operating Instructions
4.1. Normal Operation
- Turning On: Push the operating handle fully upwards to the 'ON' position. The circuit is now energized.
- Turning Off: Push the operating handle fully downwards to the 'OFF' position. The circuit is now de-energized.
4.2. Trip Indication and Reset
- Trip Indication: If an overload, short circuit, or residual current fault occurs, the circuit breaker's handle will automatically move to a central or 'TRIPPED' position (often between ON and OFF).
- Resetting: Before resetting, identify and rectify the cause of the trip (e.g., remove overloaded devices, fix short circuits). To reset, first push the handle fully down to the 'OFF' position, then push it fully up to the 'ON' position. If the breaker trips immediately again, do not force it; investigate the fault further.
- Test Button (for Residual Current Function): The DZ47SLE model includes residual current protection. Periodically (e.g., monthly), press the 'TEST' button on the front of the breaker. The breaker should trip immediately. If it does not, the residual current protection may be faulty and requires inspection by a qualified electrician. Reset the breaker after testing.
5. Maintenance
The DELIXI DZ47SLE C32 Circuit Breaker is designed for minimal maintenance. However, periodic checks are recommended to ensure optimal performance and safety.
- Visual Inspection: Annually inspect the circuit breaker for any signs of physical damage, discoloration, or loose connections.
- Connection Tightness: Periodically check the tightness of all terminal connections. Loose connections can lead to overheating and potential hazards.
- Cleaning: If necessary, gently clean the exterior of the circuit breaker with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure power is disconnected before cleaning.
- Function Test: Perform the 'TEST' button function test monthly as described in Section 4.2.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Circuit breaker trips frequently. | Overload in the circuit, short circuit, or ground fault. | Reduce load, check for faulty appliances/wiring, or consult an electrician. |
| Circuit breaker does not reset. | Persistent fault in the circuit, internal damage to the breaker. | Ensure the fault is cleared. If it still doesn't reset, replace the breaker after consulting an electrician. |
| 'TEST' button does not trip the breaker. | Faulty residual current protection. | The breaker's residual current function may be compromised. Replace the breaker immediately. |
| Breaker feels hot to the touch. | Loose connections, sustained overload, or internal fault. | Immediately disconnect power. Check connections, reduce load. Consult an electrician. |
7. Specifications
| Feature | Value |
|---|---|
| Model | DZ47SLE C32 |
| Brand | QXNASU (DELIXI) |
| Rated Current | 32A |
| Poles | 1P+N (One Pole + Neutral) |
| Tripping Curve | C-type (for general protection of circuits and lighting) |
| Protection Type | Overload, Short Circuit, Residual Current (Earth Leakage) |
| Part Number | 25dzyj091801 |
| ASIN | B0FRN1P8ZV |
8. Warranty and Support
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.
For technical support, warranty claims, or further assistance, please contact your retailer or the manufacturer directly. Ensure you have your product model number (DZ47SLE C32) and purchase details available when contacting support.
