Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your new Caltric Deck Wheels. These wheels are designed to support the mower deck, ensuring consistent cutting height and protecting the deck from ground contact. Please read this manual thoroughly before attempting any installation or maintenance procedures.
Safety Information
Always prioritize safety when working with machinery. Failure to follow safety instructions can result in serious injury or damage to equipment.
- Disconnect Power: Before performing any maintenance or installation, ensure the mower's engine is off, the spark plug wire is disconnected, and the key is removed to prevent accidental starting.
- Wear Protective Gear: Use appropriate personal protective equipment (PPE), including gloves and eye protection.
- Secure the Mower: If lifting the mower, ensure it is securely supported on a stable surface to prevent it from falling.
- Read Mower Manual: Always consult your specific lawn mower's owner's manual for detailed safety procedures and instructions related to deck component replacement.
- Proper Tools: Use the correct tools for the job to avoid damage to parts or injury.
Compatibility
These Caltric Deck Wheels are compatible with a range of lawn mower models. Please verify your mower's model and part numbers against the list below to ensure proper fitment. It is highly recommended to compare the dimensions and appearance of your existing deck wheels with the product images provided.
Compatible Mower Brands and Models:
- RedMax: Czt48 Rzt48 (48"), Czt60 (60"), Czt72 (72"), Gt2454 Gt2654 Rzt54 Cv54 Czt54 (54")
- Dixon: Dx 254 (966651201-966651204) (54"), Dx 260 (966651301 966651401) (60"), Dx 272 (966651501 966651502) (72"), Grizzly 6029fx Grizzly 7234fx (60", 72")
- Husqvarna: Cd52 (52"), Fd72 Pz72 Pz7234fx Z572x (72"), Mz 48 (48"), Mz 54 Lgt54 Ts354d Fd54 (54"), Pz60 Pz6029 (60"), Pz61 Cd61 (61"), V548 V554 (48", 54"), Z254 Ts354x Z454 Pz5426 (54"), Z554 Z554x Z560 Z560x (50", 54")
- Gravely: 48he 52he (48", 52") (SN: 000101 & Above), 921026 (28") (SN: 000101 - 034999 040000-041999), Pro-Qxt 48" (SN: 000101 - 000999), X-Factor 60" (SN: 000101 - 020000)
- Pro-Master: Pm144 (44", 19hp Kaw.) (SN: 000500 & Above), Pm144 Pm148 (44", 48", 21hp Kaw.) (SN: 000101 & Above), Pm144 Pm148 Pm152 Pm160 (44", 48", 52", 60", 21hp Kaw.) (SN: 000101 & Above), Pm148 (48", 19hp Kaw.) (SN: 000101 & Above)
Replaces Part Numbers:
- Dixon: 574169601
- Husqvarna: 574169601
- Ariens: 03905900, 3905900
- Bobcat: 2721512, 2720685, 64205004, 6423703
- Gravely: 03905900, 00473600
Package Contents

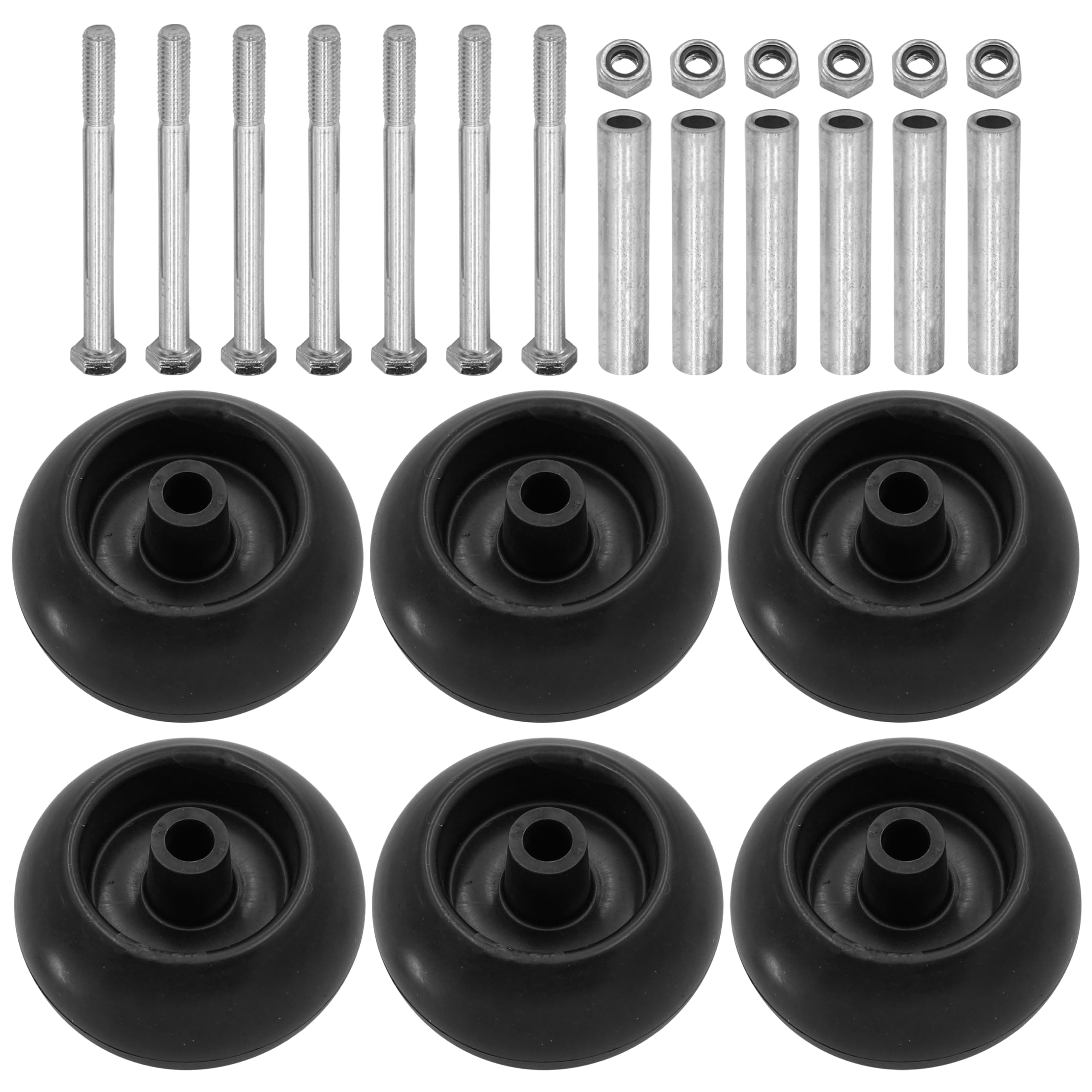

Each order includes the following components:
- 6x Deck Rollers (Wheels)
- 6x Bolts
- 6x Spacers
- 6x Nuts
Specifications
Key dimensions and material information for the Caltric Deck Wheels:
| Feature | Measurement |
|---|---|
| Inner Diameter | 16.3 mm (0.64 in) |
| Outer Diameter | 124 mm (4.88 in) |
| Width | 84 mm (3.30 in) |
| Bolt Height | 116.6 mm (4.6 in) |
| Material | Plastic |
| Exterior Finish | Aluminum (for bolt/hardware) |
| Item Weight (per unit) | Approx. 2 lbs (12 lbs for 6 units) |
Setup and Installation
This section outlines the general procedure for replacing deck wheels. Specific steps may vary depending on your mower model. Always refer to your mower's service manual for precise instructions.
- Prepare the Mower:
- Park the mower on a flat, stable surface.
- Turn off the engine, remove the ignition key, and disconnect the spark plug wire to prevent accidental starting.
- If necessary, raise the mower deck to access the wheels. Use appropriate lifting equipment and secure the mower with jack stands or blocks.
- Remove Old Deck Wheels:
- Locate the existing deck wheels. They are typically attached to the mower deck with a bolt and nut.
- Using appropriate wrenches, loosen and remove the nut securing the old wheel.
- Carefully remove the bolt, spacer (if present), and the old deck wheel. Note the order of components for reassembly.
- Inspect the mounting area for any damage or wear.
- Install New Caltric Deck Wheels:
- Position a new Caltric deck wheel in the mounting bracket.
- Insert the provided bolt through the bracket, the wheel, and any necessary spacers. Ensure the spacer is correctly positioned between the wheel and the bracket to allow free rotation.
- Thread the new nut onto the bolt.
- Tighten the nut securely with wrenches. Do not overtighten, as this can restrict wheel movement or damage components. The wheel should spin freely but without excessive wobble.
- Repeat for All Wheels: Install all remaining deck wheels following the same procedure.
- Final Check:
- Once all wheels are installed, lower the mower (if it was raised).
- Reconnect the spark plug wire.
- Test the mower's deck height adjustment to ensure the new wheels function correctly and the deck is level.
Operating
Caltric Deck Wheels are designed to assist in maintaining a consistent cutting height and preventing the mower deck from scalping the lawn or digging into uneven terrain. Once installed, they operate passively as part of your mower's deck system. Ensure your mower deck is properly leveled according to your mower's manufacturer guidelines for optimal performance and even cutting.
Maintenance
Regular maintenance of your deck wheels will extend their lifespan and ensure optimal mower performance.
- Regular Cleaning: After each use, clean any grass clippings, dirt, or debris from around the deck wheels and their mounting points. Accumulated debris can hinder rotation and cause premature wear.
- Inspect for Wear: Periodically inspect the wheels for signs of wear, cracks, or damage. Replace any severely worn or damaged wheels promptly.
- Check Fasteners: Ensure all bolts and nuts securing the deck wheels are tight. Loose fasteners can lead to excessive wear or loss of the wheel.
- Lubrication (if applicable): While these plastic wheels typically do not require lubrication, if your mower's original design included grease fittings for the deck wheels, ensure they are greased according to your mower's manual.
Troubleshooting
If you encounter issues with your deck wheels, consider the following common problems and solutions:
- Wheel Not Spinning Freely:
- Check for debris lodged around the wheel or axle.
- Ensure the mounting bolt is not overtightened. Loosen slightly if necessary.
- Verify that the spacer (if used) is correctly positioned and not binding the wheel.
- Excessive Wobble:
- Tighten the mounting nut.
- Inspect the wheel and mounting bracket for damage or wear that could cause looseness.
- Premature Wear:
- Ensure the mower deck is properly leveled. An uneven deck can put undue stress on certain wheels.
- Check for consistent cutting height. If the deck is too low, the wheels will experience more friction and wear.
- Regularly clean debris from around the wheels.
Warranty Information
Caltric provides a 3-month manufacturer warranty on this product. This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please contact Caltric customer support. Additionally, this product is eligible for a 30-day refund/replacement return policy through the retailer.
Customer Support
For technical assistance, questions regarding compatibility, or warranty inquiries, please contact Caltric customer support. Refer to your purchase documentation or the Caltric brand store on Amazon for contact information.
Caltric Brand Store: Visit Caltric Store on Amazon
