Outsunny Galvanized Steel Log Store

1. Introduction

Thank you for choosing the Outsunny Galvanized Steel Log Store. This manual provides essential information for the safe assembly, operation, and maintenance of your new log store. Please read these instructions thoroughly before beginning assembly and retain this manual for future reference.

This log store is designed to offer a robust and weather-resistant solution for storing firewood and other outdoor items. Its elevated base promotes air circulation, keeping logs dry, while the sloped roof prevents water accumulation. Constructed from durable galvanized steel, it offers long-lasting performance.

2. Safety Information

Always follow basic safety precautions when assembling and using this product to reduce the risk of injury or damage.

• Read and understand all instructions before assembly and use.
• Keep children and pets away from the assembly area.
• Wear appropriate safety gear, such as gloves, during assembly to protect against sharp edges.
• Ensure all fasteners are securely tightened before placing items in the log store.
• Do not overload the unit. Refer to the 'Specifications' section for weight capacity.
• Place the log store on a firm, level surface to prevent tipping.
• Do not climb on or stand inside the log store.

3. Parts List

Before assembly, unpack all components and verify that you have received all parts listed below. If any parts are missing or damaged, please contact customer service before proceeding.

• Side Panels
• Back Panels
• Roof Panels
• Base Frame Components
• Reinforcement Rods
• Corner Brackets
• Screws, Nuts, and Washers (various sizes)

4. Setup and Assembly

This log store is designed for quick assembly, typically by one person in under an hour. Follow these steps carefully.

1. Prepare the Area: Choose a flat, stable outdoor location for your log store. Ensure there is enough space around the unit for assembly.
2. Assemble the Base Frame: Connect the base frame components using the provided screws, nuts, and washers. Ensure the frame is square and stable.
3. Attach Side and Back Panels: Secure the side and back panels to the base frame. Ensure the corrugated side faces outwards.
4. Install Reinforcement Rods: Attach the reinforcement rods to the upper frame of the log store. These provide additional structural integrity.
5. Mount the Roof Panels: Secure the sloped roof panels to the top of the structure. Ensure the overlap is correct to allow for proper water runoff.
6. Tighten All Fasteners: Once all components are in place, go back and securely tighten all screws and nuts. Do not overtighten.

Image: Assembly sequence showing panels being connected to form the log store structure.

Image: Detail of a corner bracket, illustrating secure fastening points for structural stability.

5. Operating and Usage

The Outsunny Log Store is designed for efficient and protective storage of firewood and other outdoor items.

Loading Firewood

• Load firewood evenly to maintain the unit's stability.
• Ensure logs are dry before storage to prevent mold, mildew, and pest infestation.
• Do not stack logs higher than the top edge of the side panels to allow for proper air circulation and roof clearance.

Image: The Outsunny log store filled with firewood, demonstrating its primary use.

Key Features for Optimal Storage

• Elevated Base: The raised base design allows for optimal air circulation beneath the logs, preventing moisture from the ground and keeping your firewood dry and ready for use.

Image: Close-up view of the elevated base, highlighting how it promotes air circulation around the logs.

• Sloped Roof: The inclined roof design effectively directs rainwater away from the stored wood, preventing water accumulation and protecting the contents from the elements.

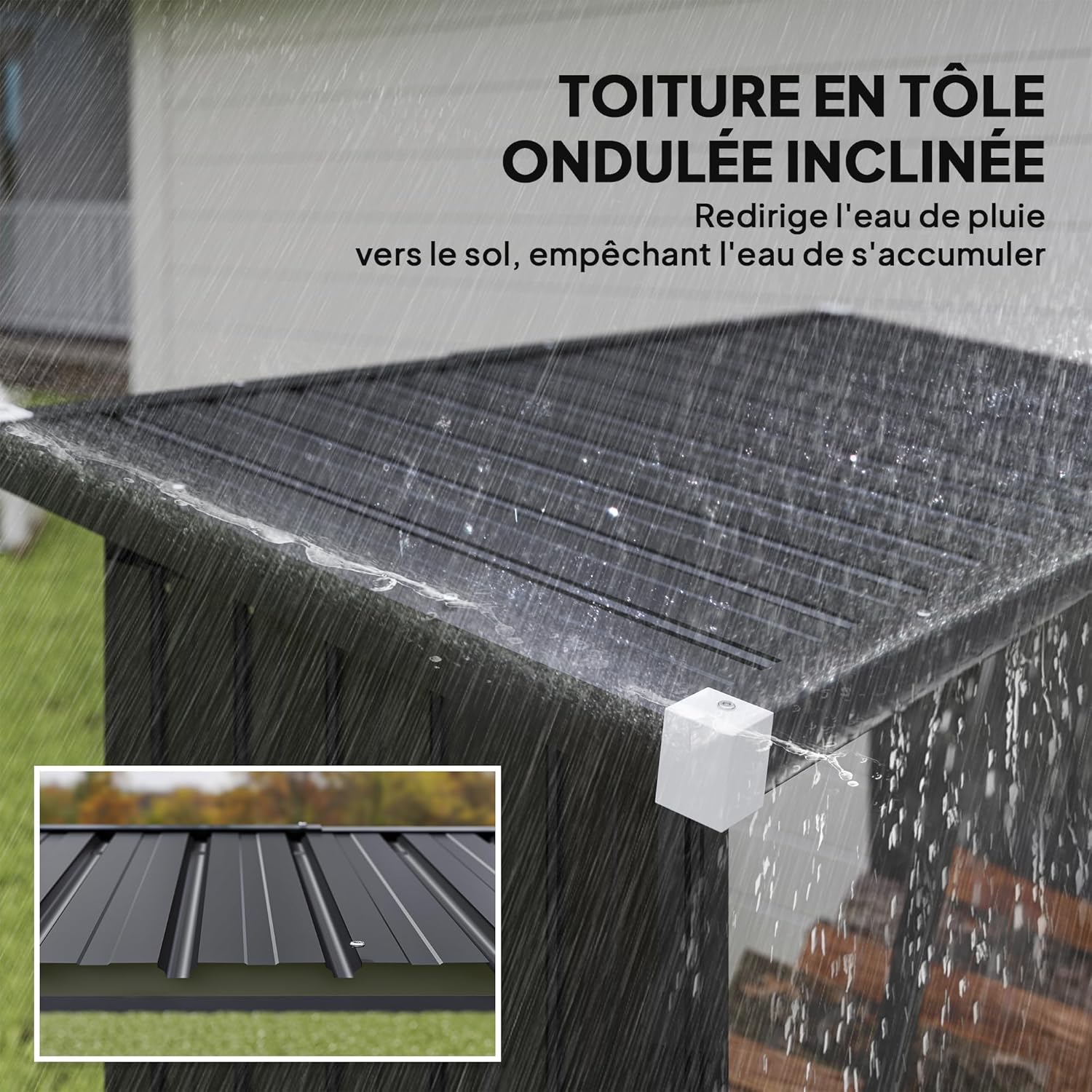

Image: The sloped roof design, illustrating its effectiveness in shedding rainwater.

Versatile Storage

Beyond firewood, this unit can also be used for storing other outdoor tools or items, provided they are protected from direct exposure to the elements.

Image: The log store being used to store a lawnmower, showcasing its versatile storage capabilities.

6. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your Outsunny Log Store.

• Cleaning: Clean the galvanized steel surfaces with a damp cloth and mild detergent as needed. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Inspection: Periodically inspect all fasteners (screws, nuts) to ensure they remain tight. Retighten if necessary.
• Debris Removal: Clear any leaves, dirt, or other debris from the roof and base to ensure proper water drainage and air circulation.
• Damage Check: Check for any signs of damage, rust, or wear. Address any issues promptly to prevent further deterioration.

7. Troubleshooting

Here are some common issues and their solutions:

• Issue: The log store feels unstable after assembly.
  Solution: Ensure the unit is placed on a completely level and firm surface. Double-check that all screws and nuts are securely tightened.
• Issue: Water is pooling on the stored logs.
  Solution: Verify that the roof panels are correctly installed and overlapping to direct water away. Clear any debris from the roof that might be obstructing water flow. Ensure the unit is not leaning.
• Issue: Difficulty during assembly.
  Solution: Refer to the assembly diagrams and ensure all parts are correctly oriented before fastening. Do not force components together. If a part seems incorrect, re-check the manual.
• Issue: Logs are not drying properly.
  Solution: Ensure the log store is not overfilled, allowing for adequate air circulation. Check that the elevated base is clear of obstructions. Consider placing the unit in a location with good airflow and sunlight exposure.

8. Specifications

Detailed specifications for the Outsunny Galvanized Steel Log Store, Model 84H-422V00CG:

Image: Dimensional diagram of the log store, indicating overall length, width, and height.

9. Warranty and Support

For warranty information, returns, or customer support regarding your Outsunny Galvanized Steel Log Store, please refer to the retailer's policy where the product was purchased. You may also visit the official Outsunny brand store for additional information and contact options:

Visit the Outsunny Store
