Homieasy Twin Daybed with Pop-up Trundle and Charging Station Instruction Manual

1. Introduction and Overview

This manual provides detailed instructions for the assembly, operation, and maintenance of your Homieasy Twin Daybed with Pop-up Trundle and Charging Station. This versatile furniture piece is designed to serve as a comfortable daybed, a twin bed, or an expanded sleeping area with its pop-up trundle, making it suitable for bedrooms, guest rooms, or living spaces. It features an upholstered headboard for comfort and an integrated charging station for convenience.

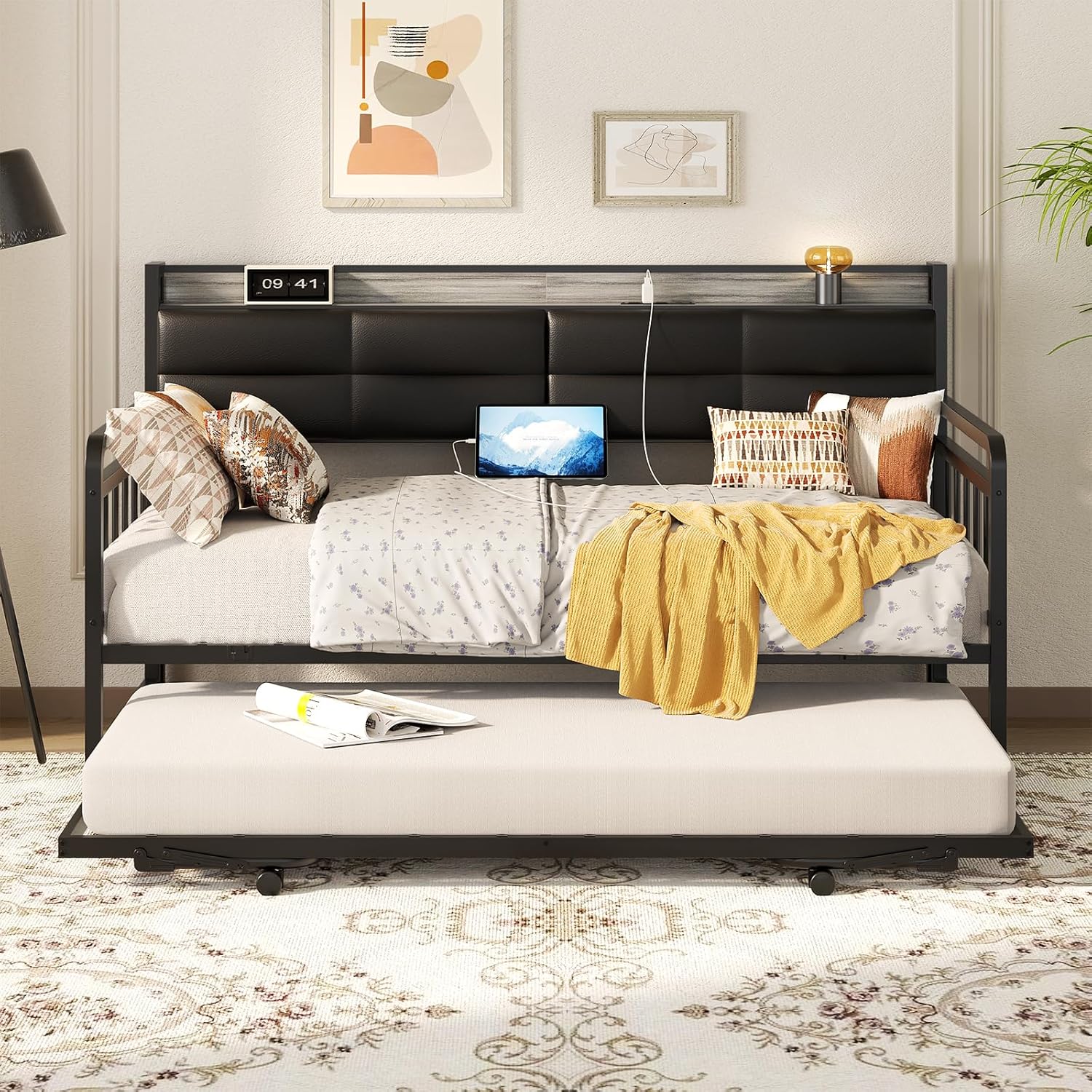

Image 1.1: Homieasy Twin Daybed with Pop-up Trundle and Charging Station in Light Oak.

2. Safety Information

• Read all instructions carefully before assembly and use.
• Keep all small parts and packaging materials away from children.
• Ensure all connections are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not exceed the recommended weight capacity for the daybed or trundle.
• Use only the recommended mattress thickness (6-10 inches for twin size) to ensure proper fit and safety.
• Avoid placing hot items directly on the upholstered headboard or charging station shelf.
• Do not allow children to play on or around the pop-up trundle mechanism unsupervised.

3. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Main Daybed Frame (Metal)
• Pop-up Trundle Bed Frame (Metal)
• Upholstered Headboard with Integrated Charging Station
• Assembly Hardware (screws, bolts, washers, etc.)
• Assembly Tools (e.g., Allen wrench)
• Instruction Manual

4. Assembly Instructions

Assembly of the Homieasy Daybed requires careful attention to detail. It is recommended that two adults perform the assembly to ensure safety and ease. All necessary hardware and tools are included in the package.

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratches. Refer to the included parts list and diagrams to identify each piece.
2. Assemble the Main Daybed Frame: Follow the step-by-step diagrams provided in the separate assembly guide. Attach the side rails to the headboard and footboard using the specified hardware. Do not fully tighten screws until all major components are aligned.
3. Install the Upholstered Headboard: Secure the upholstered headboard to the main frame as indicated in the instructions. Ensure the charging station is correctly oriented and accessible.
4. Assemble the Pop-up Trundle Frame: Construct the trundle frame separately, ensuring the pop-up mechanism and lockable wheels are correctly installed.
5. Insert the Trundle: Once both frames are assembled, carefully slide the trundle bed underneath the main daybed frame.
6. Final Tightening: Once all components are in place and aligned, fully tighten all screws and bolts. Do not overtighten.

Image 4.1: Close-up views of the daybed's structural features, including rounded edges, support mechanisms, and connection points for assembly.

5. Operating Instructions

5.1 Using the Charging Station

The upholstered headboard features a built-in charging station for your convenience. It includes three standard power outlets (120V/5A) and two USB ports (5V/2A).

• Power Connection: Ensure the power cord extending from the headboard is securely plugged into a functional wall outlet.
• Charging Devices: Plug your electronic devices into the available AC outlets or USB ports. The charging station is designed for low-power devices such as phones, tablets, and small lamps.
• Safety Precaution: Do not overload the charging station. Avoid using damaged cables or adapters.

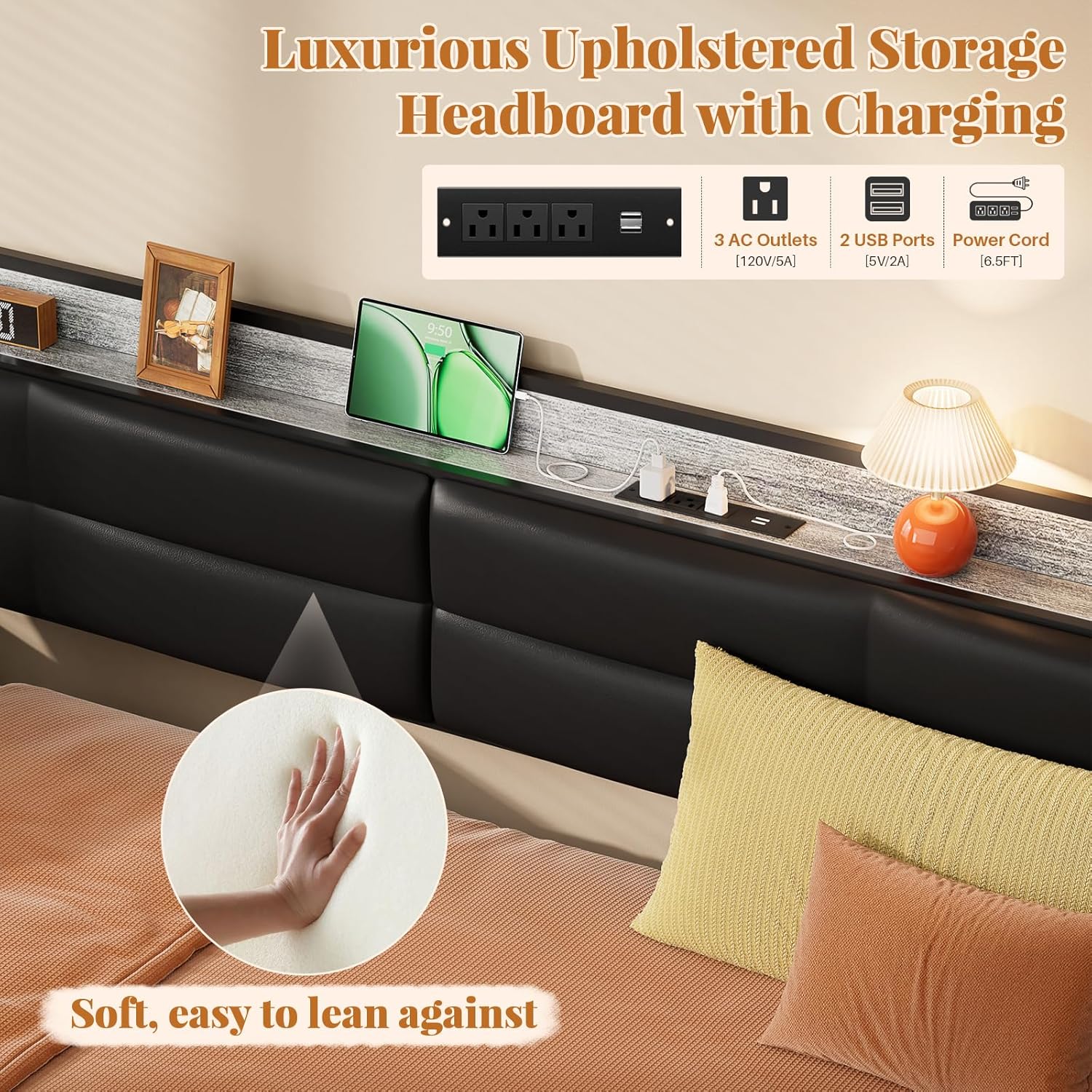

Image 5.1: Detail of the charging station on the upholstered headboard, featuring power outlets and USB ports.

5.2 Operating the Pop-up Trundle Bed

The daybed includes a pop-up trundle bed that can be used as a separate twin bed or raised to the same height as the main daybed to create a larger sleeping surface.

• To Extend the Trundle: Gently pull the trundle frame out from underneath the main daybed. The trundle is equipped with lockable wheels for easy movement.
• To Raise the Trundle: Locate the pop-up mechanism on the trundle frame. Lift the frame upwards until it locks into the raised position. Ensure both sides are securely locked.
• To Lower the Trundle: Release the locking mechanism (refer to the specific instructions in your assembly guide for details on how to release the lock). Gently push the trundle frame downwards until it is flat.
• To Retract the Trundle: Once lowered, push the trundle frame back underneath the main daybed. Lock the wheels if desired to prevent accidental movement.

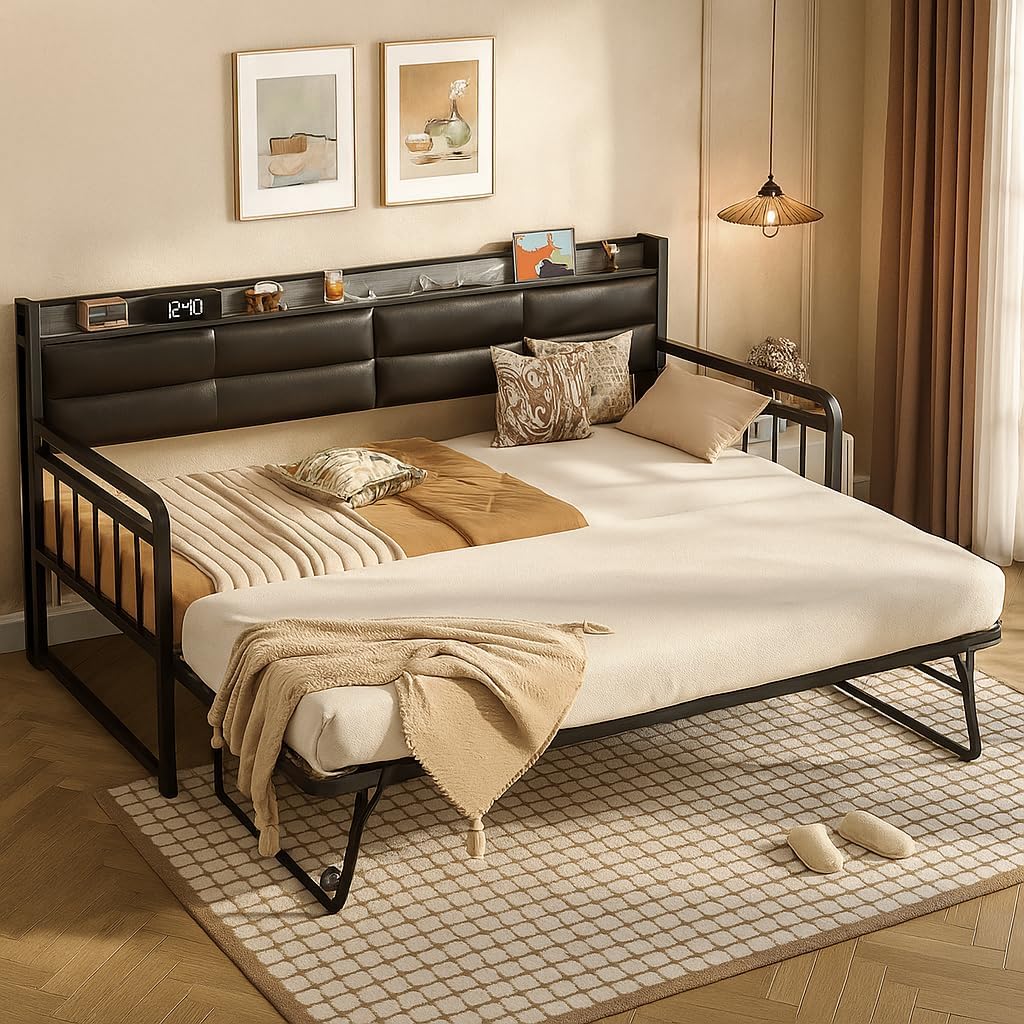

Image 5.2: The daybed with the pop-up trundle extended, illustrating its dual-bed functionality.

6. Maintenance

• Cleaning the Metal Frame: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the powder-coated finish.
• Cleaning the Upholstered Headboard: The headboard features a luxury leather covering. For general cleaning, wipe with a soft, dry cloth. For spills, use a slightly damp cloth with mild soap and wipe dry immediately. Avoid excessive moisture.
• Hardware Check: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as needed to maintain stability and prevent squeaking.
• Trundle Wheels: Keep the trundle wheels free of debris to ensure smooth operation.

7. Troubleshooting

If you encounter any issues with your Homieasy Daybed, refer to the following common troubleshooting tips:

• Squeaking Noises: Squeaking often indicates loose connections. Re-tighten all assembly hardware, especially bolts connecting the frame components. Ensure the bed is on a level surface.
• Trundle Not Moving Smoothly: Check the trundle wheels for any obstructions or debris. Ensure the wheels are not locked if you intend to move it. Lubricate wheel axles if necessary.
• Trundle Not Popping Up/Down: Verify that the pop-up mechanism is free of obstructions. Ensure you are correctly engaging or disengaging the locking levers as per the assembly instructions.
• Charging Station Not Working: Check if the power cord is securely plugged into a functional wall outlet. Test the outlet with another device. Ensure devices are properly connected to the outlets/USB ports.
• Instability: Ensure all parts are correctly assembled and all hardware is fully tightened. Verify that the bed is placed on a flat, even floor.

If problems persist after attempting these solutions, please contact Homieasy customer support for further assistance.

8. Specifications

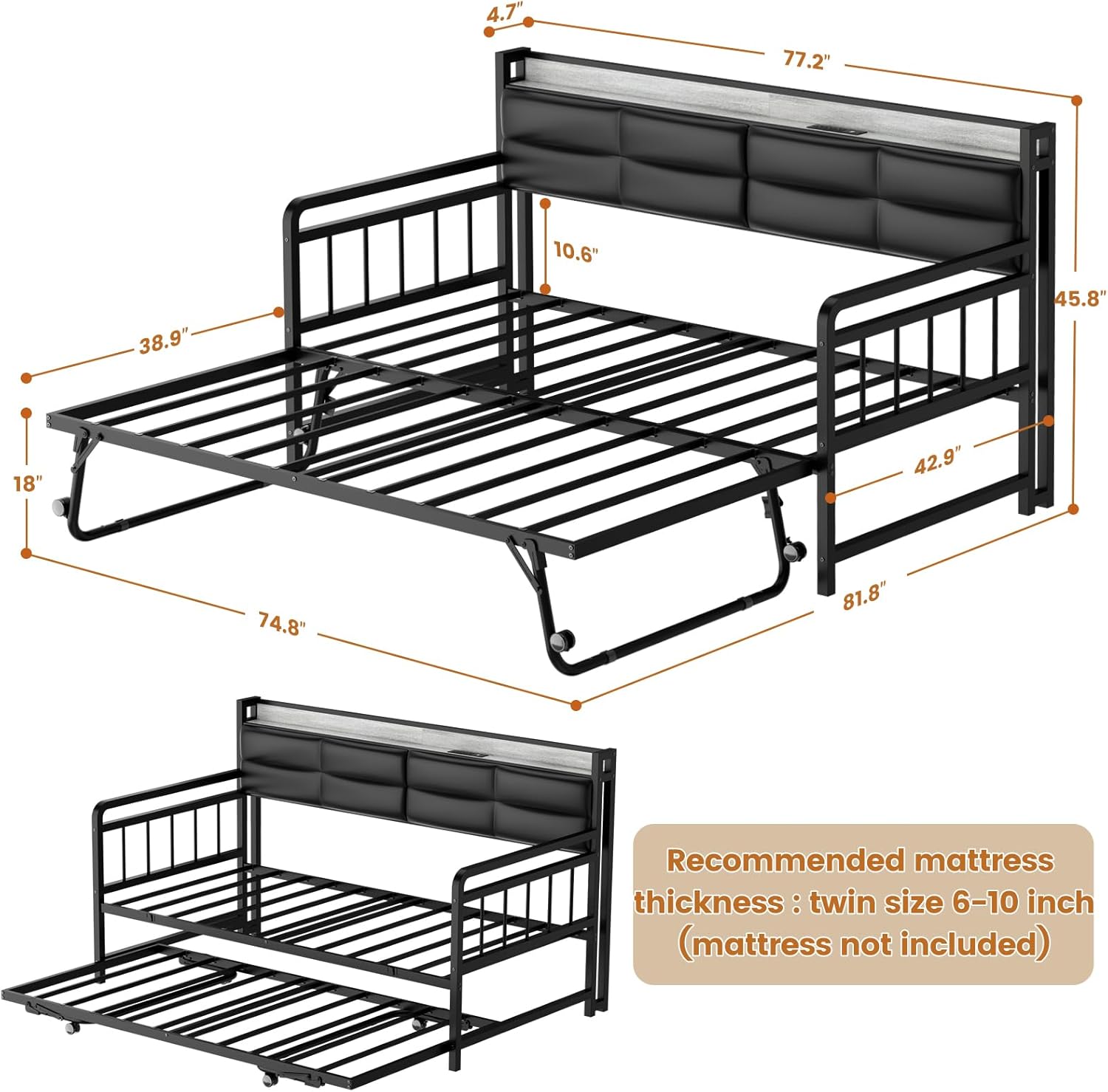

Image 8.1: Detailed dimensions of the Homieasy Daybed and its trundle, including recommended mattress thickness.

9. Warranty and Support

The Homieasy Twin Daybed with Pop-up Trundle and Charging Station comes with a Limited Warranty. Please refer to the warranty documentation included with your purchase for specific terms and conditions.

For any questions, concerns, or assistance with assembly, operation, or troubleshooting, please contact Homieasy customer support. Contact information can typically be found on the product packaging or the official Homieasy website.
