Introduction
Welcome to your Demabon AI Smart Glasses. These glasses integrate advanced technology to enhance your daily experiences, offering features such as a high-resolution camera, real-time translation, AI object recognition, and a voice assistant. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and user satisfaction.
What's in the Box
- AI Smart Camera Glasses x1
- Glasses Instruction Manual x1
- USB Charging Cable x1
- Packaging Box x1
- Eyeglass Dust Pouch x1
- Glasses Cloth x1
- Silicone Ear Pads x2
Product Overview

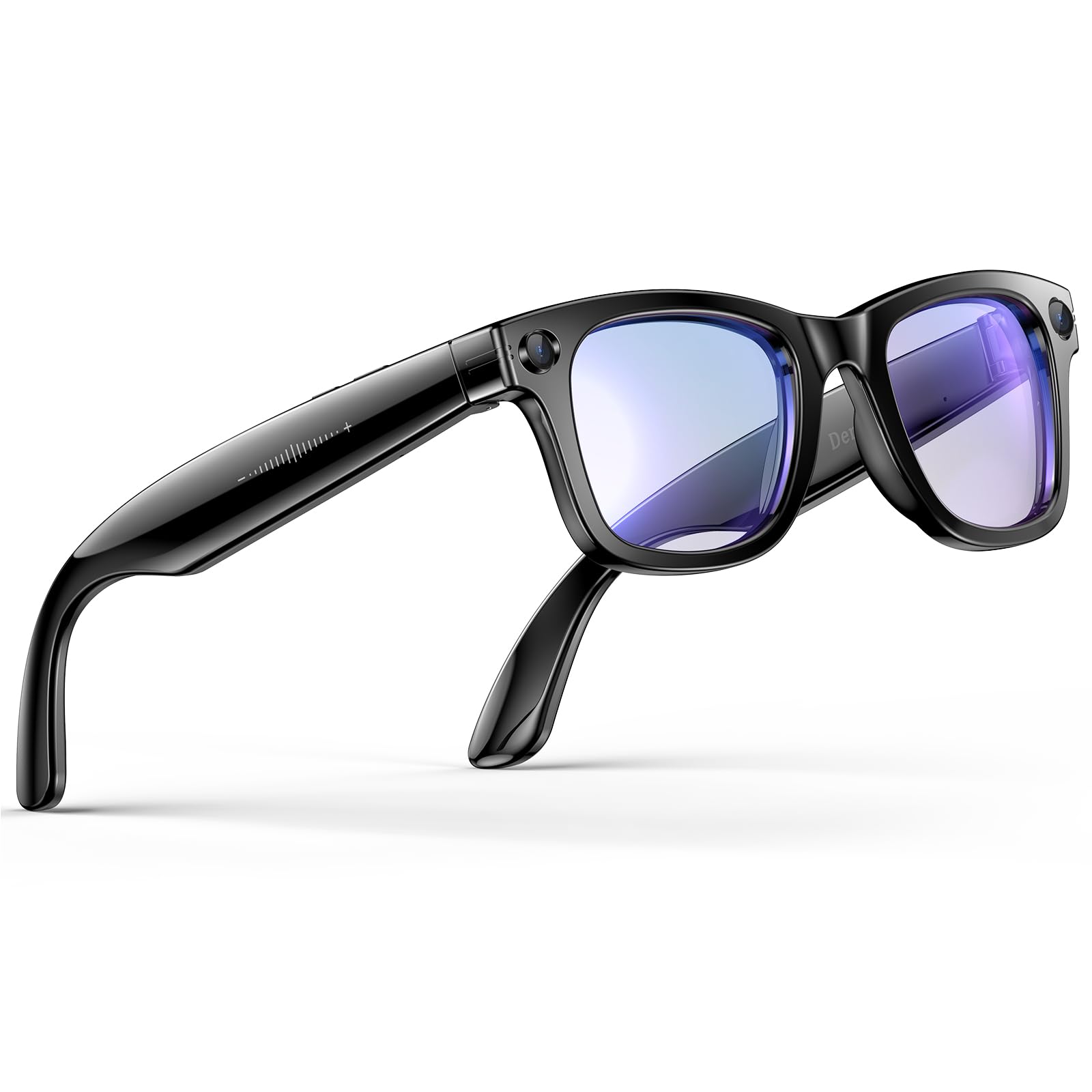

The Demabon AI Smart Glasses in black, featuring a sleek design and integrated technology.
Key Features
- 4K HD Camera: 8-megapixel lens with three-axis anti-shake sensor for clear photos and 4K videos.
- Real-Time Translation: Supports multiple languages for effortless communication.
- AI Object Recognition: Instantly identifies objects and provides information.
- Voice Assistant: Activate with "HeyCyan" for hands-free control and information.
- Blue Light Blocking Lenses: Protects eyes during extended screen use.
- Long Battery Life: Up to 12 hours music playback, 7+ days standby.
- IP67 Waterproof: Resistant to sweat, rain, and splashes.
- Dual-Microphone Noise Cancellation: Ensures clear audio for calls and music.
- Lightweight & Comfortable: Weighs only 42g with detachable lenses for style customization.
- Smart Wear Detection: Customizable feature to pause functions when glasses are removed.
Controls
- Front Button (Right Temple): Single press for photo, double press for video recording, long press for power on/off, answer/reject calls.
- Rear Button (Right Temple): Short press to wake AI assistant when connected to phone.
- Touch Area (Side of Temple): Double-tap for play/pause music, long press for next song, triple-tap for previous song, slide forward/backward to adjust volume.
Setup
1. Power On/Off
To power on, long press the front button on the right temple for 2 seconds. To power off, long press for 5 seconds.
2. Charging
Connect the magnetic charging cable to the designated port on the temple. The indicator light will be red during charging and turn blue once fully charged. The device can also be activated by charging.
Video: Demonstrates powering on/off and charging the smart glasses. The indicator light changes color to show charging status.
3. App Installation & Pairing
Install the "HeyCyan" app by scanning the QR code in the manual or searching for "HeyCyan" on Google Play or the App Store. Once installed, open the app, click "Connect Device," and select "DM-01" (or similar model name) for pairing. Ensure Bluetooth is enabled on your phone. Allow wireless data usage for full functionality.
Image: Step-by-step guide on connecting the smart glasses to the HeyCyan app via Bluetooth and Wi-Fi.
Operating Instructions
1. Taking Photos
Short press the front button on the right temple to take a photo. The shooting indicator light will flash briefly.
2. Recording Videos
Double-press the front button on the right temple to start recording. The shooting indicator light stays on during recording. Short press the button again to exit and save the video.
3. Making/Answering Calls
When an incoming call arrives, click the front button on the right temple to answer. Long press for 2 seconds to reject the call. During a call, slide forward on the touch area to increase volume and slide backward to decrease volume. Click the front button on the right to hang up.
4. Music Playback
Double-tap the touch area to play/pause music. Long press the touch area to switch to the next song. Triple-tap the touch area to switch to the previous song. Slide forward/backward on the touch area to adjust volume.
5. AI Voice Assistant
Wake up the AI voice assistant by saying "HeyCyan" or by short pressing the rear button on the right temple when connected with your phone. The intelligent voice assistant can respond to queries, take notes, summarize meetings, and provide daily life advice.
6. AI Object Recognition
The glasses offer permanently free AI object recognition. Point your gaze at a landmark, plant, animal, or everyday object, and the glasses will instantly identify it and provide information through the connected app.
Image: A user wearing the smart glasses, with text indicating "AI Object Recognition" and an example of identifying objects.
7. Real-Time Translation
Access the AI translation feature through the HeyCyan app. Choose the languages and speak the content you want to translate. The glasses support 26 languages for 1-on-1 and simultaneous translation, with app support for 139 languages.
Image: Illustration of the smart glasses providing real-time translation, showing text bubbles in different languages.
Maintenance
1. Battery Life
The 270mAh battery provides up to 12 hours of music playback and over 7 days of standby time. Charge using the provided magnetic USB cable.
2. Waterproofing
The smart glasses are IP67 waterproof, effectively resisting sweat, rain, and everyday splashes. This ensures durability during sports and outdoor activities.
3. Detachable Lenses
The lenses are detachable, allowing for easy switching between different styles (e.g., blue light blocking, sunglasses, red coated lenses) in approximately 2 seconds.
Video: Demonstrates the process of replacing the lenses on the smart glasses.
4. Cleaning
Use the provided glasses cloth to gently clean the lenses and frame. Avoid using harsh chemicals that may damage the device.
Troubleshooting
1. Factory Reset
To perform a factory reset, long press the front button on the right temple for 10 seconds. All files stored in the glasses will be cleared.
2. Connectivity Issues
If you experience issues with Bluetooth or Wi-Fi connectivity, ensure your phone's Bluetooth and Wi-Fi are enabled. Try restarting both your phone and the smart glasses. If problems persist, try re-pairing the device through the HeyCyan app.
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 7.4 x 3.26 x 2.87 inches |
| Item Weight | 42 Grams (1.48 ounces) |
| Item Model Number | Smart Glasses |
| Batteries | 1 Nonstandard Battery (included) |
| Memory Storage Capacity | 32 GB |
| Operating System | Compatible with Android and iOS systems |
| Special Features | Removable Lenses, Lightweight, AI Voice Wake-Up, AI Object Recognition, AI Intelligent Translation, Stabilized Video Recording, High-Definition Photos, Clear Audio Recording, Bluetooth Calling, Music Player, Wi-Fi Photo Transfer, Smart Wear Detection, UV 400 Protection, IP67 Waterproof and Dustproof |
| Battery Capacity | 270 Milliamp Hours |
| Connectivity Technology | Bluetooth |
| Wireless Communication Standard | Bluetooth |
| Battery Cell Composition | Lithium Ion |
| GPS | No GPS |
| Shape | Rectangular |
| Brand | Demabon |
Warranty and Support
Demabon smart glasses offer hassle-free returns and exchanges within 30 days of purchase. A three-year product warranty is provided, covering manufacturing defects. For any issues or questions, 24/7 customer support is available. Our team is always online, ready to assist you.
