LINNIW VRC2 Cloth and VFF21 Foam Filters Instruction Manual

Introduction

This instruction manual provides essential information for the proper use and maintenance of your LINNIW VRC2 Cloth Filters and VFF21 Foam Filters. These filters are designed to enhance the performance and longevity of compatible wet/dry vacuums by effectively capturing dust, debris, and liquids. Please read these instructions carefully before installation and use.

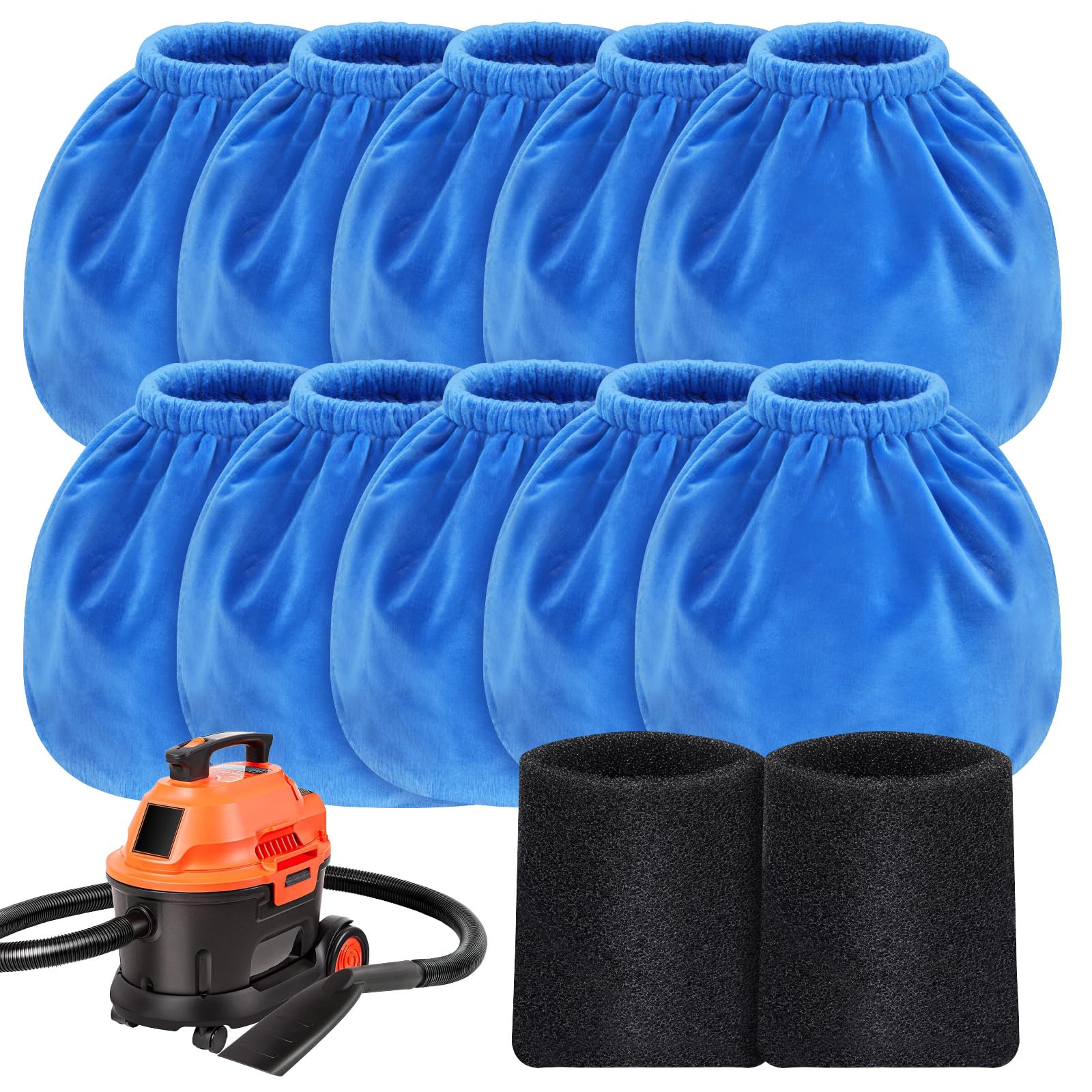

Image: A complete set of LINNIW VRC2 blue cloth filters (10 pack) and VFF21 black foam filters (2 pack) displayed alongside a compact orange and black wet/dry vacuum cleaner.

Compatibility

These filters are compatible with a range of wet/dry utility vacuums. Before installation, confirm your vacuum model matches the list below to ensure proper fit and function.

• Armor All 1.5 & 2.5 Gallon Wet/Dry Utility Vacs: AA155, AA255, AA255W, AA256, VOM205P 0901.
• Vacmaster 1.5–3.2 Gallon Vac Models: VH105, VP205, VOM205P, VHB305M, VHB305M 1101, VHB305M 0101.
• Hyper Tough 1.5 Gallon Vac: VH105 3502.

These filters replace part numbers VRC2, VRC21, 916949, and 9-16949.

Image: A visual chart illustrating the compatibility of the filters with different models of Armor All, Vacmaster, and Hyper Tough wet/dry vacuums, categorized by gallon capacity.

Package Contents

Your package includes the following items:

• 10 x VRC2 Cloth Filters (for dry pick-up)
• 2 x VFF21 Foam Filters (for wet pick-up)
• 1 x Cleaning Brush

Setup and Installation

Proper filter installation is crucial for optimal vacuum performance and motor protection. Always ensure the vacuum is unplugged before installing or changing filters.

1. Installing VRC2 Cloth Filter (for Dry Pick-Up)

1. Detach the lid from your vacuum cleaner.
2. Place the motor assembly upside down in the drum.
3. Locate the filter cage on the motor assembly.
4. Carefully place the VRC2 cloth filter onto the filter cage.
5. Stretch the elastic band of the filter to ensure a tight and secure fit around the filter cage, preventing dirt from entering the motor.

2. Installing VFF21 Foam Filter (for Wet Pick-Up)

1. For wet pick-up, remove any installed VRC2 cloth filter.
2. Detach the lid from your vacuum cleaner.
3. Place the motor assembly upside down in the drum.
4. Locate the filter cage on the motor assembly.
5. Carefully slide the VFF21 foam filter over the filter cage. Ensure it fits snugly to prevent liquids and debris from reaching the motor.

Image: A visual guide showing the installation of a black foam filter for wet filtration and a blue cloth filter for dry filtration on a vacuum's filter cage.

Operating Instructions

The LINNIW filter set provides specialized filters for both wet and dry vacuuming tasks.

• For Dry Pick-Up: Use the VRC2 cloth filter. This filter is designed to capture fine dust, debris, and pet hair, protecting your vacuum motor during dry cleaning operations.
• For Wet Pick-Up: Use the VFF21 foam filter. It is essential to remove the VRC2 cloth filter before performing any wet vacuuming. The foam filter efficiently absorbs liquids and prevents them from entering the motor, helping to reduce odors and extend the vacuum's lifespan.

Important: Never use the VRC2 cloth filter for wet pick-up, as it can be damaged and compromise motor protection. Always switch to the VFF21 foam filter for wet messes.

Maintenance and Cleaning

Regular cleaning of your filters ensures optimal performance and extends their lifespan.

Cleaning VRC2 Cloth Filters

The VRC2 cloth filters are washable and reusable. Follow these steps for cleaning:

1. Remove the cloth filter from the vacuum.
2. Gently tap the filter to dislodge loose debris.
3. Rinse the filter thoroughly under running water until clean.
4. Allow the filter to air dry completely before reinstallation. Ensure it is fully dry to prevent mold or mildew growth and to maintain filtration efficiency.

Cleaning VFF21 Foam Filters

The VFF21 foam filters can also be cleaned and reused:

1. Remove the foam filter from the vacuum.
2. Rinse the filter under running water to remove absorbed liquids and debris.
3. Gently squeeze out excess water.
4. Allow the filter to air dry completely before reinstallation.

Use the included small cleaning brush to remove stubborn dust and debris from both filter types as needed.

Image: A sequence showing a blue cloth filter being rinsed under a faucet, then hung to dry, and finally reinstalled on a vacuum's filter cage, demonstrating its washable and reusable nature.

Troubleshooting

• Filter feels too tight during installation: Some vacuum models may have a very snug fit. Carefully stretch the elastic band of the cloth filter or gently work the foam filter onto the cage. Avoid excessive force to prevent tearing.
• Reduced suction: A clogged or dirty filter can significantly reduce vacuum suction. Clean or replace the filter as necessary. Ensure the filter is correctly installed and sealed.
• Filter tearing: Ensure the filter cage is free of sharp edges. When installing, apply even pressure and avoid pulling or stretching the filter excessively in one spot.
• Odor during wet pick-up: Ensure the foam filter is thoroughly cleaned and dried after each wet use to prevent mildew and odors.

Specifications

Image: A diagram showing the specific dimensions (height, diameter, opening) for both the VRC2 cloth filter and the VFF21 foam filter.

Warranty and Support

For any questions or concerns regarding your LINNIW VRC2 Cloth and VFF21 Foam Filters, please utilize the 24-hour online customer service provided by Zibopon. Contact information can typically be found on the product packaging or through your purchase platform.
