Generic Walnut Solid Oak Extendable Dining Table Instruction Manual

Introduction

Thank you for purchasing the Generic Walnut Solid Oak Extendable Dining Table. This table is crafted from FAS-grade solid oak, offering durability and a natural wood finish. Its extendable design allows for versatile use, accommodating 6 to 8 people. This manual provides essential information for assembly, operation, maintenance, and care to ensure long-lasting enjoyment of your dining table.

Setup and Assembly

Your dining table requires assembly. All necessary tools and instructions are included. We recommend two people for assembly to ensure stability and ease of handling. The table features a mortise and tenon structure for enhanced stability.

Components Checklist:

• Tabletop sections
• Legs (4)
• Assembly hardware (screws, washers, etc.)
• Assembly tools (e.g., Allen wrench)
• Instruction manual

Assembly Steps:

1. Carefully unpack all components and verify against the checklist. Place components on a soft, clean surface to prevent scratches.
2. Attach each leg to the designated corner of the tabletop's underside using the provided hardware. Ensure all connections are secure but do not overtighten initially.
3. Once all legs are attached, gently tighten all screws to ensure maximum stability.
4. Carefully flip the table upright.

Operating the Extendable Tabletop

This dining table features a butterfly leaf extension mechanism, allowing you to easily adjust its length from 47.2 inches to 63.0 inches to accommodate more guests.

To Extend the Table:

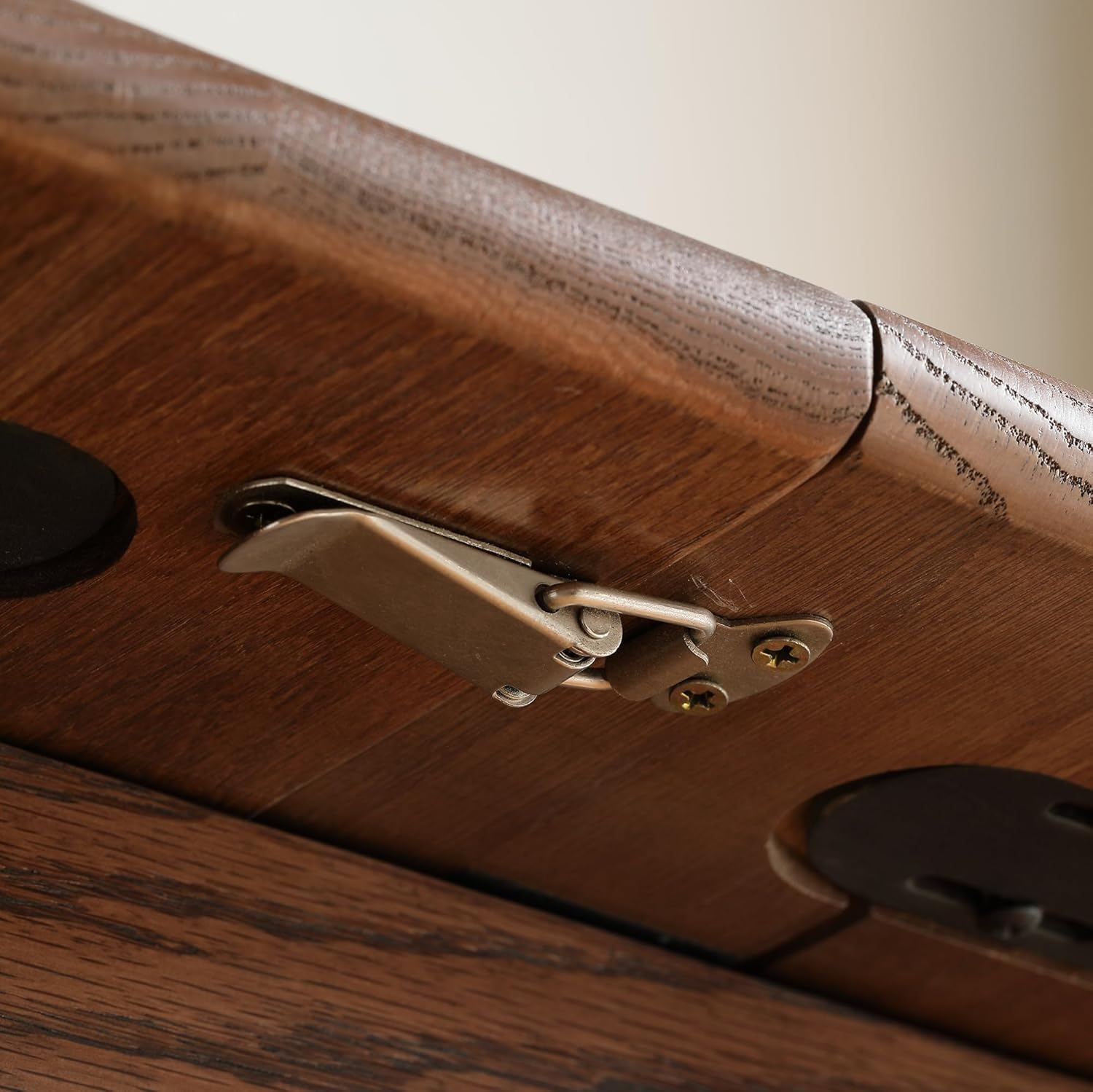

1. Unlock any latches or clips located on the underside of the table that secure the two main tabletop sections together.
2. Gently pull the two main tabletop sections apart from the center. The table will slide open, revealing the folded butterfly leaf.
3. Unfold the butterfly leaf from its storage position. It will typically pivot upwards and then lay flat to fill the gap.
4. Push the two main tabletop sections back together until they meet the edges of the extended leaf.
5. Secure the tabletop sections and the leaf using the latches or clips underneath to ensure a stable, flat surface.

To Retract the Table:

1. Unlock any latches or clips securing the tabletop sections and the leaf.
2. Gently pull the two main tabletop sections apart slightly.
3. Fold the butterfly leaf back into its storage position underneath the table.
4. Push the two main tabletop sections back together until they meet.
5. Secure the tabletop sections with the latches or clips underneath.

Maintenance and Care

Proper care will help maintain the beauty and longevity of your Walnut Solid Oak Extendable Dining Table.

• Cleaning: Clean the table surface with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or furniture polish containing silicone, as these can damage the wood finish.
• Spills: Wipe up spills immediately to prevent staining. The table has a water-resistant and stain-resistant finish, but prolonged exposure to liquids can still cause damage.
• Protection: Use placemats, coasters, and hot pads to protect the surface from heat, moisture, and scratches.
• Sunlight: Avoid placing the table in direct sunlight for extended periods, as this can cause fading or cracking of the wood.
• Humidity: Maintain a consistent humidity level in your room. Extreme changes in temperature and humidity can cause wood to expand or contract, leading to cracks or warping.
• Moving: When moving the table, always lift it rather than dragging it to prevent damage to the legs and floor.

Troubleshooting

If you encounter any issues with your dining table, please refer to the following common solutions:

• Table Wobbles: Ensure all leg attachment screws are securely tightened. Check if the floor is uneven; use furniture pads or shims under the legs if necessary.
• Extension Mechanism Sticks: Ensure the tracks are clean and free of debris. Apply a small amount of silicone-based lubricant (not oil-based) to the sliding mechanisms if they are stiff. Do not force the mechanism.
• Gaps in Tabletop: When extended or retracted, ensure all latches and clips underneath the table are properly engaged to pull the sections together tightly.

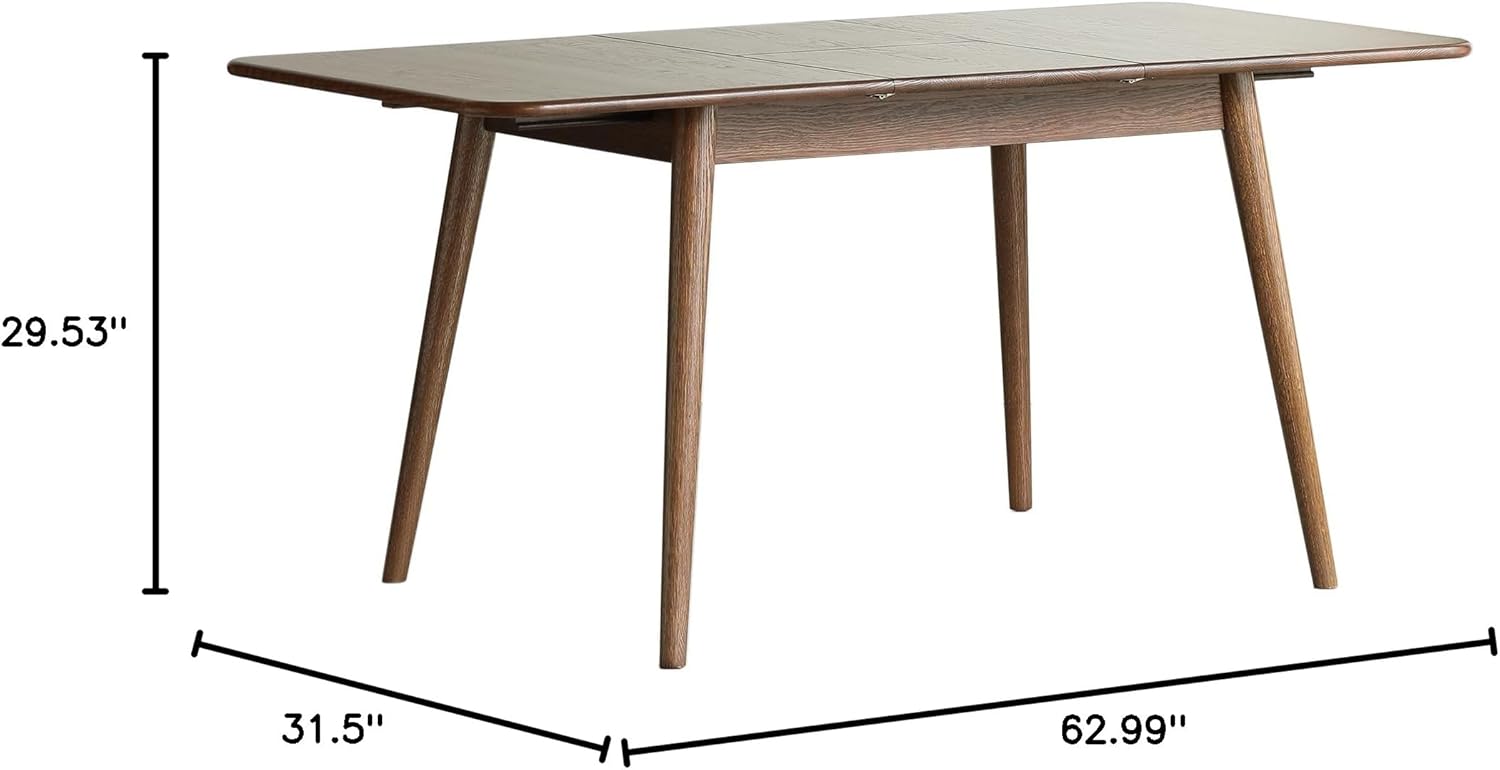

Specifications

Warranty and Support

For any questions, concerns, or warranty inquiries regarding your Generic Walnut Solid Oak Extendable Dining Table, please contact the retailer or manufacturer directly. Please have your model number (W1283139300) and purchase date available when contacting support.
