Introduction
This manual provides instructions for the installation, maintenance, and proper use of the Generic Forno 36-inch Oven Handle, model G36R04-101900. This handle is an OEM replacement part designed for specific Forno oven models, including FFSGS6239-36. Please read these instructions carefully before proceeding with installation to ensure correct fit and safe operation.
Safety Information
- Always disconnect power to the oven before attempting any installation or maintenance. Failure to do so may result in electric shock or injury.
- Wear appropriate personal protective equipment, such as gloves, to prevent cuts or scrapes.
- If you are unsure about any step, consult a qualified technician.
- Keep small parts away from children.
Package Contents
Verify that all components are present before beginning installation:
- 1 x Forno 36-inch Oven Handle (Model G36R04-101900)
- Note: Mounting hardware (screws, brackets) is typically reused from the original handle or purchased separately if not included with the oven. This package contains the handle only.

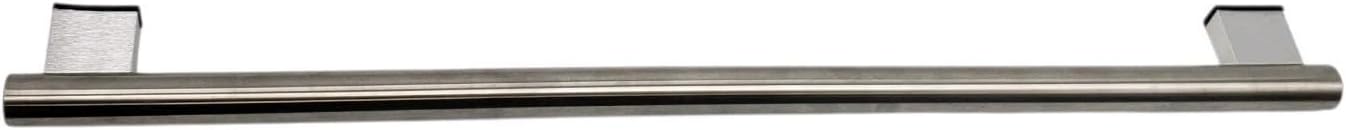

Image 1: Front view of the Generic Forno 36-inch Oven Handle. The handle is a long, cylindrical stainless steel bar with square mounting brackets at each end.
Setup and Installation
This section outlines the general procedure for replacing an oven handle. Specific steps may vary slightly depending on your oven model.
- Prepare the Oven: Ensure the oven is cool and disconnected from its power source. Open the oven door fully.
- Remove Old Handle (if applicable):
- Locate the screws that secure the handle to the oven door. These are typically found on the inside edge of the oven door, or sometimes concealed under trim pieces.
- Using an appropriate screwdriver, carefully loosen and remove these screws.
- Gently detach the old handle from the oven door. Retain any mounting hardware (screws, washers, spacers) as they may be needed for the new handle.
- Inspect Mounting Points: Clean any debris or residue from the handle mounting points on the oven door.
- Attach New Handle:
- Align the new G36R04-101900 handle with the mounting holes on the oven door.
- Insert the screws (either new or reused from the old handle) through the mounting brackets of the handle and into the oven door.
- Important: Tighten the screws firmly but do not overtighten, as this can strip the threads or damage the door panel. Ensure the handle is securely attached and does not wobble.
- Test Handle: Gently pull on the handle to confirm it is securely fastened.
- Restore Power: Reconnect the oven to its power source.
Image 2: Angled view of the Generic Forno 36-inch Oven Handle, showing the cylindrical bar and the square mounting brackets at an angle.
Image 3: Close-up view of a "QC PASSED" sticker with a number (428349) on the inside surface of one of the handle's mounting brackets, indicating quality control inspection.
Operating
The oven handle is designed for opening and closing the oven door. Always use the handle for this purpose. Avoid using the handle to support your weight or as a leverage point for moving the oven, as this can cause damage to the handle or the oven door.
Maintenance
- Cleaning: Clean the handle regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads, which can scratch the finish.
- Inspection: Periodically check the handle for any signs of looseness or damage. If the handle feels loose, gently retighten the mounting screws (ensure power is disconnected first).
- Avoid Impact: Protect the handle from impacts or heavy objects that could bend or damage it.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Handle is loose or wobbly. | Mounting screws are loose. | Disconnect oven power. Locate and gently tighten the mounting screws from the inside of the oven door. Do not overtighten. |
| Handle does not fit correctly. | Incorrect model part. | Verify that the handle model number (G36R04-101900) matches the required part for your specific oven model (e.g., FFSGS6239-36). Contact the supplier if the part is incorrect. |
| Scratches or damage on handle. | Physical impact or abrasive cleaning. | This is typically cosmetic damage and does not affect functionality. Avoid abrasive cleaners and impacts in the future. Replacement is the only solution for aesthetic damage. |
Specifications
- Model Number: G36R04-101900
- Compatible Oven Models: FFSGS6239-36 (and others as specified by manufacturer)
- Type: OEM Replacement Oven Handle
- Length: Approximately 36 inches (as indicated by product description)
- Material: Stainless Steel (implied by appearance)
- Item Weight: 1 pound
- Product Dimensions: 1 x 1 x 1 inches (Note: This is likely package dimensions, not handle dimensions. Actual handle length is 36 inches.)
Warranty and Support
For information regarding warranty coverage or technical support for the Generic Forno 36-inch Oven Handle (G36R04-101900), please refer to the original purchase documentation or contact the retailer from whom the product was acquired. As this is an OEM replacement part, warranty terms may be subject to the policies of the original equipment manufacturer or the reseller.
