Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Wildeway Electric Bike FW11/FW11S 3.0 Rear Wheel with Hydraulic Brake. Please read this manual thoroughly before installation and use to ensure proper function and safety. This specific model is equipped with a hydraulic braking system. It is crucial to verify your bike's brake type (Hydraulic or Mechanical Disc Brakes) before proceeding with installation or replacement.
Important Safety Information
- Always wear appropriate safety gear, including a helmet, when operating an electric bicycle.
- Ensure all components are securely fastened and correctly installed before each ride.
- Regularly inspect the wheel, tires, and brake system for any signs of wear, damage, or malfunction.
- Do not attempt to modify the wheel or brake system, as this may compromise safety and void the warranty.
- If you are unsure about any installation or maintenance procedure, consult a qualified bicycle mechanic.
- Be aware of your surroundings and obey all local traffic laws and regulations.
Package Contents
Upon unpacking, please verify that all the following components are included:
- 1 x Rim
- 1 x Spoke set (pre-installed)
- 1 x Flywheel (cassette/freewheel)
- 1 x Motor (integrated into the wheel hub)
- 1 x Disc (for hydraulic brake)
- 1 x Reflector
- 1 x Inner Tube
- 1 x Outer Tube (Tire)
- 2 x Cushion Tapes
If any items are missing or damaged, please contact Wildeway customer support immediately.
Installation Guide
Proper installation is critical for the safety and performance of your electric bike. If you are not confident in performing the installation yourself, please seek assistance from a professional bicycle mechanic.

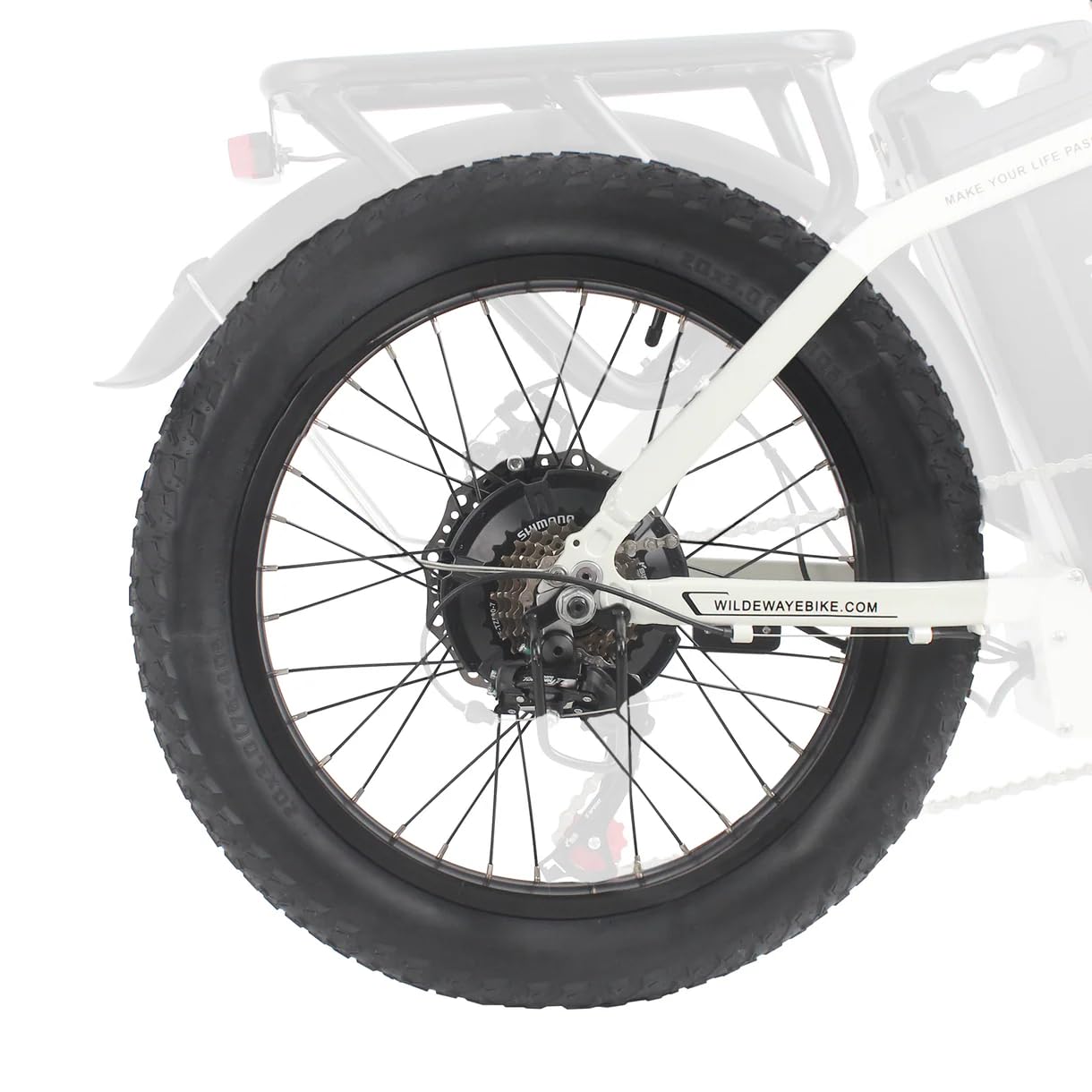

Image: The Wildeway Electric Bike FW11/FW11S 3.0 Rear Wheel, featuring the integrated motor and hydraulic disc brake assembly. This image illustrates the complete wheel unit as it appears out of the box.
- Brake Type Verification: Before installation, confirm that your Wildeway 3.0 bike frame is designed for Hydraulic Brakes. This rear wheel assembly is specifically for hydraulic systems, and the disc included is compatible with hydraulic calipers. Installing the wrong brake type can lead to severe safety issues.
- Preparation: Ensure your bike is stable, preferably on a bike stand. Remove the existing rear wheel if applicable. Disconnect any motor cables or brake lines from the old wheel.
- Wheel Placement: Carefully position the new Wildeway rear wheel into the dropouts of your bike frame. Ensure the disc rotor aligns correctly with the hydraulic brake caliper.
- Axle Securing: Secure the wheel axle using the provided nuts or quick-release mechanism, ensuring it is tightened to the manufacturer's specifications. The wheel should be centered and spin freely without wobble.
- Motor Cable Connection: Connect the motor cable from the wheel hub to the corresponding connector on your e-bike's wiring harness. Ensure the connection is secure and waterproof.
- Hydraulic Brake Adjustment: Reconnect the hydraulic brake line to the caliper if it was disconnected, or ensure the existing line is properly routed. Adjust the brake caliper to ensure the pads are centered over the disc rotor and do not rub when the wheel spins freely. Test the brake lever for proper function and firm feel. Bleed the brake system if necessary, following standard hydraulic brake procedures.
- Tire Inflation: Inflate the tire to the recommended pressure indicated on the tire sidewall.
- Final Checks: Before riding, perform a thorough check of all connections, brake function, and tire pressure. Spin the wheel to ensure it runs true and quietly.
Operating Your Wildeway Electric Bike Rear Wheel
While the rear wheel itself does not have direct operating controls, its proper function is integral to your e-bike's performance. Adhere to the following guidelines:
- Pre-Ride Inspection: Always check tire pressure, brake function, and wheel security before each ride.
- Braking: Familiarize yourself with the feel and responsiveness of your hydraulic brakes. Hydraulic brakes typically offer stronger and more consistent stopping power than mechanical brakes. Apply brakes smoothly and progressively.
- Motor Engagement: The integrated motor will engage based on your e-bike's pedal-assist system (PAS) or throttle. Ensure the motor cable connection is secure for consistent power delivery.
- Riding Conditions: Adjust your riding style and speed according to road conditions, weather, and traffic.
Maintenance
Regular maintenance extends the lifespan of your rear wheel and ensures safe operation.
- Tire Pressure: Check and maintain correct tire pressure weekly. Refer to the tire sidewall for recommended PSI.
- Spoke Tension: Periodically check spoke tension. Loose spokes can lead to wheel damage and instability. If spokes are loose, have them adjusted by a professional.
- Wheel Trueness: Inspect the wheel for trueness (wobble). A wobbly wheel can affect handling and braking.
- Hydraulic Brake System:
- Brake Pads: Regularly inspect brake pads for wear. Replace them before they wear down to the backing plate.
- Brake Fluid: Hydraulic brake fluid should be checked and replaced periodically according to the brake manufacturer's recommendations.
- Brake Levers: Ensure brake levers have a consistent, firm feel. Spongy levers may indicate air in the system or low fluid, requiring bleeding.
- Disc Rotor: Keep the disc rotor clean and free of oil or grease. Clean with isopropyl alcohol if necessary.
- Motor Cable: Ensure the motor cable connection remains clean, dry, and securely fastened. Avoid pulling or straining the cable.
- General Cleaning: Keep the wheel and brake components clean. Avoid high-pressure washing directly on the motor hub or brake calipers.
Troubleshooting
This section addresses common issues you might encounter with your Wildeway rear wheel. For problems not listed here, or if solutions do not resolve the issue, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor not assisting / No power from wheel | Loose or disconnected motor cable; Battery low or faulty; Controller issue. | Check motor cable connection for security. Ensure battery is charged and properly connected. Consult your e-bike's main manual for controller diagnostics. |
| Brakes feel spongy or weak | Air in hydraulic line; Low brake fluid; Worn brake pads; Contaminated disc rotor. | Bleed the hydraulic brake system. Check fluid level and refill if necessary. Replace worn brake pads. Clean disc rotor with isopropyl alcohol. |
| Brakes rub constantly | Misaligned brake caliper; Bent disc rotor; Wheel not seated correctly. | Realign brake caliper. Inspect disc rotor for bends and true if possible, or replace. Re-seat the wheel in the dropouts. |
| Tire loses air quickly | Puncture in inner tube; Leaky valve stem; Damaged tire. | Inspect inner tube for punctures and patch or replace. Check valve stem for tightness. Inspect outer tire for damage and replace if necessary. |
| Wheel wobbles | Loose spokes; Bent rim; Improperly seated wheel. | Have spokes tensioned and wheel trued by a professional. Inspect rim for damage. Re-seat the wheel securely in the dropouts. |
Product Specifications
| Brand | Wildeway |
| Model Name | FW11 3.0 |
| Style | Hydraulic Brake |
| Wheel Size | 20 Inches |
| Material | Aluminum |
| Color | Black |
| Included Components | 1 rim, 1 spoke, 1 flywheel, 1 motor, 1 disc, 1 reflector, 1 inner and outer tube, and 2 cushion tapes. |
Warranty and Support
Warranty: The Wildeway Electric Bike FW11/FW11S 3.0 Rear Wheel comes with a 90-day warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage resulting from improper installation, misuse, accidents, neglect, or unauthorized modifications. Please retain your proof of purchase for warranty claims.
Customer Support: For technical assistance, warranty claims, or any questions regarding your Wildeway product, please visit the official Wildeway website or contact their customer service department. Refer to your purchase documentation for specific contact details.
