GregYoung Fardriver ND7235 72V 5000W BLDC Programmable E-Bike Controller User Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your GregYoung Fardriver ND7235 72V 5000W BLDC Programmable E-Bike Controller. This controller is designed for electric bikes and motorcycles, offering advanced programming features for optimized performance. Please read this manual thoroughly before use to ensure proper function and safety.

2. Safety Information

• Always disconnect power before installing or performing maintenance on the controller.
• Ensure all wiring connections are secure and correctly polarized to prevent damage to the controller or other components.
• Avoid exposing the controller to extreme temperatures, moisture, or corrosive substances.
• Do not attempt to open or modify the controller casing, as this may void the warranty and pose safety risks.
• Consult a qualified technician if you are unsure about any installation or troubleshooting steps.

3. What's in the Box

The package includes the following items:

• 1 x Fardriver ND7235 Controller

Image: The Fardriver ND7235 controller shown with its attached wiring harness, ready for installation.

4. Setup and Installation

4.1 Mounting the Controller

The ND7235 controller features a surface mount design. Select a secure location on your electric bike or motorcycle that is protected from direct impact, excessive heat, and moisture. Ensure adequate airflow around the controller for heat dissipation. Use appropriate fasteners to secure the controller firmly in place.

Image: Bottom view of the Fardriver ND7235 controller, highlighting the heat sink fins for efficient cooling.

4.2 Wiring Connections

The controller utilizes screw-type connectors for secure electrical connections. A wiring tutorial is typically provided to assist with the installation process. Carefully follow the wiring diagram specific to your e-bike or motorcycle model. Key connections include:

• Power Input: Connect the main battery positive and negative terminals to the corresponding controller inputs. Ensure correct voltage (72 Volts DC).
• Motor Phase Wires: Connect the three motor phase wires (U, V, W) to the controller's motor outputs.
• Hall Sensor Wires: Connect the motor's Hall sensor wires to the controller's Hall sensor input.
• Throttle Input: Connect the throttle signal wire.
• Brake Levers: Connect brake lever signals (normally open contact type).
• Other Accessories: Connect any additional accessories such as display, speed sensor, or cruise control as per the wiring diagram.

Double-check all connections before applying power. Loose or incorrect wiring can cause damage or malfunction.

Image: Top view of the Fardriver ND7235 controller, showing the main multi-pin connector port for various inputs and outputs.

5. Operating the Controller

5.1 Initial Power-Up

After completing all wiring, turn on the main power switch of your e-bike/motorcycle. The controller should initialize. Observe any indicator lights or display messages for initial status.

5.2 Programming and Configuration

The Fardriver ND7235 is a programmable controller, allowing for fine-tuning of performance characteristics. Configuration is typically performed via a dedicated mobile application using Bluetooth connectivity. Refer to the specific programming software manual for detailed instructions on:

• Motor parameter settings (pole pairs, sensor type).
• Throttle response curves.
• Regenerative braking settings.
• Current limits and power output.
• Speed limits and other safety features.

Optimizing these settings can significantly enhance the riding experience and efficiency for different terrains and rider preferences.

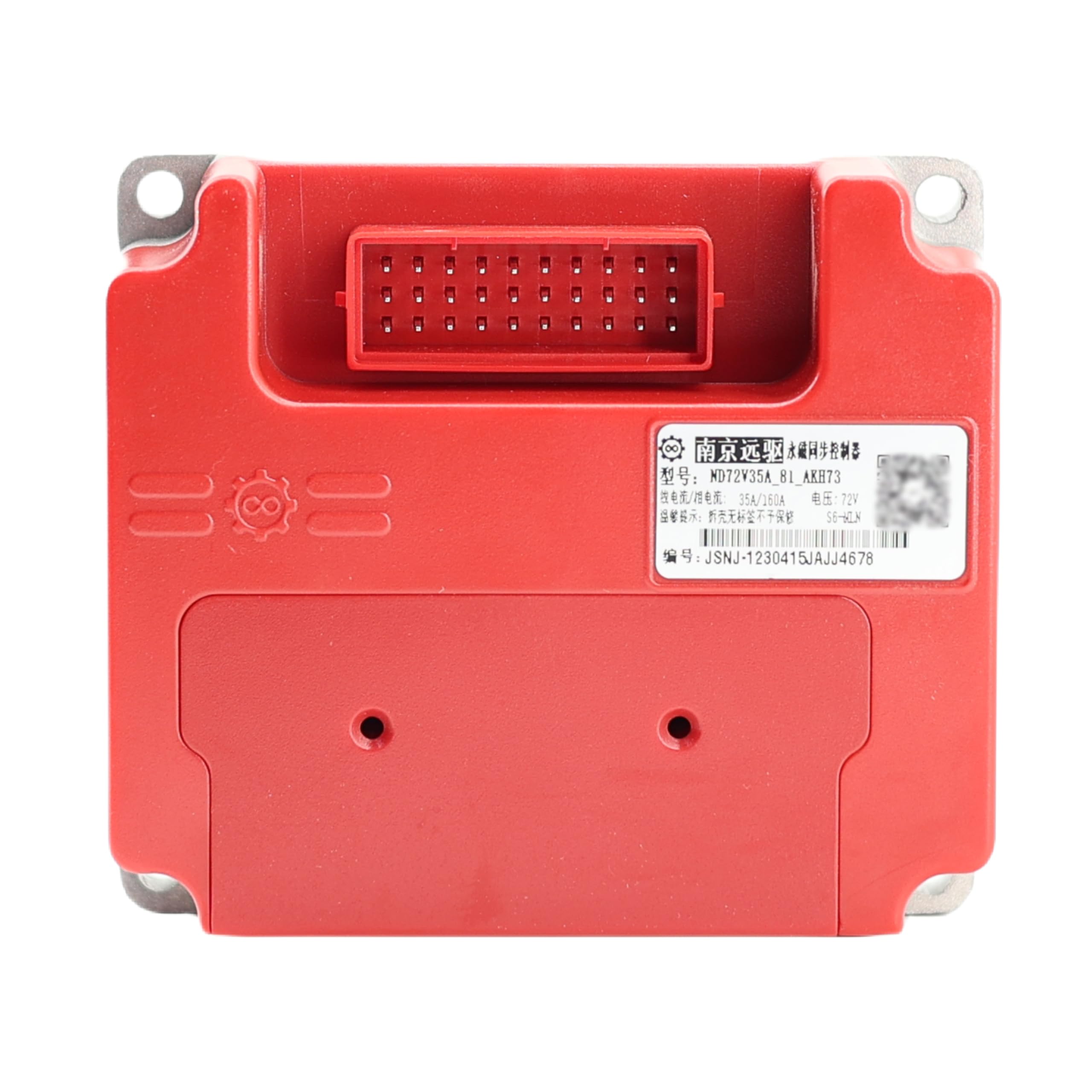

Image: Side view of the Fardriver ND7235 controller, showing the product label with model number and specifications.

6. Maintenance

The Fardriver ND7235 controller is designed for durability and requires minimal maintenance. Follow these guidelines to ensure its longevity:

• Cleaning: Periodically clean the exterior of the controller with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Inspection: Regularly inspect all wiring connections for signs of wear, corrosion, or looseness. Tighten any loose connections.
• Environmental Protection: Ensure the controller remains protected from water, dust, and extreme temperatures.
• Heat Dissipation: Keep the heat sink fins clear of debris to maintain optimal cooling performance.

7. Troubleshooting

If you encounter issues with your Fardriver ND7235 controller, consider the following common troubleshooting steps:

• No Power:
  • Check battery charge level.
  • Verify all power connections are secure and correctly wired.
  • Inspect fuses if applicable.
• Motor Not Responding:
  • Ensure throttle is connected and functioning.
  • Check motor phase and Hall sensor wire connections.
  • Verify programming settings for motor type and parameters.
• Erratic Operation:
  • Check for loose connections or damaged wiring.
  • Ensure no electromagnetic interference sources are nearby.
  • Reset controller settings to default via the programming app, then reconfigure.
• Overheating:
  • Ensure adequate ventilation around the controller.
  • Clean any debris from the heat sink fins.
  • Reduce continuous high-power usage if operating in extreme conditions.

If problems persist after attempting these steps, contact customer support for further assistance.

8. Specifications

9. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for warranty claims.

Manufacturer: Fardriver
Brand: GregYoung
