BSMOOM G2 Jump Starter with Air Compressor User Manual

1. Important Safety Instructions

Please read all safety instructions carefully before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Do not operate the unit if it is damaged or has been modified.
• Do not jump start a frozen battery.
• Do not allow the smart jumper clamps to touch each other or connect the positive and negative clamps to the same battery terminal.
• Do not expose the unit to rain or extreme temperatures.
• Keep out of reach of children.
• Ensure proper ventilation when operating the air compressor.
• Always disconnect the jumper cables from the jump starter unit first, then from the vehicle battery, after a successful jump start.

2. Package Contents

Verify that all items listed below are included in your package:

• 1 x BSMOOM G2 Car Battery Charger Jump Starter
• 1 x Smart Jumper Cables
• 1 x Tire Inflator Tube with 4 Nozzles Set
• 1 x Blower/Deflator Pump with 4 Nozzles Set
• 1 x USB-C Charging Cable
• 1 x User Manual (This document)

3. Product Overview

The BSMOOM G2 is a versatile 14-in-1 device designed for automotive emergencies and general utility. It combines a powerful jump starter, a 150PSI air compressor, and a 45W quick-charge power bank into one portable unit.

Key Features:

• 8000A Peak Current: Capable of jump starting all gas engines and diesel engines up to 14L.
• 150PSI Air Compressor: For inflating car tires, bicycle tires, sports equipment, and more.
• 45W Quick Charger: USB-C output for fast charging of smartphones, tablets, and other devices.
• Multi-functional: Includes LED flashlight, SOS light, and warning light.

Components:

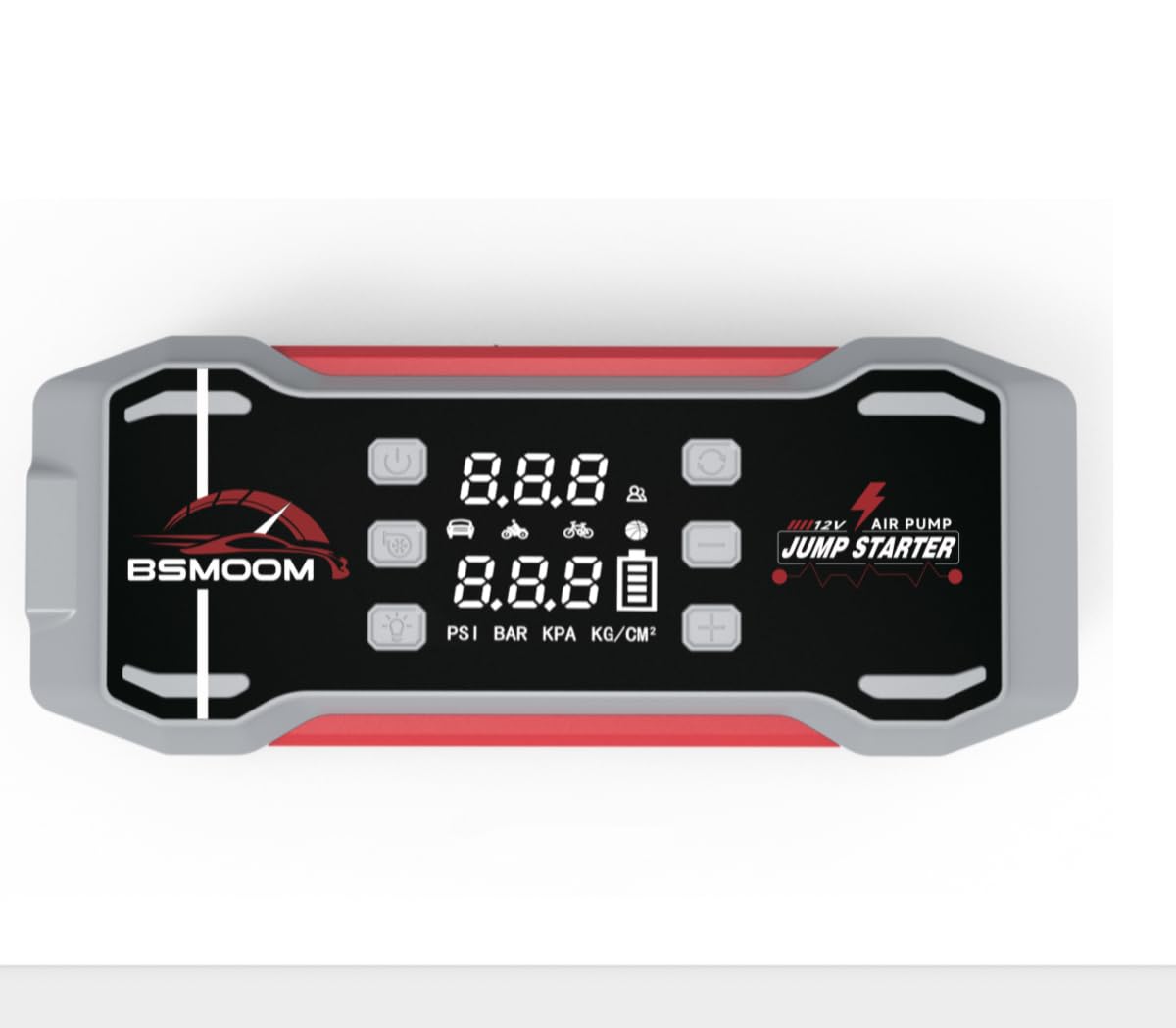

Figure 3.1: BSMOOM G2 Main Unit. This image displays the compact and robust design of the jump starter, featuring its various ports and display screen.

• Main Unit: Houses the battery, jump starter port, air compressor, USB output ports, and display.
• Smart Jumper Cables: Equipped with safety features to prevent reverse polarity and short circuits.
• Air Hose: Connects to the unit for tire inflation.
• Nozzle Set: Various adapters for different inflation needs.

4. Setup

4.1 Charging the Unit

Before first use, fully charge the BSMOOM G2 unit. It is recommended to charge the unit every 3-6 months to maintain battery health, even when not in use.

1. Connect the provided USB-C charging cable to the USB-C input port on the BSMOOM G2.
2. Connect the other end of the USB-C cable to a compatible USB wall adapter (not included) or a car charger.
3. The display will indicate the charging status. The unit is fully charged when the battery indicator shows 100%.

Figure 4.1: USB-C Charging Port. This image highlights the location of the USB-C input port for charging the device.

4.2 Initial Checks

• Ensure the unit is fully charged before attempting to jump start a vehicle or inflate tires.
• Inspect all cables and accessories for any signs of damage. Do not use if damaged.

5. Operating Instructions

5.1 Jump Starting a Vehicle

The BSMOOM G2 can jump start 12V vehicles with all gas engines and diesel engines up to 14L.

1. Ensure the jump starter unit has at least 50% charge.
2. Turn off the vehicle's ignition and all accessories.
3. Insert the smart jumper cable plug into the jump starter's 12V output port. Ensure a firm connection.
4. Connect the red (+) clamp to the vehicle's positive battery terminal.
5. Connect the black (-) clamp to the vehicle's negative battery terminal.
6. Check the indicator light on the smart jumper cable. A solid green light indicates a correct connection. If it's red or flashing, check connections and battery voltage.
7. Start the vehicle's engine. If it doesn't start immediately, wait 30 seconds and try again. Do not crank for more than 3 seconds per attempt.
8. Once the vehicle starts, immediately disconnect the black (-) clamp from the vehicle battery, then the red (+) clamp.
9. Finally, disconnect the smart jumper cable plug from the jump starter unit.

Figure 5.1: Smart Jumper Cables. This image illustrates the correct connection of the smart jumper cables to a vehicle battery for jump starting.

5.2 Tire Inflation

The integrated air compressor can inflate tires up to 150 PSI.

1. Screw the tire inflator tube onto the air output port of the BSMOOM G2.
2. Attach the other end of the tube to the tire valve stem. Ensure a tight seal.
3. Turn on the unit and select the desired pressure unit (PSI, BAR, KPA).
4. Use the '+' and '-' buttons to set the target tire pressure.
5. Press the start button to begin inflation. The compressor will automatically stop when the preset pressure is reached.
6. Disconnect the tube from the tire valve and then from the unit.

Figure 5.2: Tire Inflator Hose. This image shows the tire inflator hose connected to the unit and ready for use.

5.3 Air Inflation/Deflation Pump

Use the blower/deflator pump with the appropriate nozzles for inflatables like air mattresses, swimming rings, or for quick deflation.

1. Select the correct nozzle from the provided set for your inflatable item.
2. Attach the nozzle to the blower/deflator port on the unit.
3. For inflation, insert the nozzle into the item's air valve and turn on the pump.
4. For deflation, connect the nozzle to the deflation port (if available, or reverse connection if applicable) and turn on the pump to extract air.

Figure 5.3: Blower/Deflator Pump and Nozzles. This image displays the blower/deflator pump attachment along with the various nozzles for different applications.

5.4 Using as a Power Bank

The BSMOOM G2 features a 45W Quick Charger for charging electronic devices.

1. Connect your device's charging cable to one of the USB output ports on the BSMOOM G2.
2. The unit will automatically begin charging your device.
3. Monitor your device's charging status. Disconnect when charging is complete.

6. Maintenance and Storage

• Cleaning: Wipe the unit with a dry, soft cloth. Do not use harsh chemicals or abrasive materials.
• Charging: Recharge the unit every 3-6 months to prevent deep discharge and prolong battery life.
• Storage: Store the BSMOOM G2 in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure it is fully charged before long-term storage.
• Cable Care: Keep jumper cables and air hoses neatly coiled and free from kinks or damage.

7. Troubleshooting

8. Specifications

9. Warranty and Support

BSMOOM products are manufactured to high-quality standards. This product comes with a limited warranty from the date of purchase. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, warranty claims, or general inquiries, please contact BSMOOM customer service through the retailer where the product was purchased or visit the official BSMOOM website (if available).

Please have your model number (G2) and purchase information ready when contacting support.
