1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your PYKFVTGL 2.2KW Air-Cooled Spindle Motor. Please read this manual thoroughly before using the product and keep it for future reference. Proper understanding and adherence to these instructions will ensure optimal performance and longevity of your spindle motor.
2. Safety Instructions
Always observe the following safety precautions to prevent injury or damage to the equipment:
- Ensure all electrical connections are made by a qualified electrician and comply with local codes.
- Always disconnect power before performing any maintenance, cleaning, or installation procedures.
- Wear appropriate personal protective equipment (PPE), including eye protection and gloves, during operation and maintenance.
- Do not operate the spindle motor if it is damaged or malfunctioning.
- Keep hands and loose clothing away from rotating parts during operation.
- Ensure adequate ventilation around the motor to prevent overheating.
- Mount the spindle securely to a stable and rigid structure.
3. Product Overview
The PYKFVTGL 2.2KW Air-Cooled Spindle Motor is designed for precision carving and machining applications across various materials. Its robust construction and efficient cooling system ensure reliable performance.

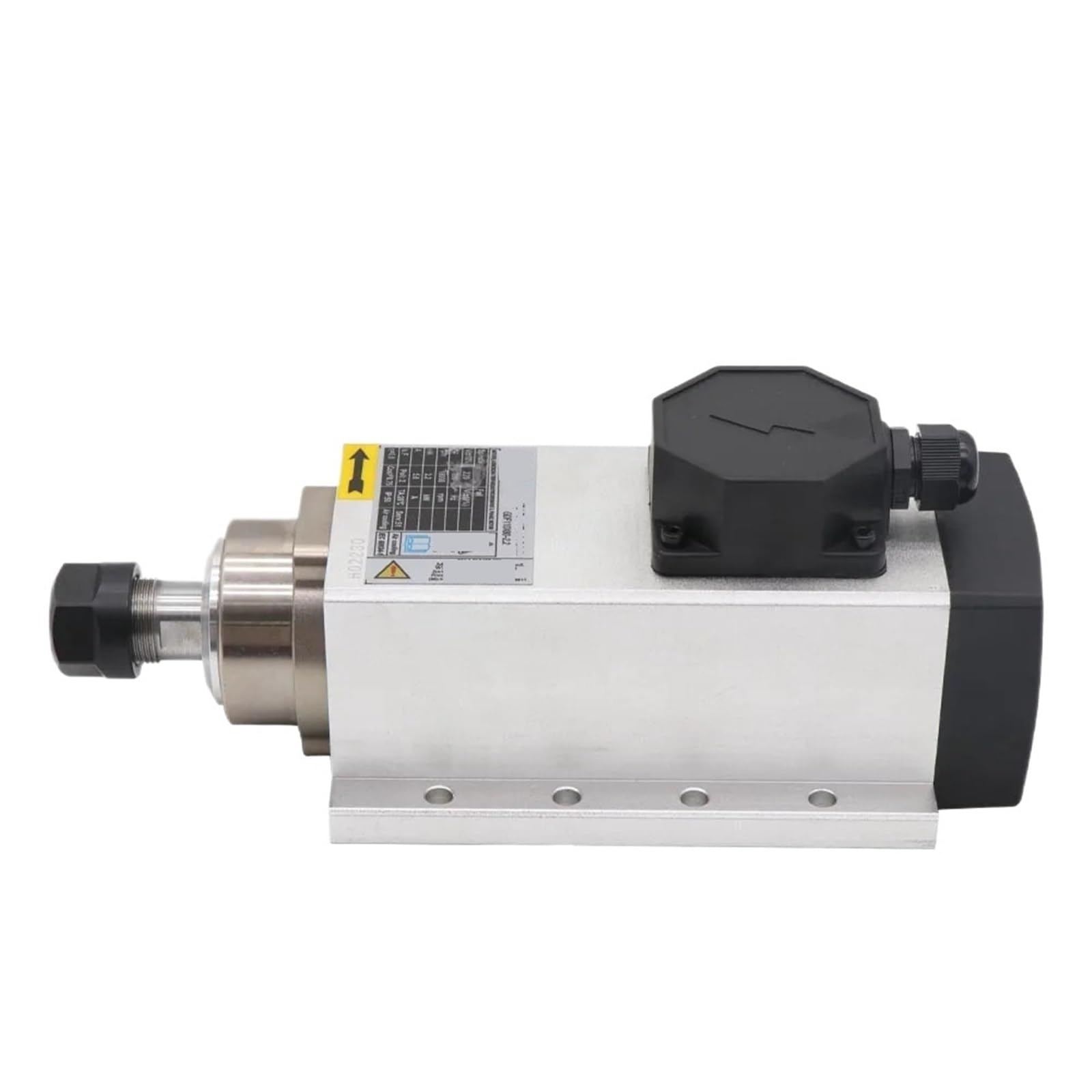

This image displays the front of the PYKFVTGL 2.2KW air-cooled spindle motor. Visible components include the main motor housing, the ER20 collet nut at the front, and mounting points on the base. The collet is designed to securely hold various cutting tools.
Key Features:
- Good Quality Material: The machine body is constructed from pure aluminum, offering sturdiness, anti-corrosion, and anti-rust properties, while maintaining a lighter weight.
- High Precision: Equipped with high-precision bearings and a pure copper coil, ensuring high machining accuracy. The precision steel ball holder contributes to spindle rotation accuracy during high-speed grinding.
- Fan Cooling Mode: Utilizes a fan cooling system to efficiently dissipate excess heat generated during operation, significantly extending the machine's service life. This method is simpler and more convenient than water cooling.
- Wide Application: Suitable for carving and processing various materials including wood, metal, stone, and plastic, making it versatile for numerous industrial applications and improving processing quality and accuracy.
4. Setup
4.1 Mounting the Spindle Motor
- Identify a stable and rigid mounting surface on your CNC machine or workstation.
- Align the spindle motor's mounting holes with the corresponding holes on the mounting bracket.
- Secure the spindle motor using appropriate bolts, washers, and nuts. Ensure all fasteners are tightened evenly to prevent vibration and misalignment.
- Verify that the spindle is level and perpendicular to the work surface for accurate machining.
4.2 Electrical Connection
Warning: Electrical connections should only be performed by qualified personnel. Ensure power is disconnected before proceeding.
- Connect the spindle motor to a compatible Variable Frequency Drive (VFD) or inverter.
- Ensure the VFD's output voltage and frequency match the spindle motor's specifications (AC220V, 300HZ).
- Connect the motor's three-phase wires (U, V, W) to the corresponding output terminals on the VFD.
- Connect the ground wire from the spindle motor to the VFD's ground terminal and ensure it is properly grounded to the machine frame.
- Configure the VFD parameters according to the spindle motor's specifications, including maximum frequency (300Hz), rated voltage, and acceleration/deceleration times.
4.3 Collet and Tool Installation
- Ensure the spindle is powered off and stationary.
- Unscrew the ER20 collet nut from the spindle shaft.
- Insert the appropriate ER20 collet into the collet nut. Ensure the collet snaps into the eccentric ring of the nut.
- Insert the cutting tool into the collet, ensuring it is seated correctly and extends sufficiently for the task.
- Screw the collet nut with the collet and tool back onto the spindle shaft.
- Use a collet wrench to tighten the nut firmly, but do not overtighten.
5. Operating Instructions
5.1 Powering On
- After completing all setup steps, turn on the main power supply to the VFD.
- Initiate the spindle rotation through your CNC control software or VFD control panel.
- Allow the spindle to reach the desired operating speed gradually.
5.2 Speed Control
The spindle speed (RPM) is controlled by the VFD's output frequency. Adjust the frequency on your VFD or through your CNC software to achieve the desired RPM for your specific material and cutting tool. Refer to your VFD manual for detailed speed adjustment procedures.
5.3 Material Processing
Once the spindle reaches the desired speed, you can begin your machining operation. Monitor the spindle for unusual noises or vibrations. Adjust feed rates and depth of cut as necessary to prevent overloading the motor or damaging the tool.
6. Maintenance
6.1 Cleaning
- Regularly clean the exterior of the spindle motor, especially the cooling fins, to ensure efficient heat dissipation.
- Use compressed air to remove dust and debris from the fan and motor housing.
- Clean the collet and collet nut after each use to prevent buildup of material dust, which can affect tool concentricity.
6.2 Inspection
- Periodically inspect the power cables for any signs of wear, cuts, or damage.
- Check mounting bolts for tightness and re-tighten if necessary.
- Listen for unusual noises or excessive vibration during operation, which may indicate bearing wear or other issues.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Spindle does not start | No power supply; Incorrect VFD settings; Wiring error | Check power connections; Verify VFD parameters; Inspect wiring for faults |
| Excessive vibration or noise | Loose mounting; Unbalanced tool; Worn bearings | Tighten mounting bolts; Balance or replace tool; Contact support for bearing replacement |
| Overheating | Blocked cooling fins; Overload; Insufficient ventilation | Clean cooling fins; Reduce load or feed rate; Ensure proper airflow |
| Loss of power/RPM fluctuation | Incorrect VFD settings; Voltage drop; Motor fault | Review VFD parameters; Check power supply; Contact support |
8. Specifications
| Feature | Detail |
|---|---|
| Model | 2.2KW |
| Operating Speed | 18000 RPM |
| Frequency | 300 HZ |
| Voltage | AC220V |
| Collet Type | ER20 |
| Cooling Mode | Fan Cooling |
| Item Weight | 2.2 pounds |
| Manufacturer | PYKFVTGL |
| ASIN | B0FPX3RRQ7 |
| Batteries Required | No |
9. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact your vendor directly. Keep your purchase receipt as proof of purchase for any warranty claims.
For further assistance, you may visit the manufacturer's website or contact their customer service department. Ensure you have your product model number (PYKFVTGL 2.2KW Air-Cooled Spindle Motor ER20) and purchase details ready when seeking support.
