SWZEC KS-5800

SWZEC Sekoda Pro 8 Electric Shaver (Model KS-5800) Instruction Manual

Brand: SWZEC | Model: KS-5800

1. Introduction

Thank you for choosing the SWZEC Sekoda Pro 8 Electric Shaver. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new electric shaver. Please read it thoroughly before first use and keep it for future reference.

2. Important Safety Warnings

  • Do not use the shaver near water or in the shower while it is charging.
  • Exercise caution when switching between shaving, trimming, and nose hair functions to prevent injuries.
  • Keep the shaver out of reach of children and pets.
  • Do not use the shaver while it is charging.
  • Clean the shaver after each use and store it safely when not in use.

3. Product Features

The SWZEC Sekoda Pro 8 Electric Shaver is designed for a comfortable and efficient shaving experience. Key features include:

  • 4D Flexible Floating Head: Ensures an incredibly smooth and close shave by adapting to facial contours.
  • Quick Charge & Long Battery Life: A 2-hour charge provides approximately 3 months of usage, offering extended convenience.
  • Powerful and Quiet Motor: Delivers excellent shaving efficiency with minimal noise.
  • Dual-Track Blades: Designed to capture more hairs in a single pass for a faster and cleaner shave.
  • Multi-function Blades: Easily switch between shaving, trimming, and nose hair grooming attachments.
  • Ergonomic Design: Fits perfectly in hand for comfortable and controlled use.
  • IP6X Water Resistance: Fully washable, making it ideal for both dry and wet shaving.
  • One-Button Operation: Simple and quick to use.

4. Package Contents

Please check the package to ensure all components are present:

  • SWZEC Sekoda Pro 8 Electric Shaver (Model KS-5800)
  • Charging Cable
  • Protective Cap
  • Cleaning Brush
  • User Manual
  • (Additional attachments like trimmer, nose hair trimmer, or facial brush may be included depending on the edition.)

5. Setup and First Use

5.1. Charging the Shaver

  1. Ensure the shaver is turned off.
  2. Connect the charging cable to the shaver and plug it into a power outlet.
  3. The charging indicator will illuminate. A full charge typically takes 2 hours.
  4. Do not use the shaver while it is charging.
  5. Once fully charged, disconnect the charging cable.

5.2. Attaching/Detaching Heads

To change between the shaving head and other attachments (if included), gently pull the current head upwards to detach it. Align the desired attachment with the shaver body and press down until it clicks into place.

6. Operating Instructions

6.1. Basic Shaving

  1. Ensure the shaver is charged.
  2. Press the power button to turn on the shaver.
  3. For a dry shave, ensure your face is clean and dry. For a wet shave, apply shaving foam or gel.
  4. Move the shaver in small, circular motions over your skin, applying gentle pressure. The 4D flexible head will adapt to your facial contours.
  5. Shave against the direction of hair growth for a closer shave.
  6. After shaving, press the power button to turn off the shaver.

6.2. Using Trimmer/Nose Hair Trimmer (if included)

Attach the appropriate head. Use the trimmer for precise styling of sideburns or beard lines. Use the nose hair trimmer carefully to remove unwanted nose or ear hair.

7. Maintenance and Cleaning

Regular cleaning ensures optimal performance and hygiene.

  1. Turn off and unplug the shaver before cleaning.
  2. Open the shaving head by pressing the release button (if applicable) or gently pulling it off.
  3. Rinse the shaving head and the hair chamber under running water. The shaver is IP6X water-resistant, allowing for easy rinsing.
  4. Use the provided cleaning brush to remove any stubborn hair particles from the blades and internal components.
  5. Allow all parts to air dry completely before reassembling the shaver.
  6. Periodically lubricate the blades with a drop of light machine oil to maintain performance.

8. Troubleshooting

ProblemPossible CauseSolution
Shaver does not turn on.Low battery or safety lock engaged.Charge the shaver fully. Check if the travel lock is activated (usually by pressing and holding the power button for a few seconds).
Poor shaving performance.Blades are dull or clogged with hair.Clean the shaving head thoroughly. Consider replacing the shaving head if performance does not improve.
Shaver pulls hair.Blades are dull or shaver is not fully charged.Ensure the shaver is fully charged. Clean the blades. Replace the shaving head if necessary.

If the problem persists, please contact SWZEC customer support.

9. Technical Specifications

  • Model: KS-5800
  • Manufacturer: SWZEC
  • Power Source: Battery (Rechargeable)
  • Battery Life: Up to 2 hours (approx. 3 months of use based on product description)
  • Charging Time: 2 hours
  • Water Resistance: IP6X (Fully washable, suitable for wet & dry use)
  • Blade Material: Stainless Steel
  • Head Type: 4D Flexible Floating Head
  • Number of Blades: 2 (Dual-track)
  • Dimensions: 20 x 10 x 8 cm
  • Weight: 200 g
  • Country of Origin: China

10. Warranty and Support

For warranty information, please refer to the warranty card included in your product packaging or contact SWZEC customer support directly. Keep your purchase receipt as proof of purchase.

For further assistance, technical support, or to inquire about replacement parts, please visit the official SWZEC website or contact their customer service department.

11. Product Images

SWZEC Sekoda Pro 8 Electric Shaver with water splashes
Image 1: The SWZEC Sekoda Pro 8 Electric Shaver, showcasing its sleek design and water-resistant capabilities with water splashes.

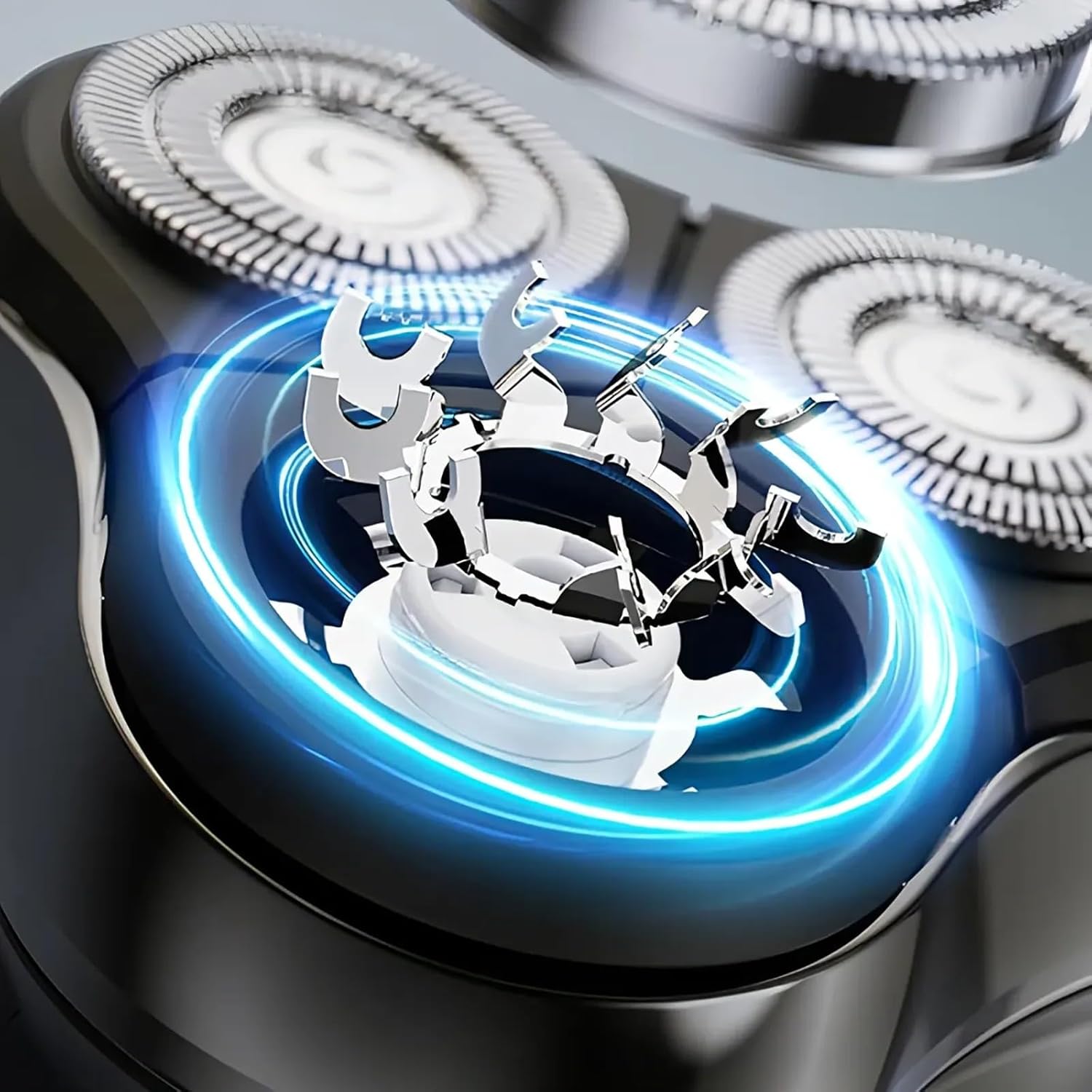

Close-up of the shaver's internal blade mechanism with blue light
Image 2: A detailed view of the shaver's internal blade mechanism, highlighting the precision cutting elements with a blue light effect.
Close-up of dual-track blades for efficient shaving
Image 3: A close-up of the dual-track blades, designed to capture and cut more hair in a single pass for increased efficiency.

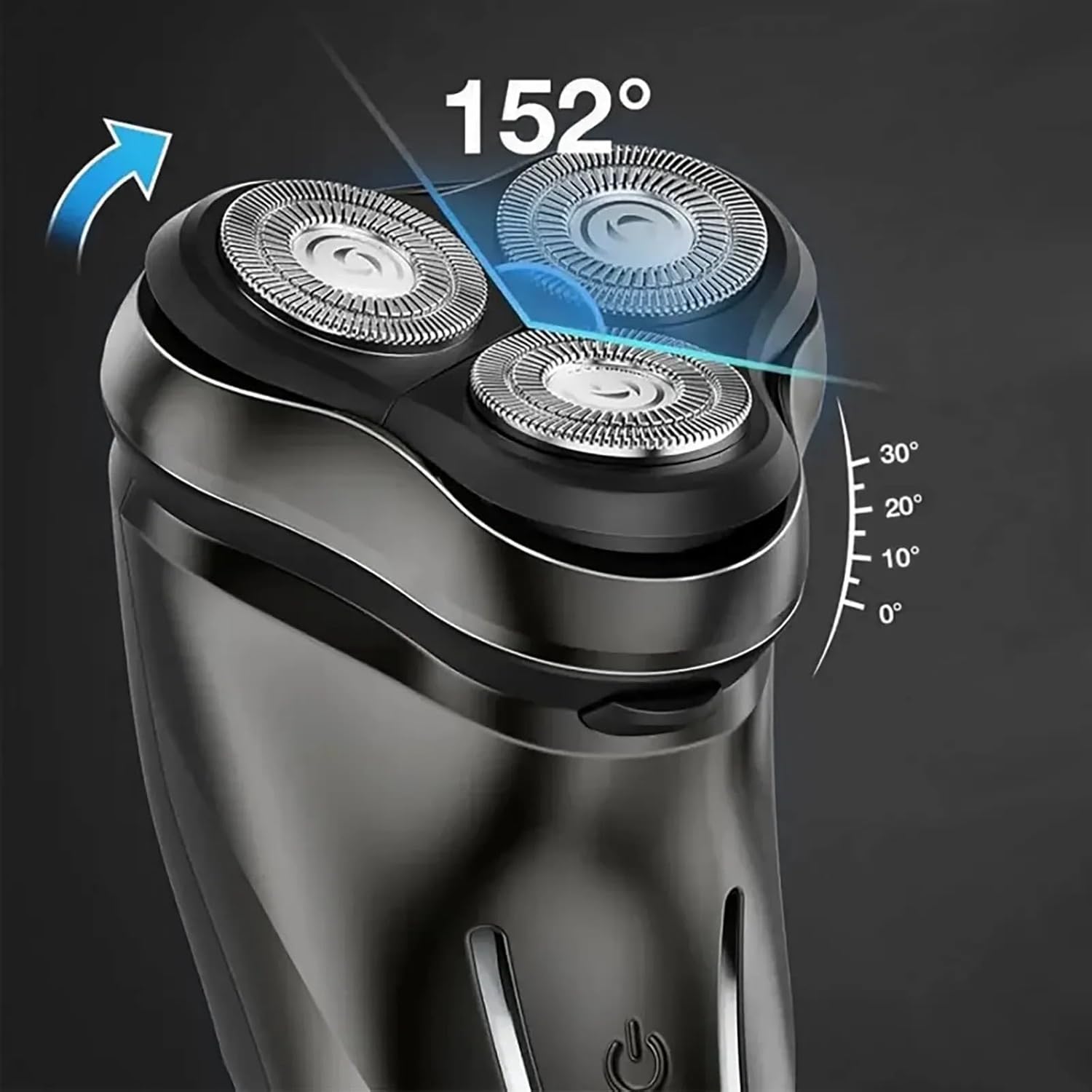

Diagram showing the 4D flexible floating head movement
Image 4: An illustration demonstrating the 4D flexible floating head's ability to pivot and adapt to various facial contours for a smooth shave.
SWZEC Sekoda Pro 8 with multiple interchangeable heads
Image 5: The SWZEC Sekoda Pro 8 displayed with its interchangeable multi-function heads, including a shaving head, a trimming head, and a facial cleansing brush.

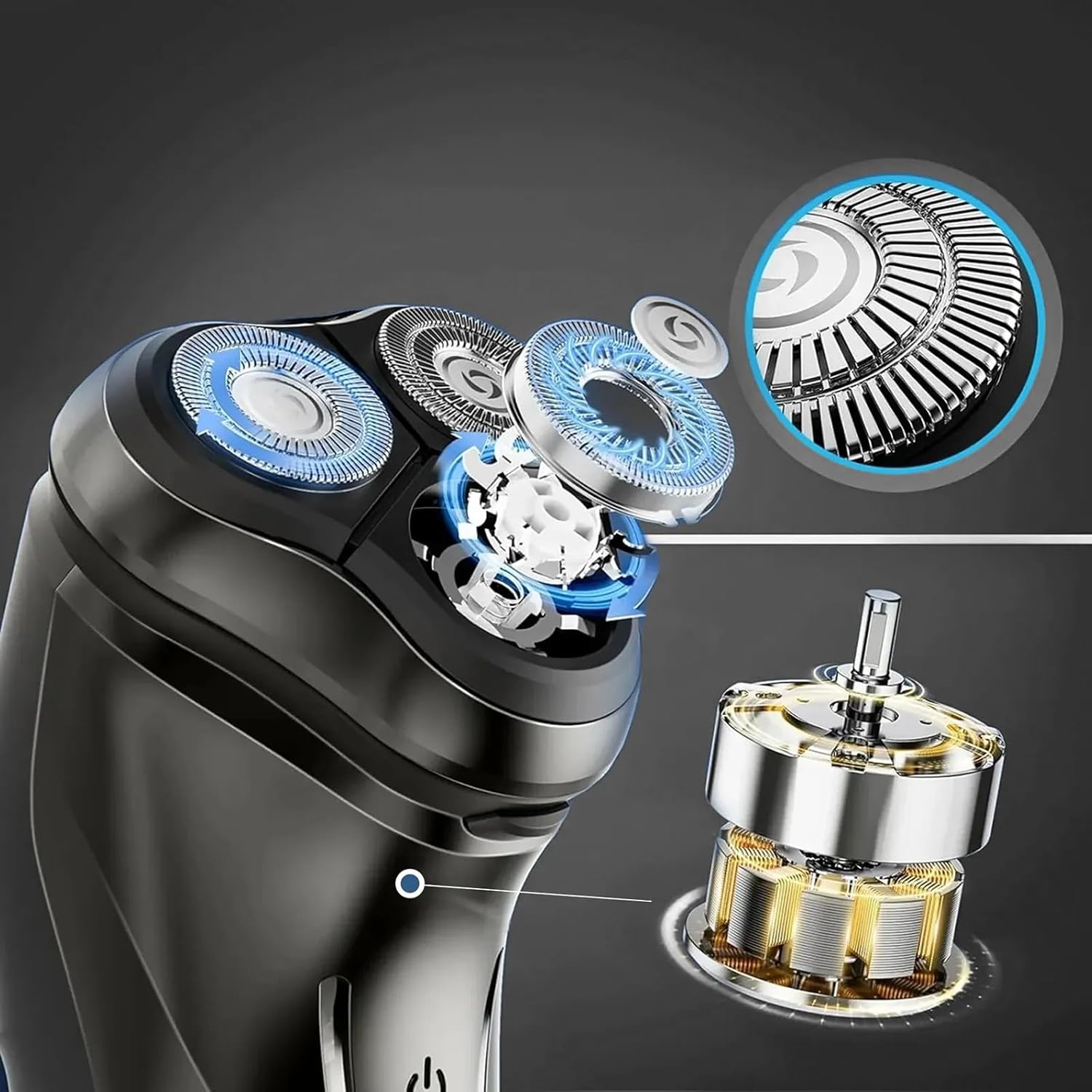

Exploded view of the shaver head and powerful motor
Image 6: An exploded view showing the intricate design of the shaver head and the powerful motor that drives the blades for efficient cutting.

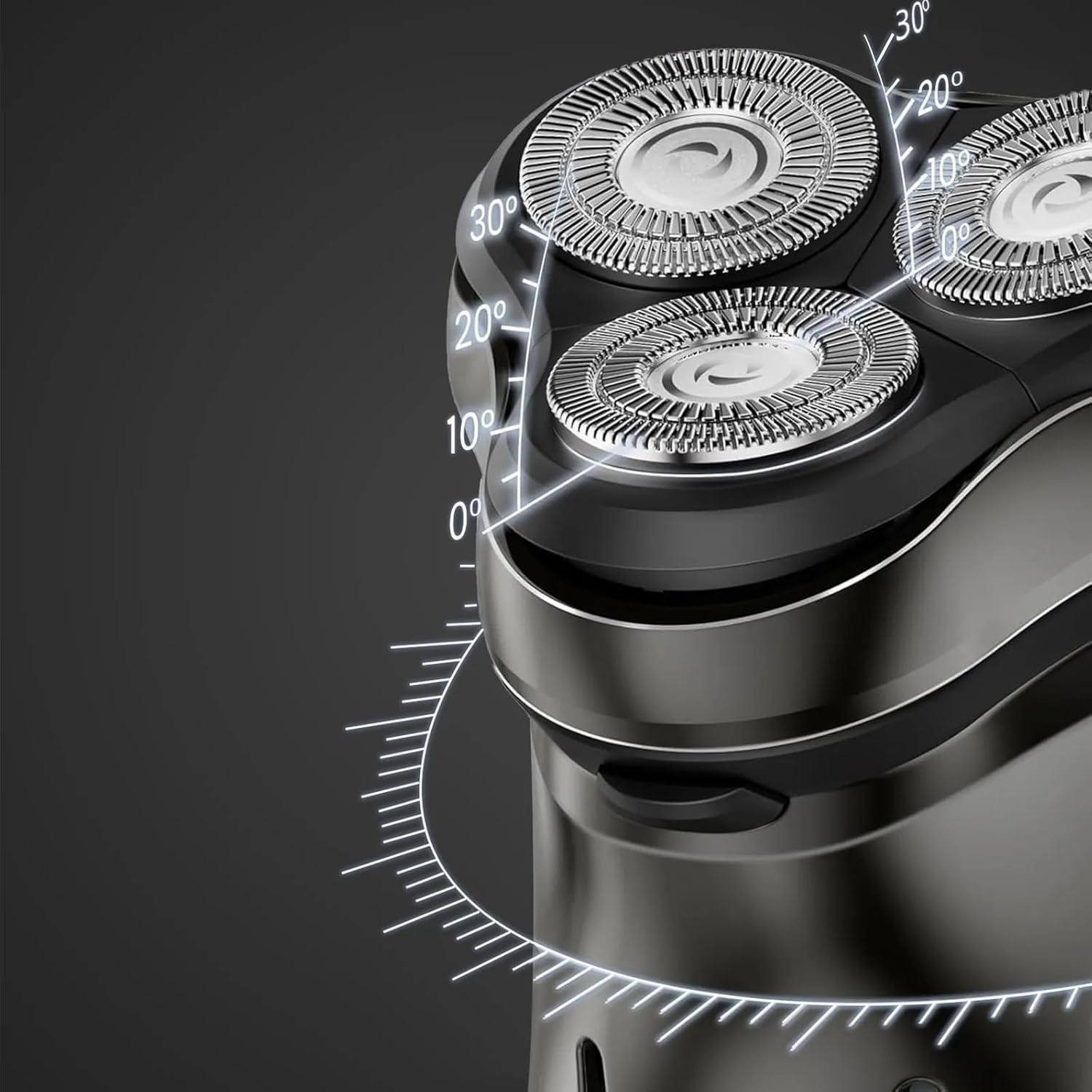

Diagram illustrating the shaver head's flexibility and angle adjustment
Image 7: A diagram illustrating the shaver head's ability to adjust its angle, ensuring optimal contact with the skin across various facial curves.

12. Product Videos

No official product videos from the seller are available for this specific model.

© 2025 SWZEC. All rights reserved.
