WOODTIME FZ5224 TV Stand Instruction Manual

1. Safety Information

Please read and understand all safety instructions before assembly and use of the WOODTIME FZ5224 TV Stand. Failure to follow these instructions may result in injury or product damage.

• Exercise caution with sharp edges on glass shelves and drawers during assembly and handling.
• Do not place heavy items directly on the glass top area to prevent potential damage or breakage.
• Ensure all components are securely fastened according to the assembly instructions to maintain structural integrity.
• Keep small parts and packaging materials away from children to prevent choking hazards.

2. Product Overview

The WOODTIME FZ5224 TV Stand is a modern entertainment center designed to accommodate TVs up to 85 inches. It features integrated 3-color LED lighting, two large drawers, and glass shelves for organized storage.

Figure 2.1: Front view of the WOODTIME FZ5224 TV Stand in a living room setting.

Key Features:

• Integrated LED Lighting: Adjustable in warm, neutral, and white light colors to enhance ambiance.
• Ample Storage: Two spacious drawers and two open glass shelves provide organized storage for media devices, remotes, and other items.
• Durable Construction: Made from thick MDF and tempered glass, with melamine-laminated boards for water and scratch resistance.
• Sleek Design: Black glass dividers complement the brown wood grain for a modern aesthetic.

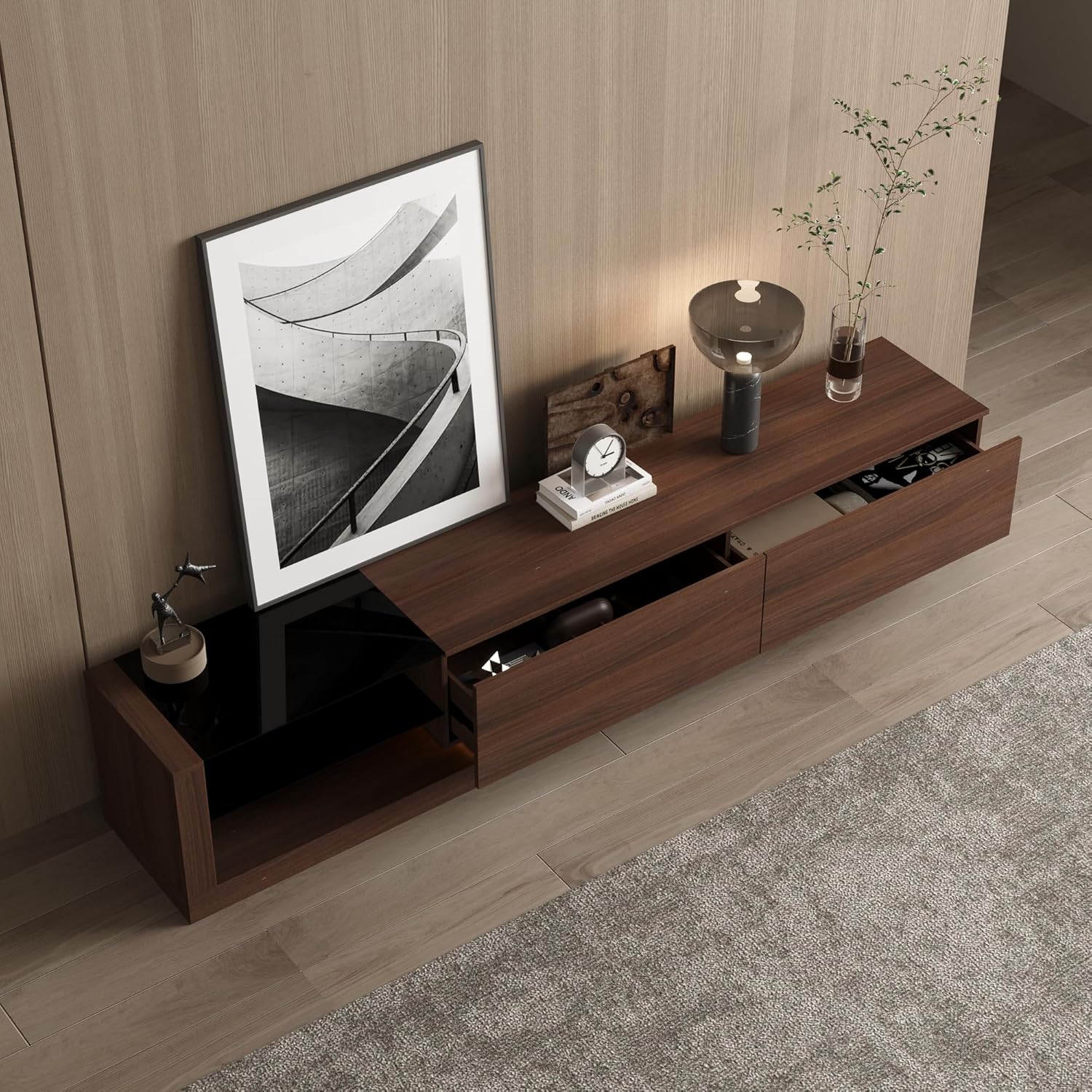

Figure 2.2: Top view illustrating the open drawers and glass shelf storage.

3. Setup and Assembly

The WOODTIME FZ5224 TV Stand requires assembly. An assembly manual with detailed instructions and illustrations is included in the packaging. Each piece is numbered to facilitate the assembly process.

Assembly Steps:

1. Unpack Components: Carefully remove all parts from the packaging and verify against the parts list in the assembly manual.
2. Identify Hardware: Separate and identify all screws, dowels, and other hardware.
3. Follow Manual Instructions: Adhere strictly to the step-by-step instructions provided in the included assembly manual.
4. Drawer Guide Installation: Pay close attention to the hole positions when assembling the drawer guide rails to ensure smooth operation.
5. LED Light Installation: Install the LED light strip as directed in the manual, ensuring proper connection.
6. Final Placement: Once assembled, place the TV stand on a level surface.

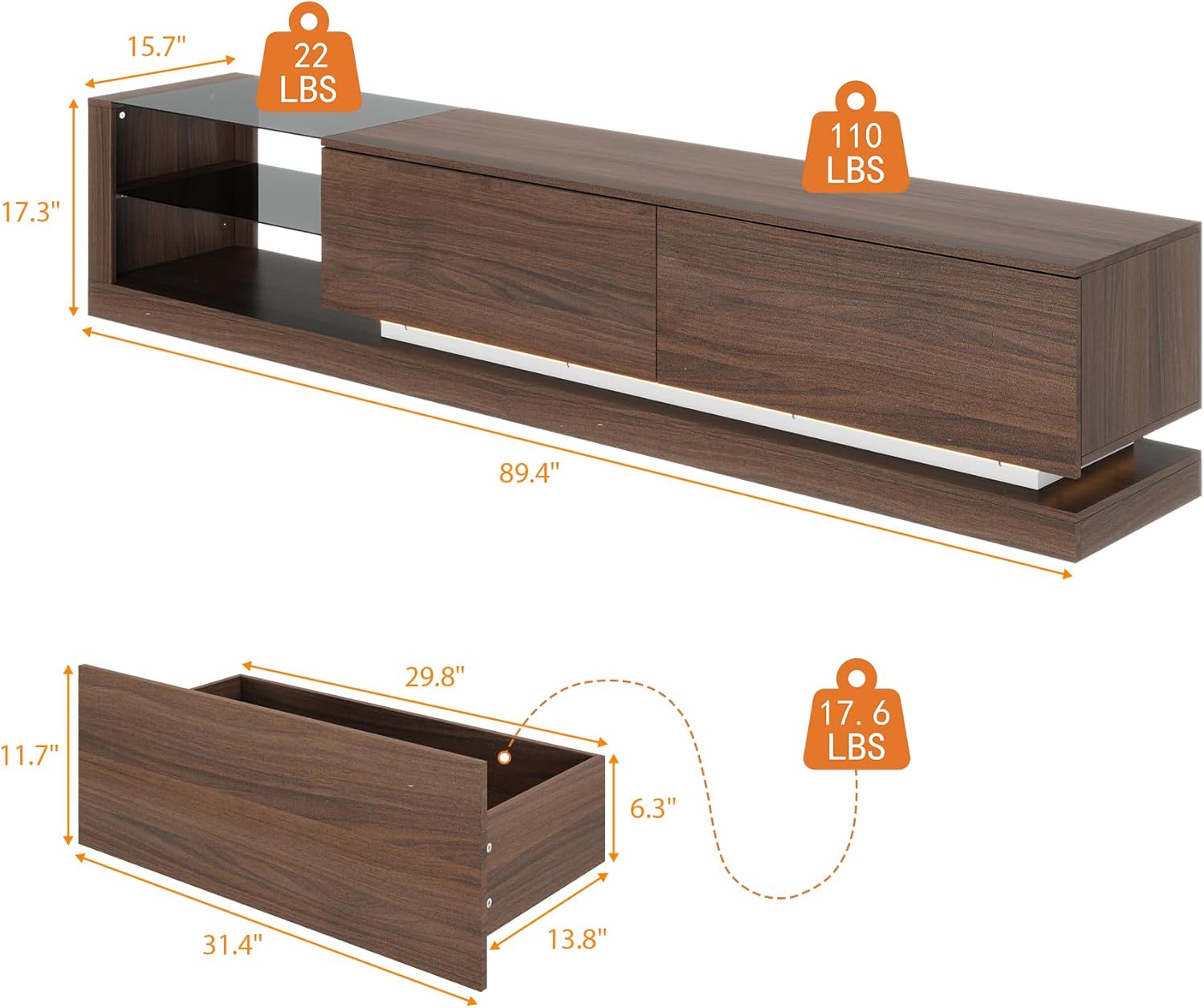

Figure 3.1: Product dimensions and drawer dimensions for assembly reference.

4. Operating Instructions

LED Lighting System:

The integrated LED lighting system offers three adjustable color options to suit your preference.

• Power On/Off: Use the designated switch or remote control (if included) to turn the LED lights on or off.
• Color Adjustment: Cycle through the three available colors (warm, neutral, white) using the control mechanism. Refer to the specific LED light manual for detailed operation if provided separately.

Figure 4.1: Illustration of the adjustable 3-color LED lighting options.

Drawer and Shelf Usage:

• Drawers: Gently pull and push the drawers to open and close. Avoid forcing them to prevent damage to the guide rails.
• Glass Shelves: Utilize the open glass shelves for displaying decorative items or storing media components. Ensure items placed on glass shelves are within their weight capacity.

Figure 4.2: Detail of the glass shelves for storage and display.

5. Maintenance

Proper maintenance will ensure the longevity and appearance of your WOODTIME FZ5224 TV Stand.

• Cleaning Surfaces: The melamine-laminated boards are waterproof and scratch-resistant. Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Glass Care: Clean glass shelves with a standard glass cleaner and a soft, lint-free cloth.
• Drawer Rails: Periodically check drawer guide rails for smooth operation. If necessary, clean any dust or debris and apply a small amount of silicone lubricant.
• LED Lights: Ensure the LED light strip remains free of dust. Do not attempt to disassemble the LED unit.
• Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.

6. Troubleshooting

If you encounter any issues with your WOODTIME FZ5224 TV Stand, refer to the following common troubleshooting tips:

• Drawers Not Sliding Smoothly:
  • Check if the drawer guide rails are properly aligned and free of obstructions.
  • Ensure all screws securing the rails are tightened.
  • Clean the rails and apply a silicone-based lubricant if needed.
• LED Lights Not Functioning:
  • Verify that the power adapter is securely plugged into both the TV stand and a working power outlet.
  • Check the connection of the LED strip to its power source.
  • Ensure the power switch or remote control (if applicable) is functioning correctly.
• Stand Appears Unstable:
  • Confirm that the TV stand is placed on a flat, level surface.
  • Re-check all assembly hardware to ensure every screw and fastener is securely tightened.

If problems persist after attempting these solutions, please contact customer support.

7. Specifications

8. Warranty and Support

While specific warranty details are not provided, WOODTIME is committed to customer satisfaction.

• Assembly Assistance: The assembly manual includes instructions and illustrations. If you have questions during assembly, refer to the manual or contact support.
• Customer Support: For any questions, concerns, or issues regarding your WOODTIME FZ5224 TV Stand, please contact WOODTIME customer service. Inquiries are typically responded to within 24 hours.
• Contact Information: Refer to your purchase documentation or the WOODTIME official website for the most current customer support contact details.
