Generic 1200W Cordless Chainsaw User Manual

1. Introduction and Overview

This manual provides instructions for the safe assembly, operation, maintenance, and troubleshooting of your Generic 1200W Cordless Chainsaw. This powerful tool is designed for efficient wood cutting and trimming, featuring a 12-inch blade and two 108V batteries for extended use. Please read this manual thoroughly before operating the chainsaw to ensure safe and effective use.

Key features include:

• Powerful 1200W motor for home and professional applications.
• Two long-lasting 108V batteries for extended operation.
• 12-inch blade with a sharp chain for precise cutting.
• Cordless design for full mobility.
• Ergonomic design with a comfortable and secure grip.
• Lightweight and comfortable for high pruning and hard-to-reach areas.

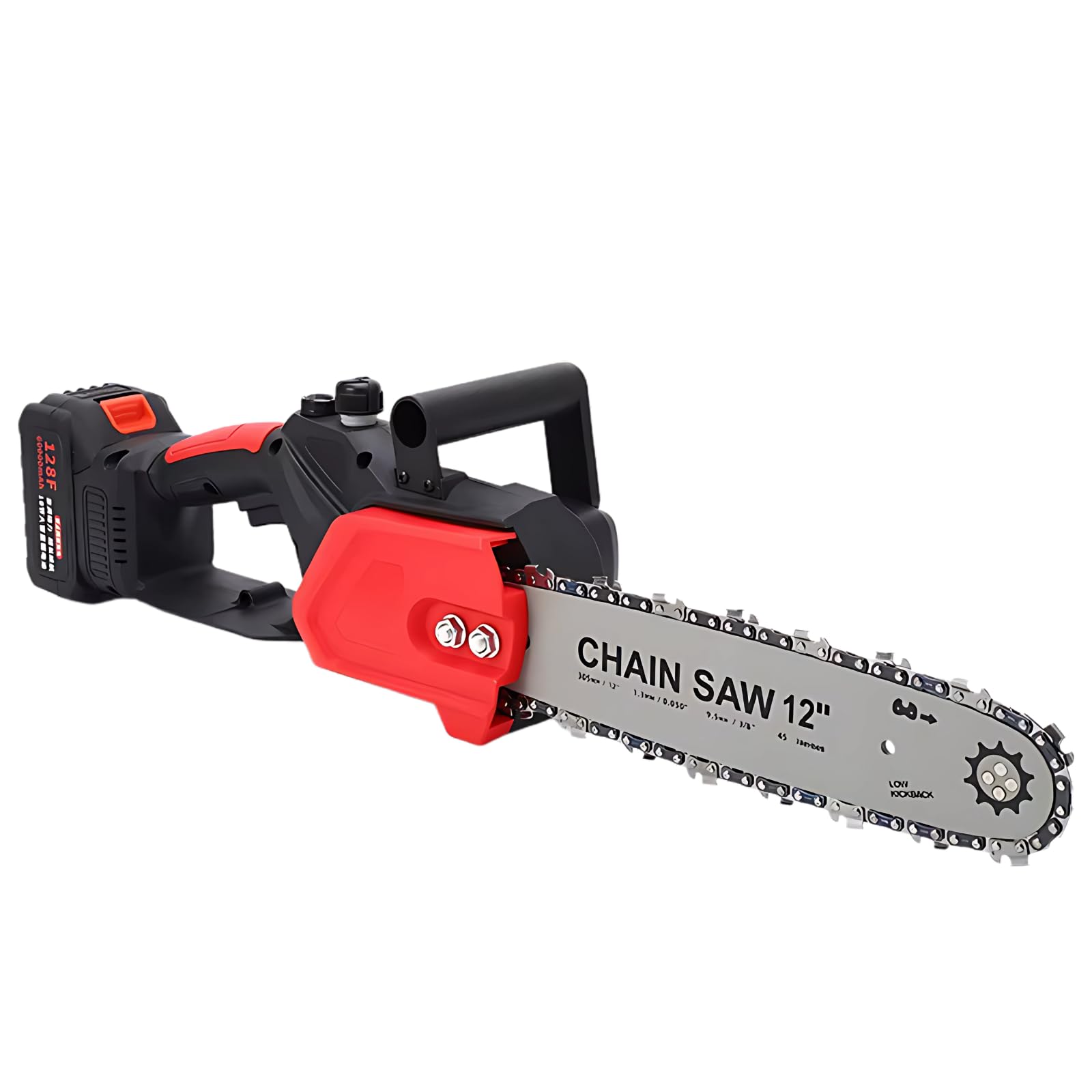

Image shows the Generic 1200W Cordless Chainsaw, highlighting its compact design and the included 12-inch blade.

2. Safety Instructions

Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury or property damage.

• Read the Entire Manual: Understand all warnings, instructions, and procedures before use.
• Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, gloves, and sturdy footwear. A hard hat and leg protection are also recommended.
• Work Area: Ensure the work area is clear of bystanders, children, and pets. Maintain good footing and balance.
• Weather Conditions: Do not operate the chainsaw in wet conditions, rain, or extreme cold.
• Battery Safety: Use only the specified batteries and charger. Do not expose batteries to water, heat, or direct sunlight.
• Kickback Prevention: Be aware of kickback risks. Avoid cutting with the tip of the guide bar. Maintain a firm grip with both hands.
• Maintenance: Regularly inspect the chainsaw for damage, loose parts, or dull chains. Perform maintenance as described in this manual.
• Storage: Store the chainsaw and batteries in a dry, secure place, out of reach of children.

3. Package Contents

Verify that all items are present in the package:

• 1 x Cordless Chainsaw Unit
• 2 x 108V Batteries
• 1 x 12-inch Guide Bar
• 1 x Sharp Chain
• 1 x Fast Charger
• 1 x Blade Protection Cover
• 1 x Heavy-Duty Carrying Case

4. Setup

Follow these steps to prepare your chainsaw for first use:

1. Charge Batteries: Insert both 108V batteries into the fast charger. Allow them to charge fully before first use. The charger indicator light will change when charging is complete.
2. Install Guide Bar and Chain:
   • Ensure the chainsaw is off and the battery is removed.
   • Remove the side cover by loosening the retaining nuts.
   • Place the chain around the drive sprocket and then guide it into the groove of the 12-inch guide bar.
   • Fit the guide bar onto the chainsaw studs, ensuring the chain tensioning pin engages with the hole in the guide bar.
   • Replace the side cover and hand-tighten the retaining nuts.
3. Adjust Chain Tension:
   • Using the chain tensioning screw, adjust the chain tension. The chain should be snug against the guide bar but still able to be pulled freely by hand.
   • Once tension is correct, fully tighten the retaining nuts.
4. Install Battery: Insert a fully charged 108V battery into the battery compartment until it clicks into place.

5. Operating Instructions

Before operating, ensure you have read and understood all safety instructions.

1. Pre-Operation Check:
   • Check chain tension and sharpness.
   • Ensure all nuts and bolts are tight.
   • Verify the battery is fully charged and securely installed.
   • Confirm the work area is clear of obstructions and bystanders.
2. Starting the Chainsaw:
   • Hold the chainsaw firmly with both hands, ensuring a secure grip.
   • Engage the safety lock-off button (if present).
   • Press the trigger switch to start the motor. The chain will begin to move.
3. Cutting Technique:
   • Always stand to the side of the cutting path, not directly behind the chainsaw.
   • Begin cutting with the bottom of the guide bar, allowing the chain to pull into the wood.
   • Apply steady, even pressure. Do not force the chainsaw through the wood.
   • Be aware of potential kickback, especially when cutting with the upper quadrant of the guide bar tip.
   • For larger branches or logs, make relief cuts to prevent pinching.
4. Stopping the Chainsaw: Release the trigger switch. The chain should stop quickly.
5. After Use: Remove the battery from the chainsaw when not in use or during maintenance.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your chainsaw. Always remove the battery before performing any maintenance.

• Chain Sharpening: A sharp chain is crucial for safe and efficient cutting. Sharpen the chain regularly or replace it when dull. Refer to a specialized guide or professional service for proper sharpening techniques.
• Chain Lubrication: Ensure the chain is adequately lubricated before and during operation. Check the oil reservoir (if applicable) and refill with appropriate chain oil.
• Cleaning: After each use, clean sawdust, debris, and resin from the guide bar, chain, and motor housing. Use a brush or compressed air.
• Guide Bar Maintenance: Periodically flip the guide bar to ensure even wear. Clean the guide bar groove to remove debris.
• Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods.
• General Inspection: Regularly check for loose fasteners, damaged components, or excessive wear. Replace worn or damaged parts immediately.

7. Troubleshooting

If you encounter issues with your chainsaw, refer to the following common problems and solutions:

For issues not listed here or if solutions do not resolve the problem, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact the retailer. If you require technical assistance or have questions regarding the operation or maintenance of your Generic 1200W Cordless Chainsaw, please contact the manufacturer or your point of purchase for support.
