VELOCAVA Queen Size Upholstered Platform Bed Frame Instruction Manual

1. Introduction

Thank you for choosing the VELOCAVA Queen Size Upholstered Platform Bed Frame. This manual provides detailed instructions for assembly, usage, maintenance, and troubleshooting to ensure a safe and enjoyable experience with your new bed frame. This bed frame features a modern split-panel headboard, plush velvet-like fabric upholstery, sturdy wooden slats, and wood-look tapered legs, designed for comfort and durability without the need for a box spring.

2. Safety Information

Important Safety Warnings:

• Ensure both boxes have arrived before starting assembly. The bed ships in two separate boxes, which may arrive on different days.
• Follow assembly instructions carefully to prevent instability and potential injury.
• Be cautious of sharp edges and pinch points during assembly and use.
• Do not overtighten screws, as this may damage the components.
• Keep small parts away from children to avoid choking hazards.
• Periodically check all connections to ensure they remain tight and secure.
• Do not stand on the bed frame or use it as a ladder.

3. Package Contents

Please verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact VELOCAVA customer support.

• Upholstered Headboard (Split Panel)
• Side Rails (Left and Right)
• Footboard
• Center Support Beam
• Wooden Slats (30 for Queen size)
• Wood-Look Tapered Legs
• Assembly Hardware (Screws, bolts, washers, Allen wrench)
• Instruction Manual

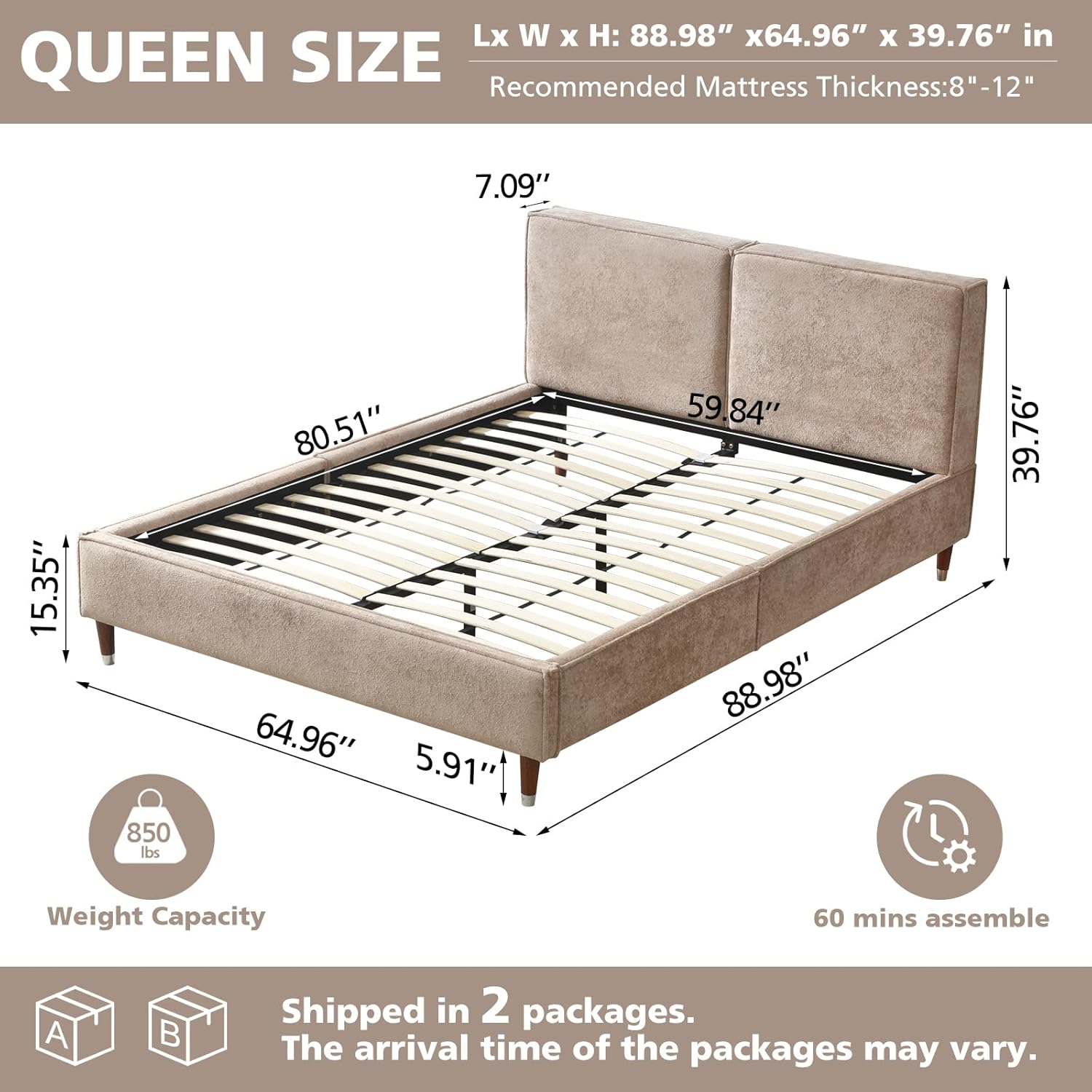

Figure 3.1: Overview of bed frame dimensions and components. Note the 5.91-inch under-bed clearance and the two-box delivery indication.

4. Assembly Instructions

Assembly is estimated to take approximately 60 minutes with two people. Please follow these steps carefully.

Step 4.1: Unpack and Identify Parts

Carefully unpack all components from both boxes. Lay them out on a clean, soft surface to prevent scratches. Identify each part using the provided parts list.

Step 4.2: Attach Legs to Headboard and Footboard

Secure the wood-look tapered legs to the headboard and footboard using the provided hardware. Ensure they are tightened firmly but do not overtighten.

Step 4.3: Connect Side Rails to Headboard and Footboard

Attach the side rails to the headboard and footboard using the designated bolts and washers. Ensure all connections are flush and secure. It is recommended to have a second person assist with holding the components during this step.

Step 4.4: Install Center Support Beam

Place the center support beam into the designated slots or brackets along the length of the bed frame. Secure it with the provided hardware. This beam provides crucial central support for the mattress.

Step 4.5: Lay Out Wooden Slats

Unroll or individually place the wooden slats across the bed frame, ensuring they are evenly spaced. The slats are designed to provide stable mattress support and improve airflow, eliminating the need for a box spring. Secure the slats using any provided fasteners or Velcro strips.

Figure 4.1: Details of the slat support system and upholstery. The image highlights the easy assembly, plywood slats, plush velvet, and overall material quality.

Step 4.6: Final Check

Once all components are assembled, double-check all bolts and screws to ensure they are securely tightened. The bed frame is now ready for your mattress.

5. Usage and Operation

5.1 Mattress Compatibility

This VELOCAVA platform bed frame is designed for a Queen size mattress. A mattress thickness of 8 to 12 inches is recommended for optimal comfort and headboard visibility. The embedded design of the frame helps prevent mattress sliding.

Figure 5.1: Recommended mattress height and the embedded design feature.

5.2 Under-Bed Clearance

The bed frame features a 5.91-inch clearance from the floor, allowing for easy cleaning underneath and accommodating robotic vacuums. This space can also be utilized for compact storage solutions.

Figure 5.2: Under-bed storage and cleaning clearance.

6. Maintenance and Care

6.1 Upholstery Care

The bed frame is upholstered in a velvet-like polyester fabric. To maintain its appearance:

• Regularly vacuum the fabric with a soft brush attachment to remove dust and debris.
• For spills, blot immediately with a clean, dry cloth. Do not rub, as this can spread the stain.
• For tougher stains, use a mild fabric cleaner specifically designed for polyester upholstery. Test on an inconspicuous area first.
• Avoid direct sunlight exposure for prolonged periods to prevent fading.

6.2 Frame and Legs Care

Wipe the wood-look legs and any exposed frame components with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners.

7. Troubleshooting

7.1 Squeaking Noises

If the bed frame develops squeaking noises, check all bolts and screws. Tighten any loose connections. Ensure the wooden slats are properly seated and not rubbing against the frame.

7.2 Instability

If the bed frame feels unstable, re-check all assembly steps. Ensure all hardware is correctly installed and tightened. Verify that the center support beam is properly positioned and secured.

7.3 Missing or Damaged Parts

If you discover any missing or damaged parts upon delivery or during assembly, please do not proceed with assembly. Contact VELOCAVA customer support immediately for assistance.

8. Specifications

9. Warranty and Customer Support

For any product-related questions, concerns, or assistance with missing/damaged parts, please contact VELOCAVA customer support. Refer to your purchase documentation for specific warranty details. Our team is available to provide support and ensure your satisfaction.

For further assistance, please visit the VELOCAVA Store on Amazon.
